DUOTTS S26 Electric Bike(Specs)
General Spec
| Category | Specification |
|---|---|
| Frame | All-aluminum alloy |
| Brake | Front and rear DYISLAND hydraulic brake |
| Front Fork | Perfect shock-proof front fork with aluminum shoulders and iron legs |
| Range | 40-60 km (pure electric mode), 100-120 km (auxiliary mode) (Actual performance may vary depending on temperature, road conditions, rider weight, etc.) |
| Speed | 25 km/h (Speed limit set at 25 km/h, motor stops providing power at max speed, but can still ride above the limit with muscle strength) |
| Net Weight | 39.8 kg |
| Certificate | CE certification |
| Product Size | 19501100710 mm |
| Package Size | 1550340830 mm |
| Tyre Size | 26*4.0 inches |
| Assist Intelligent | Level 0-5 pedal assist |
| Angle of Climb | Maximum climbing angle 55° |
| Rider Heights | 170-200 cm |
| Weight Capacity | 150 kg |
| Waterproof Class | IPX4 (Can withstand light rain or rain sputtering but should not be directly flushed or exposed to heavy rain) |
| Working Temperature | -10 ~ 40 ℃ (Not recommended for use in bad weather) |
| Package Content | Complete vehicle, multi-function installation tool, mobile phone holder bag, pump, manual |
Electronic Spec
| Category | Specification |
|---|---|
| Motor | 48V 750W*2 |
| Torque | 65 NM*2 |
| Battery | Samsung 48V 20AH |
| Battery Charger | 54.6V 3A |
| Charger Time | 6-8 hours |
| Sensor | Speed sensor |
| Throttle | Electric half throttle |

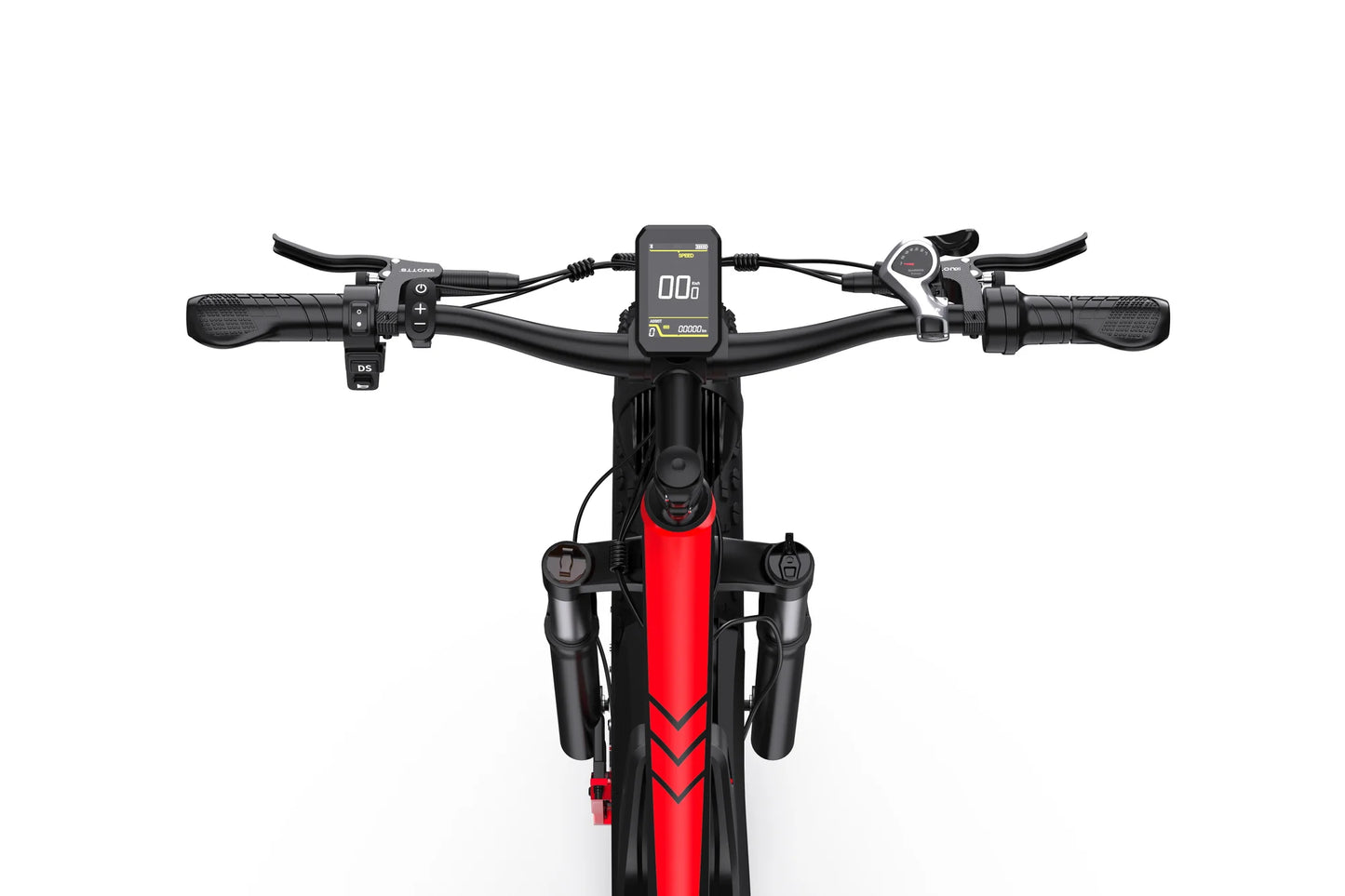

| Display | 5-speed multifunction LCD display |
| Smart Connect | Bluetooth connection APP, can connect via DUOTTS APP |
Components Spec
| Category | Specification |
|---|---|
| Transmission | Shimano 7-speed |
| Suspension | Front fork shock absorber + rear shock absorber (Aluminum/oil spring /1000 LBS) |
| Brakes | Left and right power off brake, front and rear DYISLAND hydraulic brake |
| Brake Disc | 180mm diameter |
| Headlight | Stainless steel front frame light |
| Tail Light | Stainless steel rear taillights |
| Pedals | Aluminum alloy with general reflector/black/L+R label |
| Fenders | Front and rear plastic mud boards/iron ED brackets |
| Rear Carrier | Iron non-adjustable shelves (user installation required) |
DUOTTS S26 Electric Bike(Size)
| Specification | Measurement |
|---|---|
| Recommended Height | 170-200cm |
| Load Capacity | Max 150kg |
| Bicycle Weight | 39.8kg |
| Seat Height (Maximum) | 112cm |
| Seat Height (Minimum) | 88cm |
| Rear Rack Height | 84cm |
| Wheelbase | 120cm |
| Rear Chainstay | 41cm |
| Seat Tube | 36cm |
| Top Tube | 57cm |
| Down Tube | 57cm |
| Front Fork | 66cm |
| Wheel Height | 73cm |
| Bike Height | 121cm |
| Bike Length | 191cm |
DUOTTS S26 Electric Bike(Whats in the box)
| Category | Items |
|---|---|
| Tools | No.4 Hex Key, No.5 Hex Key, Phillips Head Screwdriver, No.10 & 12 Wrench, No.13 & 15 Wrench |
| Electronic | Charger |
| Accessories | Bicycle Pedals, Pump, Bike Manual |
