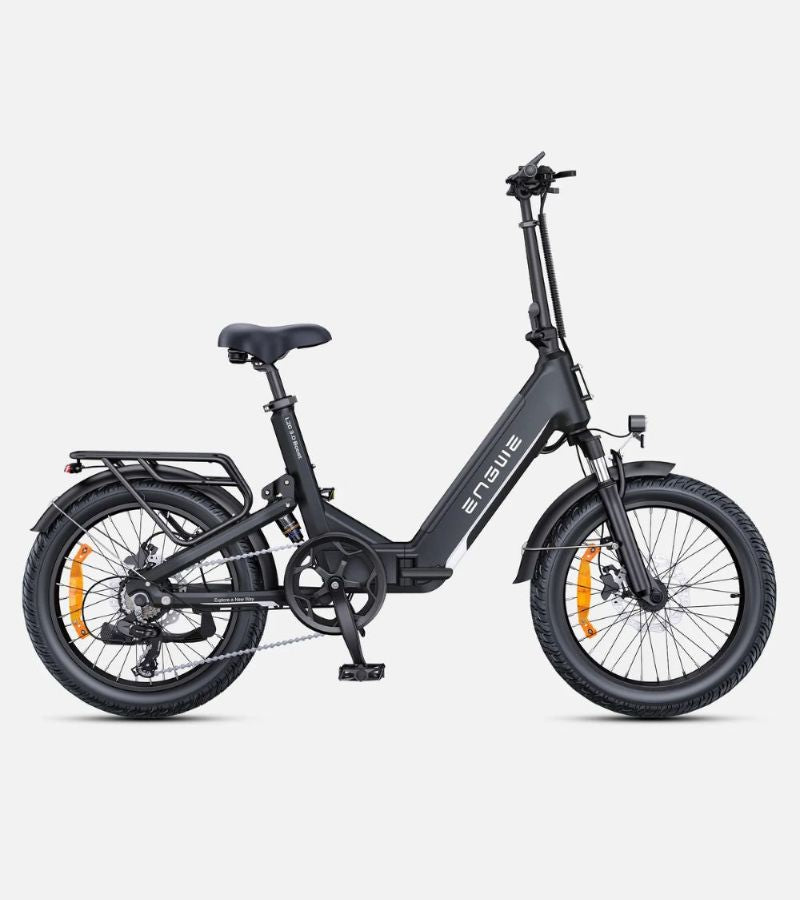

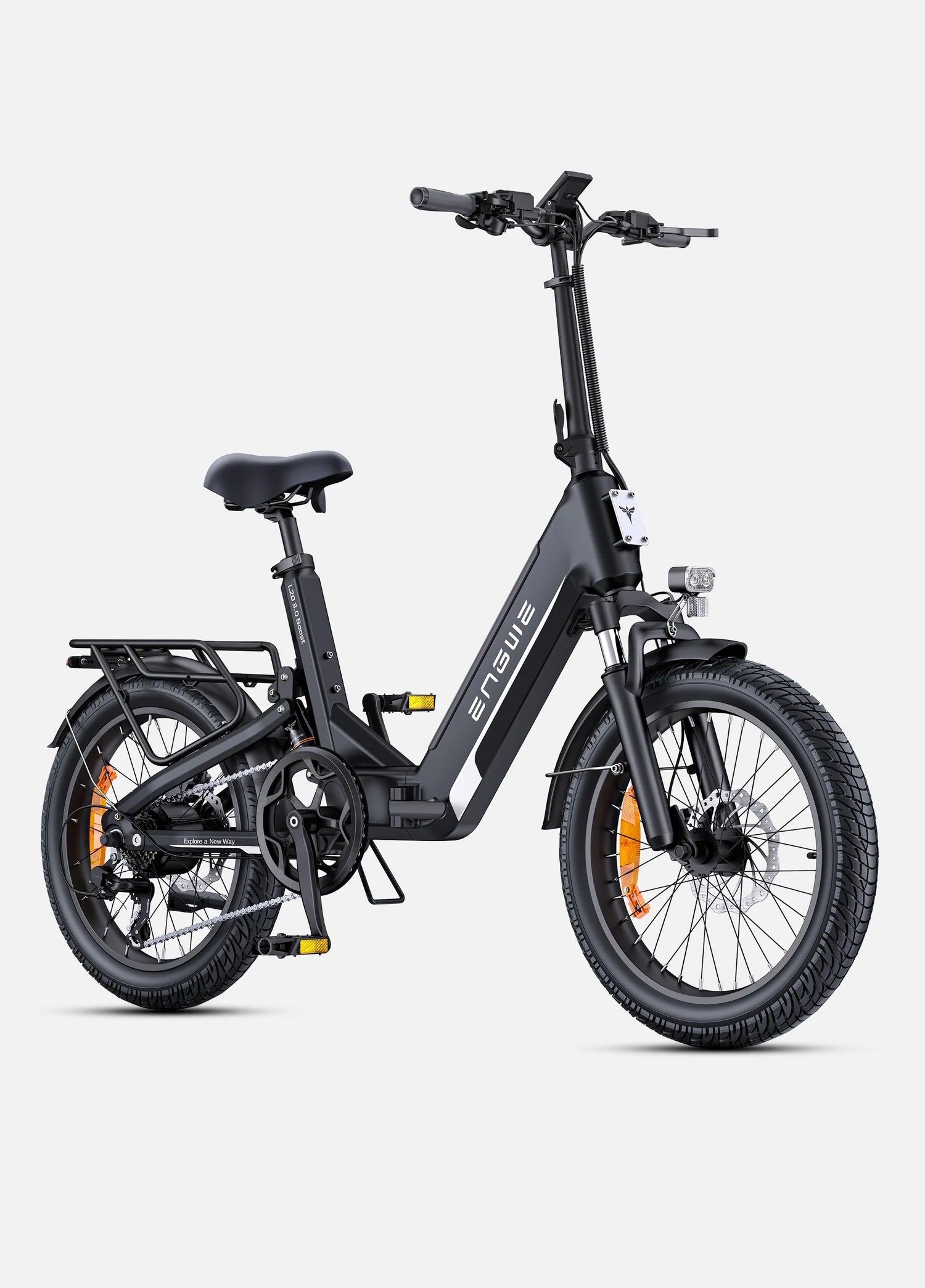

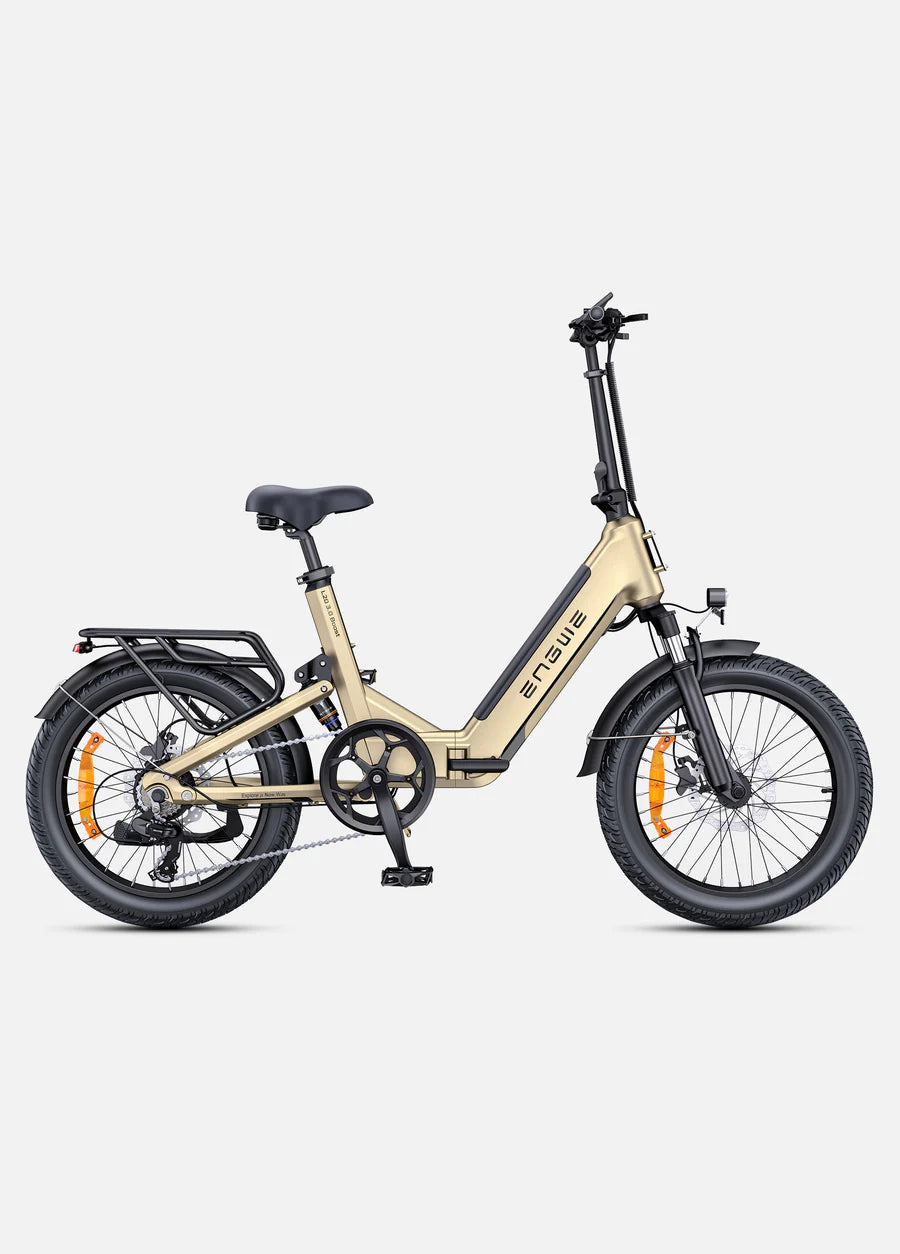

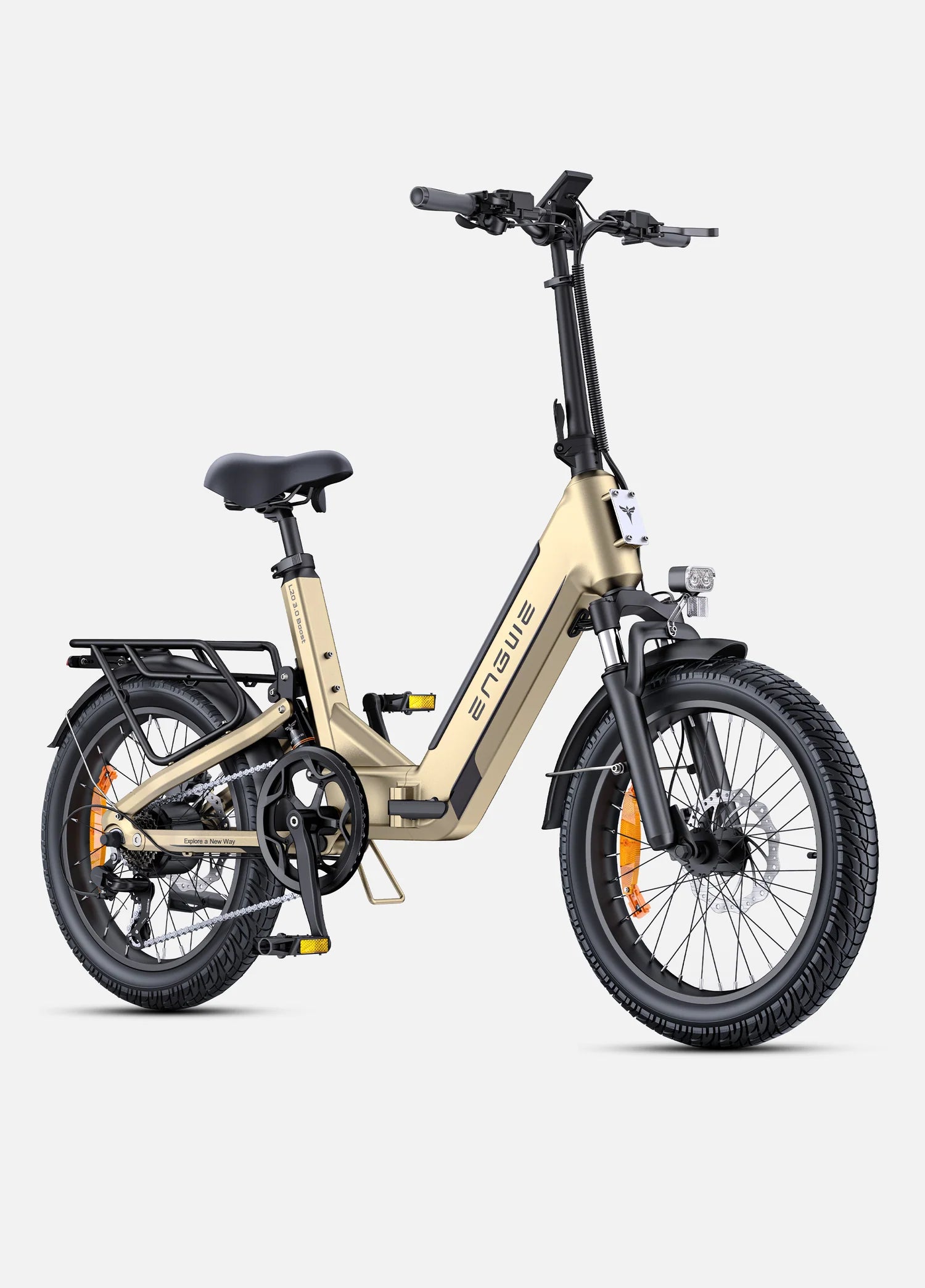

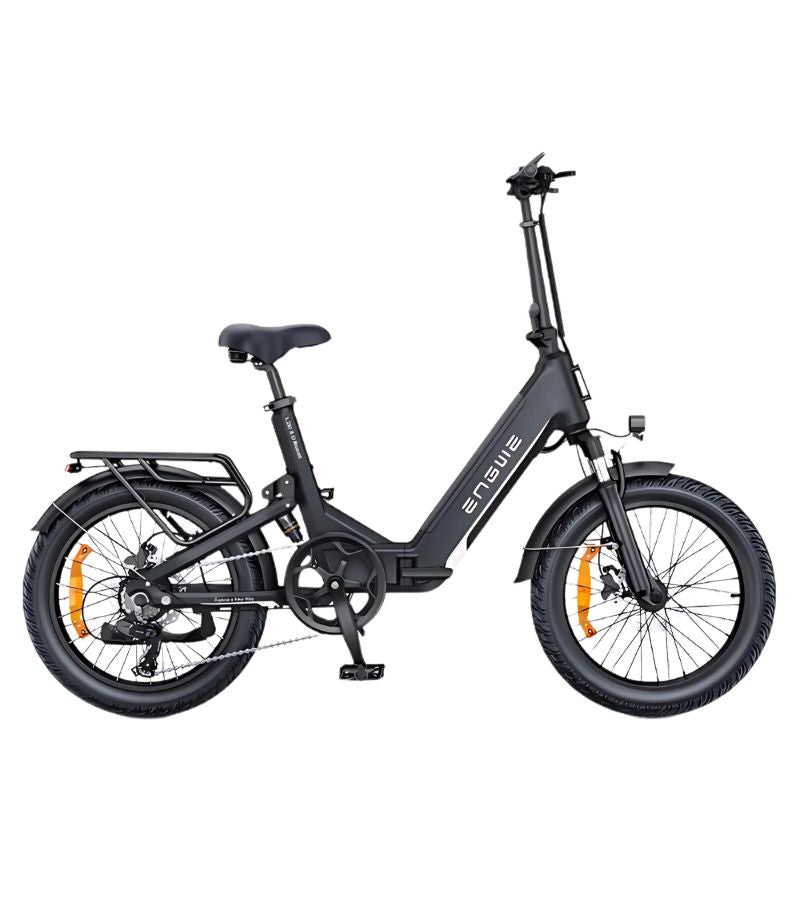

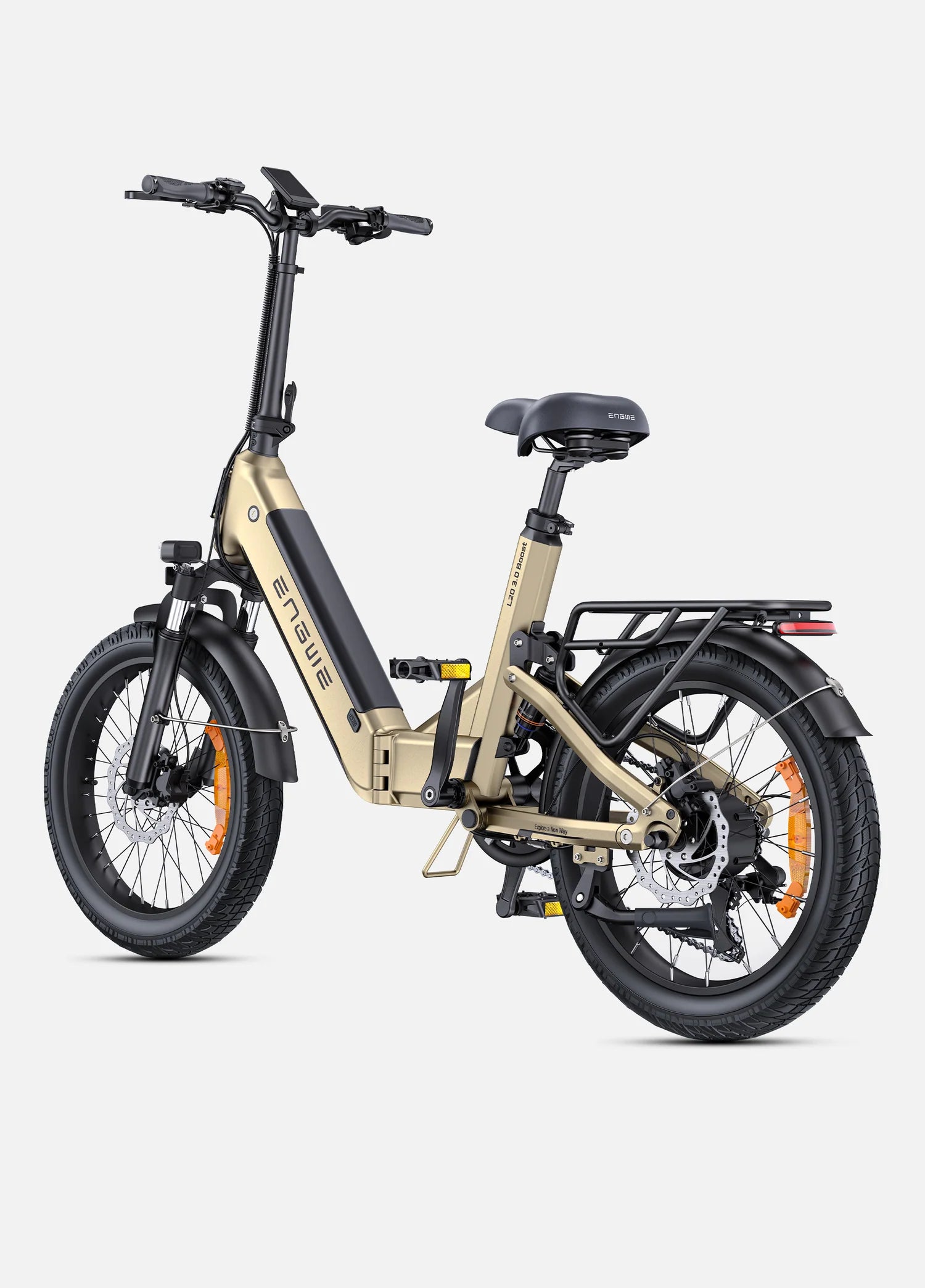

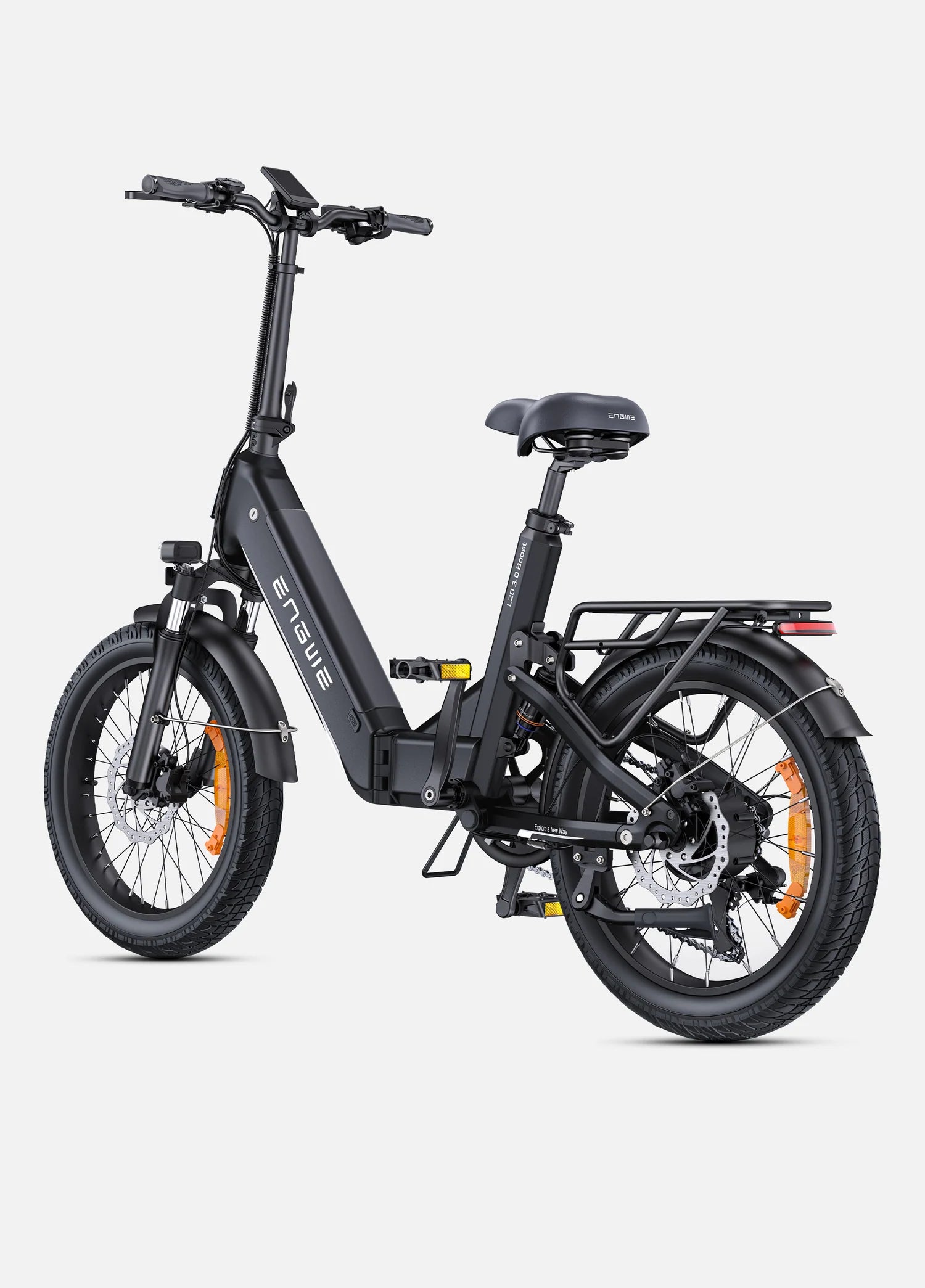

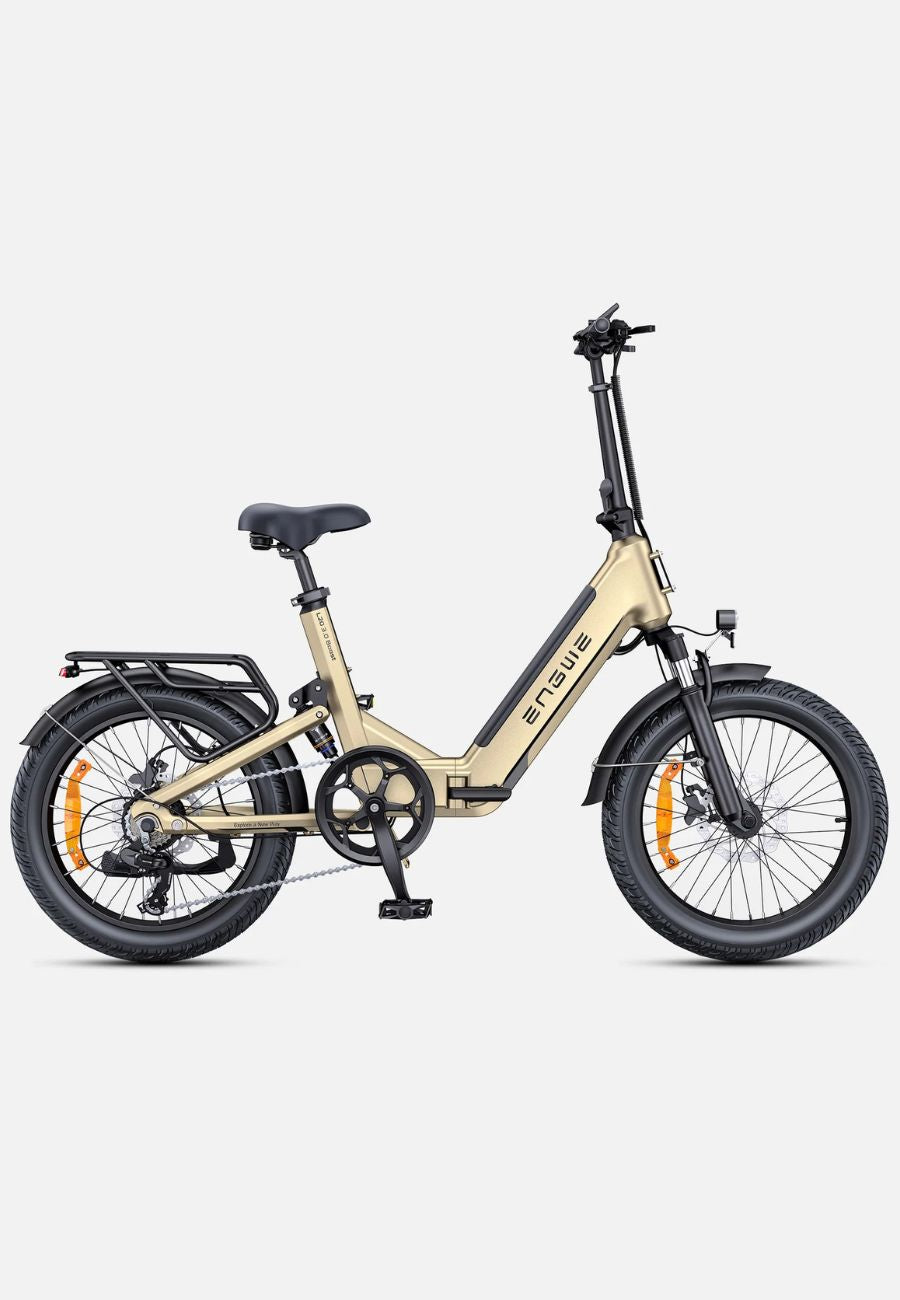

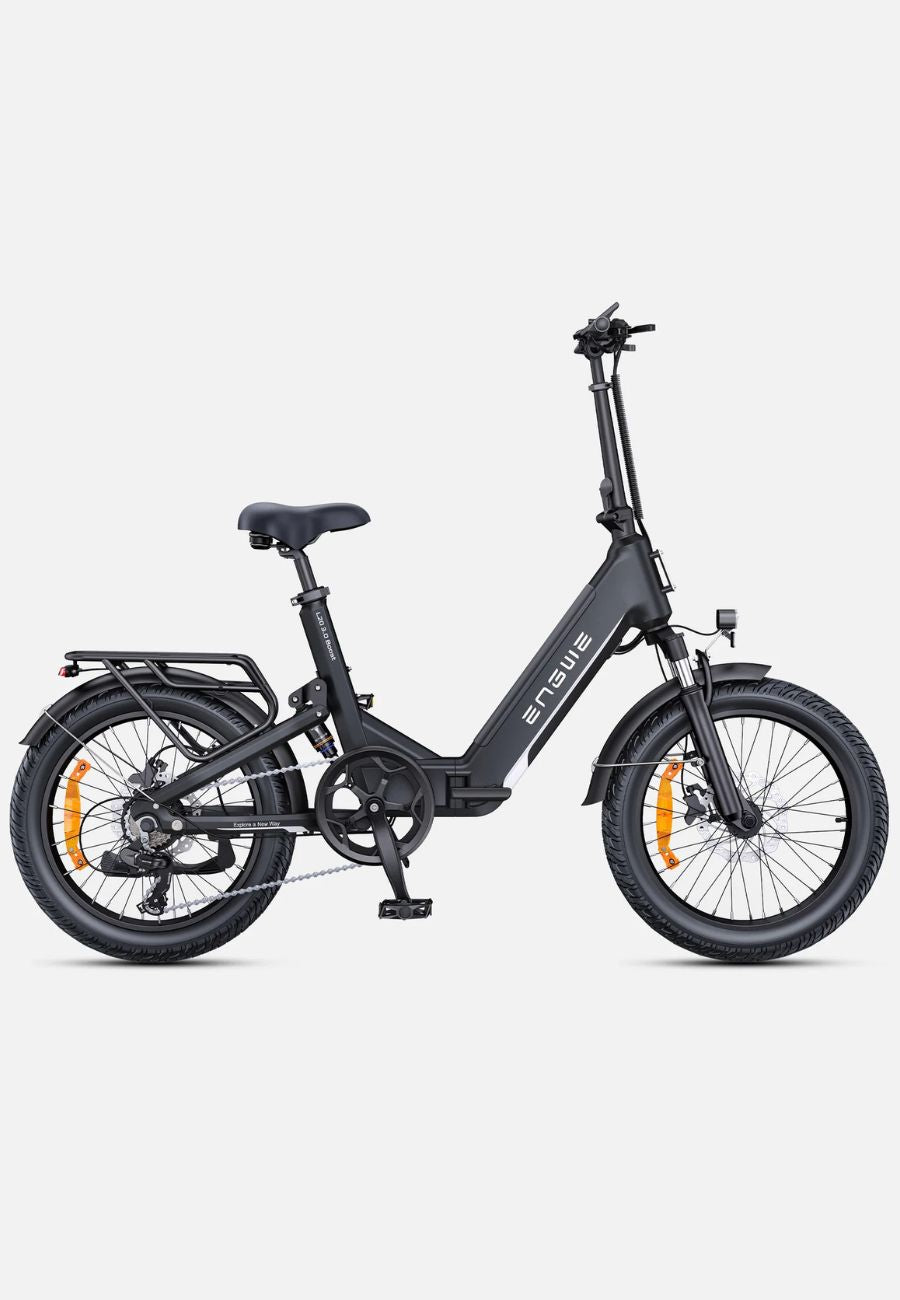

Engwe L20 3.0 Boost 250W 75Nm Full Suspension Compact Electric Bike 120KM Range 48V 13.5Ah Battery
Engwe L20 3.0 Boost 250W 75Nm Full Suspension Compact Electric Bike 120KM Range 48V 13.5Ah Battery
- Shipping: Free-in-EU
- Delivery: 3-7 Business days
- Return time: 30days
În stoc
Frequently Bought Together
Nu am putut încărca disponibilitatea pentru ridicare
Engwe L20 3.0 Boost 250W 75Nm Full Suspension Compact Electric Bike 120KM Range 48V 13.5Ah Battery(Specs)
| Category | Details |
|---|---|
| Model | L20 3.0 Boost |
| Max Load Capacity | 150 kg (330 lbs) |
| Ride Height | 5'1" – 6'3" (155 cm – 190 cm) |
| Certification | CE (EN15194) |
| Pedal Assist | 5 Levels |
| Foldable | Yes |
| Lab-Tested Range | 135 km (Fully Charged) |
| Real-World Range | 120 km (PAS 1) / 100 km (PAS 3) / 85 km (PAS 5) |
| Waterproof Ratings | IPX7 (Wiring), IPX6 (Display & Lights), IPX5 (Motor & Controller), IPX4 (Battery Box) |
| Terrain Compatibility | Roads, Gravel, Beaches, Grass, Country Trails |
| Bike Weight | 33.2 kg (73.2 lbs) |
| Gross Weight | Approx. 42 kg (92.6 lbs) |
| Frame Material | 6061 Aluminum Alloy, Step-Through, Internal Battery |
| Frame Style | Compact, Full Suspension |
| Fork | Hydraulic, Adjustable Lockout (Aluminum & Iron) |
| Rear Suspension | 30 mm Travel |

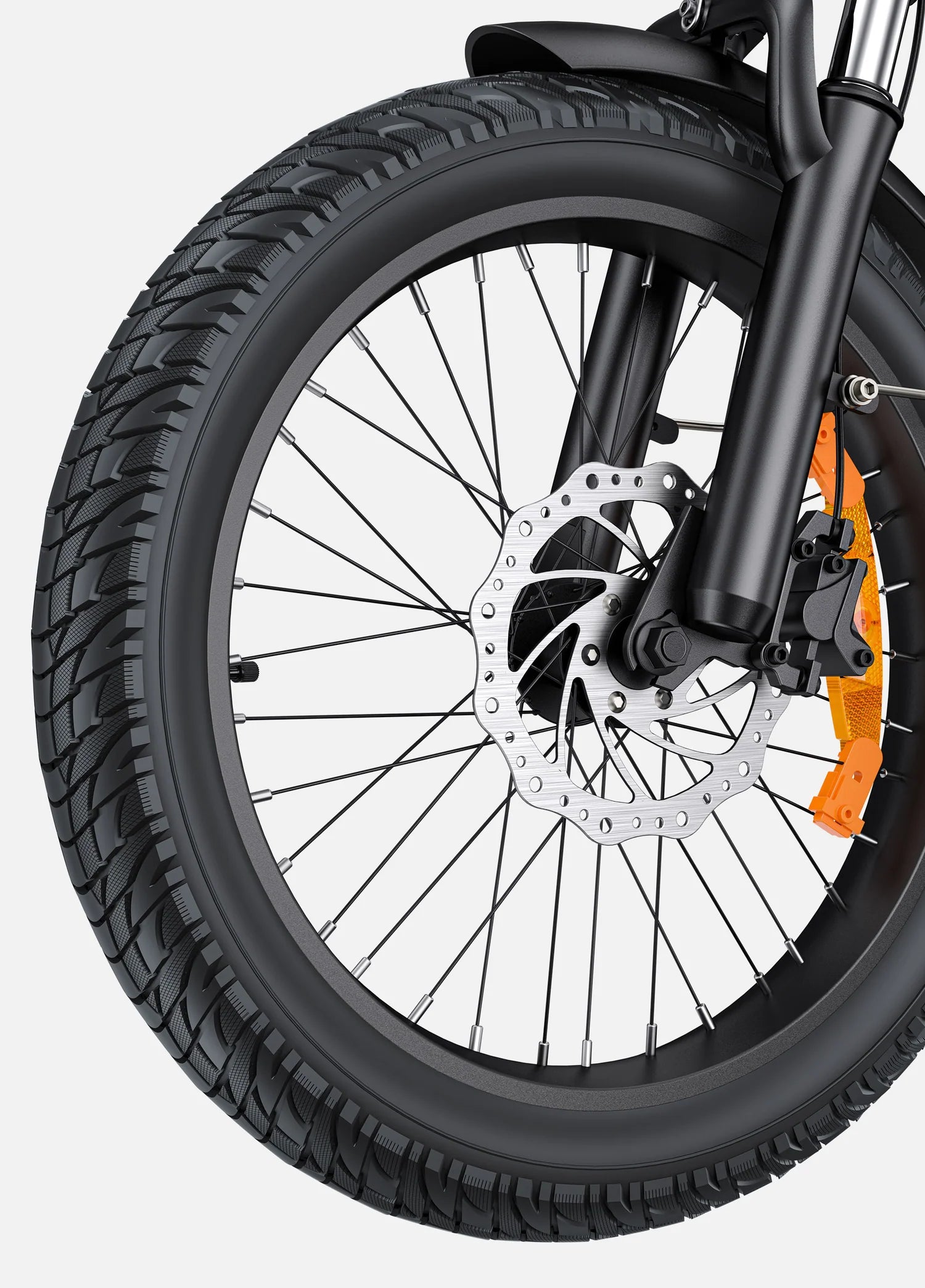

| Tires | 20" × 3.0" Urban Hybrid Tires with 3mm Anti-Puncture Layer |
| Wheels | 20", 12-gauge Spokes, 36-hole, Double-Wall Aluminum |
| Motor | 48V Hub Motor |
| Max Torque | 75 Nm |
| Assist System | Torque Sensor |
| Battery | 48V 13.5Ah (648Wh), 21700 Cells with BMS |
| Display | 3.5" LED Color Display (ENGWE-Designed), Mid-Position, with Bluetooth |
| ENGWE App | App Control Available |

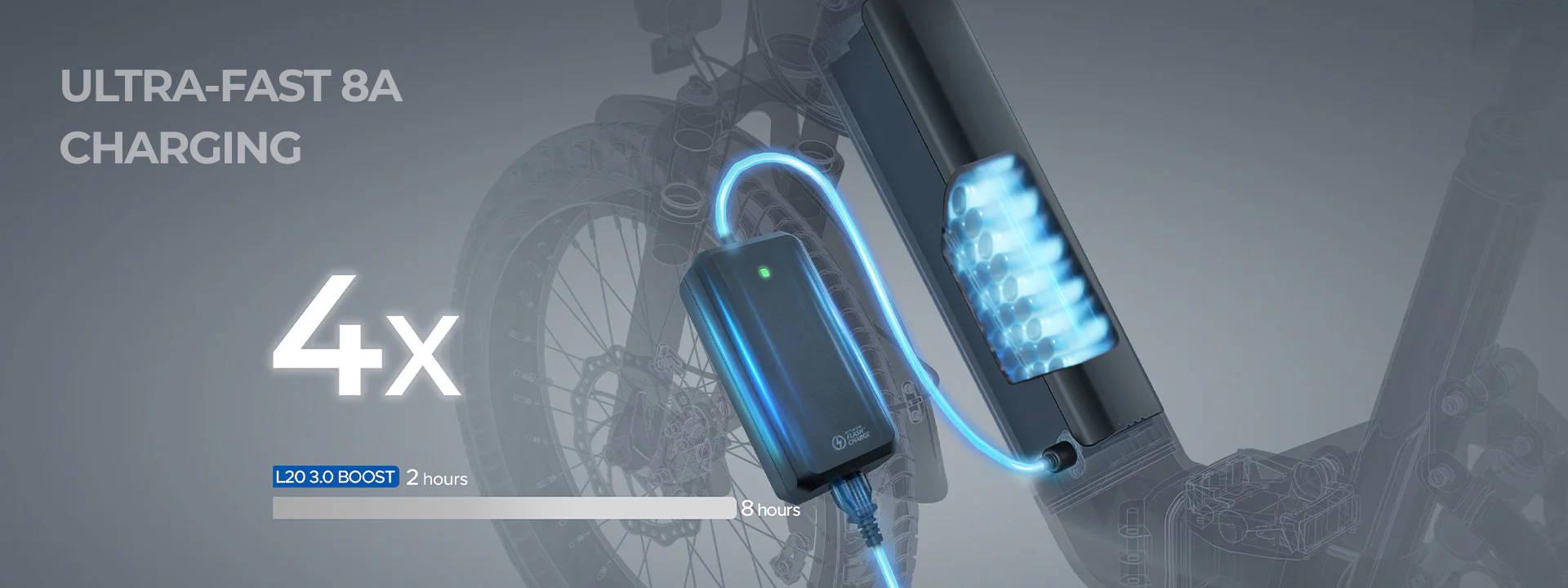

| Charger | 54.6V 8A Output |
| Front Light | 30 Lux with Integrated E-Horn |
| Rear Light | Auto-brightens on Braking or Shaking |
| Brake Type | Hydraulic, Dual-Piston |
| Disc Rotors | 180mm (Front & Rear) |
| Chain | C8R8 Anti-Rust, 116 Links |
| Chainring | 52T |
| Crank | 170 mm |

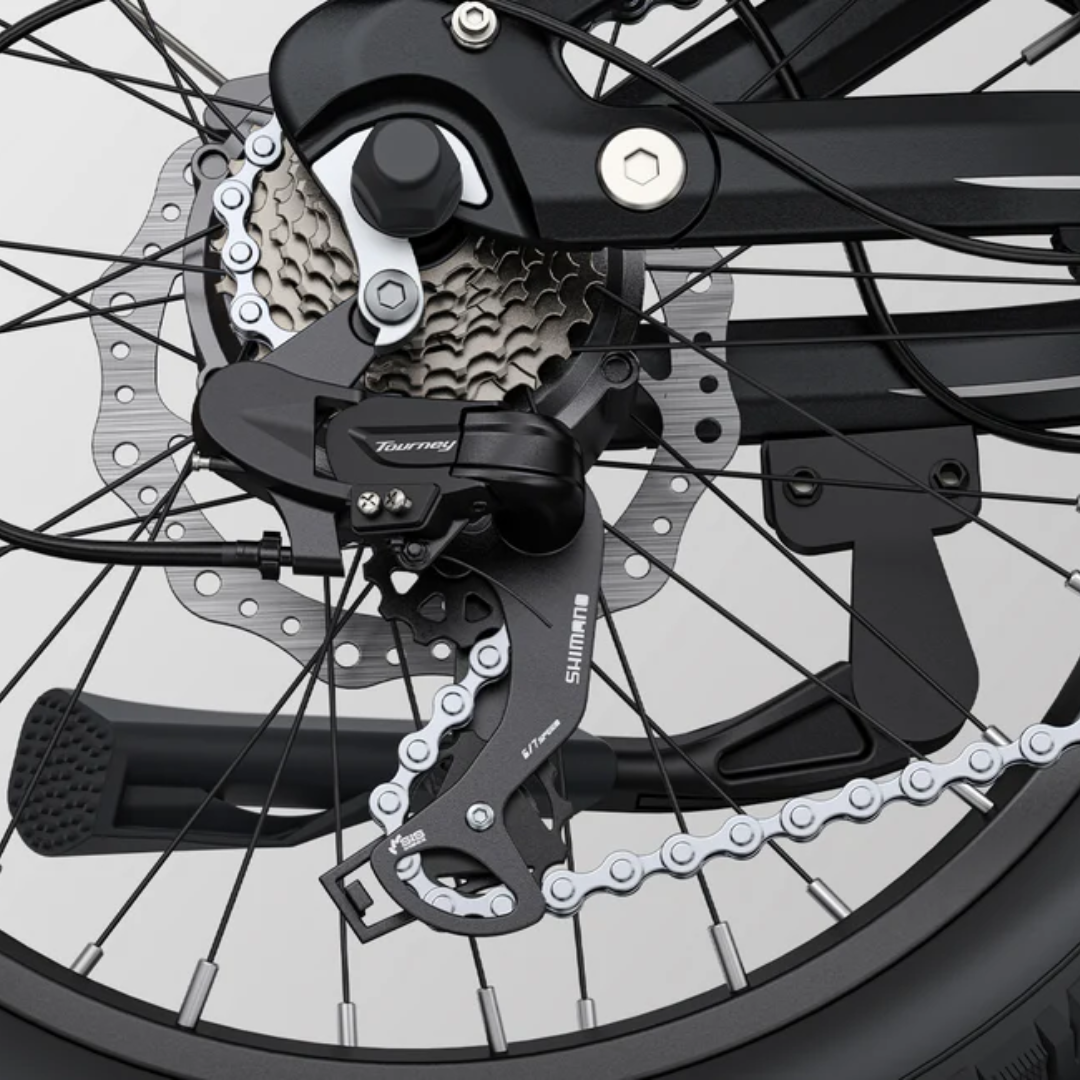

| Rear Derailleur | Shimano Tourney RD-TY300, 7-Speed |
| Shifter | Shimano SL-M315-7R |
| Cassette | 7-Speed, 14T–28T |
| Pedals | Boron Steel, Non-Foldable |

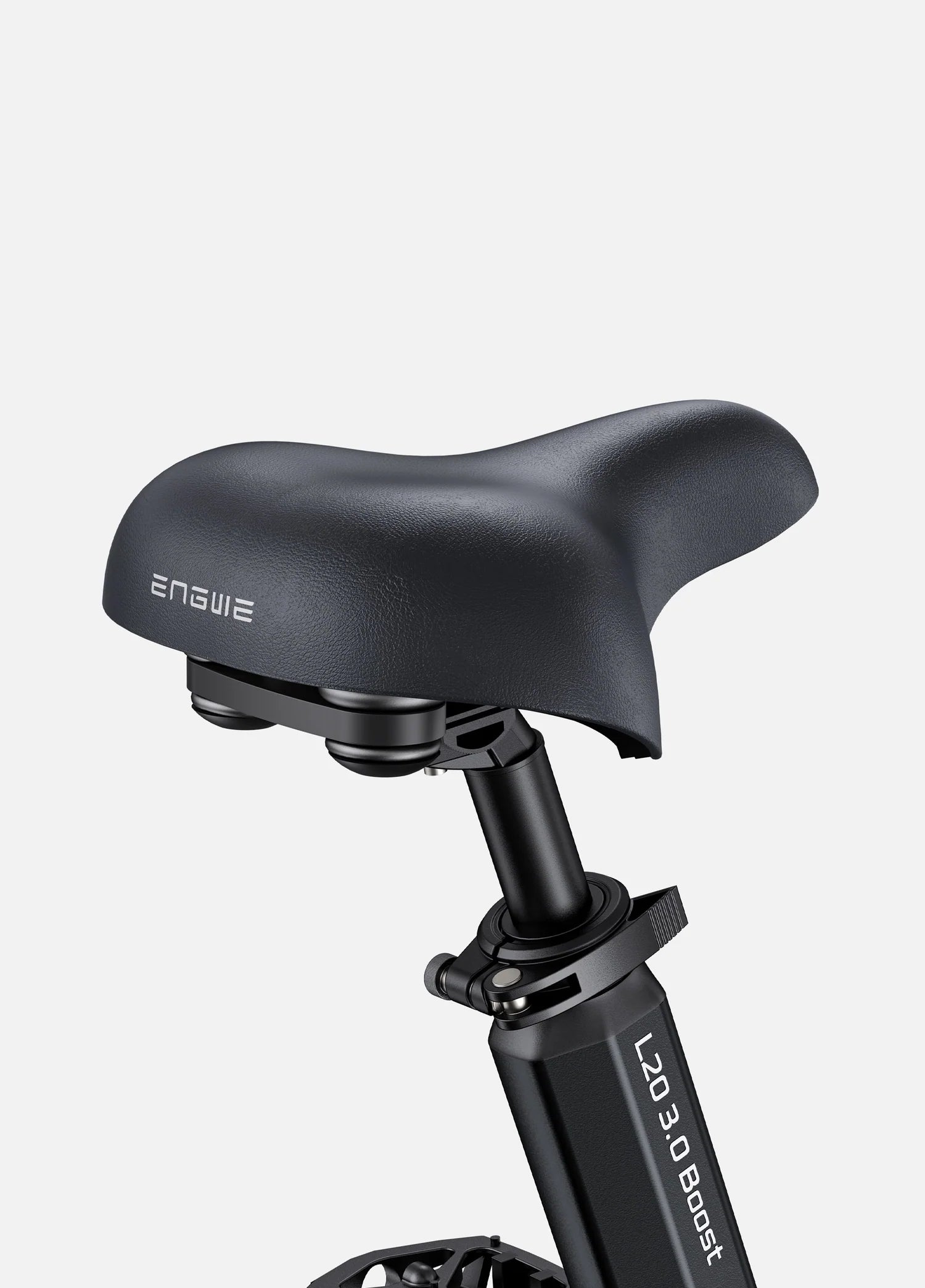

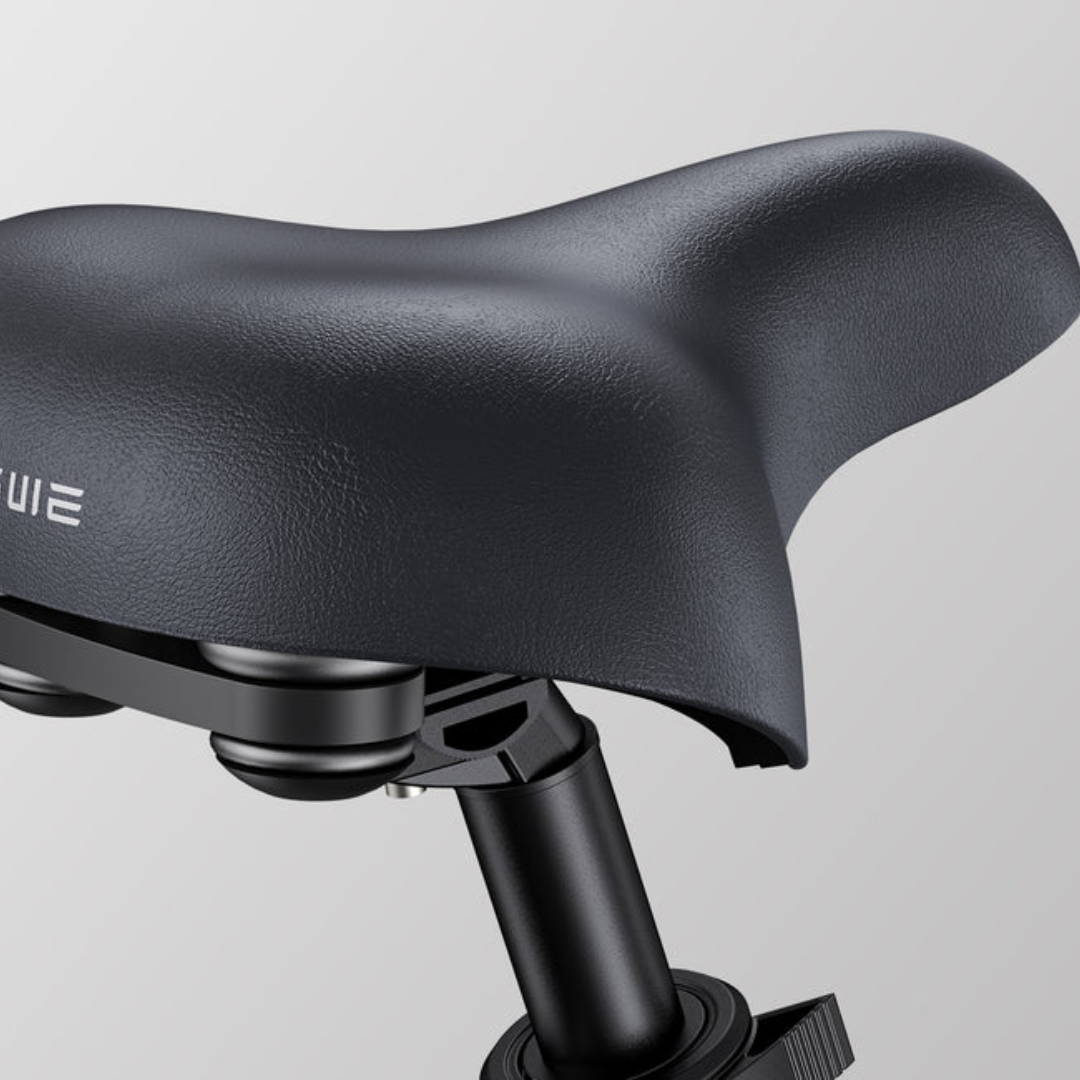

| Saddle | ENGWE Soft Saddle |
| Seat Post | 10-Level Adjustable |
| Handlebars | 680 mm Width |
| Stem | Foldable |
| Seat Clamp | Quick-Release |
Engwe L20 3.0 Boost 250W 75Nm Full Suspension Compact Electric Bike 120KM Range 48V 13.5Ah Battery(Size)
| Category | Measurement |
|---|---|
| Ride Height | 5'1" – 6'3" (155 cm – 190 cm) |
| Max Load Capacity | 150 kg (330 lbs) |
| Package Dimensions | 140 × 27 × 64 cm |
| Component | Measurement |
|---|---|
| A – Handlebar Height | 110.2 cm |
| B – Total Length | 168.0 cm |
| C – Reach | 47.2 cm |
| D – Standover Height | 38.0 cm |
| E – Wheelbase | 112.5 cm |
| F – Minimum Saddle Height | 82.0 cm |
| G – Maximum Saddle Height | 102.0 cm |
| Component | Measurement |
|---|---|
| Folded Size (L × W × H) | 100 × 51 × 75 cm |
| A – Height | 75 cm |
| B – Length | 100 cm |
| C – Width | 51 cm |
Note: Actual measurements may vary by ±5 cm.
Engwe L20 3.0 Boost 250W 75Nm Full Suspension Compact Electric Bike 120KM Range 48V 13.5Ah Battery(Whats in the box)
| Item | Quantity / Description |
|---|---|
| L20 3.0 Boost E-Bike | 1 unit |
| Battery | 48V 13.5Ah Lithium-Ion – 1 piece |
| Charger | 54.6V 8A – 1 piece |
| Pedals | 2 pieces |
| Front & Rear Fenders | 1 set |
| Rear Rack | 1 piece |
| Bike Kickstand | 1 piece |
| Assembly Tools | 1 set |
| User Manual | 1 booklet |
Engwe L20 3.0 Boost 250W 75Nm Full Suspension Compact Electric Bike 120KM Range 48V 13.5Ah Battery(FAQ)
Q1: Shipping information:
In Stock: Once you receive your order confirmation email, shipping preparations will begin within the following 2 business days, and your order will be shipped on the third business day.
Pre Sale: Please refer to the product page for detailed shipping times on pre-order items.
No Stock: Please refer to the product page for detailed shipping times on out-of-stock items.
You can expect to receive your product within 7 to 10 business days when shipped from our warehouse.
*Please note: Remote areas and islands are excluded from delivery. Please reach out to our customer service team regarding special requirements or urgent delivery dates and we will endeavour to meet your needs.
Please check our Shipping Policy for additional information regarding delivery locations and costs.
Q2. ENGWE L20 3.0 Boost User Manual
Please click here to view L20 3.0 Boost User Manual.
(You can find the instructions in additional languages by click here.)
Q3. ENGWE L20 3.0 Boost with TÜV Rheinland CE Certification
Please click here to view L20 3.0 Boost CE Certification.
Q4: How to assemble L20 3.0 Boost e-bike:
Please click here to view the instructional bike assembly video for the L20 3.0 Boost.
Enhanced Ride Comfort & Control Features

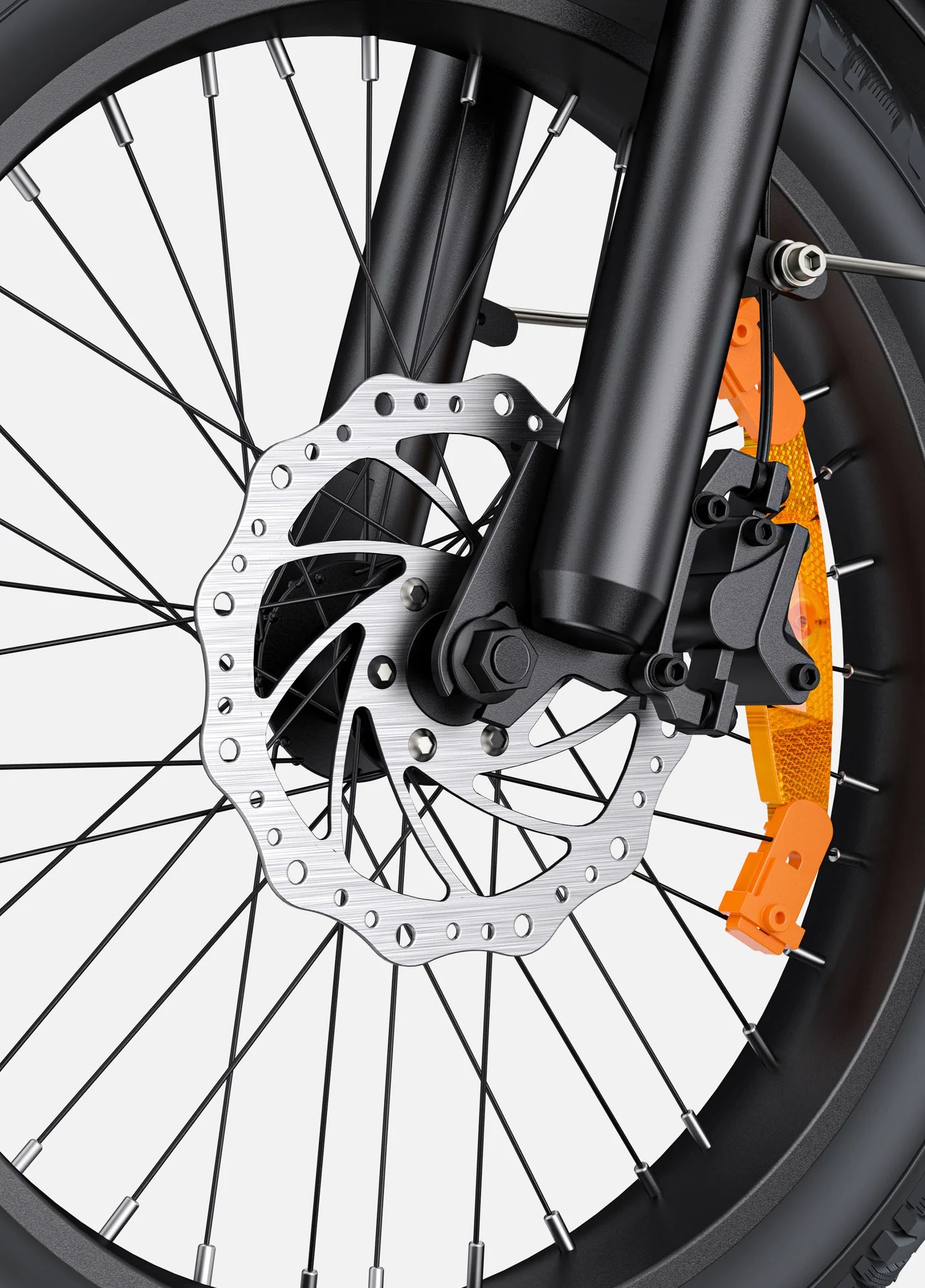

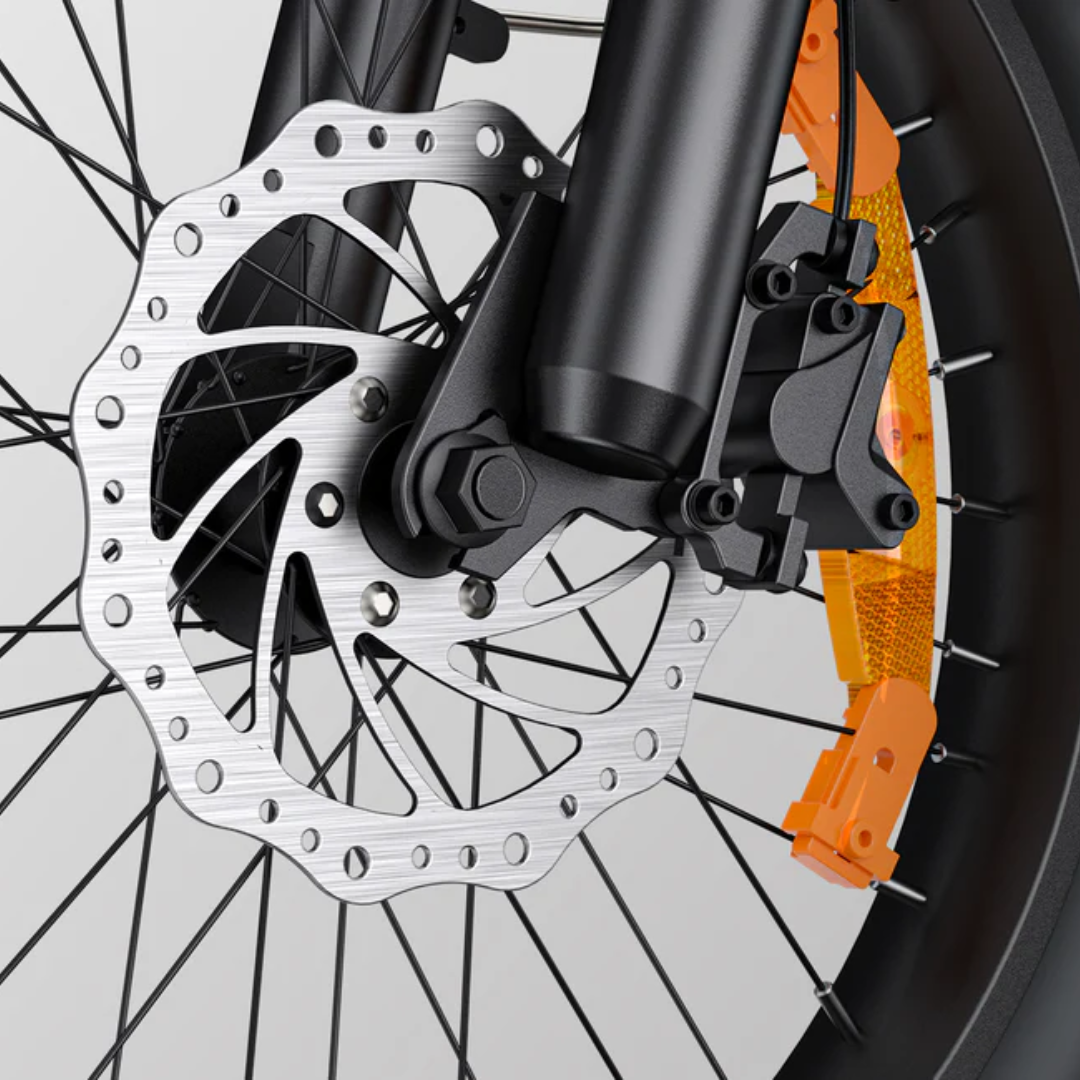

Hydraulic Brakes

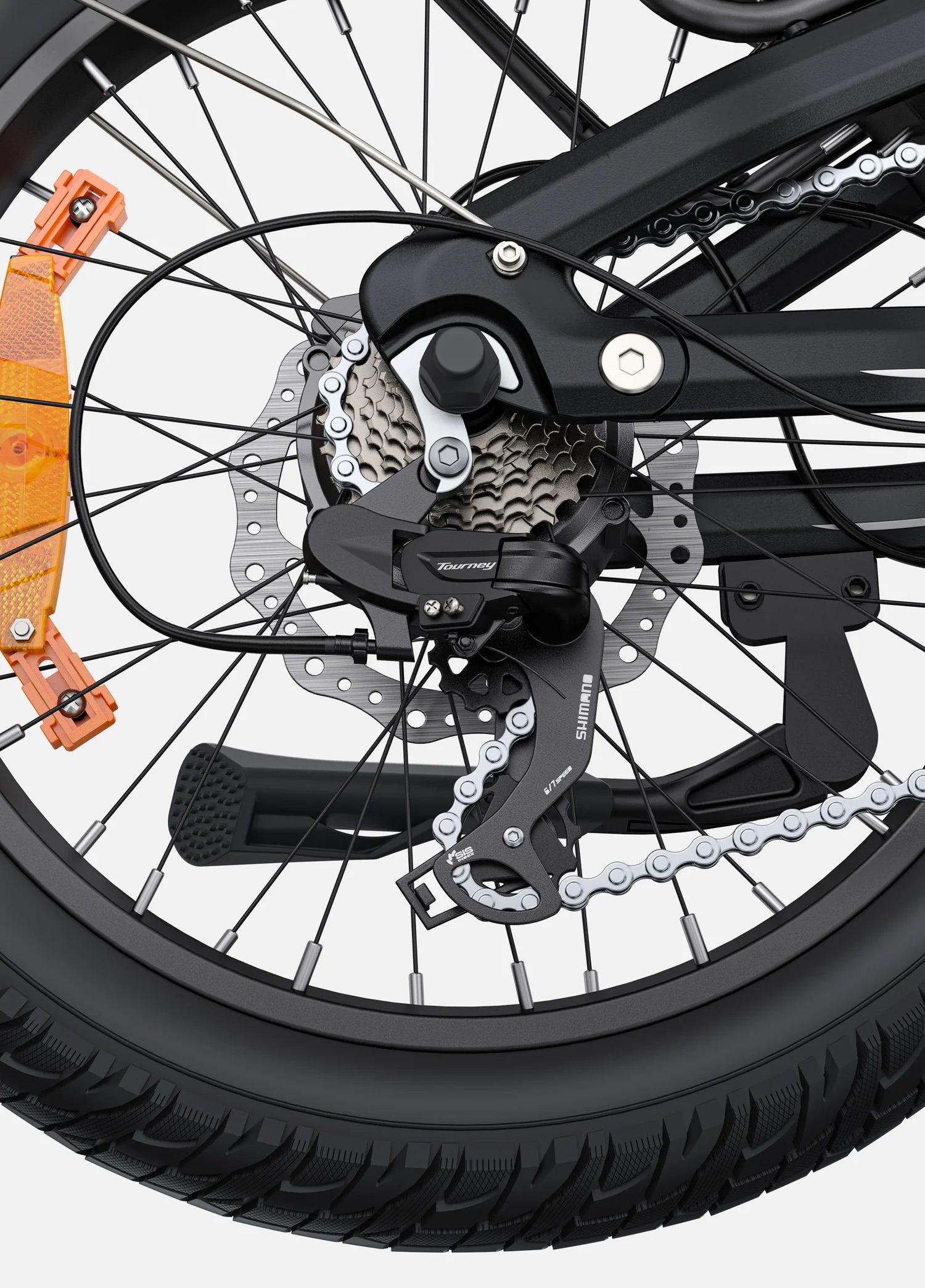

Shimano 7-Speed

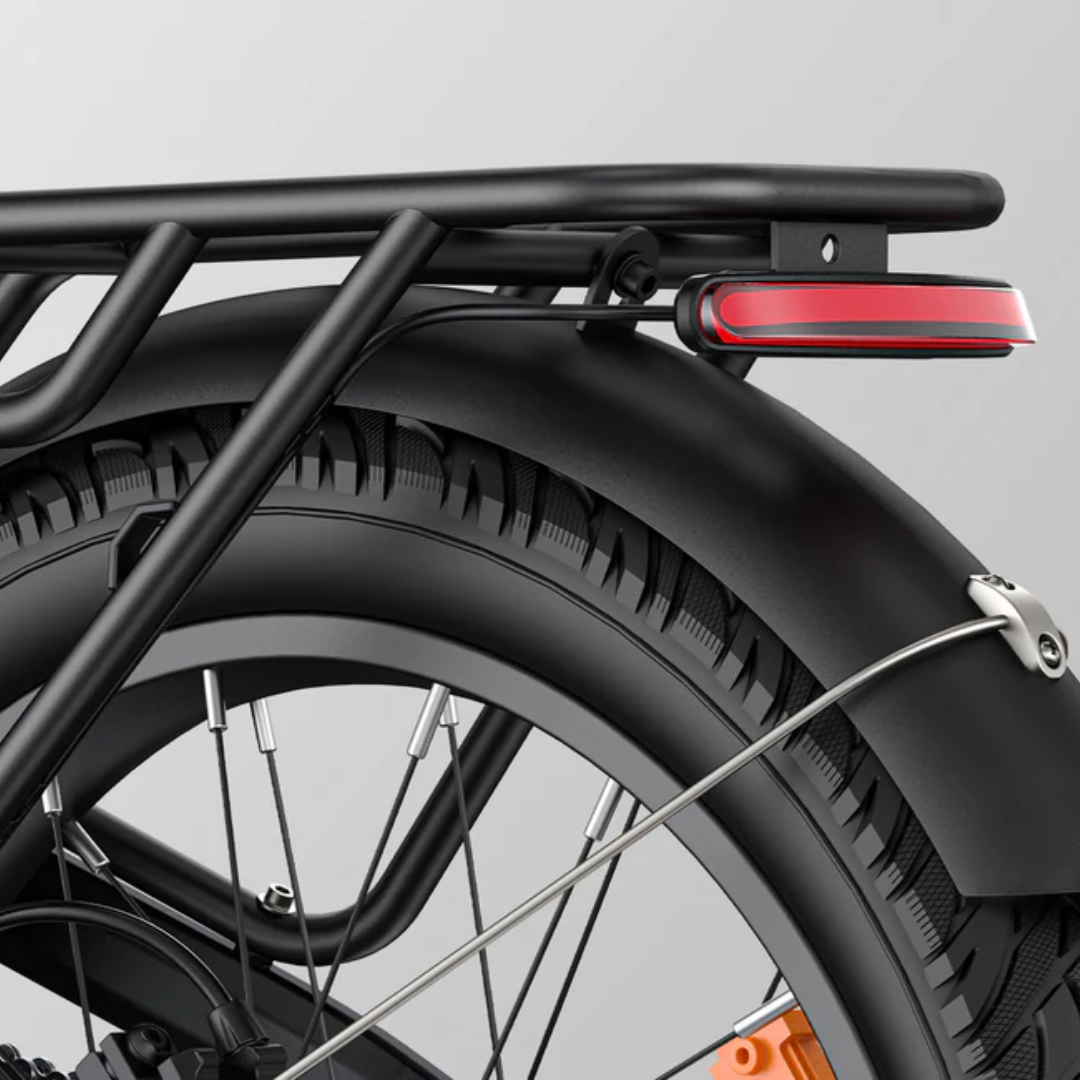

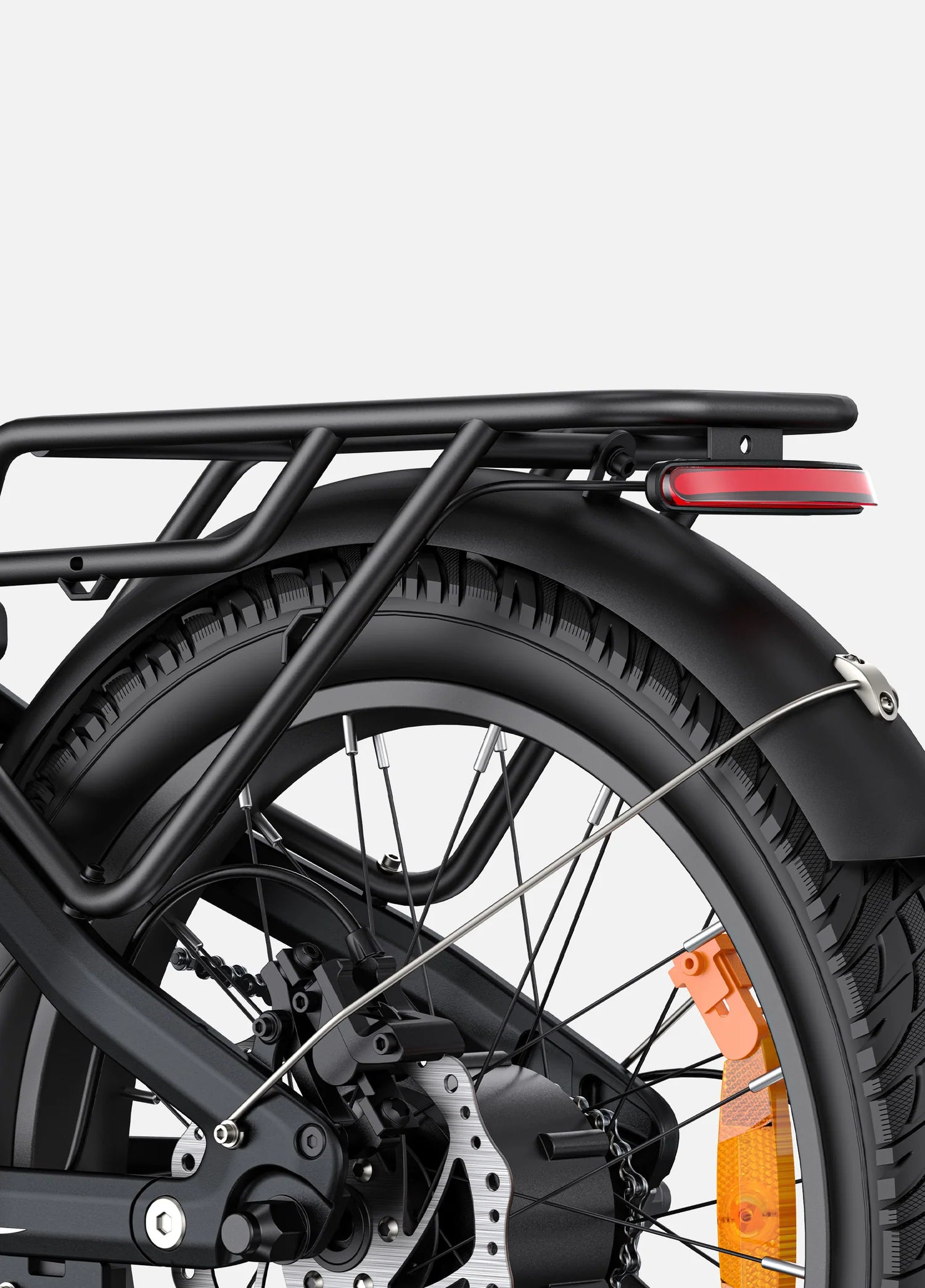

Rear Rack

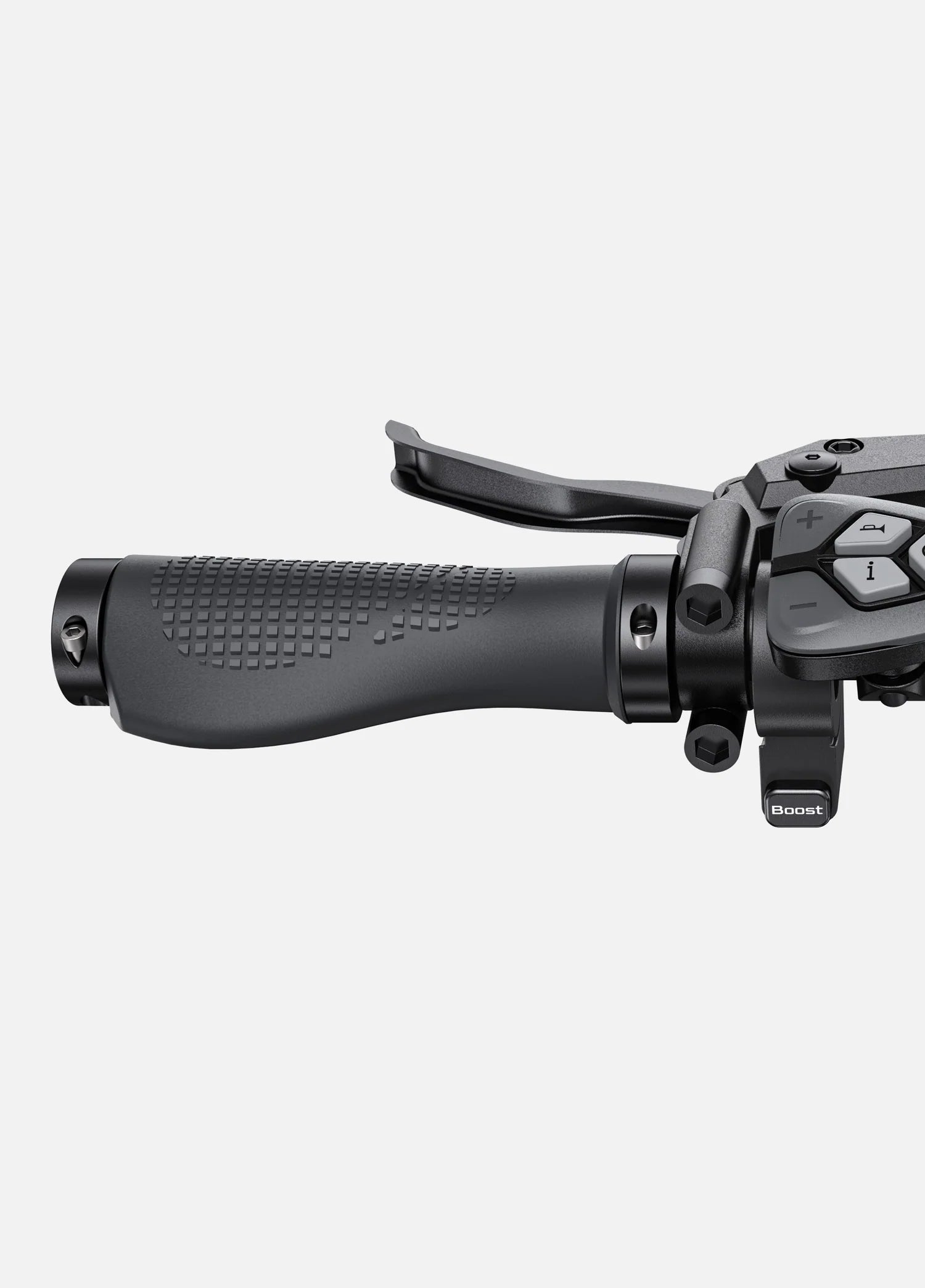

680mm Swept-Back Handlebar
