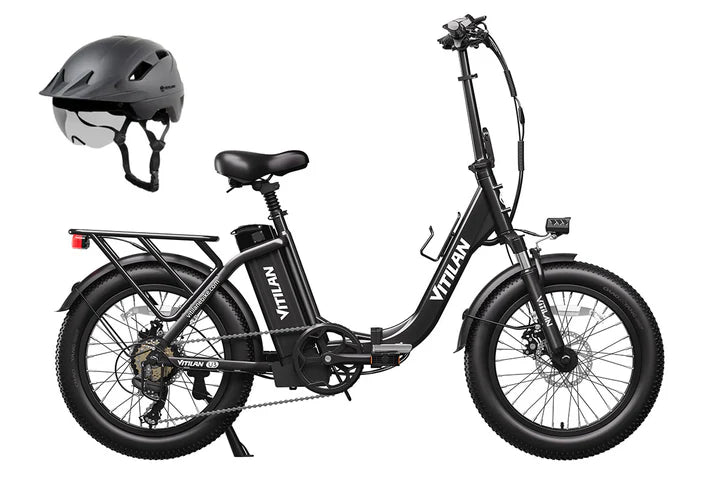

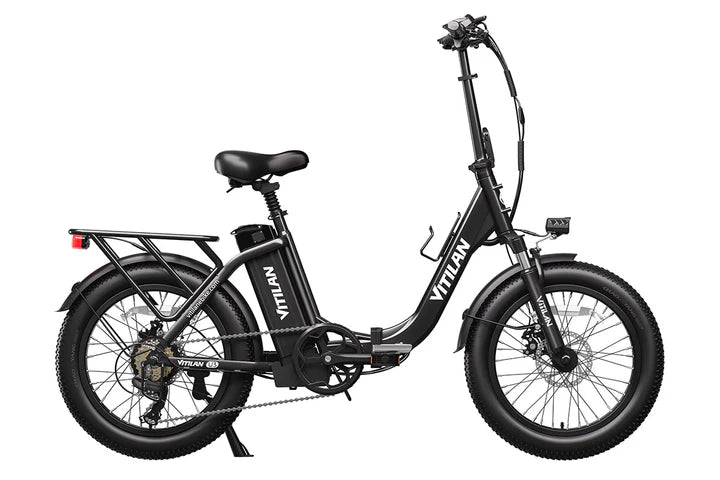

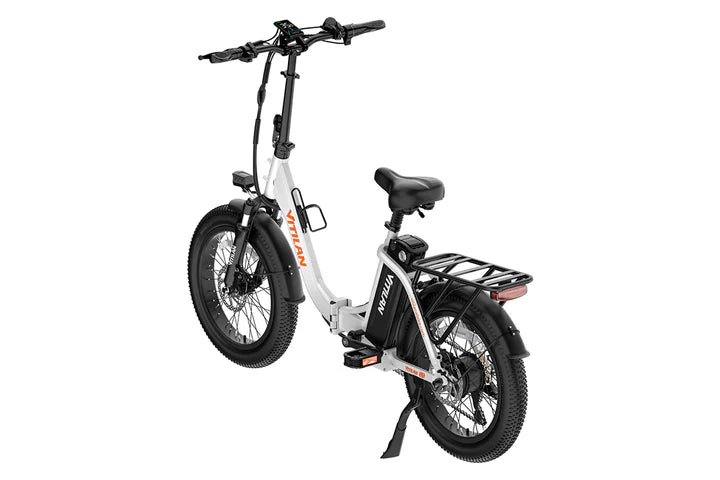

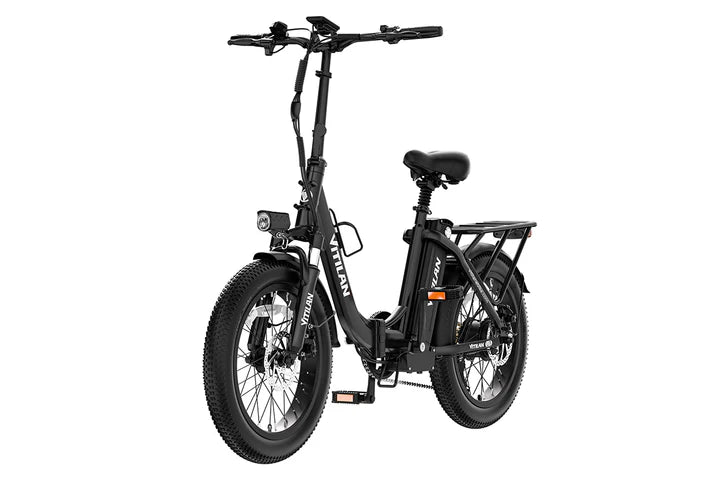

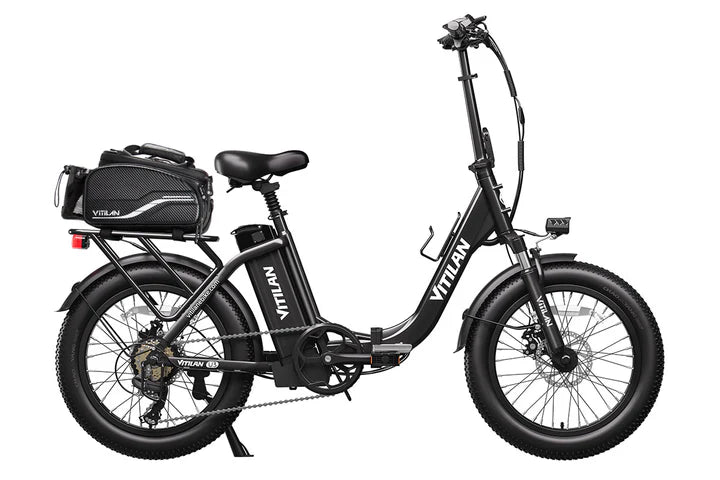

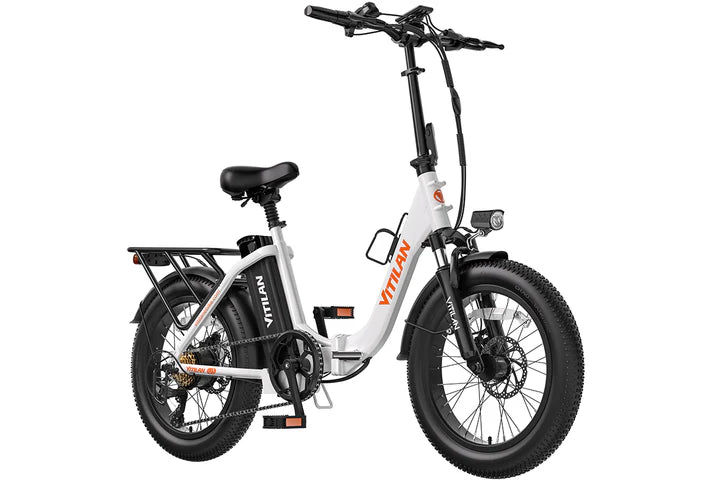

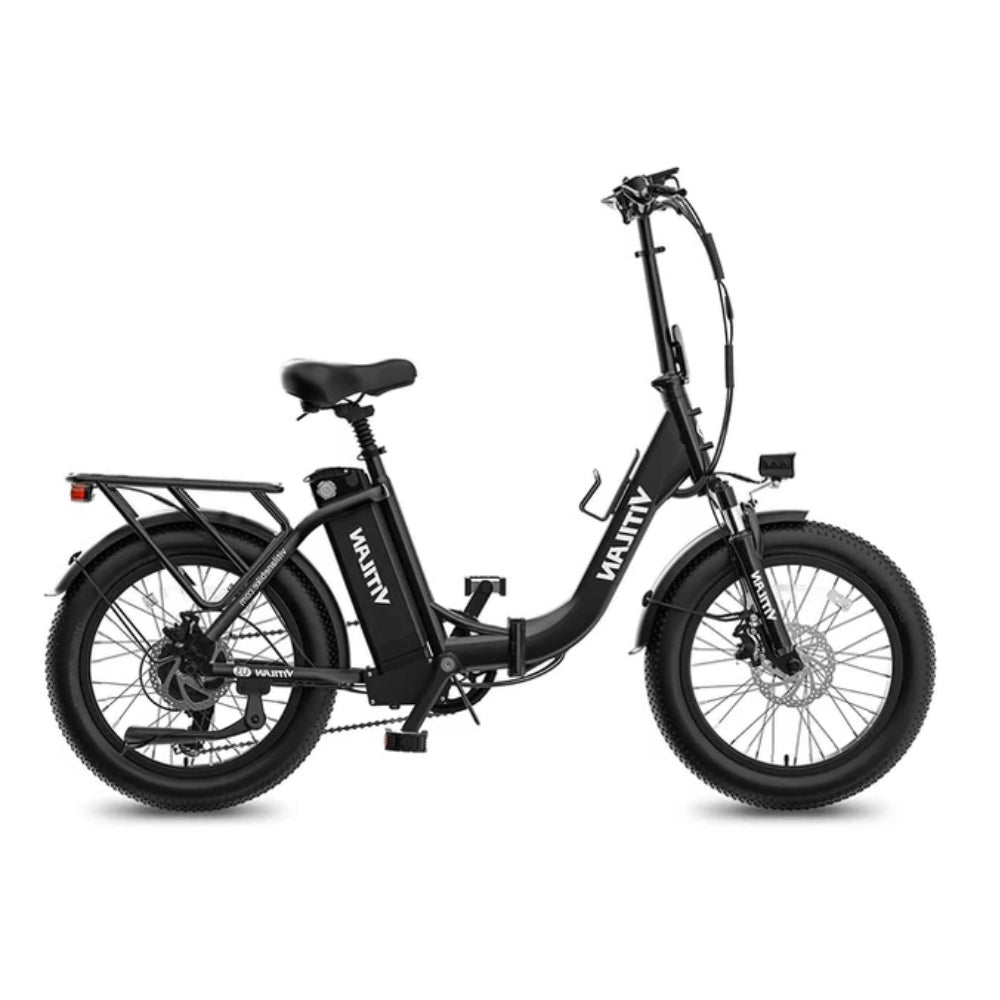

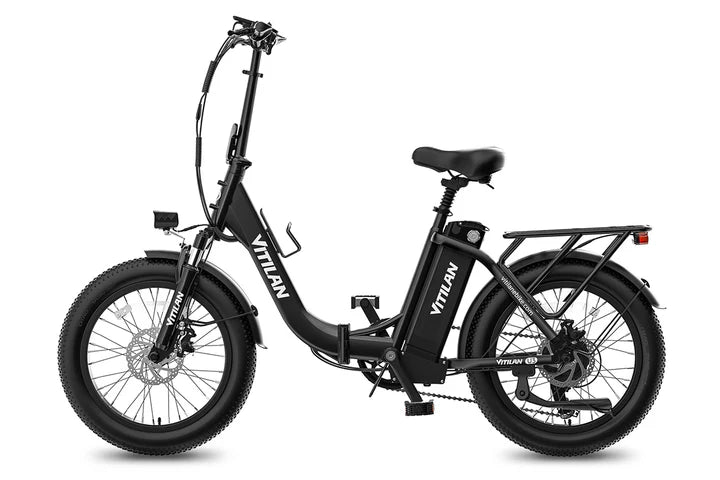

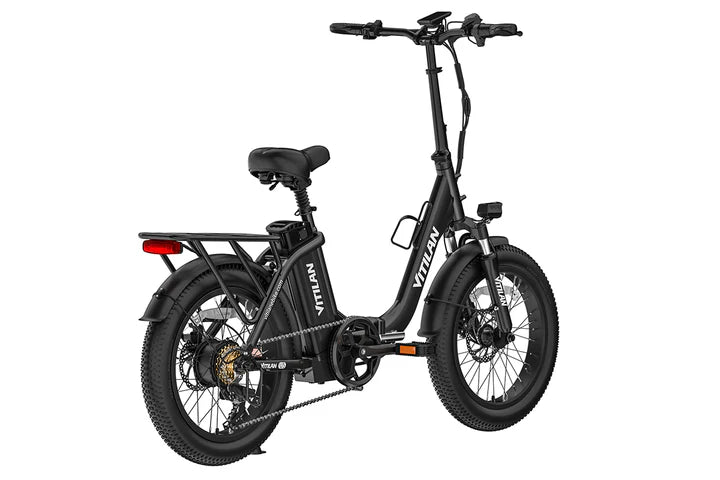

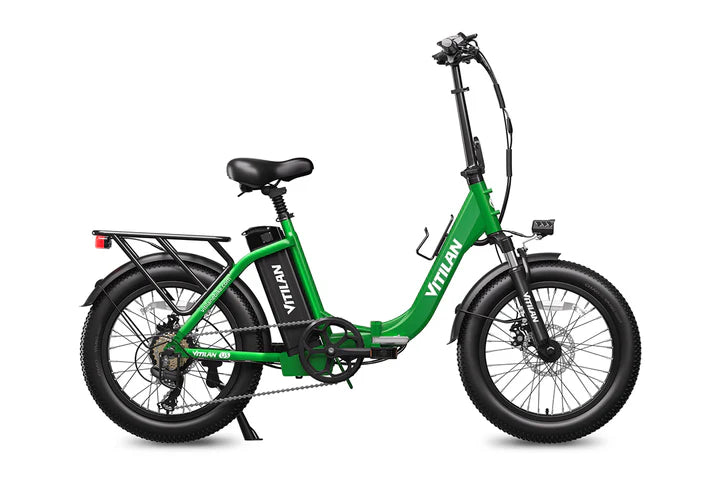

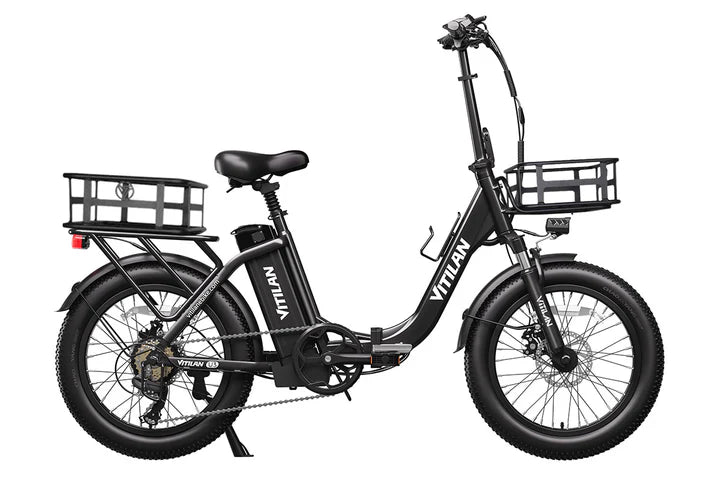

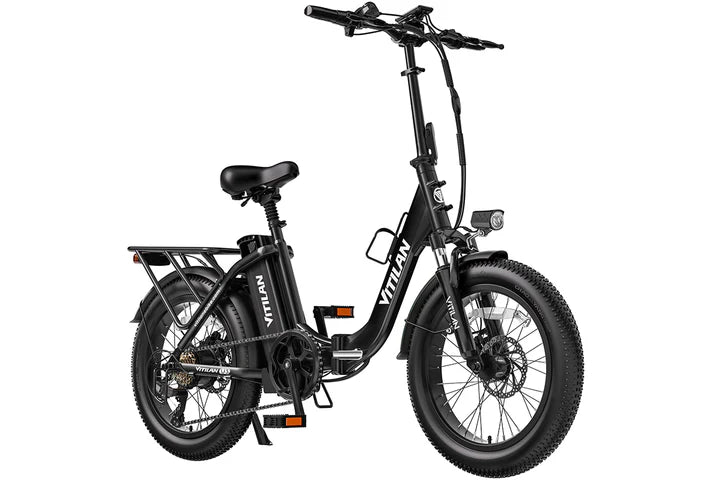

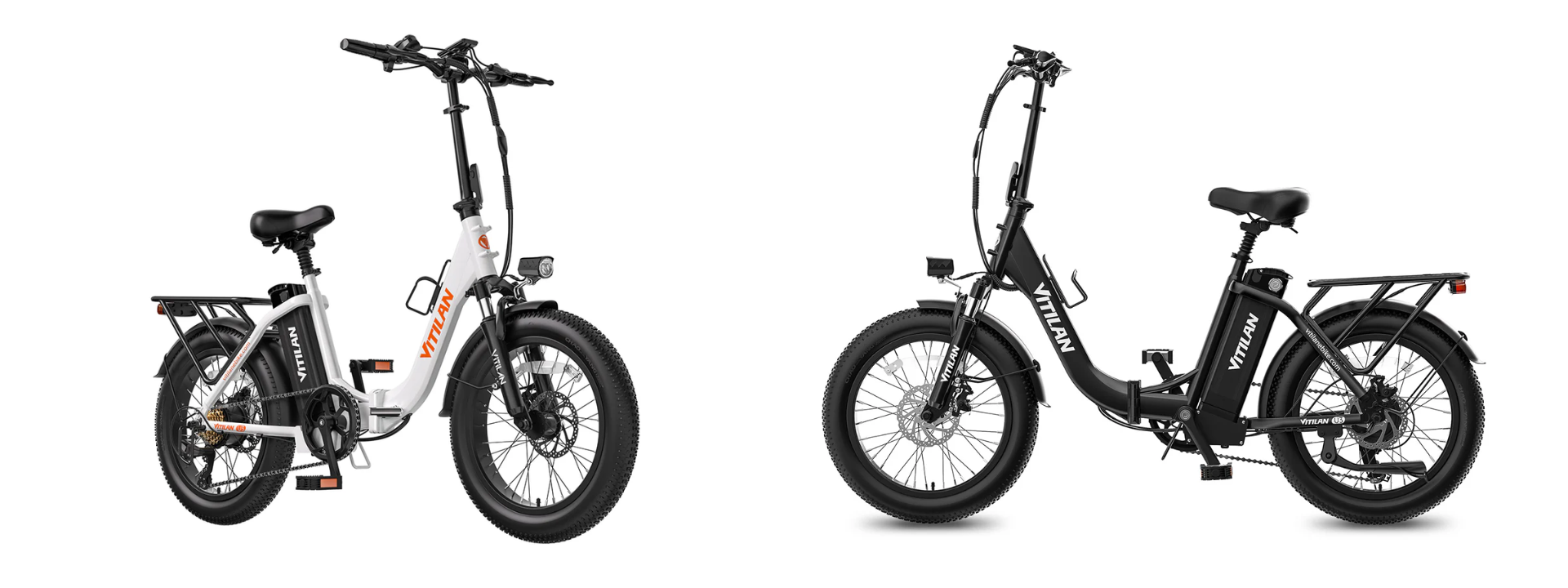

Vitilan U3 750W Fat Tire Foldable Electric Bike 45 Miles Range 48V 13Ah Battery
Vitilan U3 750W Fat Tire Foldable Electric Bike 45 Miles Range 48V 13Ah Battery
- Shipping: Free-in-EU
- Delivery: 3-7 Business days
- Return time: 30days
În stoc
Frequently Bought Together
Nu am putut încărca disponibilitatea pentru ridicare
Vitilan U3 750W Fat Tire Foldable Electric Bike 45 Miles Range 48V 13Ah Battery(Specs)
| Feature | Specification |
|---|---|
| Battery | 48V 13Ah |
| Range | 30–40 miles |
| Motor | 1056W Brushless Gear Hub Motor |
| Total Payload Capacity | 330 lbs (149.7 kg) |
| Suspension | With Locking and Adjustment Functions |
| E-bike Class | Class 3 |
| Bell/Horn | Electric Horn |
| Throttle | Twist Grip Throttle |
| IP Rating | IPX6 |
| Recommended Rider Height | 5'3" – 6'5" |
| Tires | 20" × 3" Fat Tires |
| Gear Shifting System | Shimano 7-Speed Gear |
| Pedal Assist | Intelligent 0–5 Level Pedal Assist |
| Frame Material | Aluminum |
| Controller | 48V / 22A |

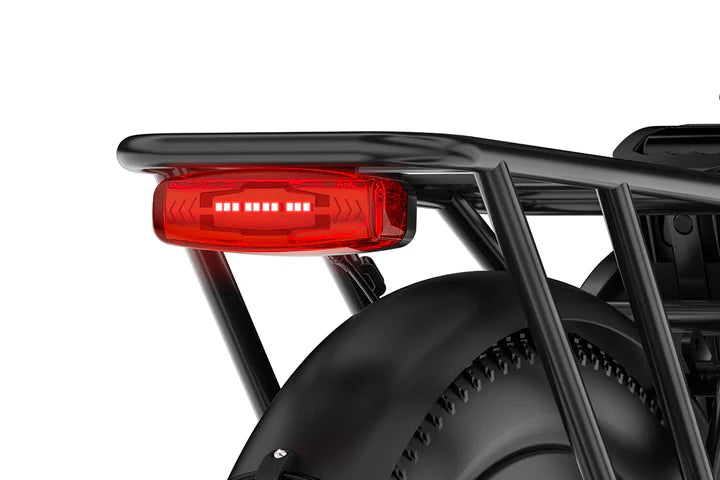

| Rear Light | Signal Turn Light / 48V LED Light |

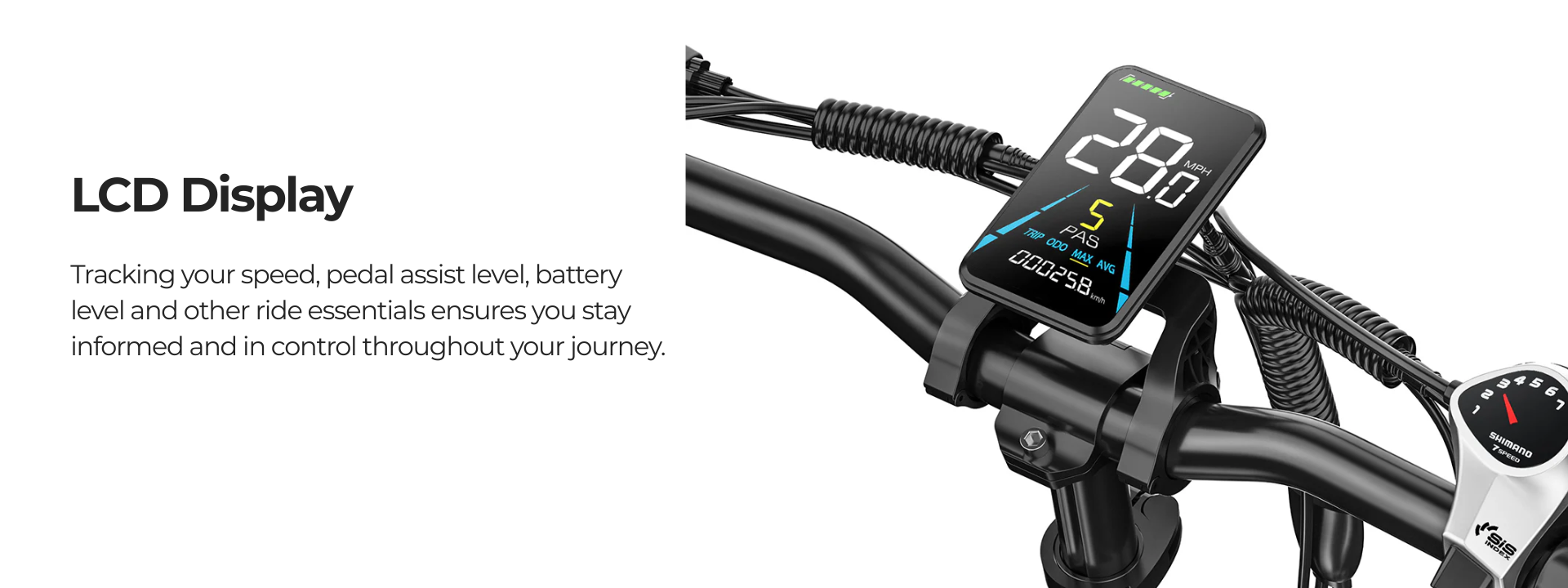

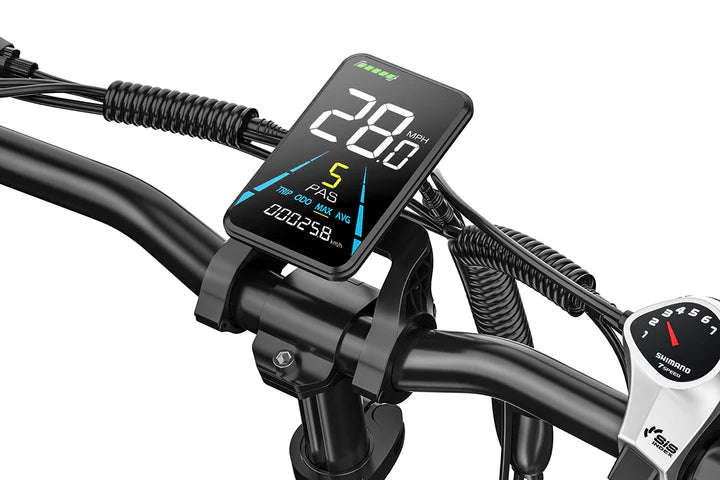

| Display | 48V LCD Display |
| Fenders | Included |
Vitilan U3 750W Fat Tire Foldable Electric Bike 45 Miles Range 48V 13Ah Battery(Size)
| Label | Description | Measurement |
|---|---|---|
| A | Total Length | 66.92" (170 cm) |
| B | Handlebar Height | 49.21" (125 cm) |
| C | Rear Shelf Height | 24.4" (62 cm) |
| D | Lowest Seat to Floor | 33.46" (85 cm) |
| E | Max Seat Height (Seat Bag Limit) | 38.18" (97 cm) |
| F | Top Tube Length | 22.83" (58 cm) |
| G | Frame to Ground Height | 13.58" (34.5 cm) |
| H | Handlebar Length | 24.4" (62 cm) |
| І | Head Tube Length | 16.73" (42.5 cm) |
| J | Wheelbase | 49.21" (125 cm) |
| Label | Measurement |
|---|---|
| A – Length | 30.51" (775 mm) |
| B – Width | 35.82" (910 mm) |
| C – Height | 16.14" (410 mm) |
Vitilan U3 750W Fat Tire Foldable Electric Bike 45 Miles Range 48V 13Ah Battery(Whats in the box)
| Item | Quantity / Description |
|---|---|
| Foldable E-Bike | 1 unit |
| Battery | 48V 13Ah Lithium-Ion Battery – 1 piece |
| Charger | Compatible 48V Charger – 1 piece |
| Pedals | 2 pieces |
| Rear Rack | 1 piece (integrated or detachable) |
| Front & Rear Lights | Included (Front LED & Signal Rear Light) |
| Electric Horn | Built-in |
| Display | 48V LCD Display – 1 piece |
| Twist Throttle Grip | Pre-installed |
| Fenders | 2 pieces (front and rear) |
| Tool Kit | 1 set (for basic assembly) |
| User Manual | 1 booklet |
Vitilan U3 750W Fat Tire Foldable Electric Bike 45 Miles Range 48V 13Ah Battery(FAQ)
🔋 1. What is the battery capacity and how far can I go on a single charge?

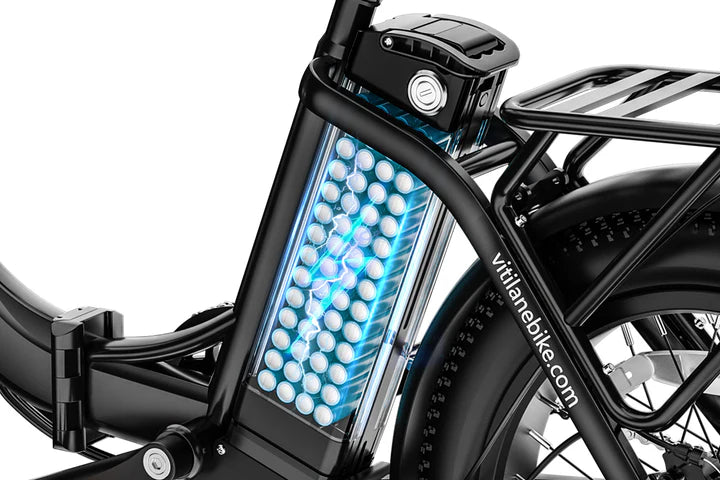

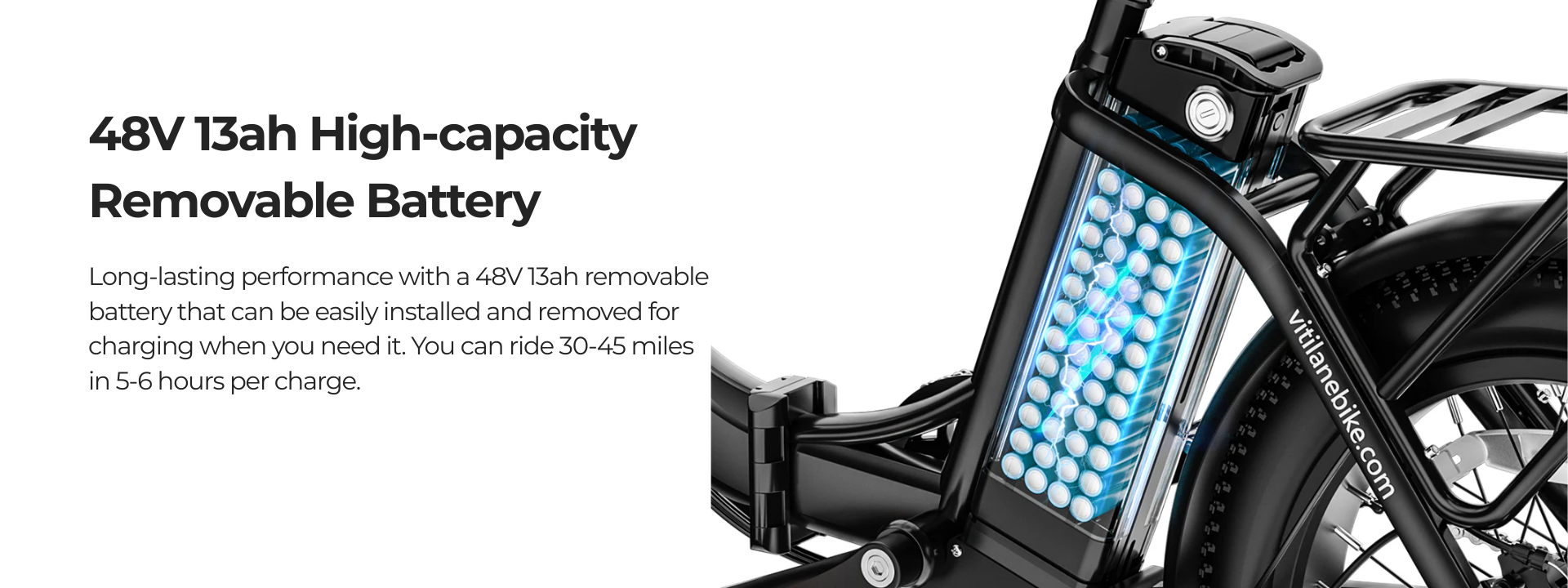

The e-bike comes with a 48V 13Ah lithium-ion battery, offering a range of 30–40 miles depending on terrain, rider weight, and usage mode.
⚙️ 2. What type of motor does the e-bike use?
It features a 1056W brushless gear hub motor, providing strong power and efficient performance for daily commuting or recreational riding.
📦 3. What is included in the box when I purchase the e-bike?
You’ll receive:
-
1 × Foldable E-Bike
-
1 × 48V 13Ah Battery
-
1 × Charger
-
2 × Pedals
-
1 × Rear Rack
-
Front and Rear Lights
-
1 × LCD Display
-
1 × Tool Kit
-
1 × User Manual
📏 4. What is the recommended rider height and maximum load capacity?
The bike is suitable for riders between 5'3" to 6'5", and supports up to 330 lbs (149.7 kg).
⚡ 5. Does the e-bike support pedal assist and throttle?
Yes! It includes 0–5 levels of intelligent pedal assist and a twist grip throttle for full electric riding.
🚲 6. Is the bike comfortable for long rides?

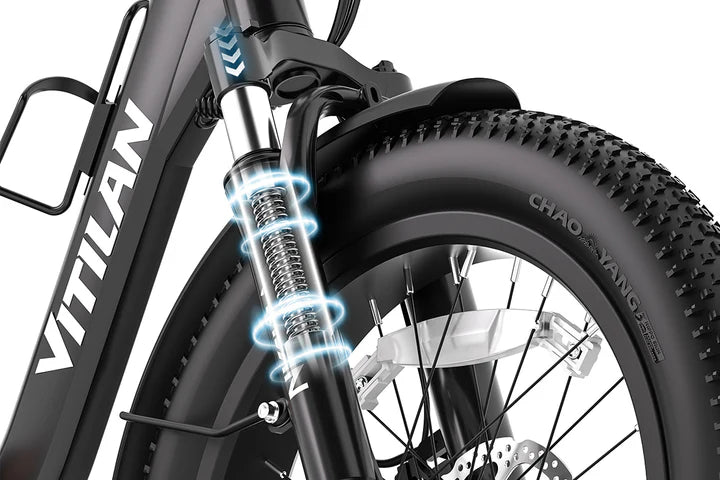

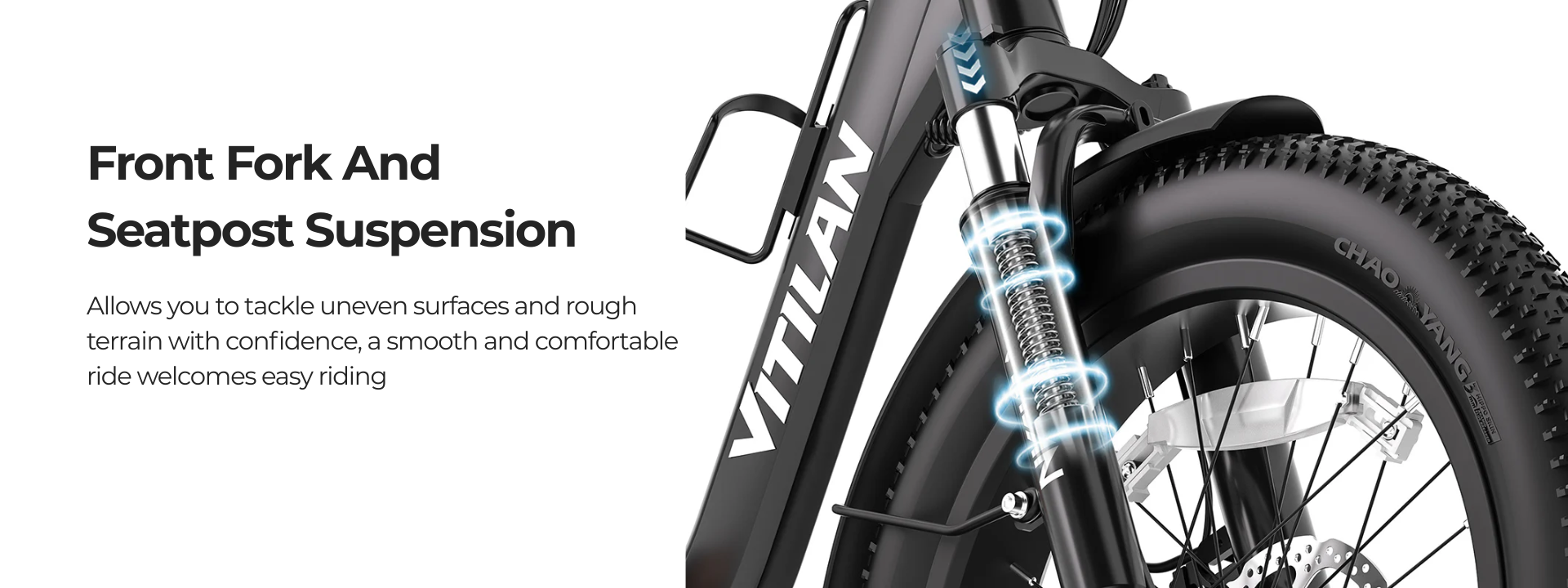

Absolutely. It features front suspension with locking and adjustment, fat 20"x3" tires for better shock absorption, and a sturdy aluminum frame for stability.
🌧️ 7. Is the bike waterproof?
The e-bike is rated IPX6, meaning it can withstand strong water jets — perfect for wet weather riding.
🔧 8. Is assembly required?
Minor assembly may be required (e.g., attaching pedals and adjusting handlebars). A tool kit and manual are included for easy setup.

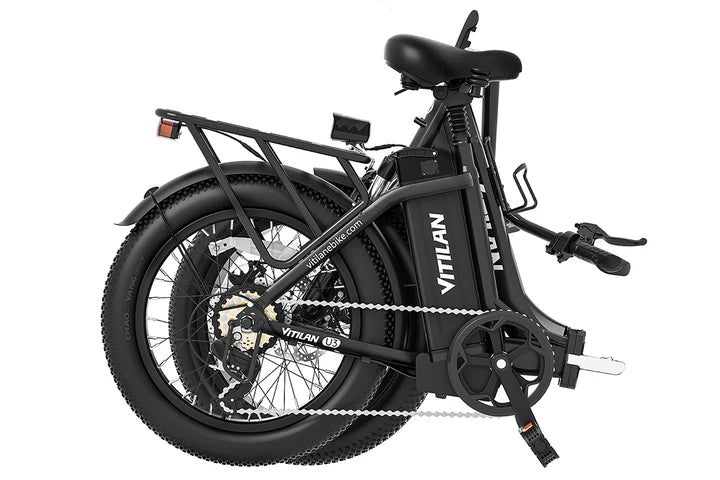

🧳 9. Is the bike foldable and easy to store?
Yes, it folds compactly with dimensions of approximately 30.51” × 35.82” × 16.14”, making it easy to store or transport.
🔋 10. How long does it take to fully charge the battery?
Charging takes about 5–8 hours, depending on battery usage and power source.
Enhanced Ride Comfort & Control Features

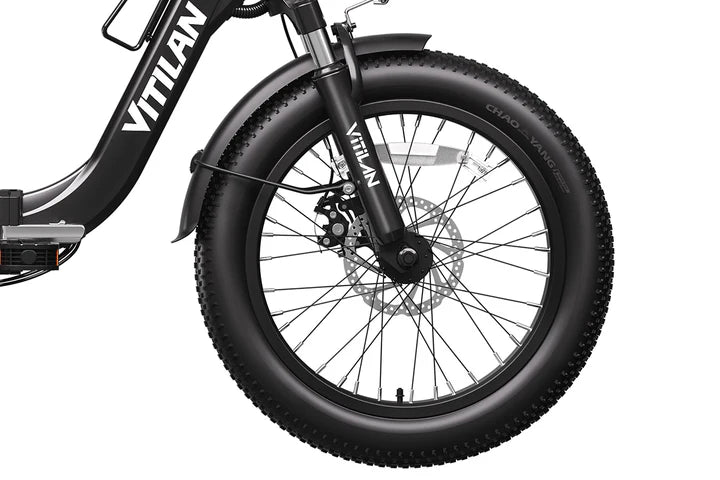

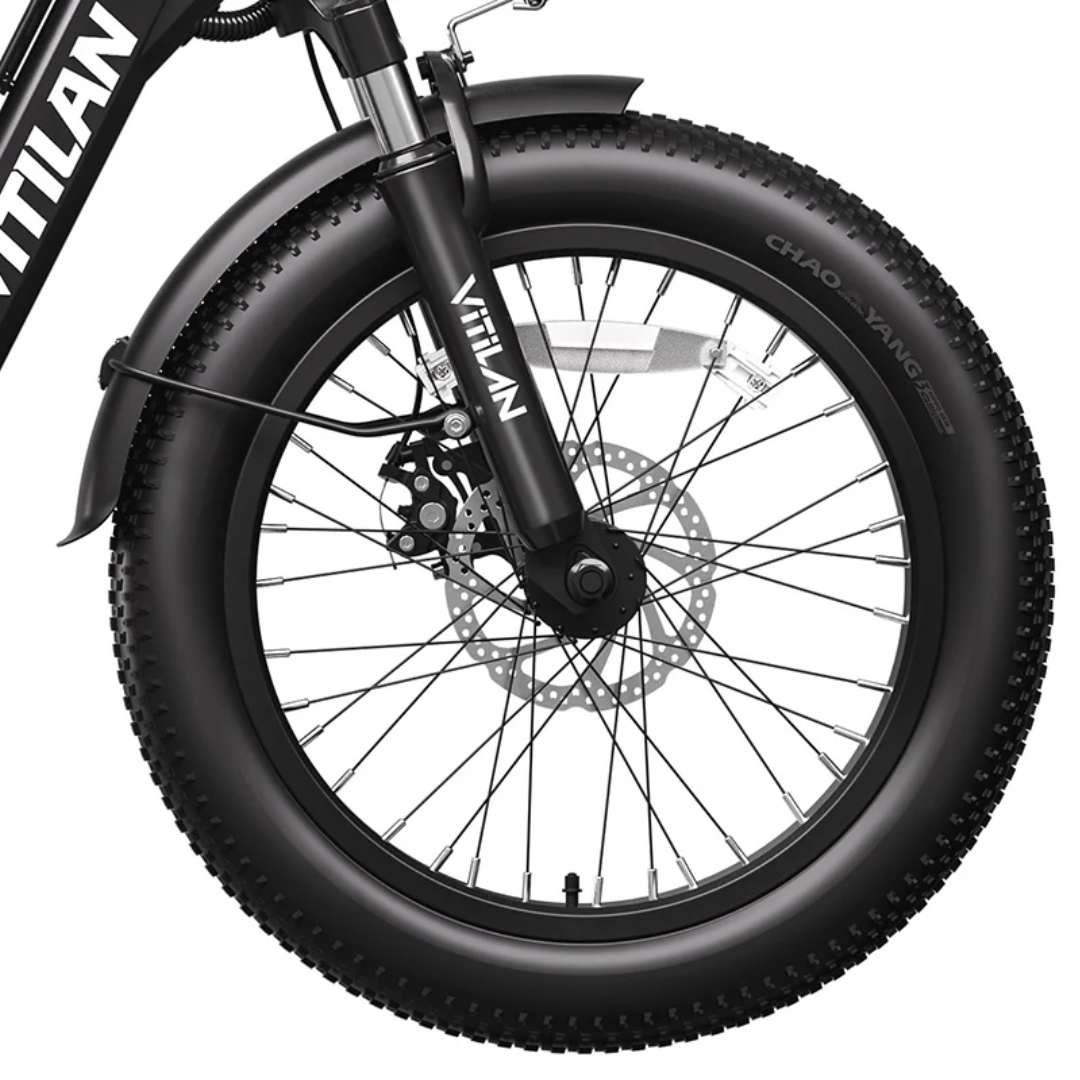

20"*3" Spoked Wheels

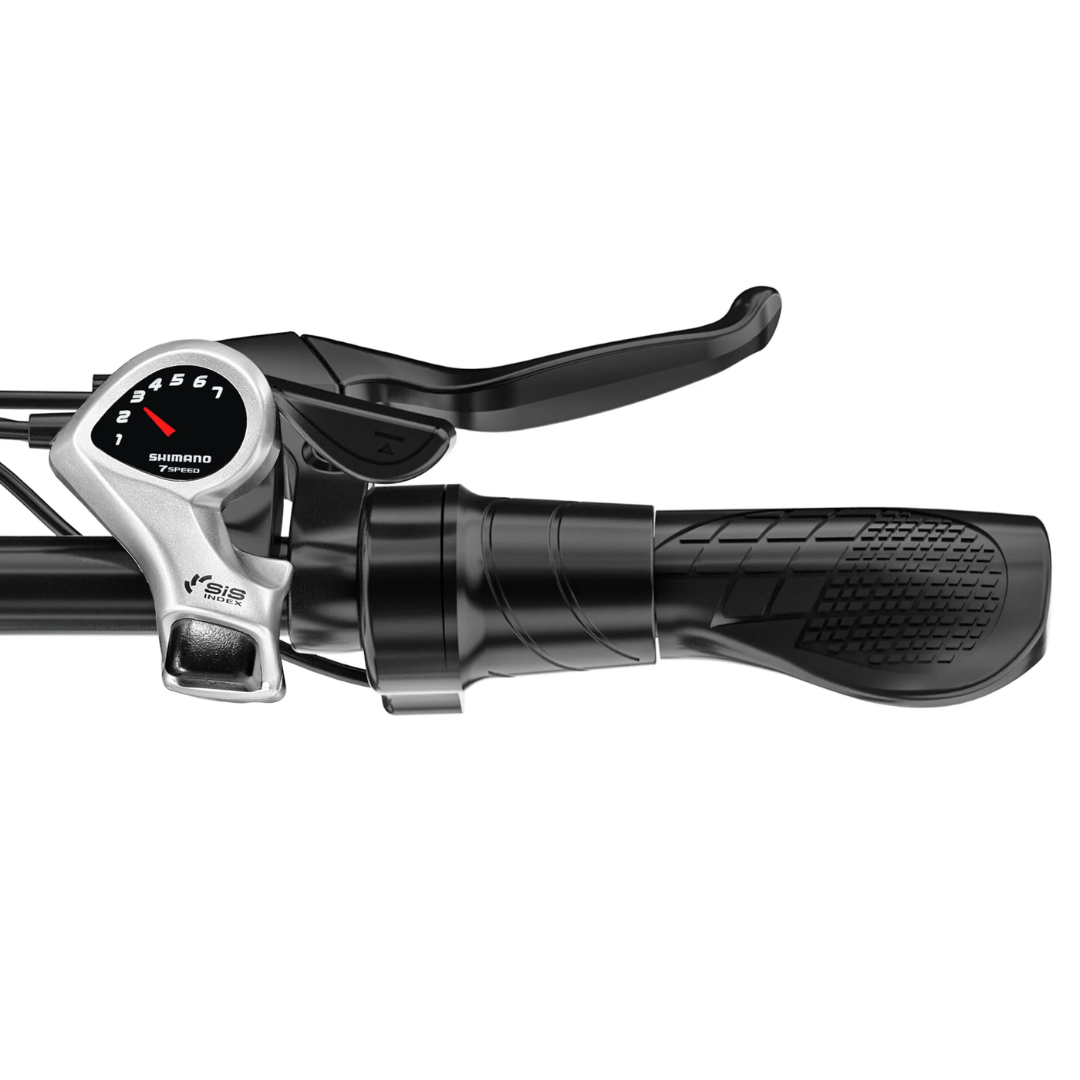

Pedal Assist & Throttle

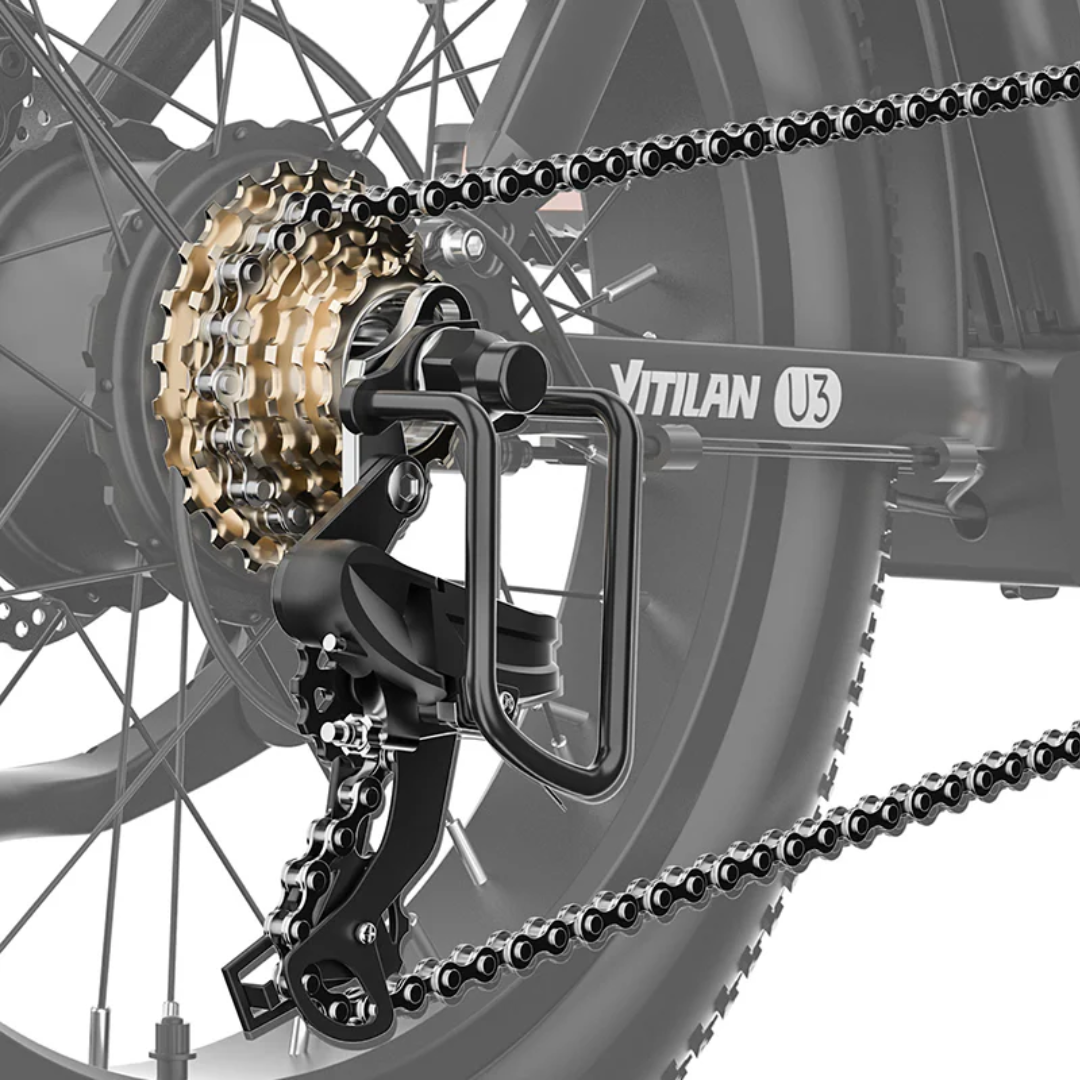

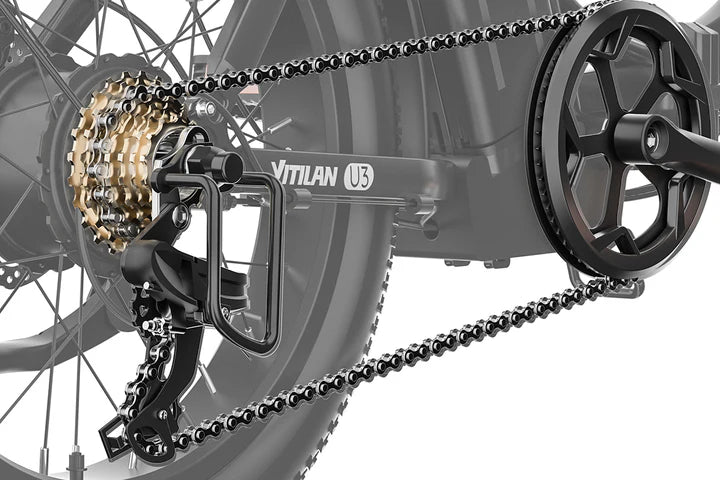

Shimano 7 Speed

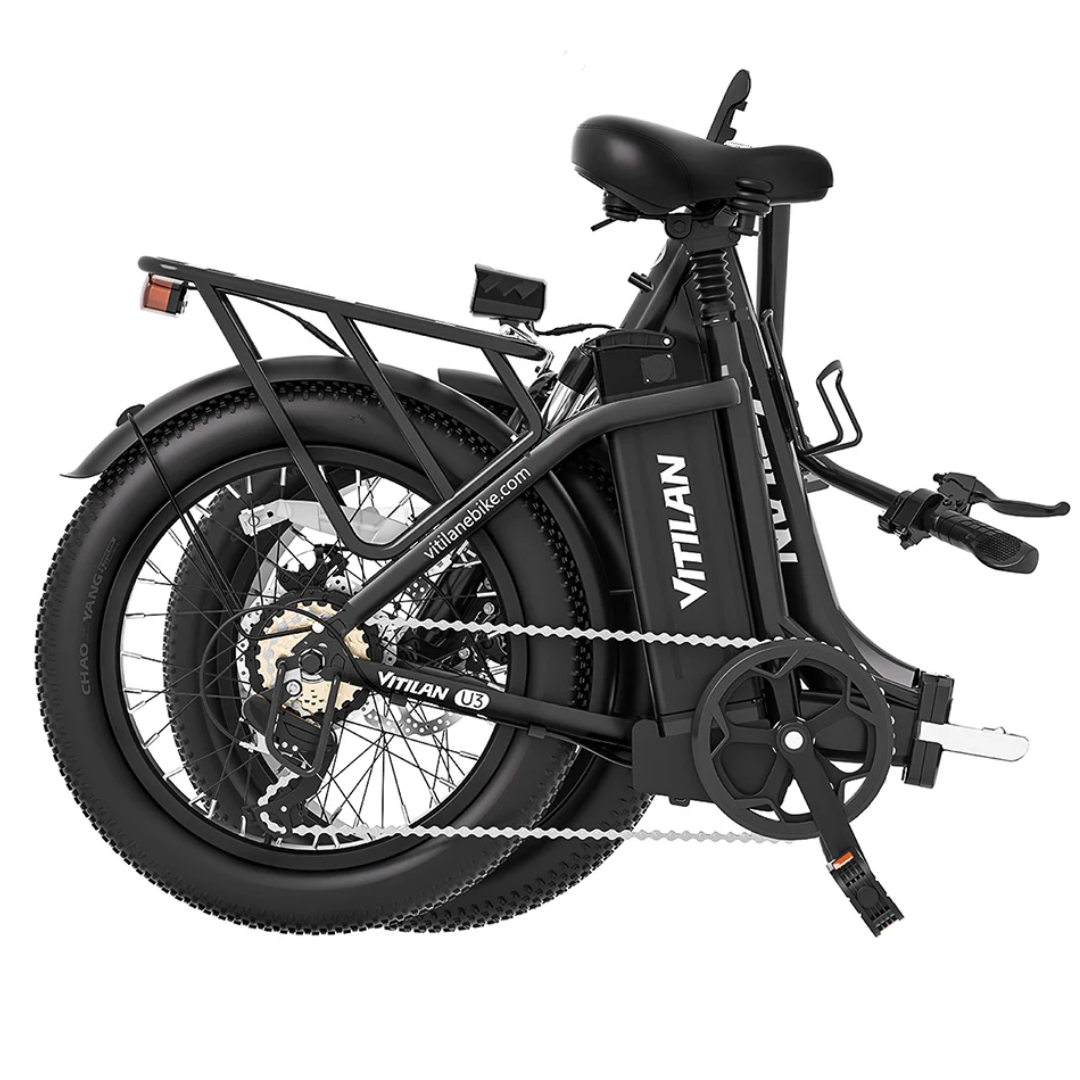

Simple and easy to fold design
