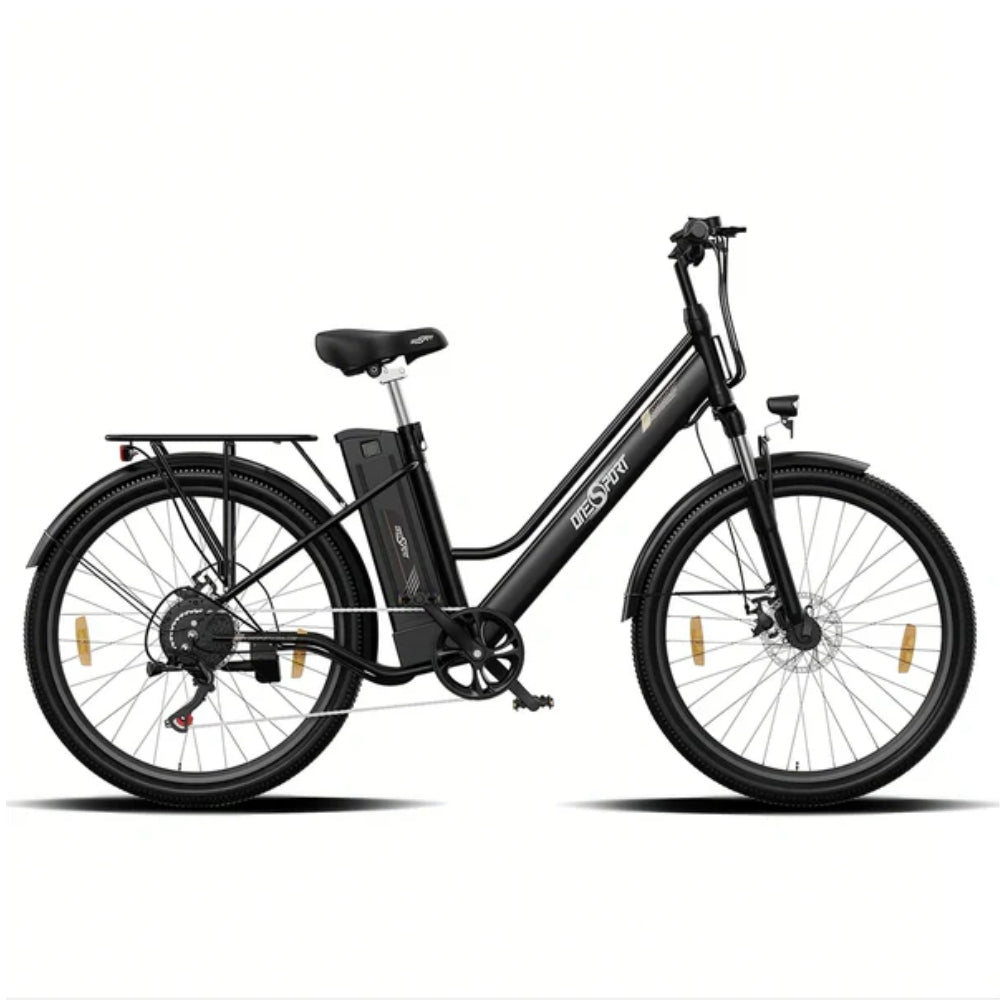

OneSport OT18-3 E-Bike
OneSport OT18-3 E-Bike
- Shipping: Free-in-EU
- Delivery: 3-7 Business days
- Return time: 30days
1000 i lager
Frequently Bought Together
Det gick inte att ladda hämtningstillgänglighet
Product Parameters

25 km/h

40 KM

36V 14.4AH

30 Nm

250 W

60.6 lbs












OneSport OT18-3 E-Bike(Specs)
Feature | Specification |
---|---|
Body Material | Steel |
Frame | 20" Folding Iron Frame |
Color Options | Black, White; Black-Red, Off-White, Black-Brown |
Maximum Load | 120 KG |
Maximum Speed | 25 KM/H |
Range | 40 KM in Pure Electric Mode; 60 KM in Pure Electric Mode, 120 KM in Pedal Assist Mode |
Maximum Climbing Angle | 25 Degree; 20 Degree |
Instrument Display | 3-speed Multi-function LCD with Bluetooth |
Front Lighting | Included |
Tail Light | Included |
Braking Method | Front Disc Brake + Rear Disc Brake |
Hub Form | Wire Spoke Wheel; Integrated Wheel |
Tire Specifications | Pneumatic Tires |
Front Fork | Suspension Fork; Iron Shock Absorber Front Fork (Non-adjustable) |
Gear | Shimano 7-speed |
Riding Mode | Pedal Assist Mode, Riding Mode, Pure Electric Mode |
Front Fender | Included |
Rear Fender | Included |
Seat Tube | Aluminum Alloy |
Throttle | Half Throttle (Not Installed and Packed) |
Foldable | Yes |
Length | 1640 MM |
Rear Height | 560 MM |
Front Height | 1190 MM |
Handlebar Length | 560 MM |
Packing Size | 910 MM x 380 MM x 745 MM |
Net Weight/Gross Weight | 29.7 KG / 36.5 KG |
Battery Size | 380 MM x 110 MM x 78 MM |
Battery Net Weight | 4 KG |
Saddle Height | 890 MM - 1000 MM from the Ground |
Disc Diameter | 160 MM |
Front Fork Travel | 40 MM |
Applicable Height | 1600 MM - 2000 MM |
Battery Type | 18650 Lithium Ion Power Battery |
Battery Capacity | 14.4Ah |
Battery Rated Voltage | 36V |
Motor Form | Assist Mode |
Motor Type | 20 Inches / High-speed Gear / Spoke Wheel Brush-less Motor |
Motor Rated Power | 250W |
Motor Rated No-Load Speed | 300 ± 10 r/Min |
Motor Brand | ANANDA |
Motor Torque | 40 Nm |
Controller | 6-MOSFET Controller; Sine Wave Controller (48V 15A Jing Hui Controller) |
Charger Output | 42V 2.0A |
Charger Input | 100~240V 50/60Hz 3.0A |
Under Voltage Protection Value | 29V ± 1V |
Over Current Protection Value | 15A ± 1A |
Charging Time | 6.5~7 Hours; 8-10 Hours |
OneSport OT18-3 E-Bike(Size)
Feature | Specification |
---|---|
Length | 1780 MM |
Rear Height | 730 MM |
Front Height | 1060 MM |
Packing Size | 1480 MM x 220 MM x 765 MM |
Tire Size | 26 x 2.35 Inches |
Net Weight/Gross Weight | 27.5 KG / 34 KG |
Battery Size | 390 MM x 75 MM x 105 MM |
Front Handle Adjustable Height | 1060 MM - 1160 MM |
Saddle Height | 850 MM - 1100 MM |
Brake Pad Diameter | 160 MM |
OneSport OT18-3 E-Bike(Whats in the box)
OneSport OT18-3 E-Bike(FAQ)
How long does delivery take?
Orders are processed within 1–2 business days. Bikes are delivered in 3–7 business days; accessories take 14–20 business days. Peak season may cause 1–3 days delay.
Do I need to pay customs duties?
No, the displayed price includes taxes and shipping fees.
Can I get an invoice?
Yes, email Support@picarlyride.com to request an invoice.
What payment methods are accepted?
PayPal, MasterCard, Visa, American Express, and Klarna installment payments are supported.
How will I know my order is confirmed?
You’ll receive a confirmation email once your payment is approved and details are verified.
Can I check if delivery is available in my city?
Refer to the Shipping Policy page for details on restricted areas.
Can I ride an electric bike in the rain?
Light rain is fine, but avoid heavy rain or deep water to protect components.
Do you sell accessories or replacement parts?
Yes, visit the Parts & Accessories page. Contact support if your needed part is not listed.
Why does the bike's range differ from the advertised mileage?
Range varies due to riding conditions, modes, habits, load, and battery condition.
Need more help?
Email Support@picarlyride.com with photos or videos for quicker assistance.
