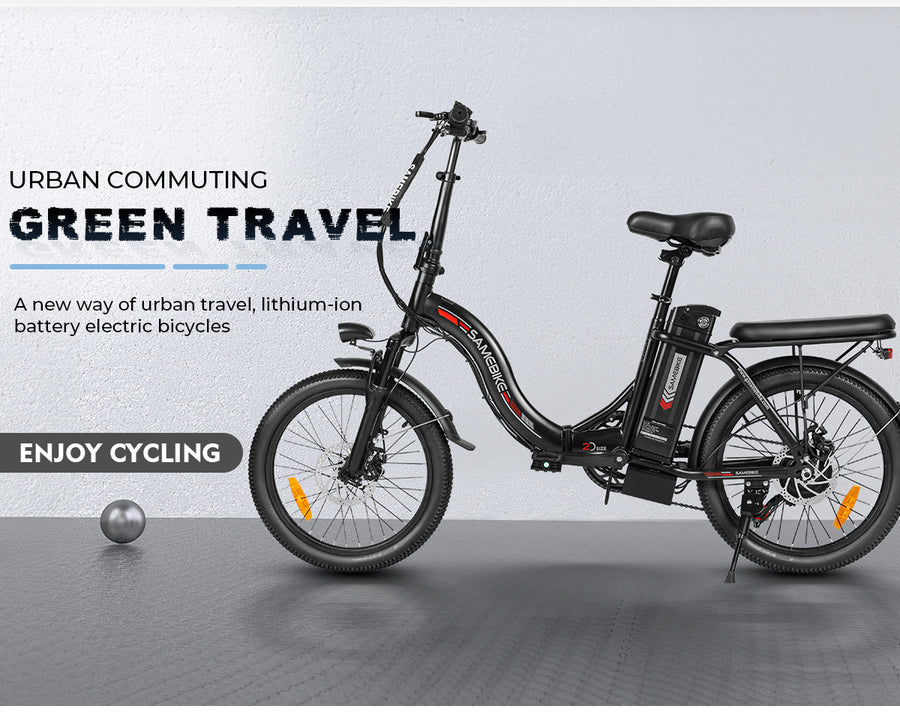

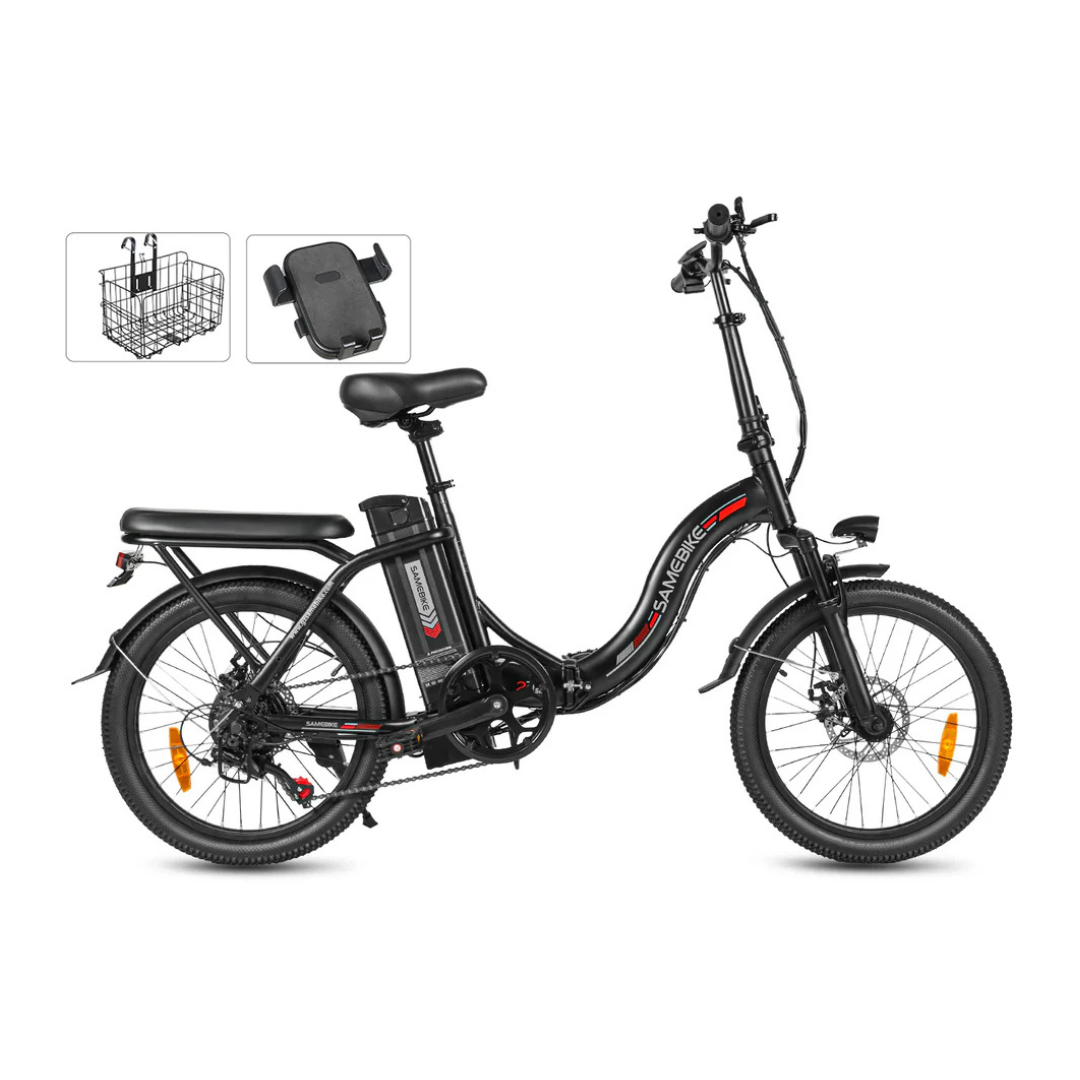

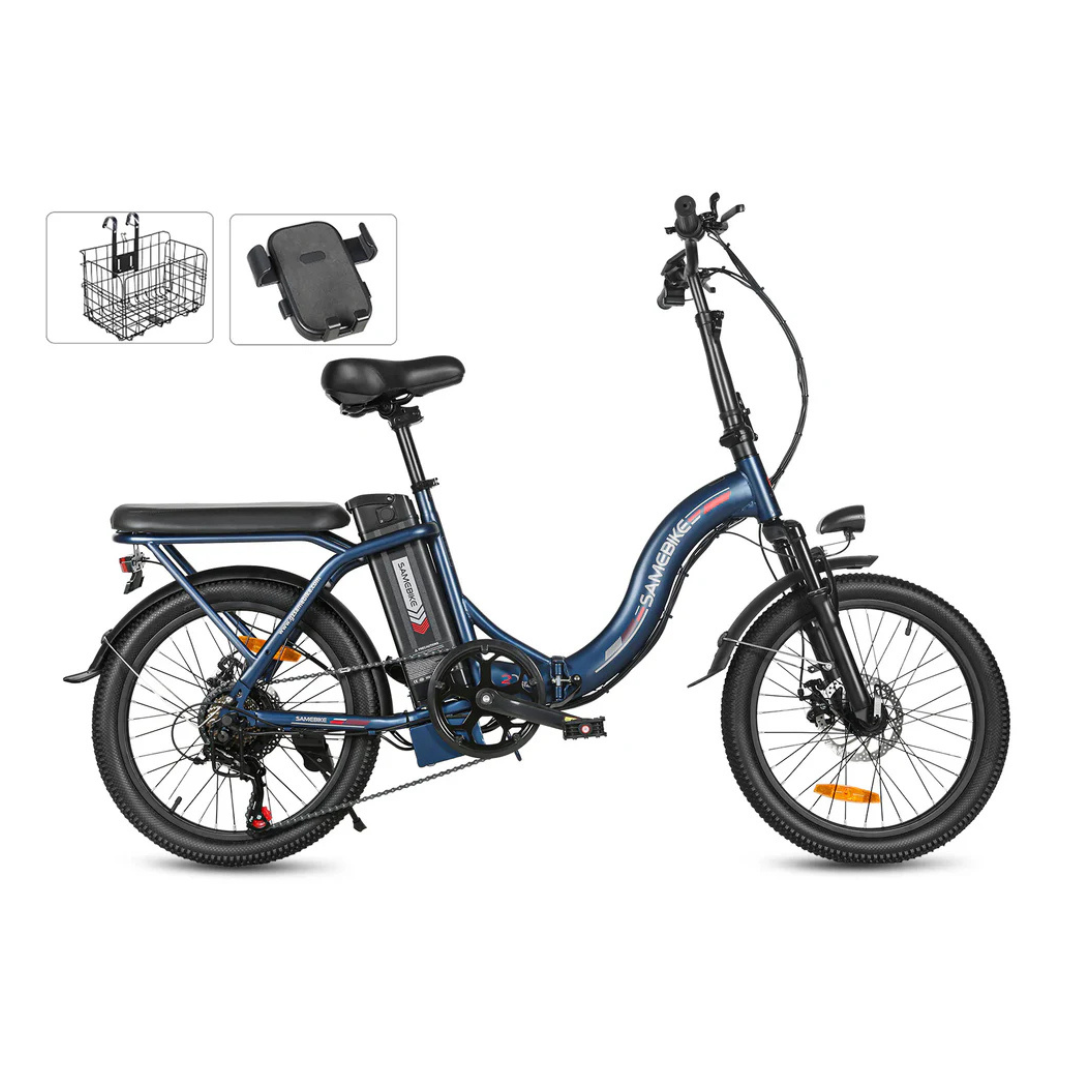

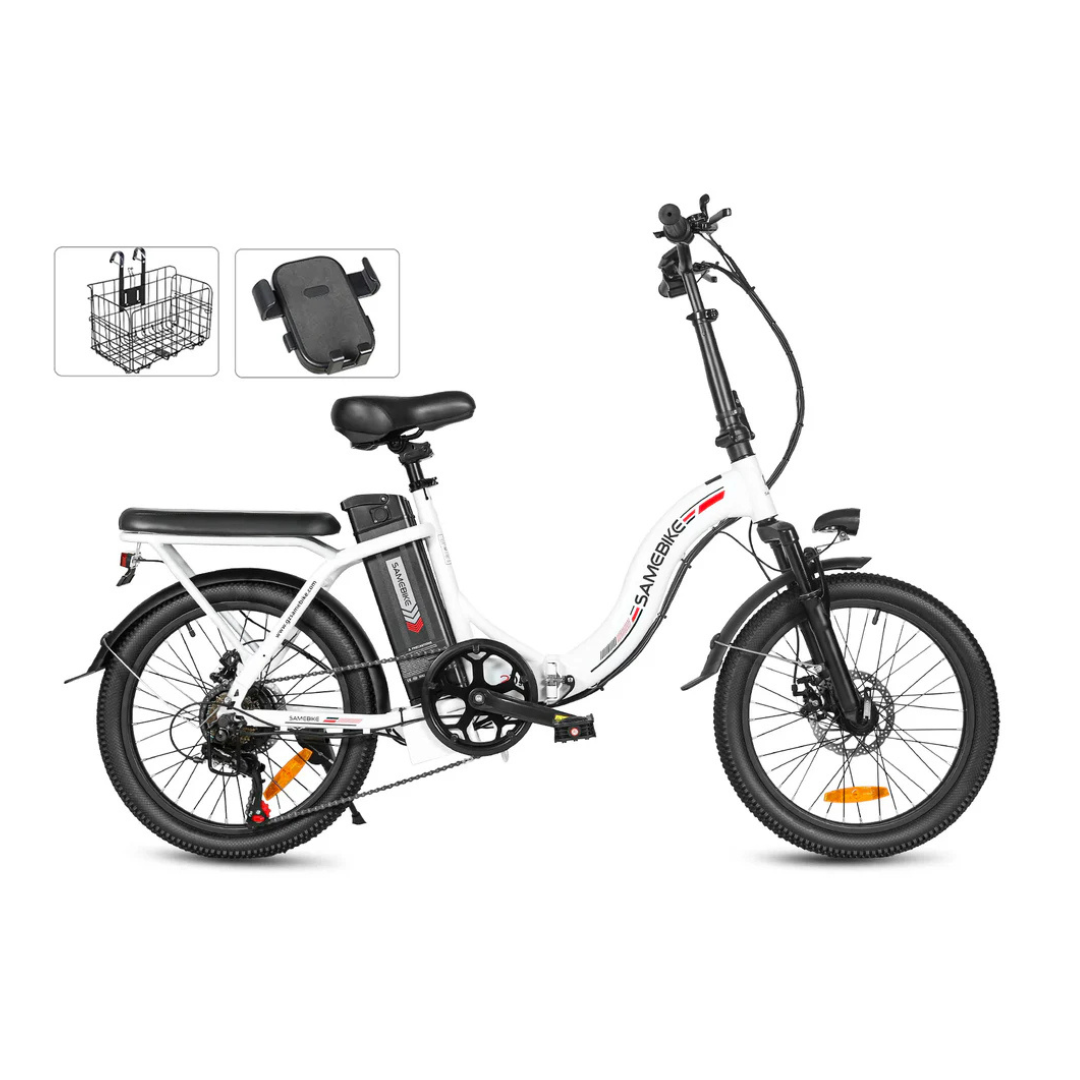

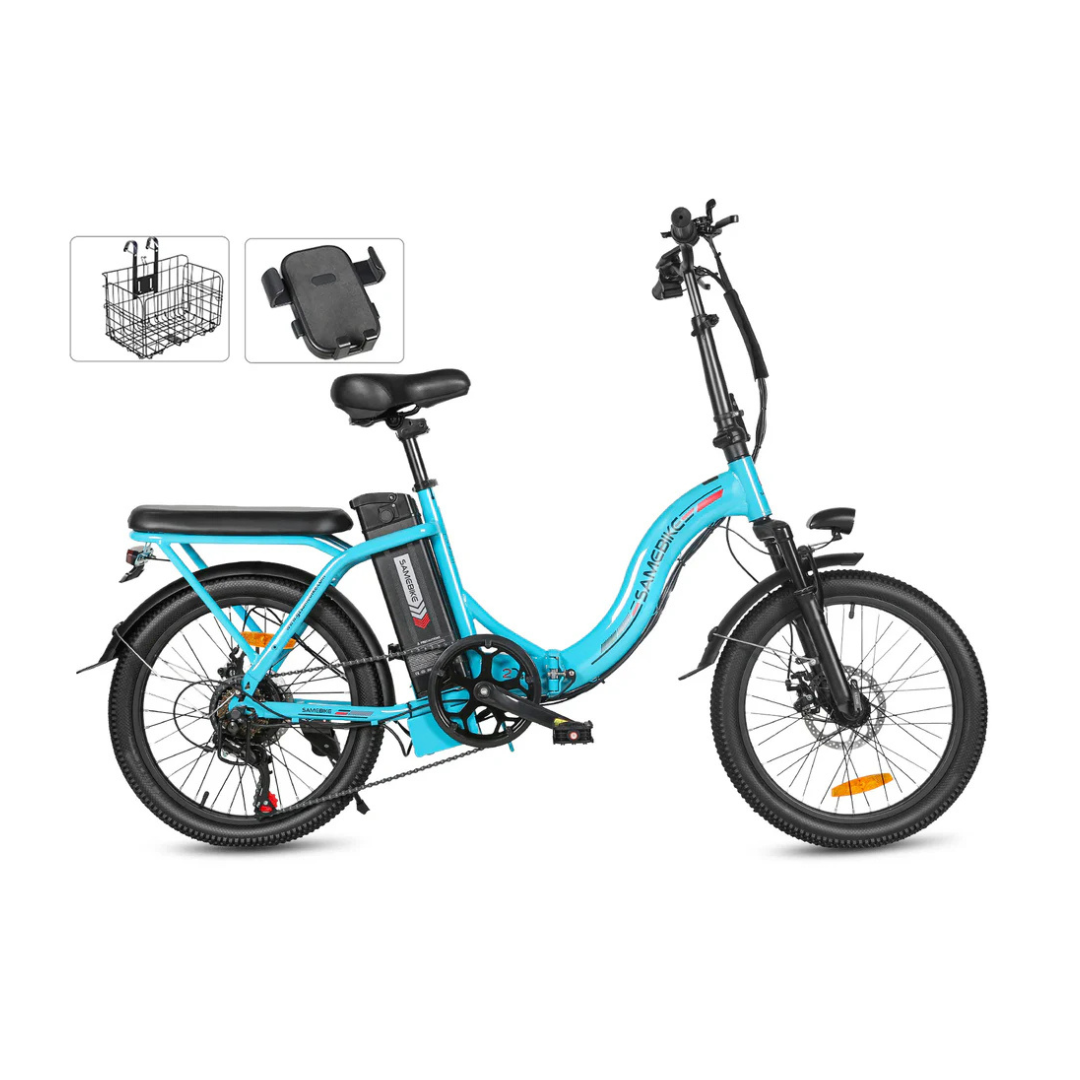

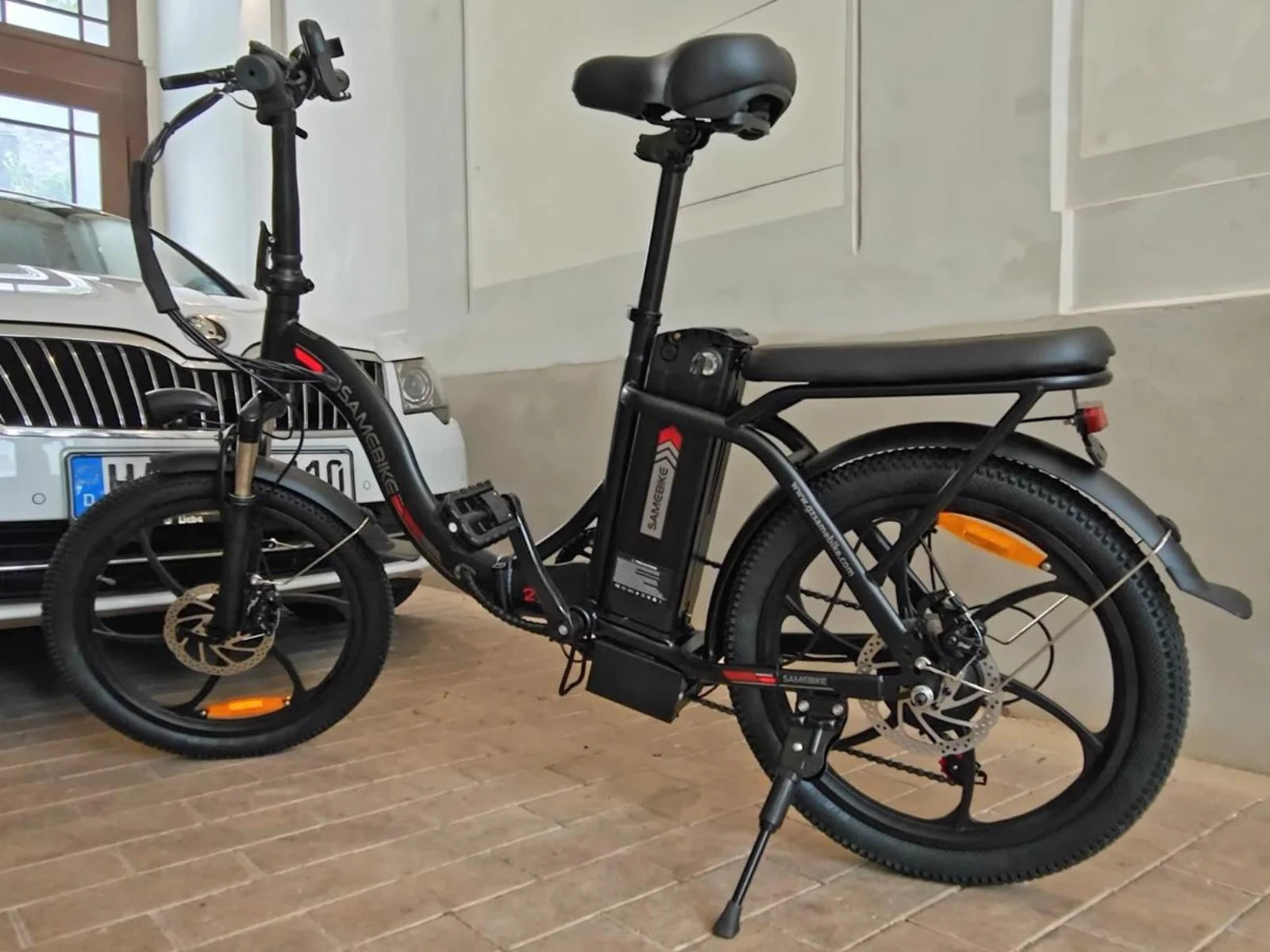

CY20 Portable Commuter Electric Bike(Specs)
Specification | Details |
---|---|
Battery | 36V 13AH |
Max Speed | 32 KM/H |

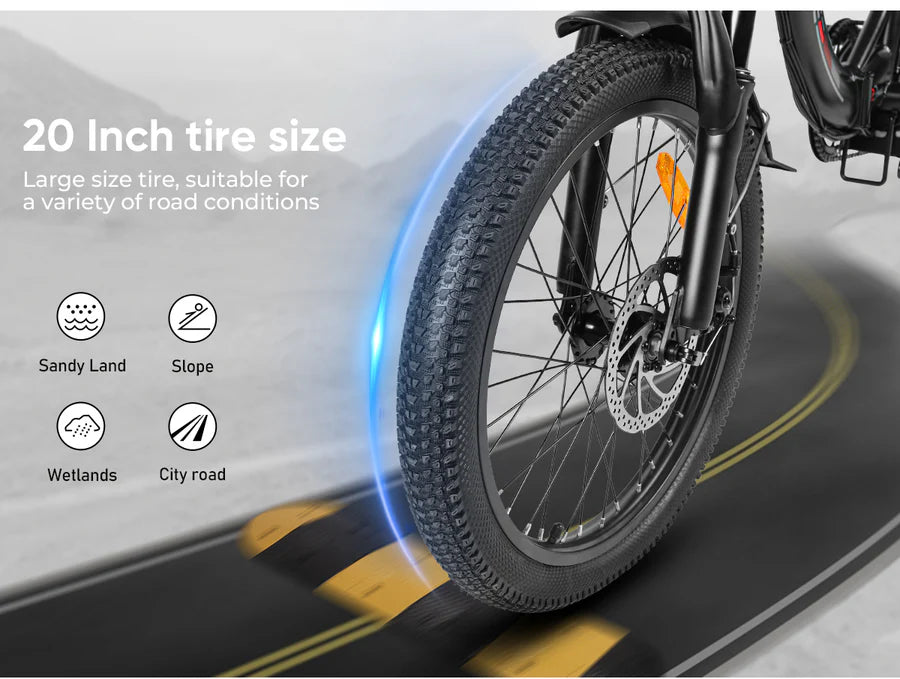

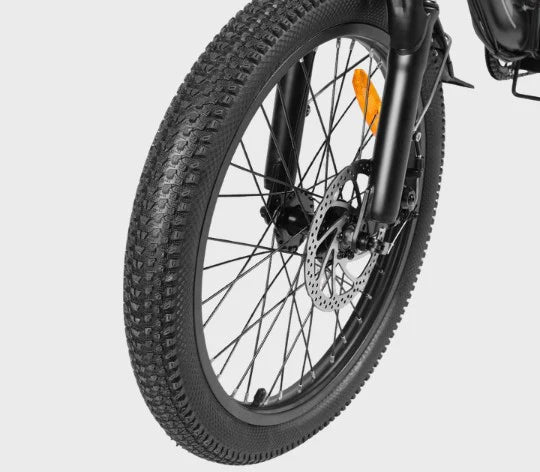

Tires | 20 x 2.35 inch |

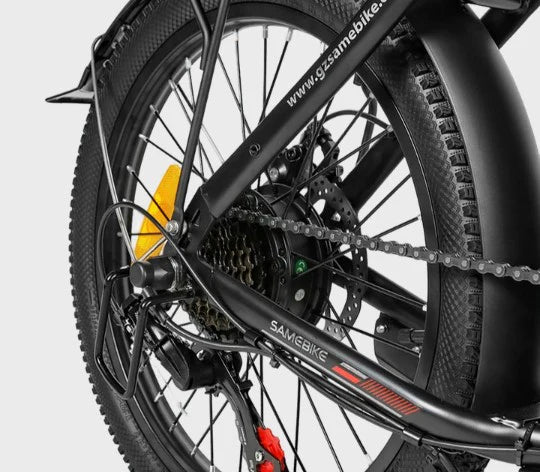

Shifter | Shimano 7 Speed |

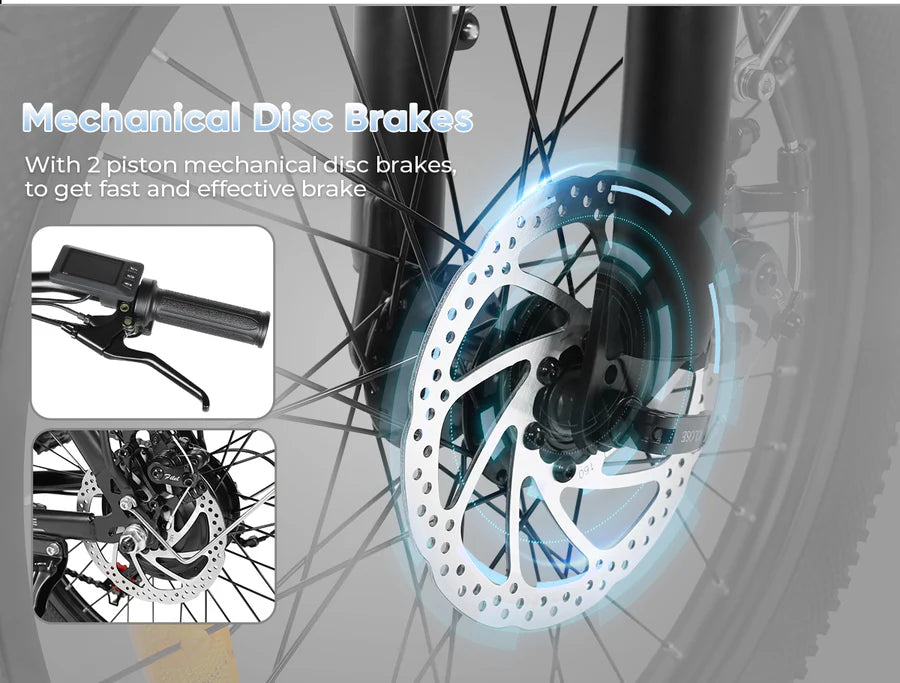

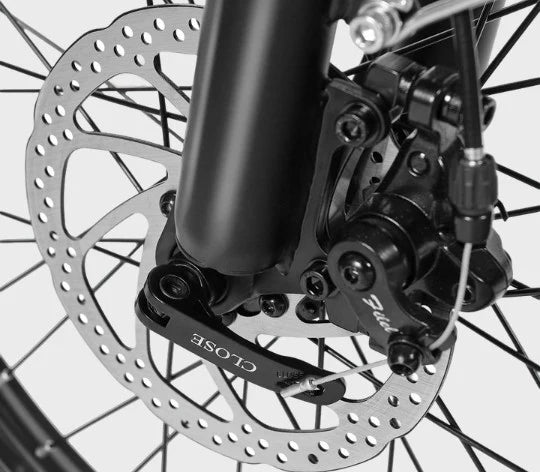

Brake | Mechanical disc brakes |
Throttle | Detachable throttle |
Frame Material | 6061 Aluminum frame |

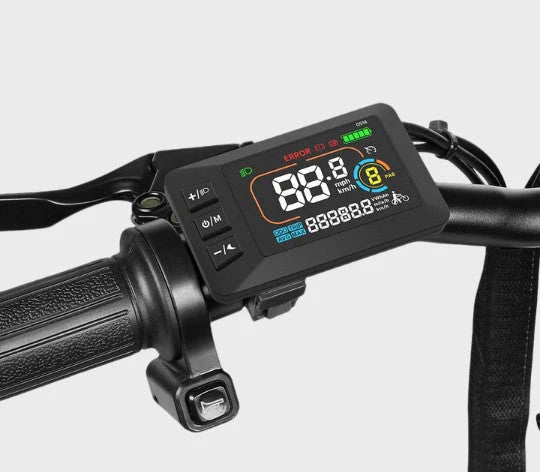

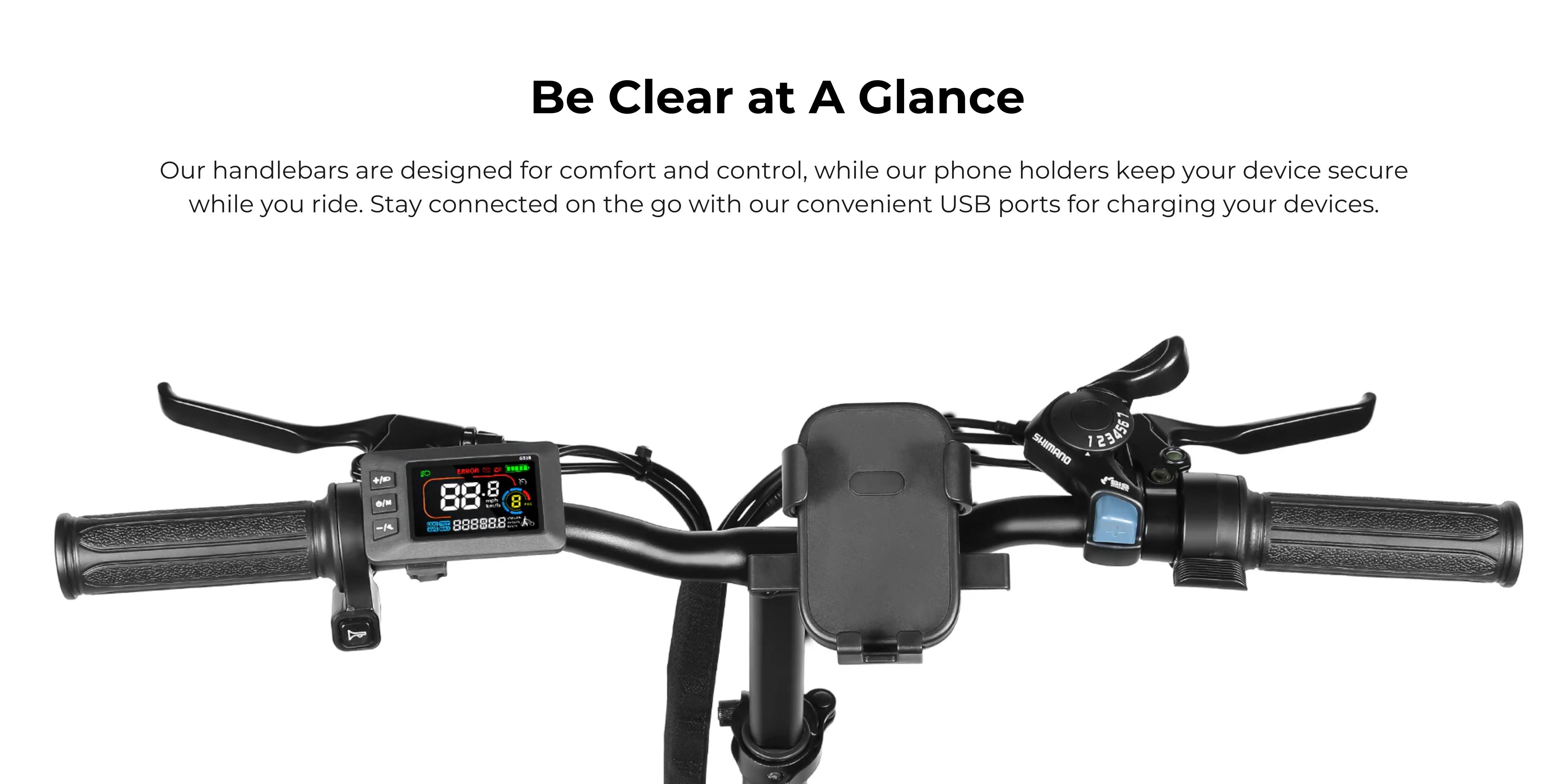

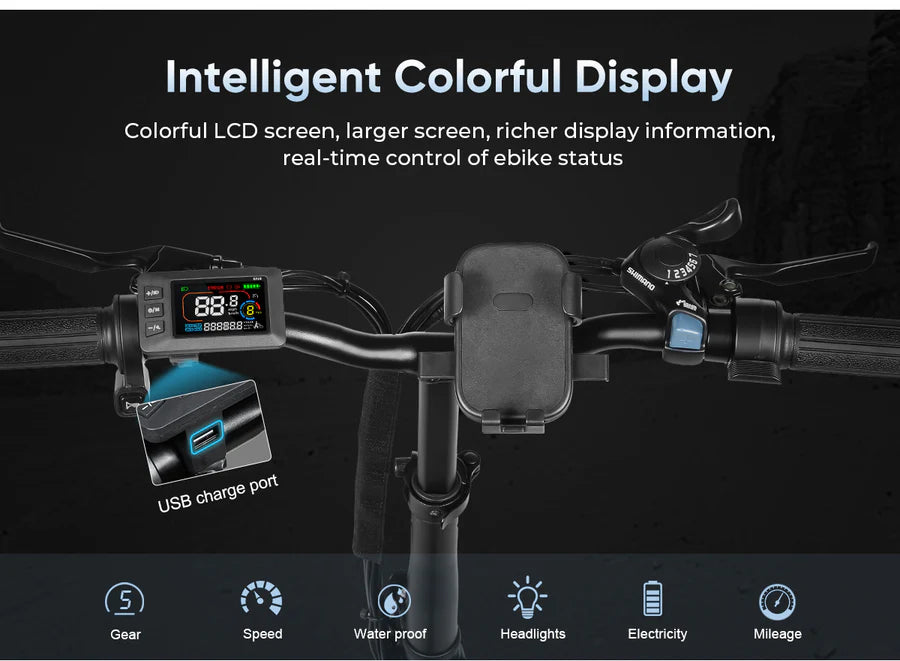

Display | LCD display |
Payload | 150 kg |
Handlebar | Adjustable |

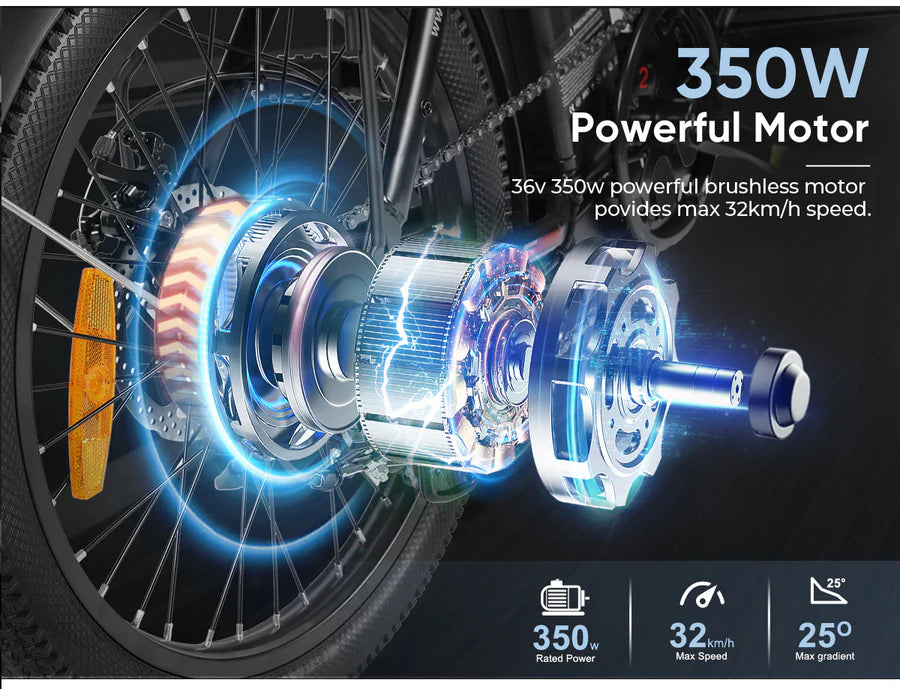

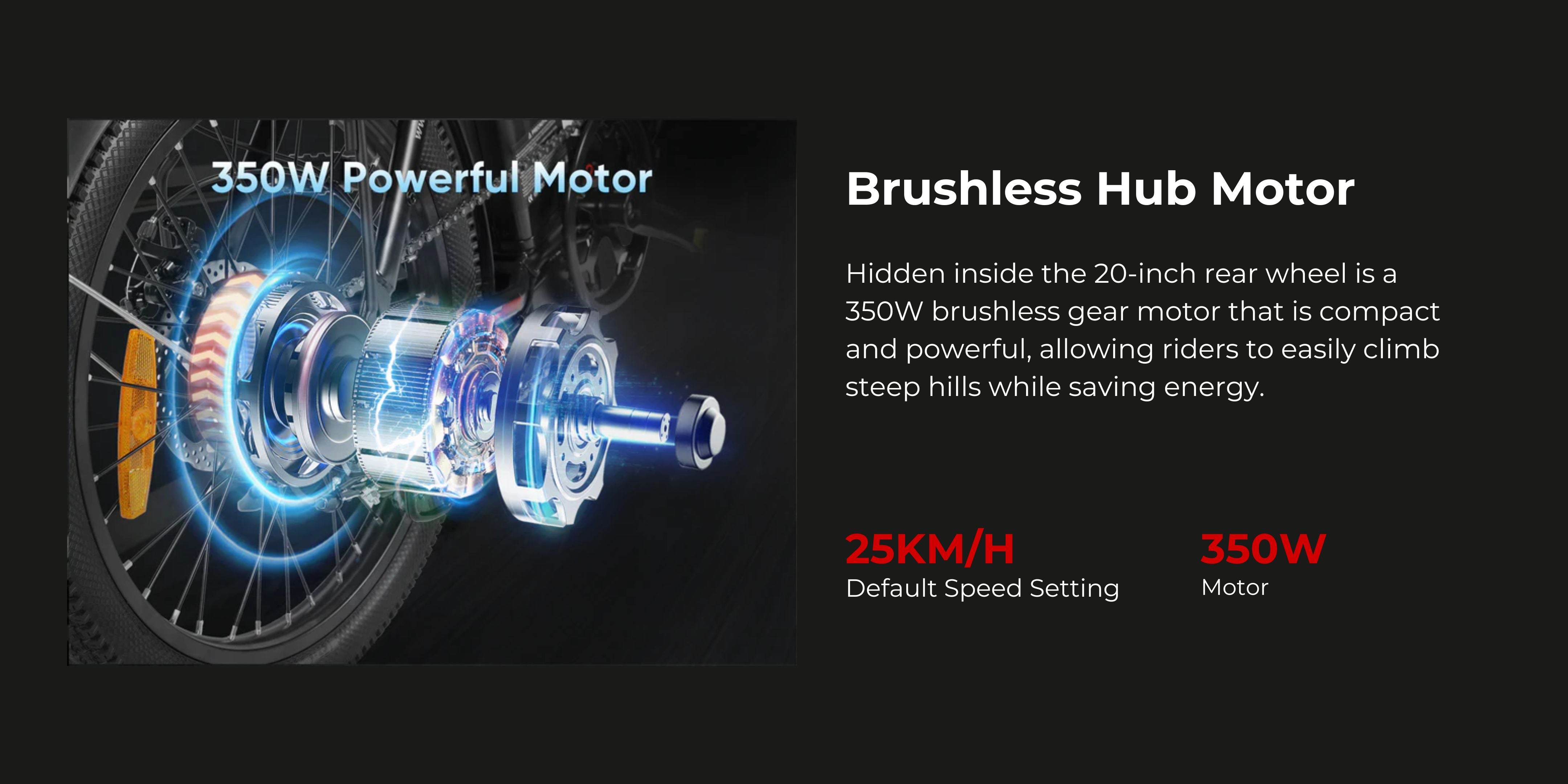

Motor | 350W |
Max Range | 40 + 40 KM |

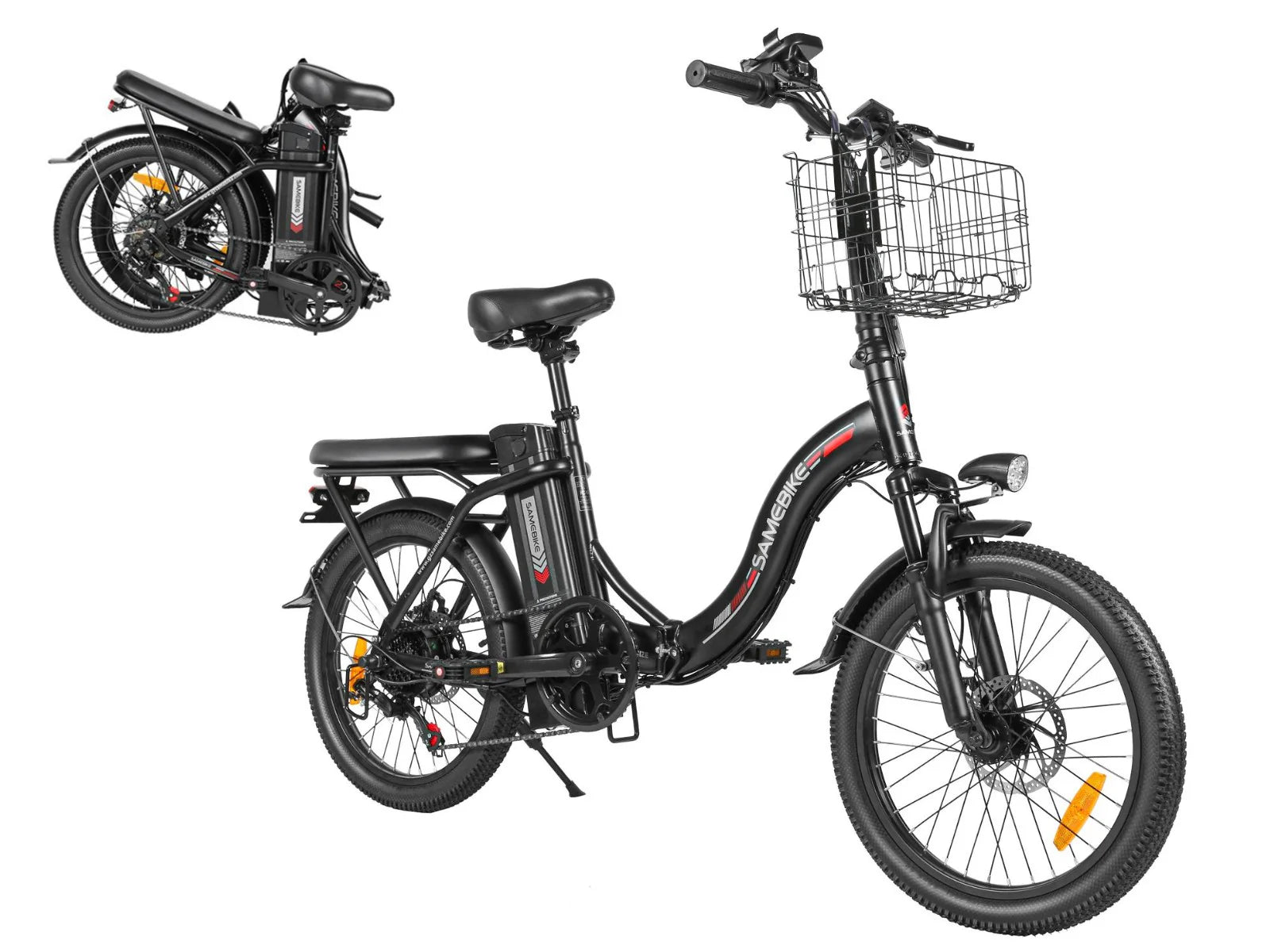

Foldable | Yes |

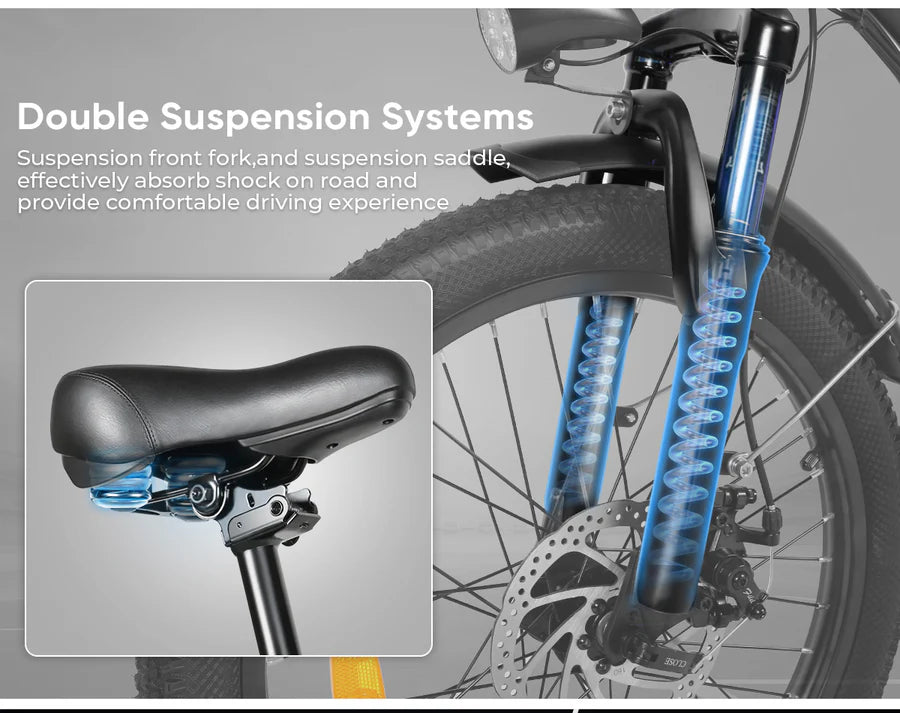

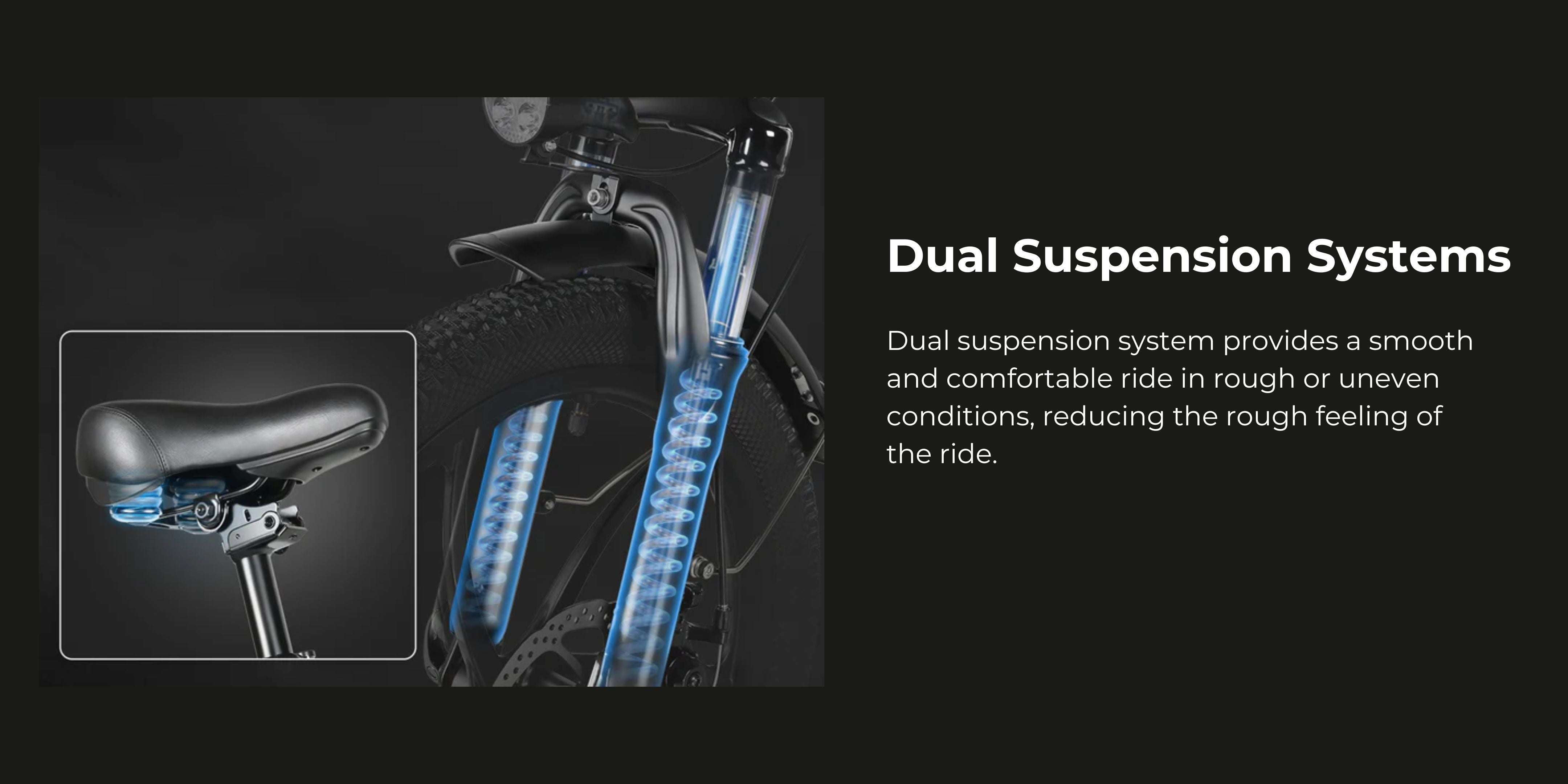

Suspension | Front fork + Seat dual suspension |
Pedal Levels | 5 Levels |
USB Charger | Yes |
Charging Time | 4-6 hours |
Weight | 25 kg |
Folded Size | 0.8 x 0.5 x 0.6 m |

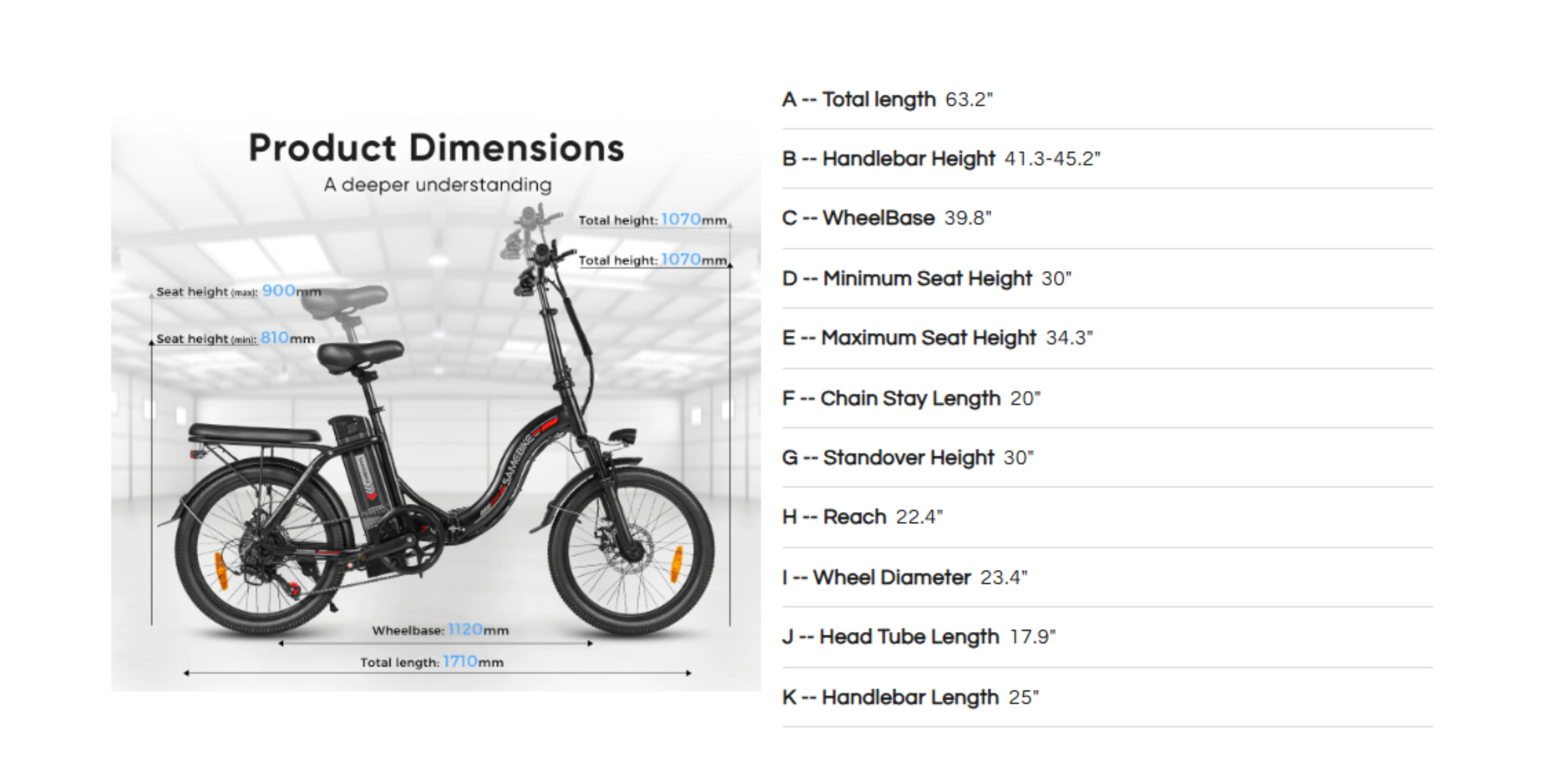

CY20 Portable Commuter Electric Bike(Size)
Dimension | Measurement (inches) |
---|---|
A -- Total Length | 63.2 |
B -- Handlebar Height | 41.3 - 45.2 |
C -- Wheelbase | 39.8 |
D -- Minimum Seat Height | 30 |
E -- Maximum Seat Height | 34.3 |
F -- Chain Stay Length | 20 |
G -- Standover Height | 30 |
H -- Reach | 22.4 |
I -- Wheel Diameter | 23.4 |
J -- Head Tube Length | 17.9 |
K -- Handlebar Length | 25 |
