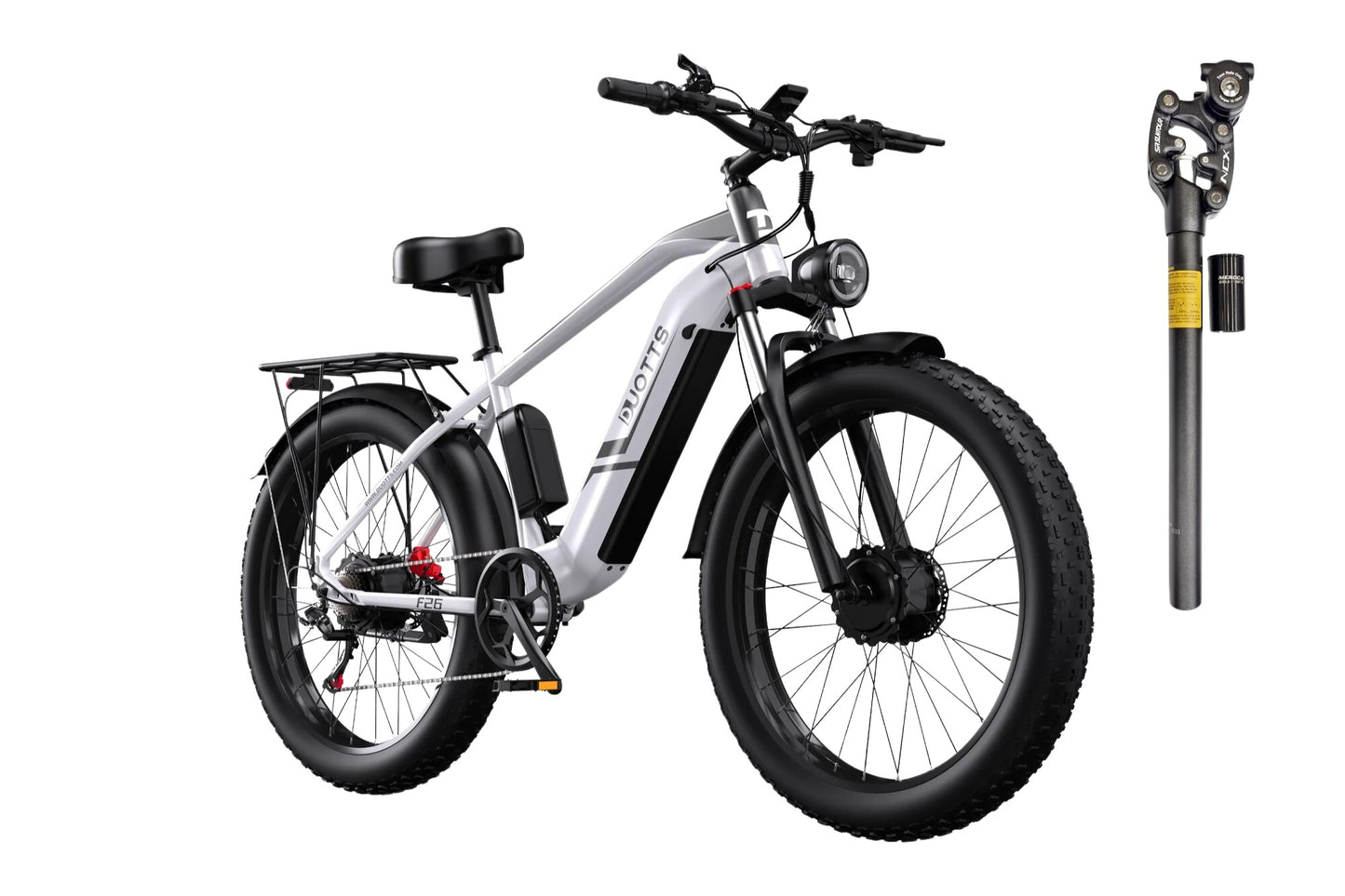

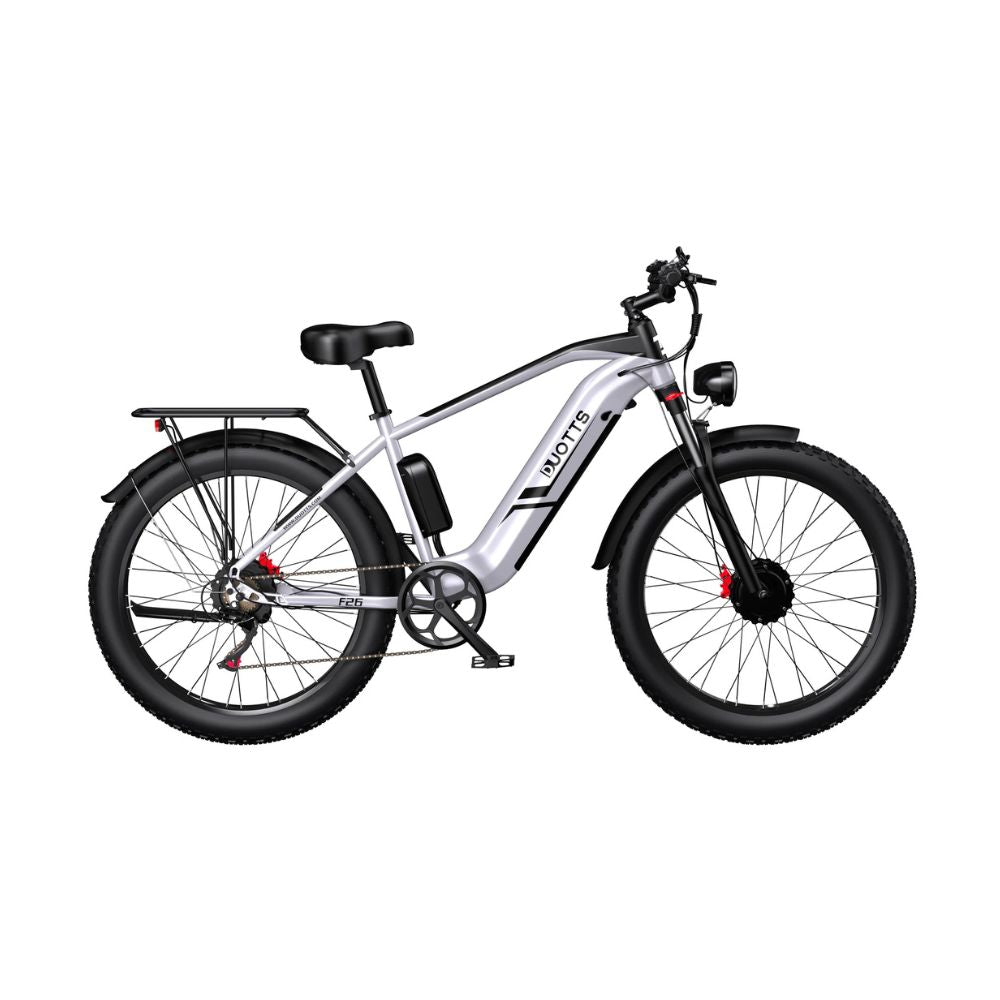

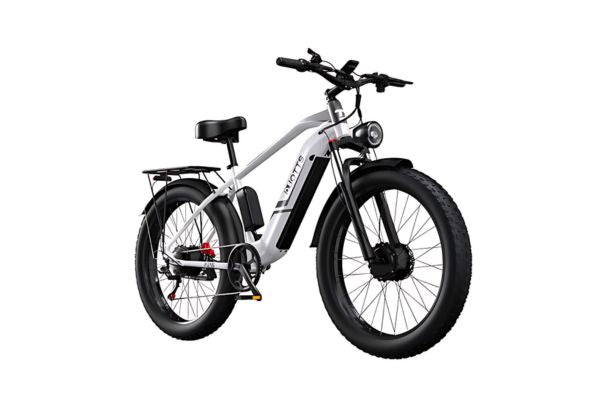

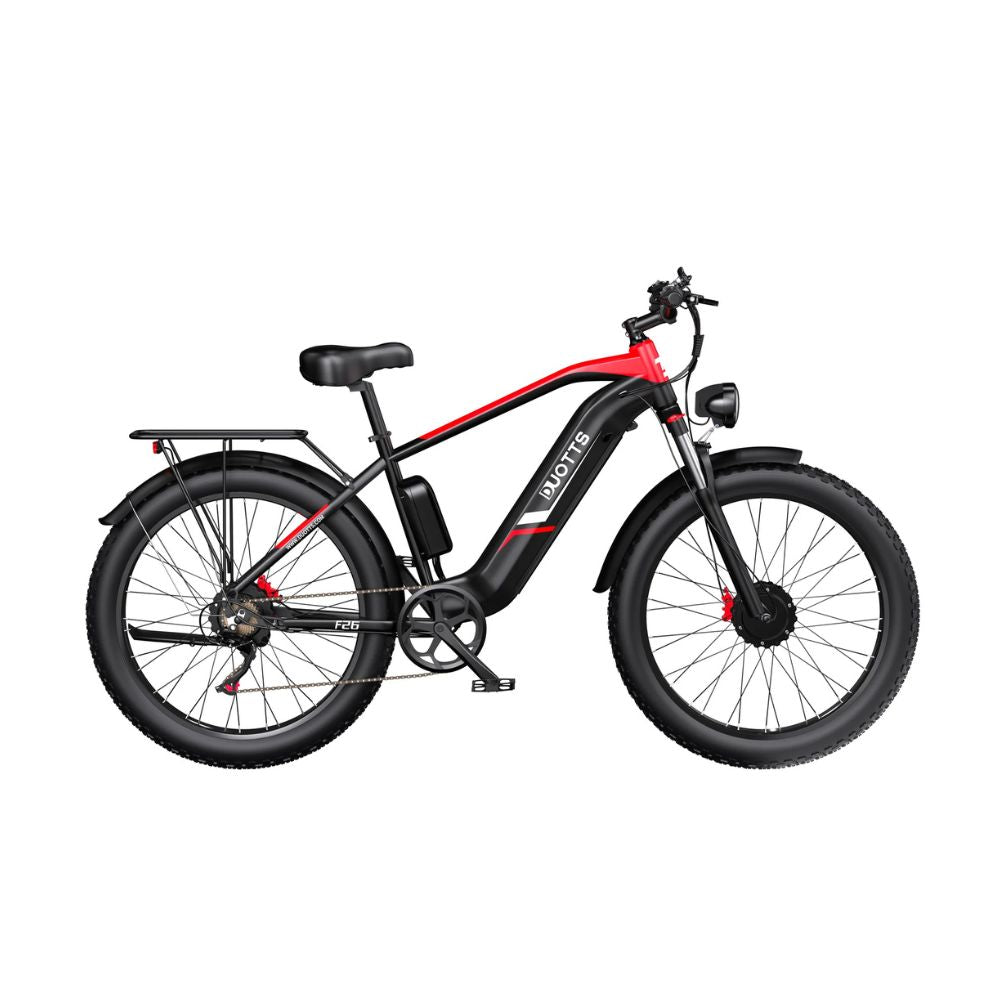

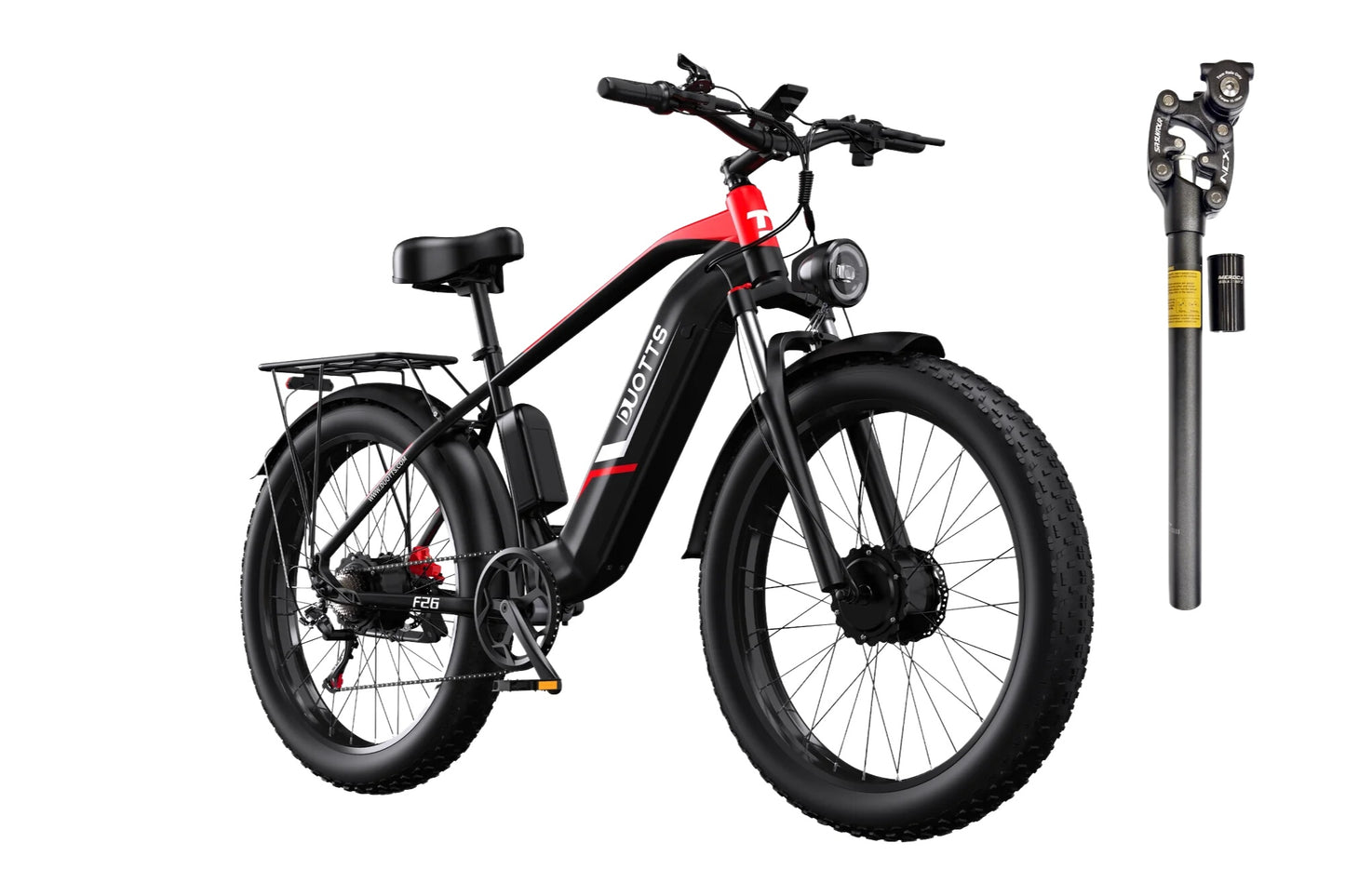

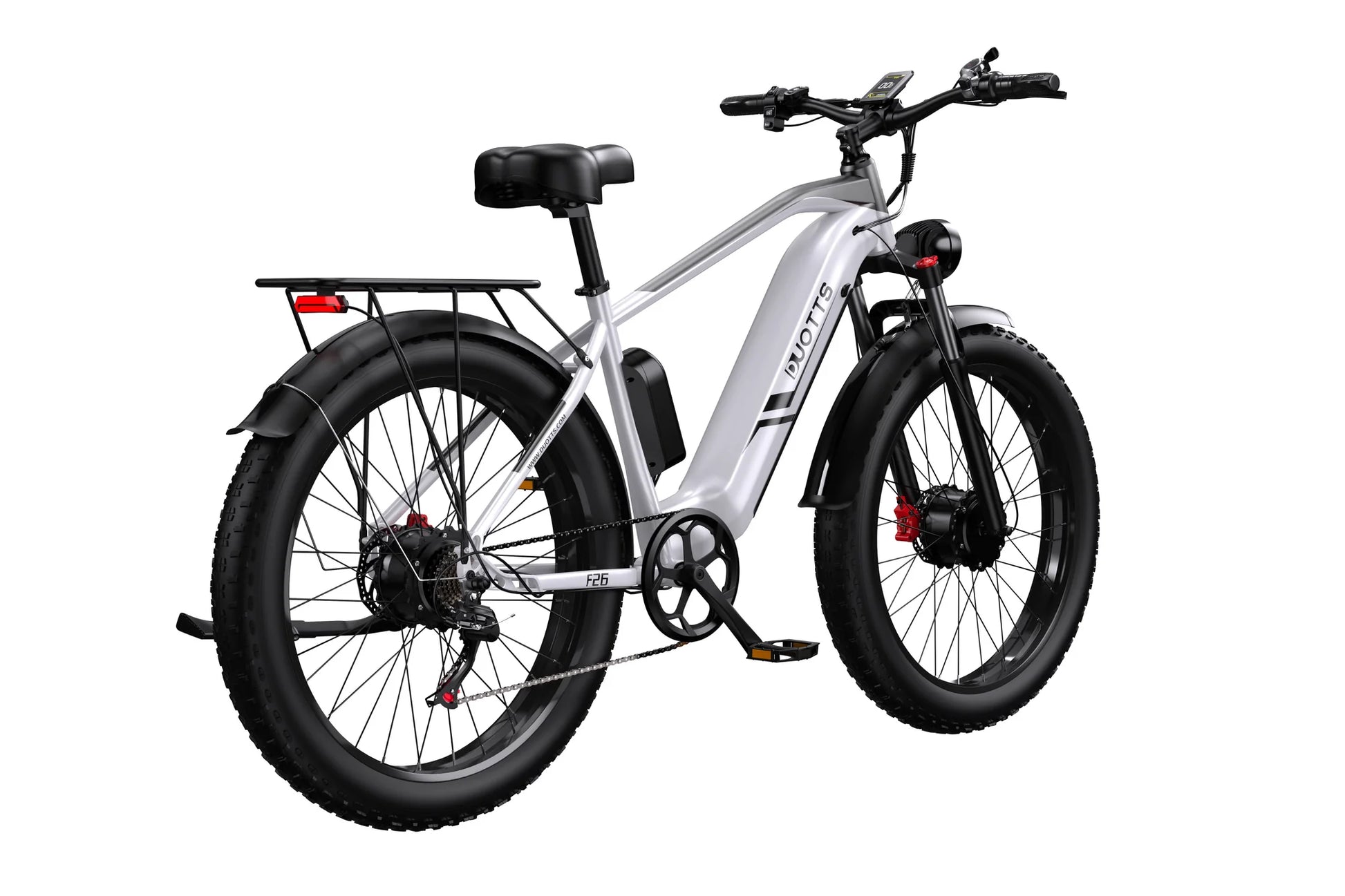

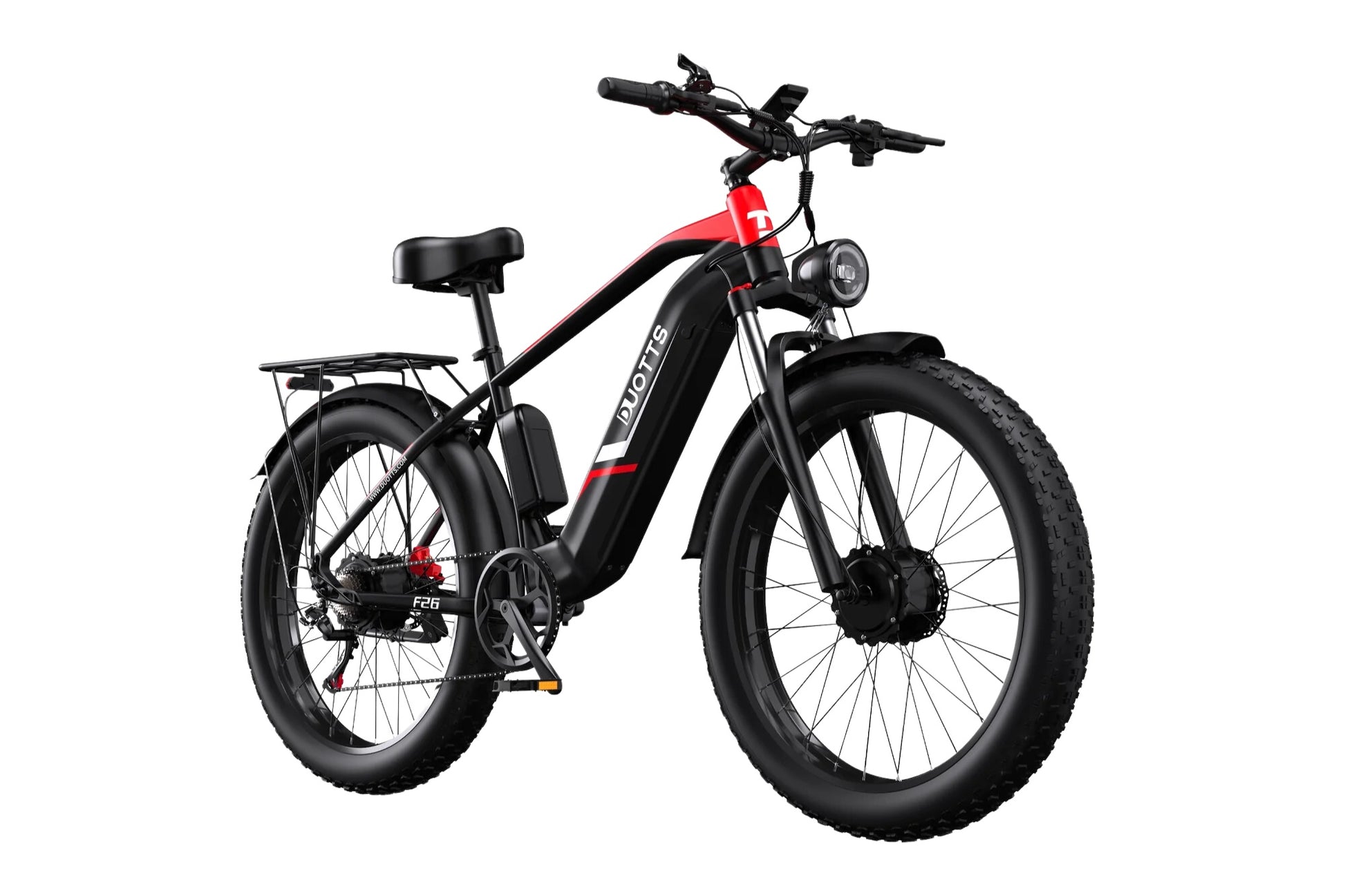

DUOTTS F26 Off-Road Electric Bike – 1500W Dual Motor, 26" Fat Tires, 7-Speed
DUOTTS F26 Off-Road Electric Bike – 1500W Dual Motor, 26" Fat Tires, 7-Speed
- Shipping: Free-in-EU
- Delivery: 3-7 Business days
- Return time: 30days
1000 in stock
Frequently Bought Together
Couldn't load pickup availability
Product Parameters

25 km/h

100-120 KM

48V 20AH

65Nm*2

750 W*2

88.1 lbs










DUOTTS F26 Electric Bike(Specs)
General Spec
Feature | Specification |
---|---|
Frame | All-aluminum alloy |
Brake | Front and rear DYISLAND hydraulic brake |
Front Fork | Aluminum shoulder iron leg spring shock absorber front fork |
Range | 40-60 km (pure electric mode), 100-120 km (auxiliary mode) (Actual performance will vary depending on temperature, road conditions, rider weight, etc.) |
Speed | 25 km/h (Motor stops providing power at the specified maximum speed. Can still ride above with pure muscle strength) |
Net Weight | 39.8 kg |
Certificate | CE certification |
Product Size | 19501100710 mm |
Package Size | 1550340830 mm |
Tire Size | 26*4.0 inches |
Assist Intelligent | Level 0-5 pedal assist |
Angle of Climb | Maximum climbing angle 55° |
Rider Heights | 170-200 cm |
Weight Capacity | 150 kg |
Waterproof Class | IPX4 (Light rain or rain sputtering, not direct water exposure) |
Working Temperature | -10 ~ 40 ℃ (Not recommended in bad weather) |
Package Content | Complete vehicle, multi-function installation tool, mobile phone holder bag, pump, manual |
Electronic Spec
Feature | Specification |
---|---|

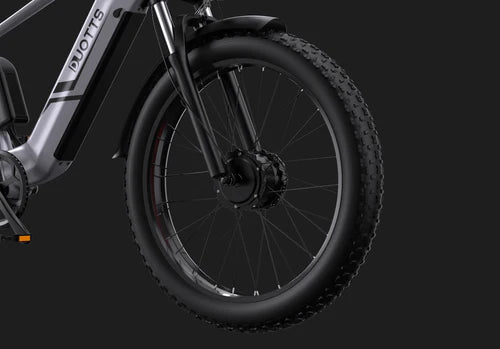

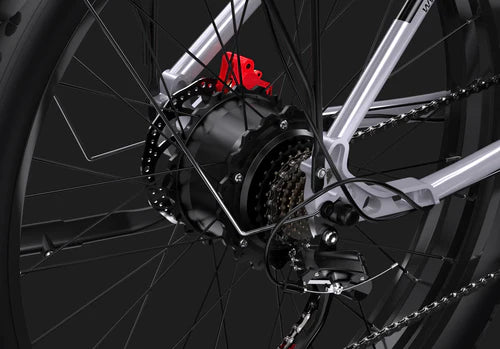

Motor | 48V 750W*2 |
Torque | 65 NM*2 |
Battery | Samsung 48V 20AH |
Battery Charger | 54.6V 3A |
Charger Time | 6-8 hours |
Sensor | Speed sensor |
Throttle | Electric half throttle |

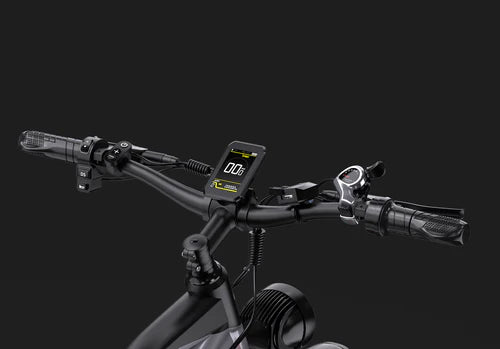

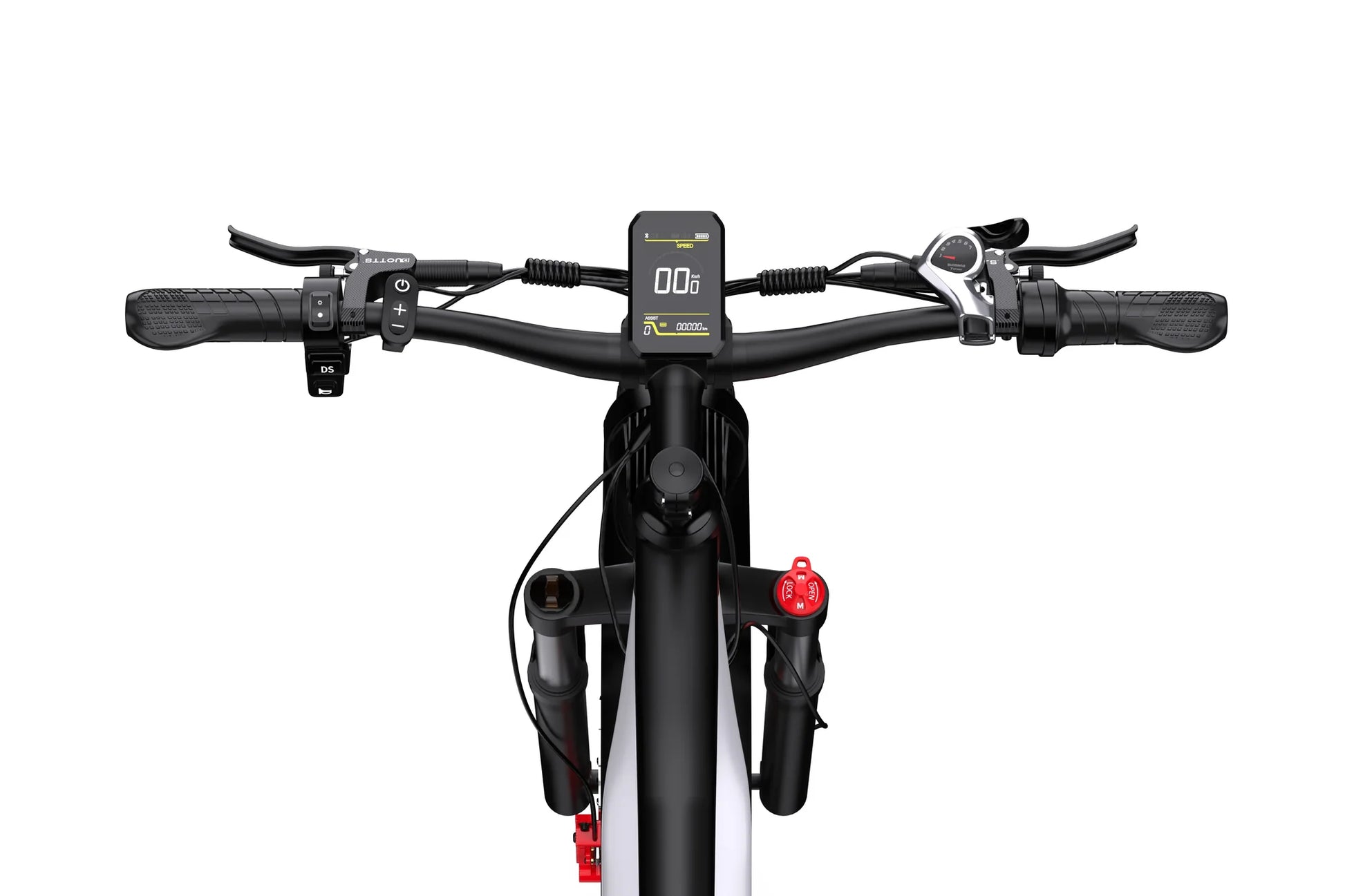

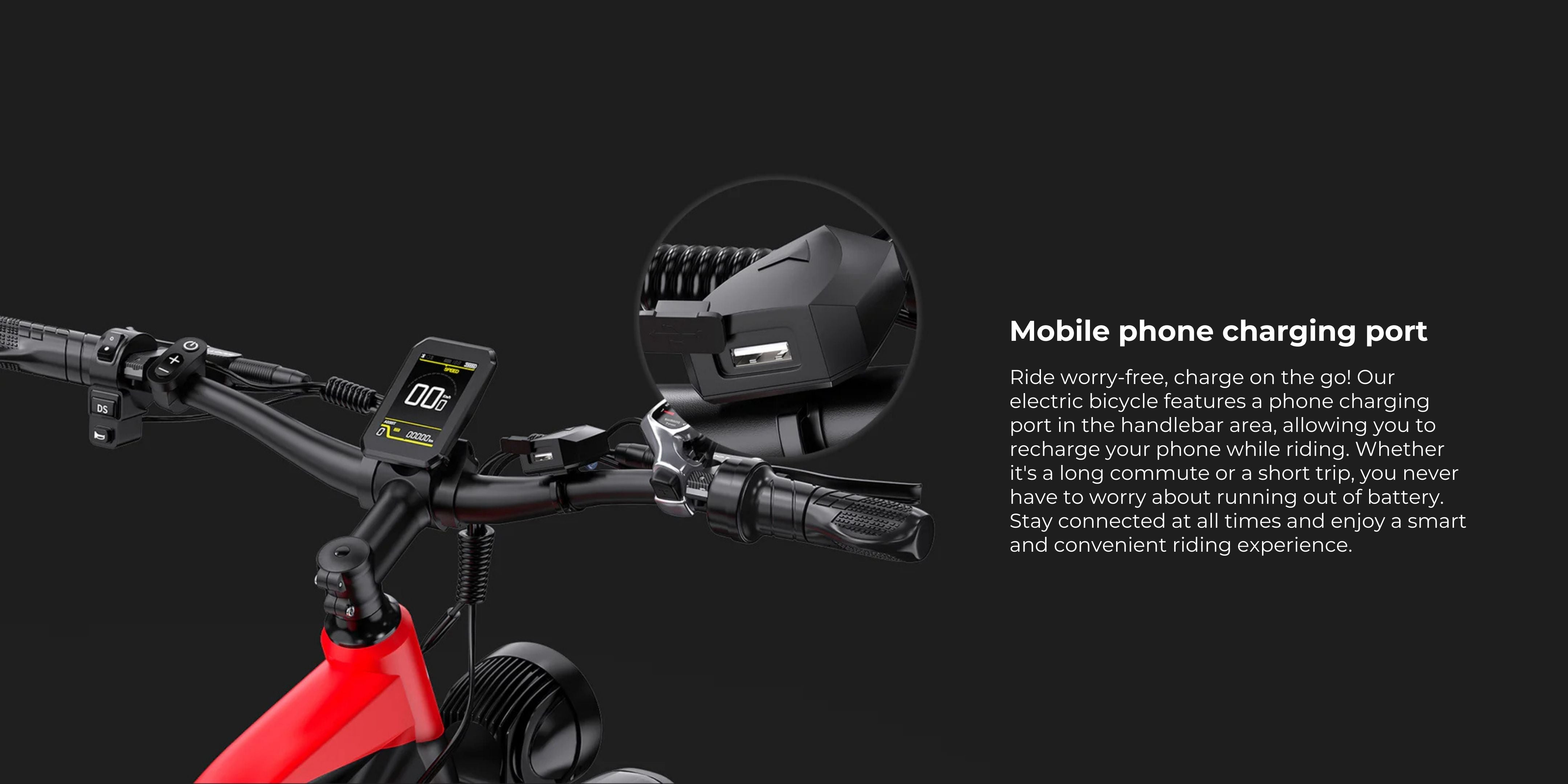

Display | 5-speed multifunction LCD display |
Smart Connect | Support Bluetooth connection, can connect through DUOTTS APP |

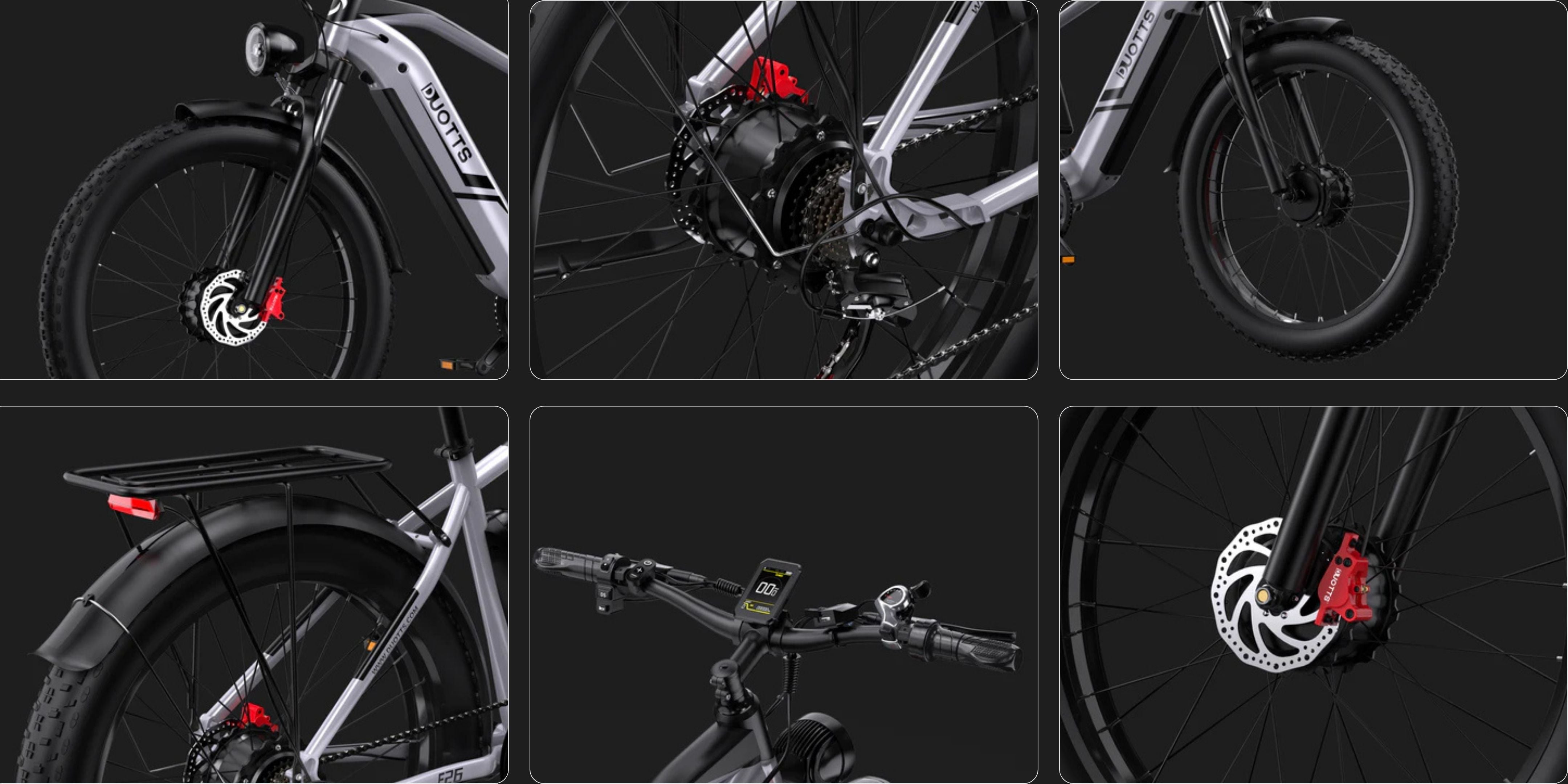

Components Spec
Feature | Specification |
---|---|
Transmission | Shimano 7 speed |
Suspension | Only the front shock absorber |

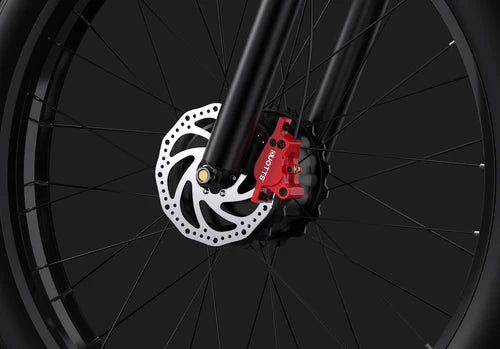

Brakes | Left and right power off brake, front and rear DYISLAND hydraulic brake |

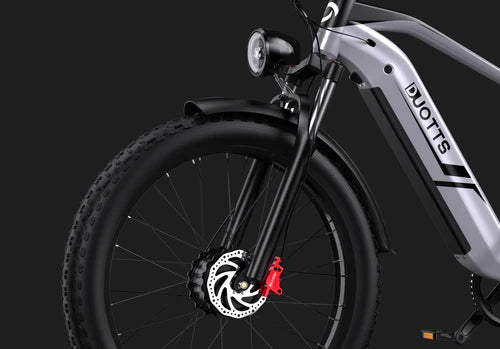

Brake Disc | Dish diameter 160mm |

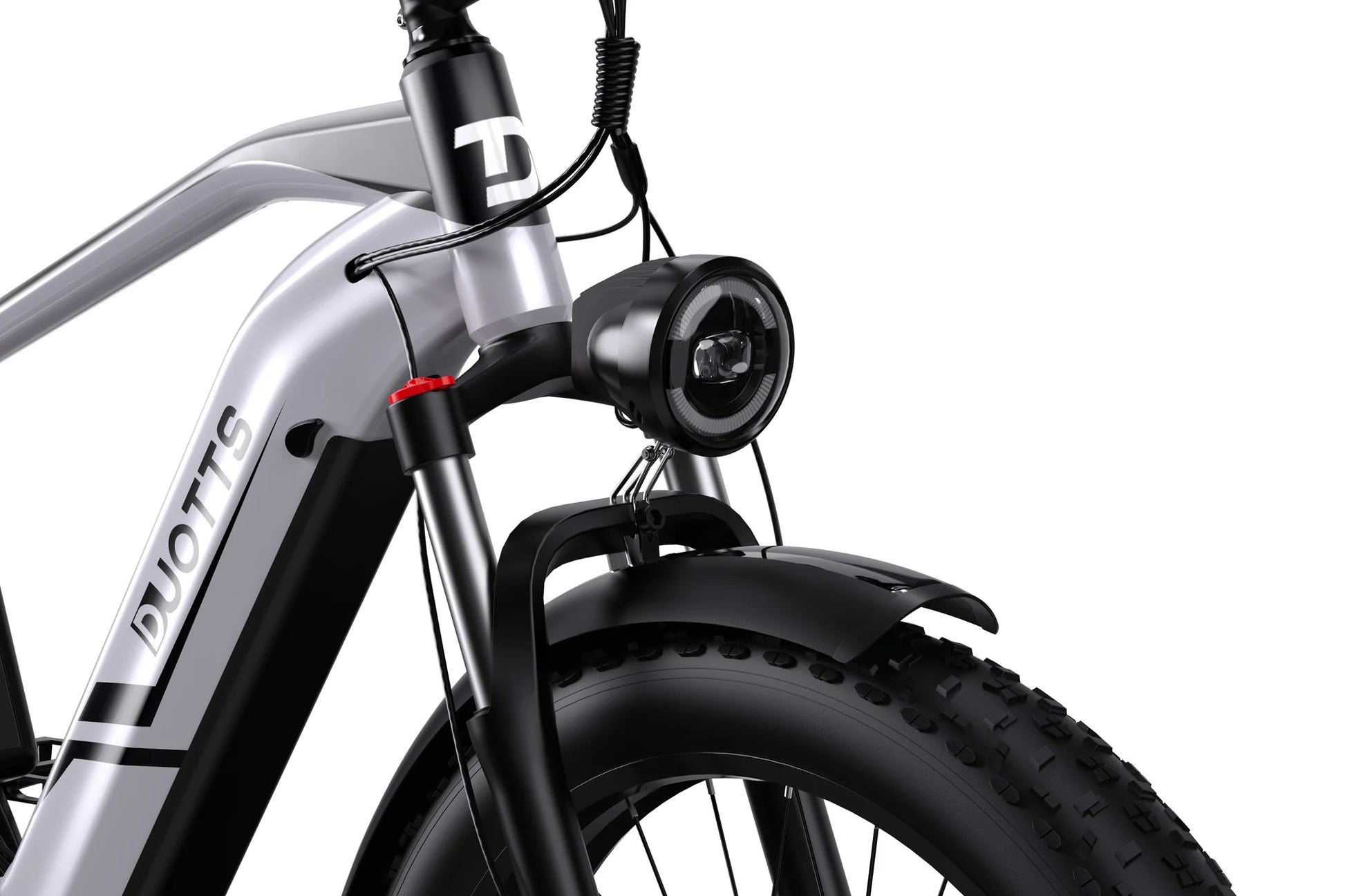

Headlight | Equipped with stainless steel front frame light |
Tail Light | Stainless steel rear taillights |
Pedals | WP-625 Material Aluminum alloy with general reflector/black/L+R label |
Fenders | Equipped with front and rear plastic mud boards/iron ED brackets |

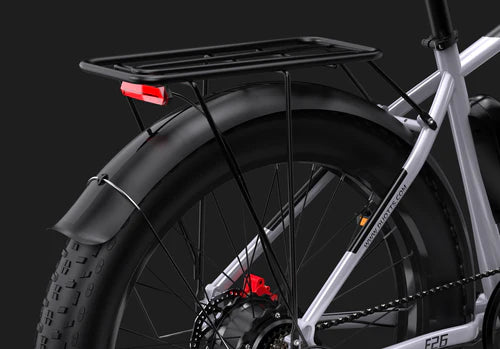

Rear Carrier | Equipped with iron non-adjustable shelves, which need to be installed by users themselves |
DUOTTS F26 Electric Bike(Size)
Feature | Specification |
---|---|
Recommended Height | 170-200cm |
Load Capacity | Max 150kg |
Bicycle Weight | 40kg |
A. Seat Height (Maximum) | 114cm |
B. Seat Height (Minimum) | 87cm |
C. Rear Rack Height | 80cm |
D. Wheelbase | 122cm |
E. Rear Chainstay | 52cm |
F. Seat Tube | 43cm |
G. Top Tube | 60cm |
H. Down Tube | 75cm |
I. Front Fork | 68cm |
J. Wheel Height | 73cm |
K. Bike Height | 121cm |
L. Bike Length | 195cm |

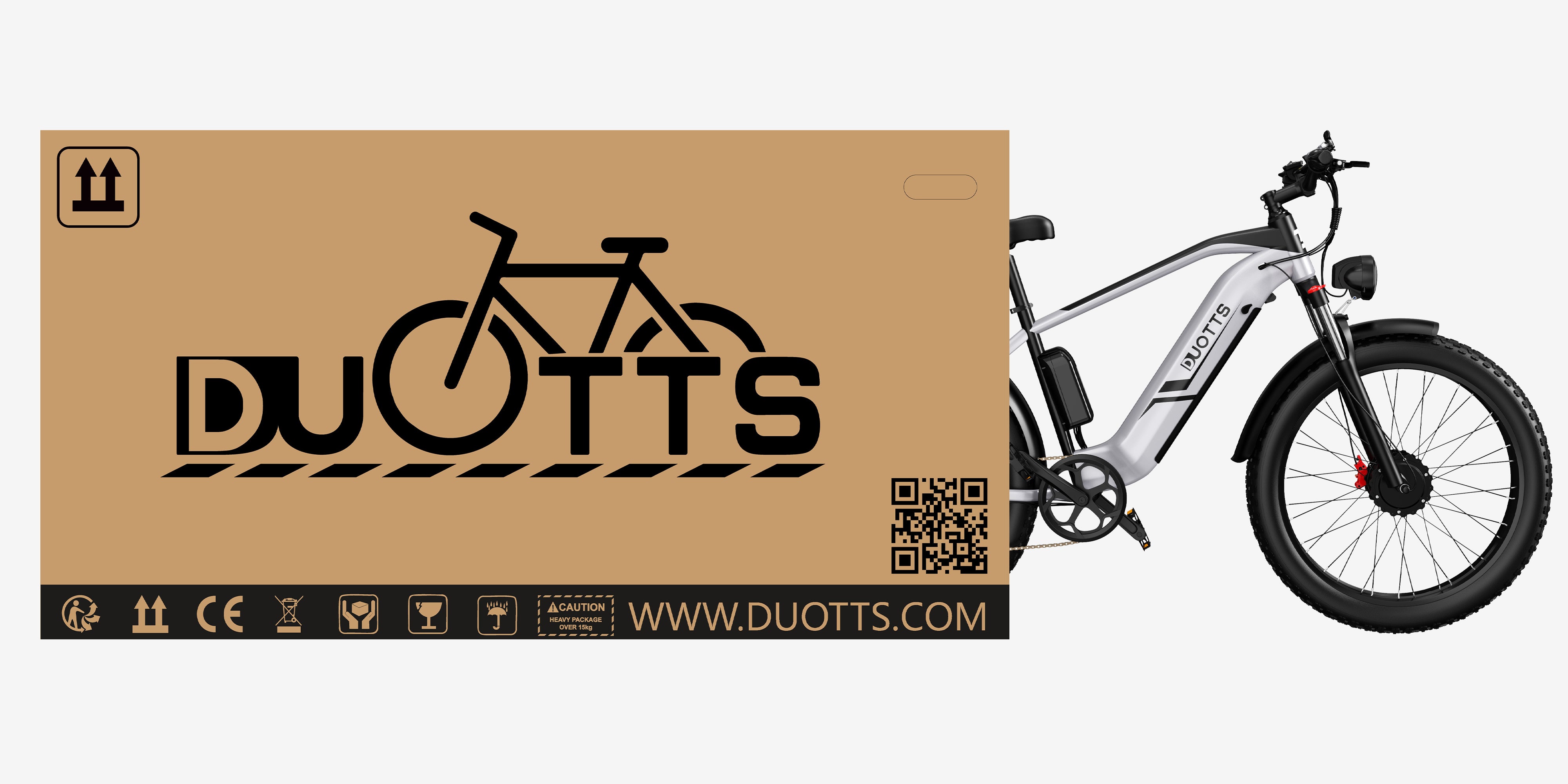

DUOTTS F26 Electric Bike(Whats in the box)
Category | Item |
---|---|
Tools | No.4 Hex Key |
No.5 Hex Key | |
Phillips Head Screwdriver | |
No.10&12 Wrench | |
No.13&15 Wrench | |
Electronic | Charger |
Accessories | Bicycle Pedals |
Pump | |
Bike Manual |
DUOTTS F26 Electric Bike(FAQ)
What types of products does Duotts offer?
Duotts specializes in high-quality fat tire electric bikes for adults, designed for various terrains.
What is included in the price of Duotts Ebikes?
The price includes taxes and shipping fees. No additional charges are required.
How do I track my order?
Track your order using the tracking link available on the website.
What is Duotts' return policy?
Returns are accepted for items in original condition with less than 10 km usage. Email support@picarlyride.com for assistance.
How do I contact Duotts customer support?
Reach out to us at support@picarlyride.com. Responses are typically provided within 24 hours.
Do Duotts Ebikes come with a warranty?
Yes, Duotts offers warranty support for its products. Check the website for specific warranty terms.
Can I ride a Duotts Ebike in the rain?
Duotts Ebikes can handle light rain, but avoid riding in heavy rain or submerging the bike in water.
How can I maintain my Duotts Ebike?
Regular maintenance includes annual servicing, chain lubrication, and checking tire pressure.
What is the weight capacity of Duotts Ebikes?
Weight capacity varies by model, ranging from 120 kg (265 lbs) to 150 kg (330 lbs).
