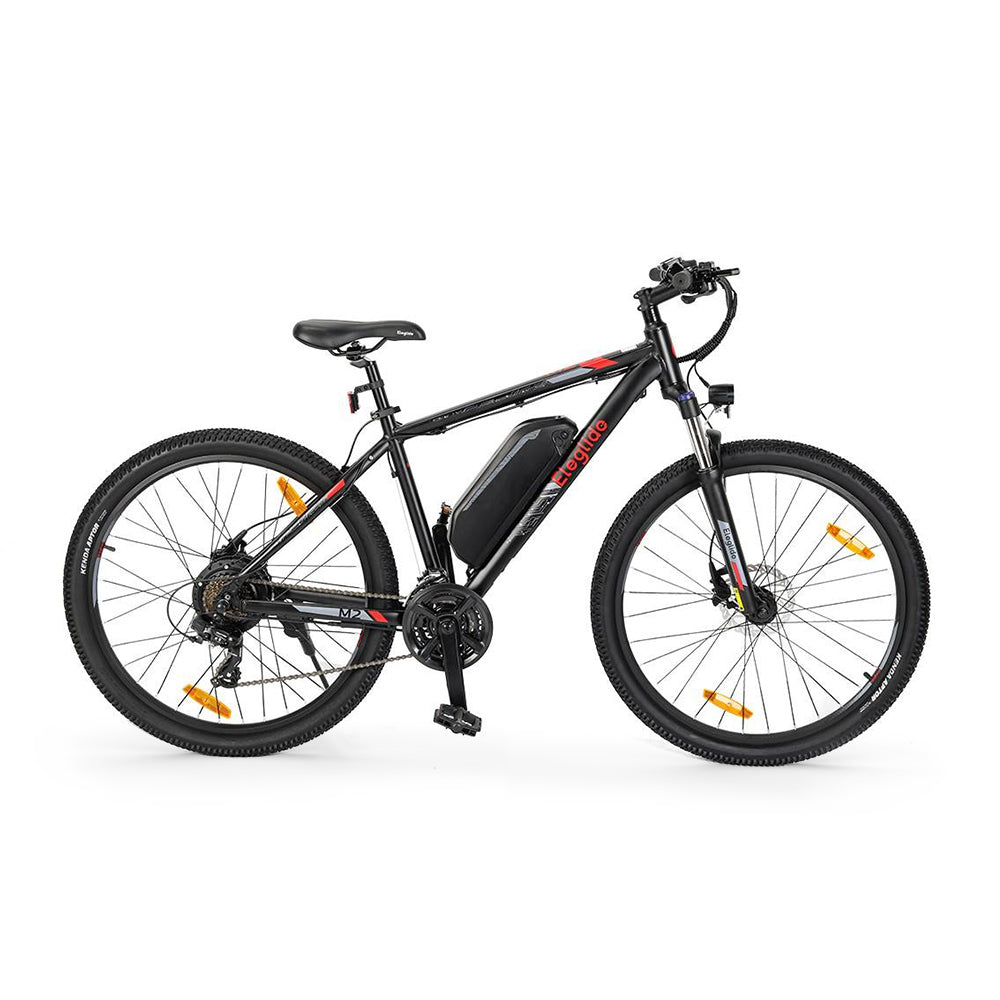

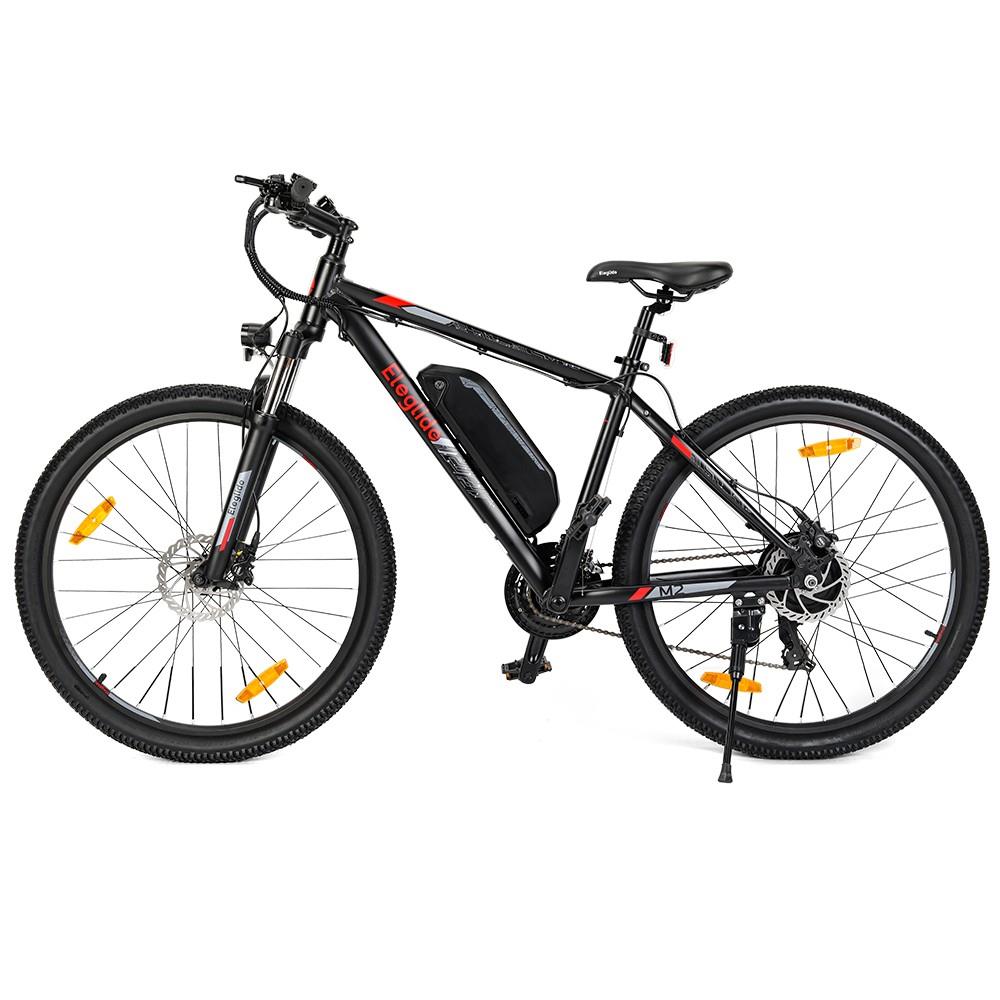

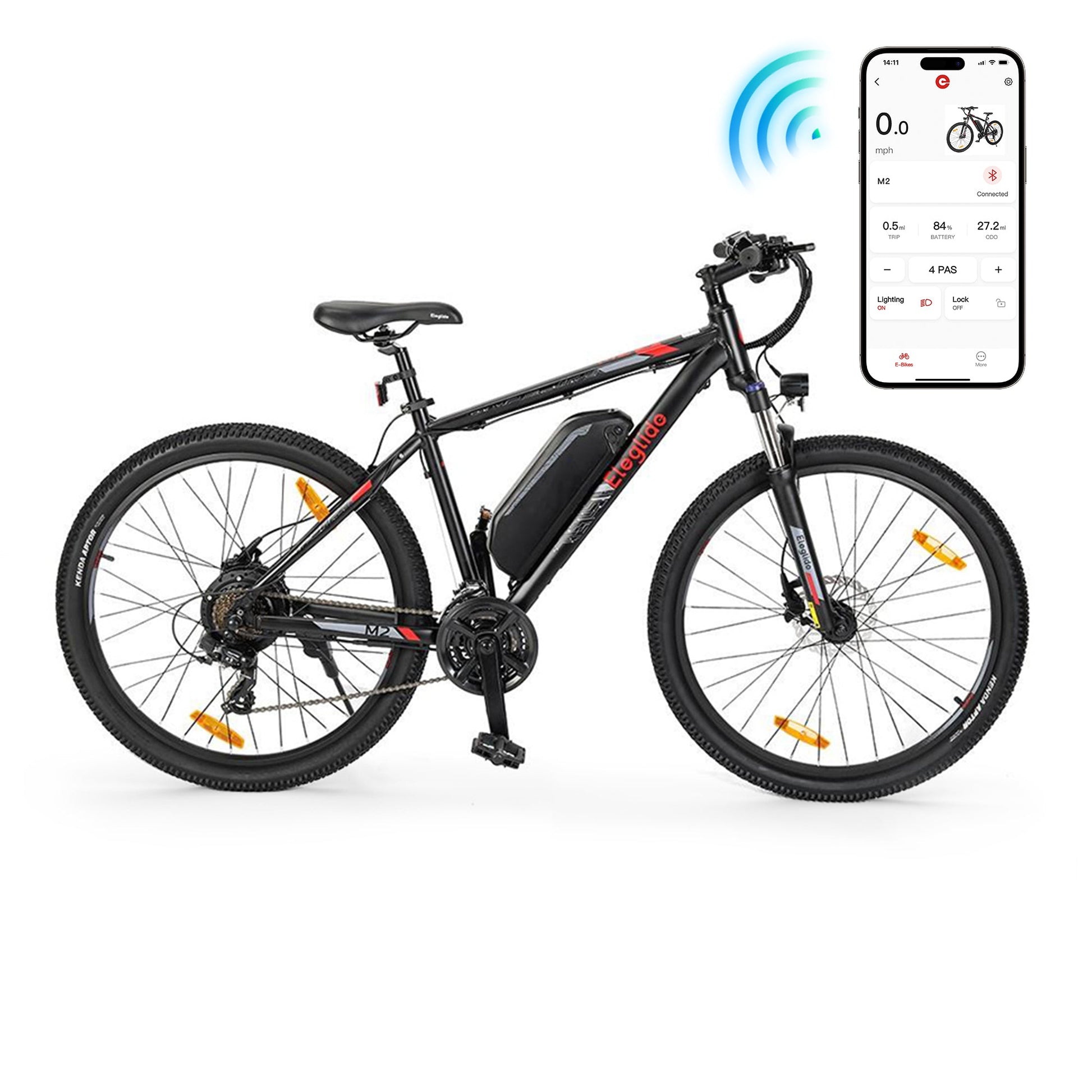

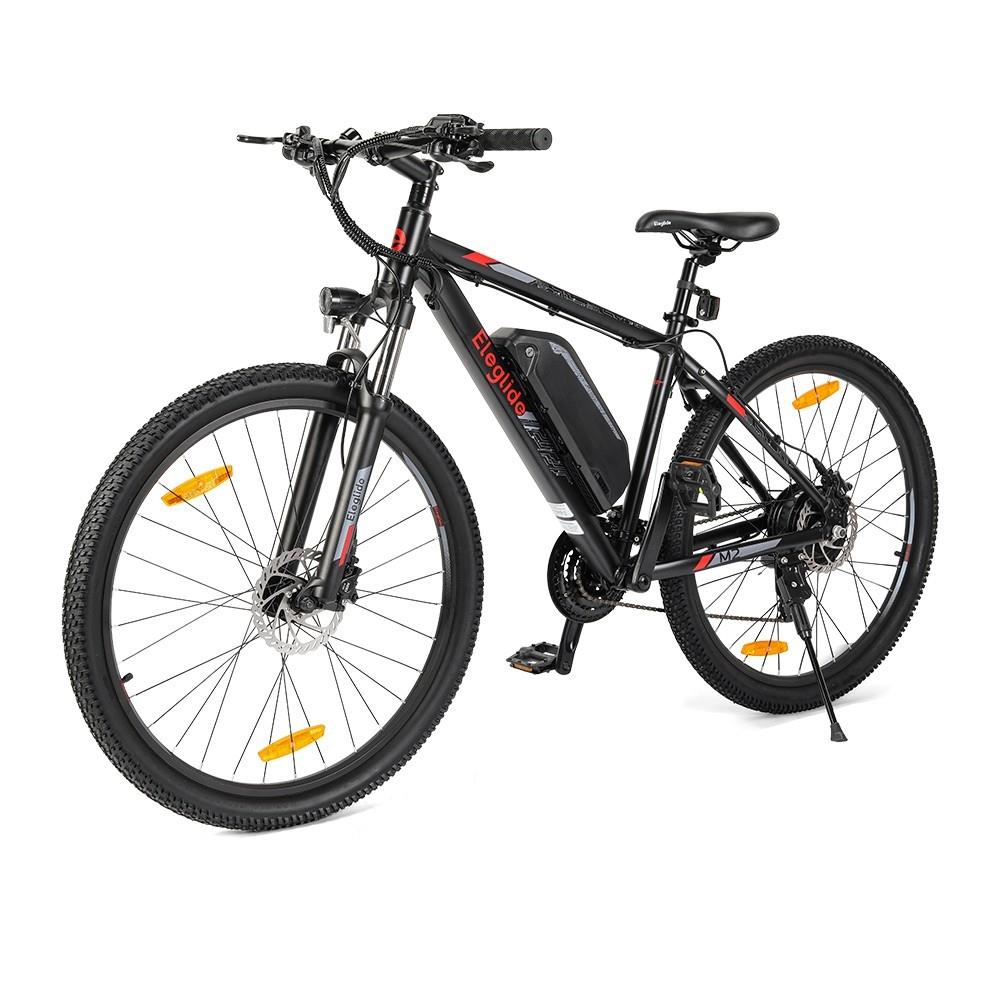

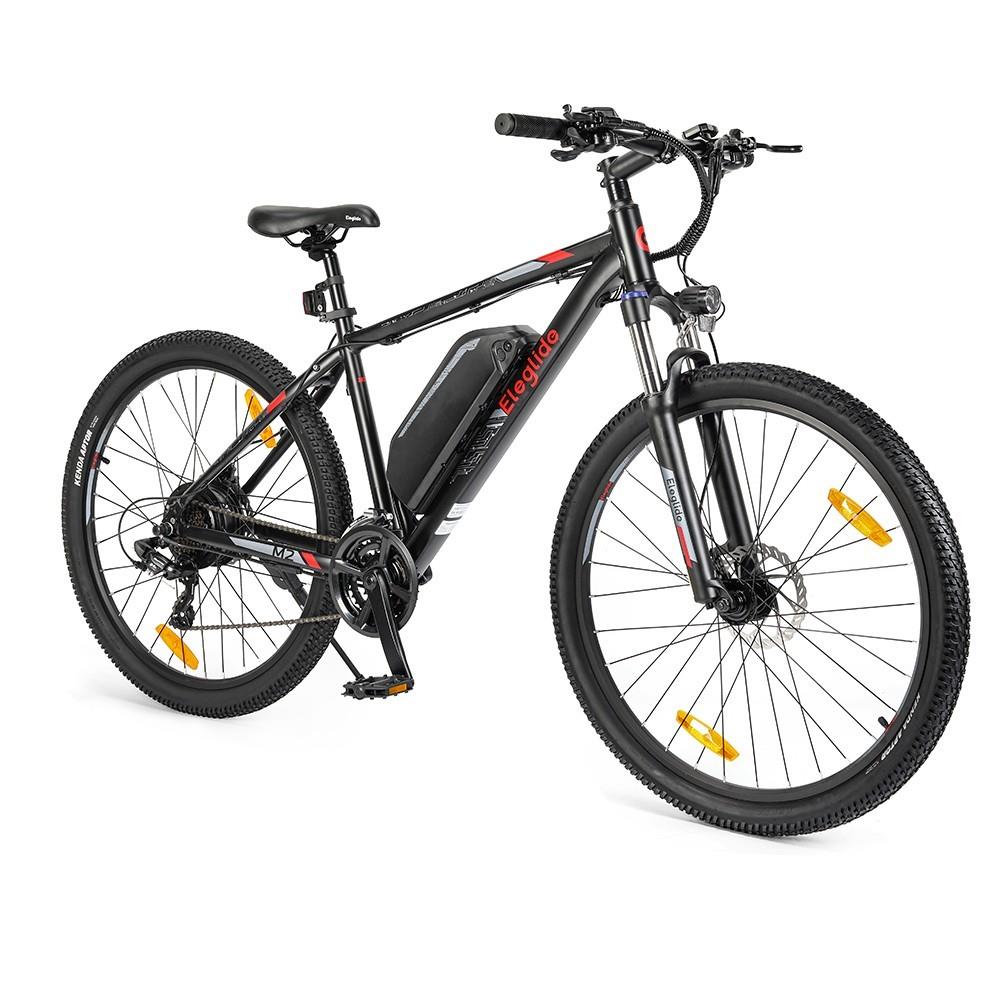

Eleglide Mopride 2 570W Mountain Bike 125 KM Range 36V 15.6Ah Battery(specs)
Category | Details |
---|---|
Net Weight | M: 22 kg; L: 23 kg |
Unfolded Size | M: 1800×680×1060 mm; L: 1865×680×1070 mm |
Frame Size | M: 27.5"×18"; L: 27.5"×18" |
Handlebar Length | 680 mm (26.8", without grips); 700 mm (27.6", with grips) |
Saddle Height (from ground) | M: 34.3"–41.7"; L: 35.4"–42.9" |

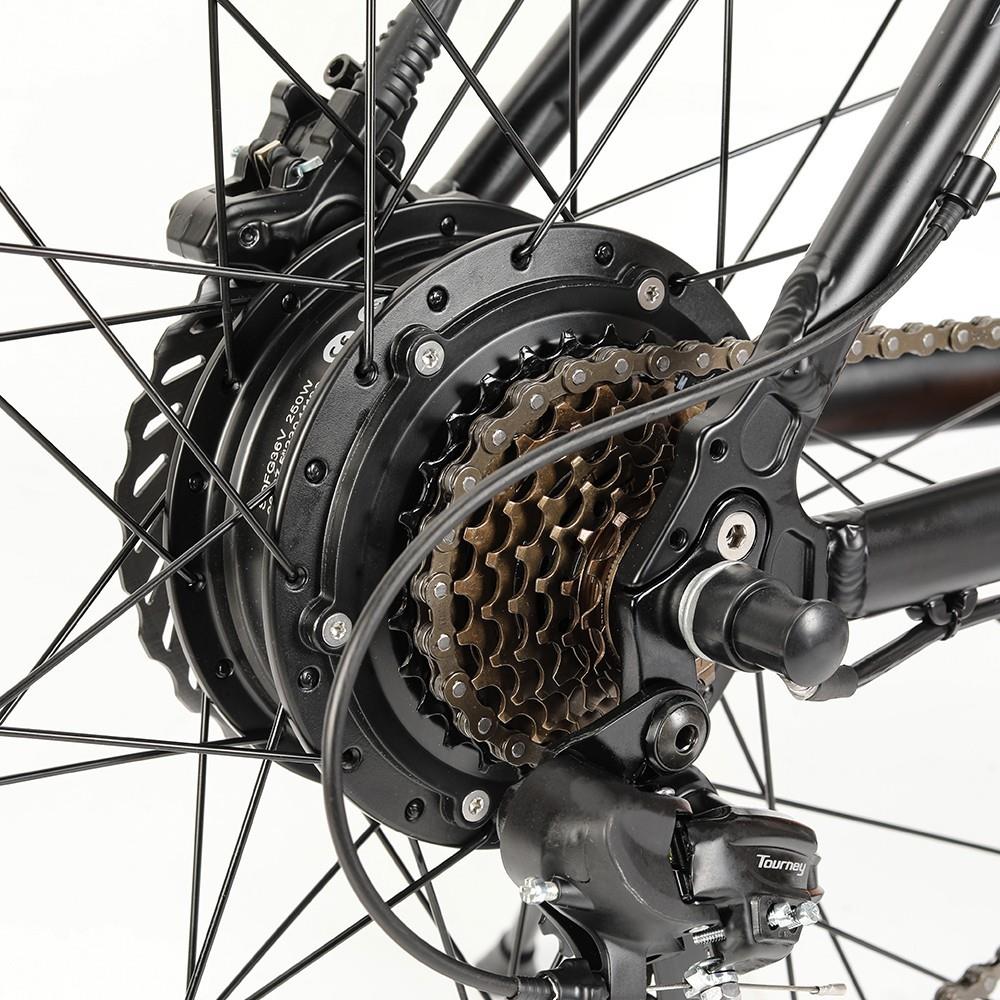

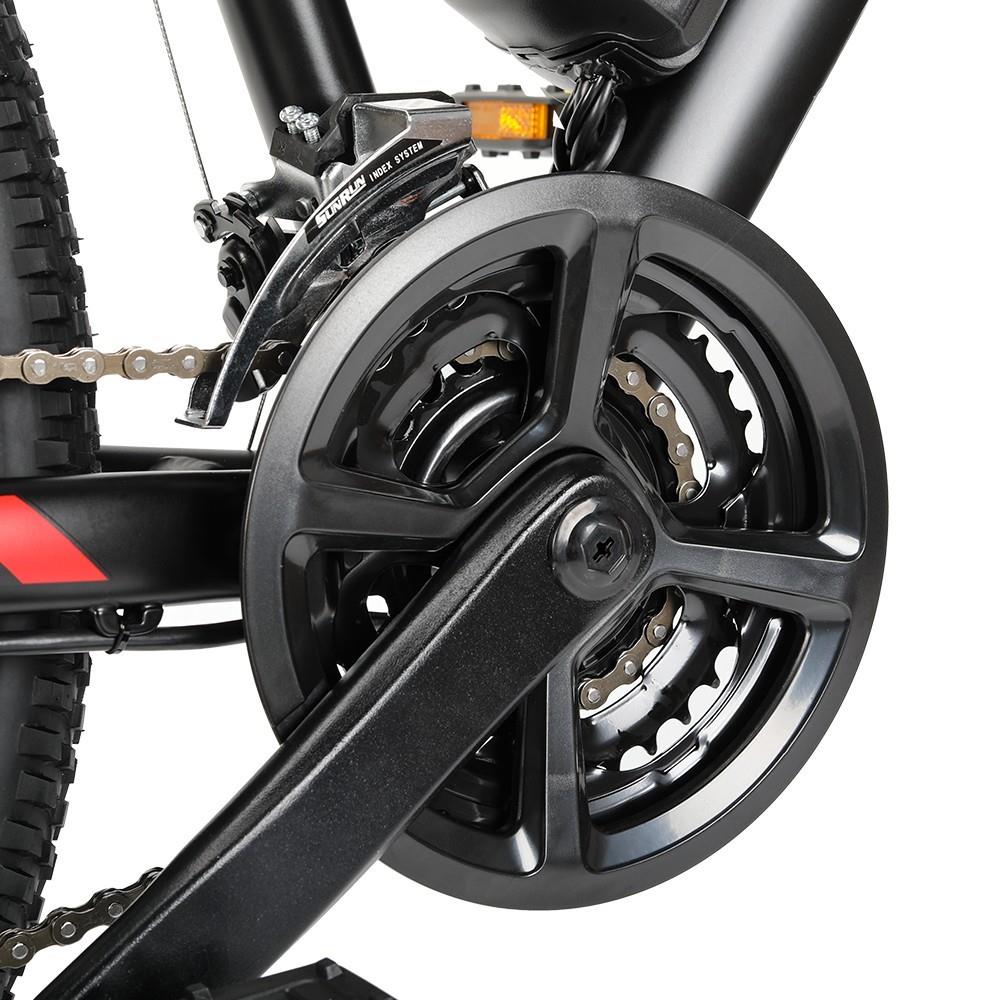

Derailleur | EU: 24-Speed Shimano; UK: 21-Speed Shimano |
Max Load | 120 kg |
Cut-off Speed | 25 km/h |

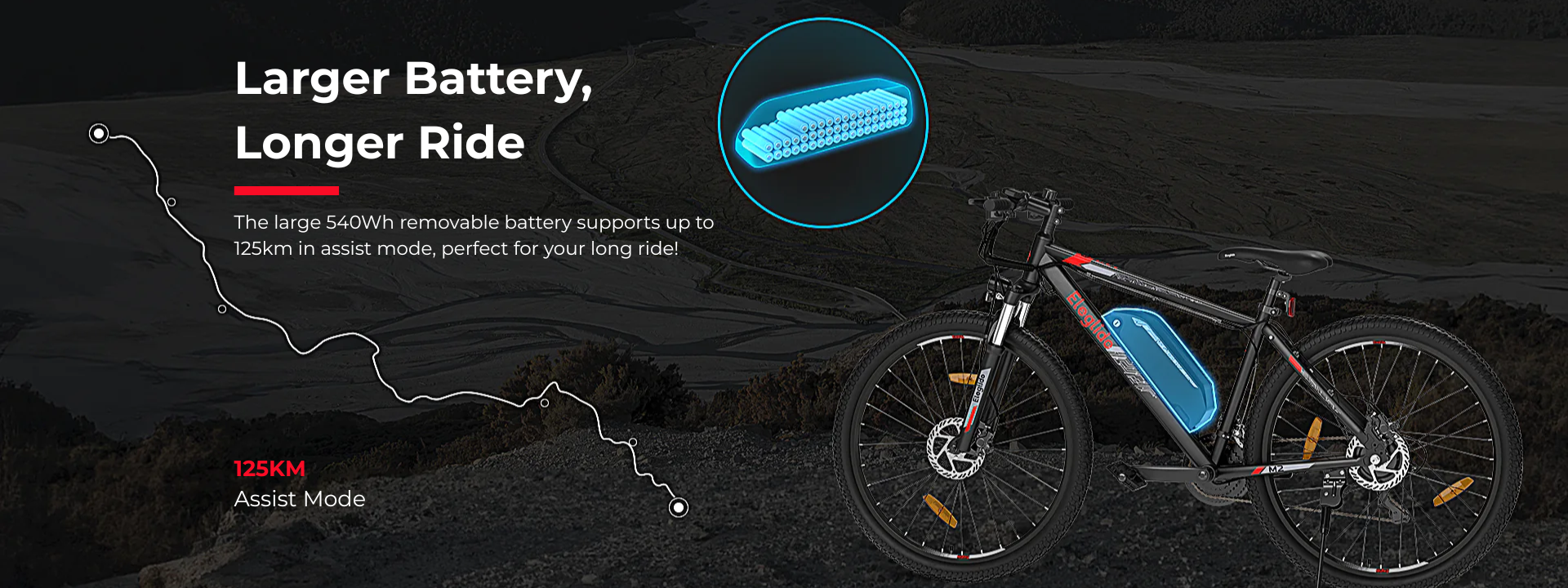

Max Range (Assist Mode) | 125 km |
Pedal Assist Levels | 12/16/20/23/25 km/h (Cadence Sensor) |
Walk Mode | 6 km/h |
Waterproof Level | IPX4 |
Material | Aluminium Alloy (AL6061) |

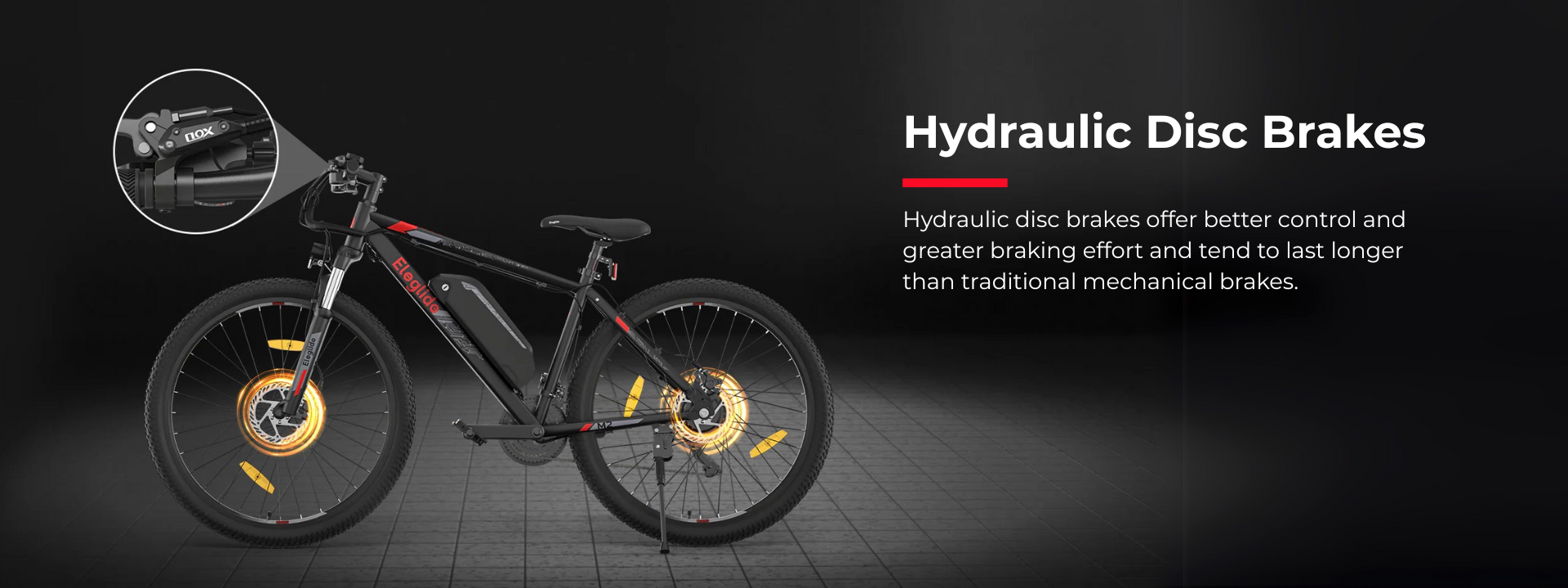

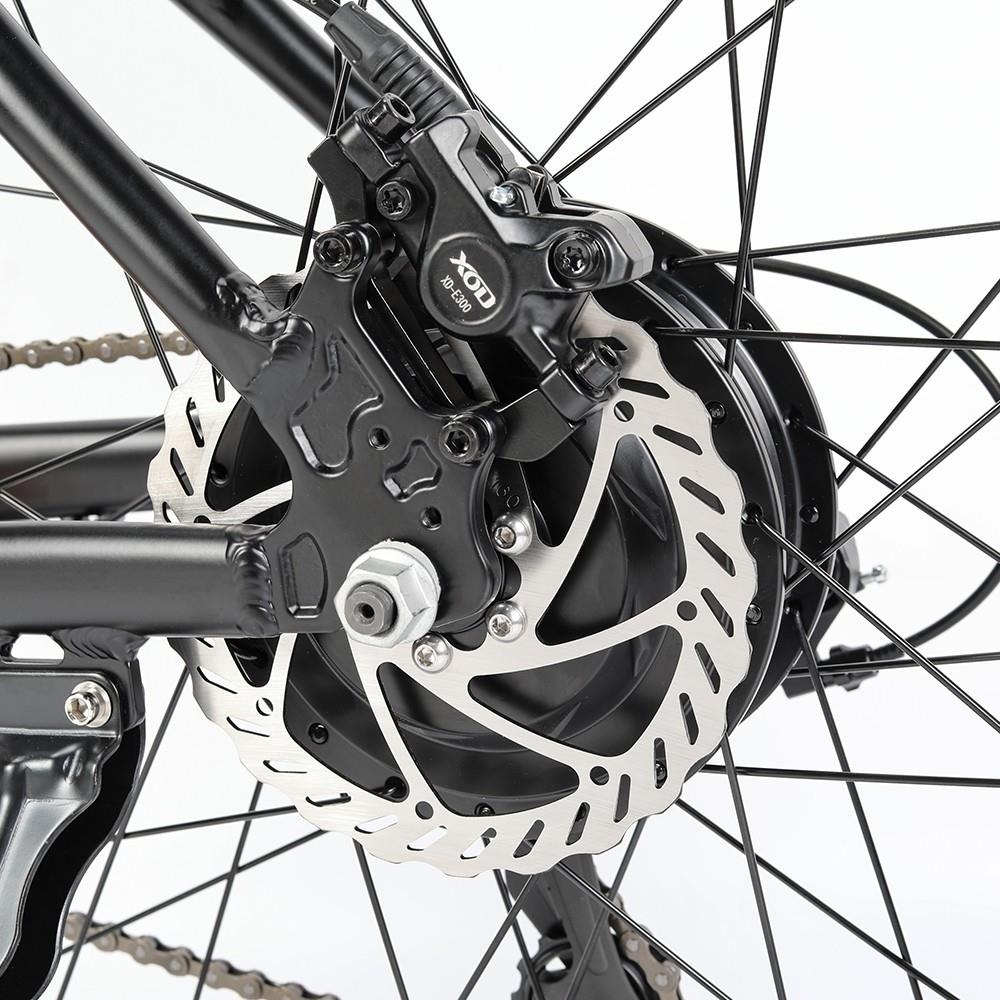

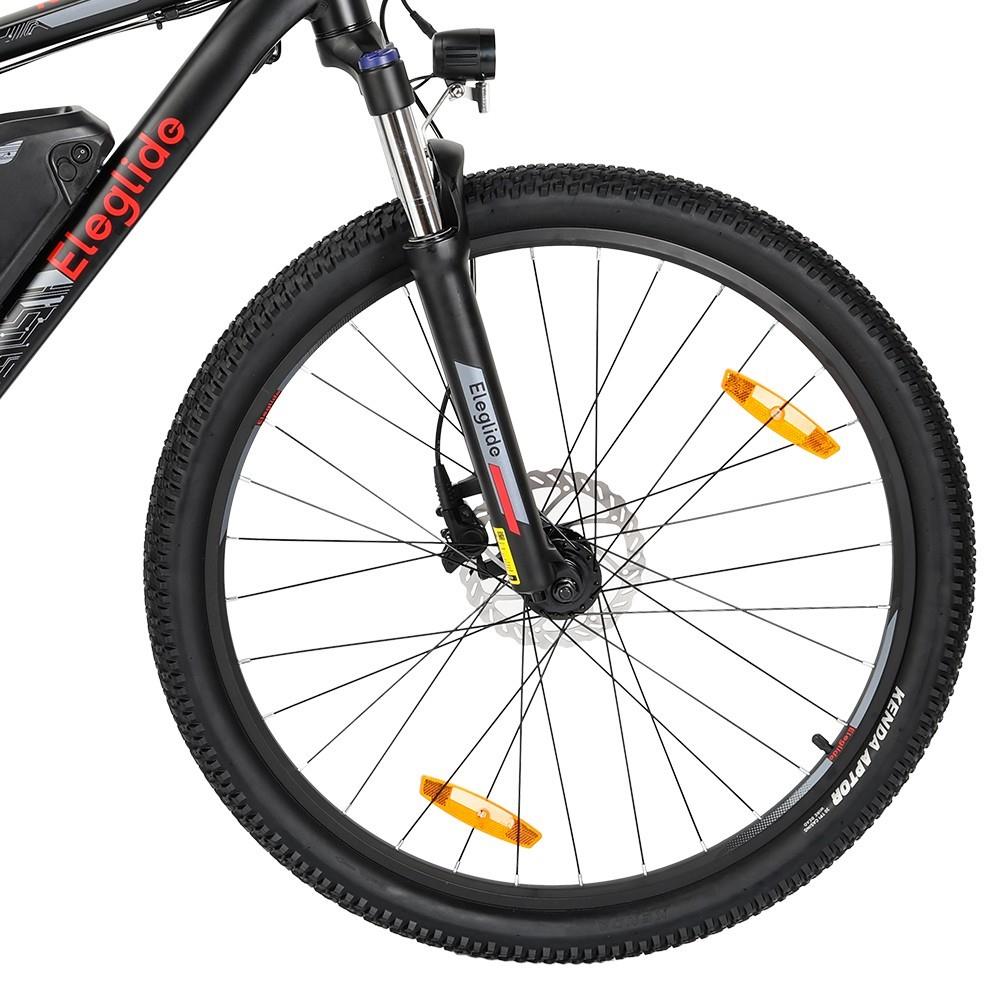

Braking System | Hydraulic Disc Brakes with Power-off Design |
Recommended Rider Height | M: 160–195 cm (5'3"–6'4.8"); L: 170–200 cm (5'7"–6'7") |
Eleglide Mopride 2 570W Mountain Bike 125 KM Range 36V 15.6Ah Battery(size)
Label | Measurement | Description |
---|---|---|
A | 70.9" (1801 mm) | Total Length |
B | 42.5" (1079 mm) | Handlebar Height |
C | 43.3" (1100 mm) | Wheelbase |
D | 34.3" (871 mm) | Minimum Seat Height |
E | 41.7" (1059 mm) | Maximum Seat Height |
F | 31.1" (790 mm) | Standover Height |
G | 23.4" (595 mm) | Effective Top Tube Length |
H | 27.5" | Wheel Size |
I | 27.5" | Down Tube Length (likely same as wheel) |
J | 18" | Seat Tube Length |
K | 53.4° | Seat Tube Angle (assumed) |
L | 27.2" (691 mm) | Handlebar Width |
M | 16.2" (411 mm) | Reach |
N | 23.7" (602 mm) | Stack |
O | 71° | Head Tube Angle |
Eleglide Mopride 2 570W Mountain Bike 125 KM Range 36V 15.6Ah Battery(Whats in the box)
Item | Quantity |
---|---|
E-Bike | 1 |
User Manual | 1 |
Charger | 1 |
Pedals | 2 |

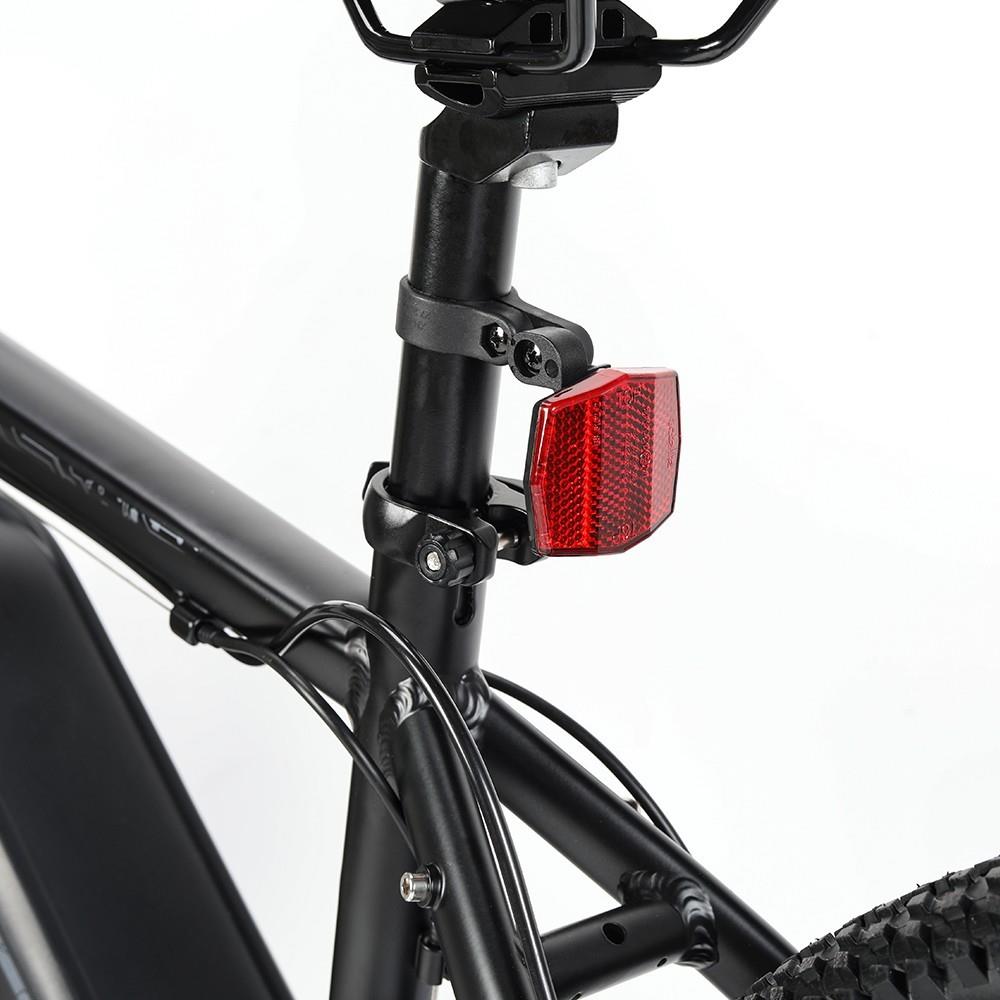

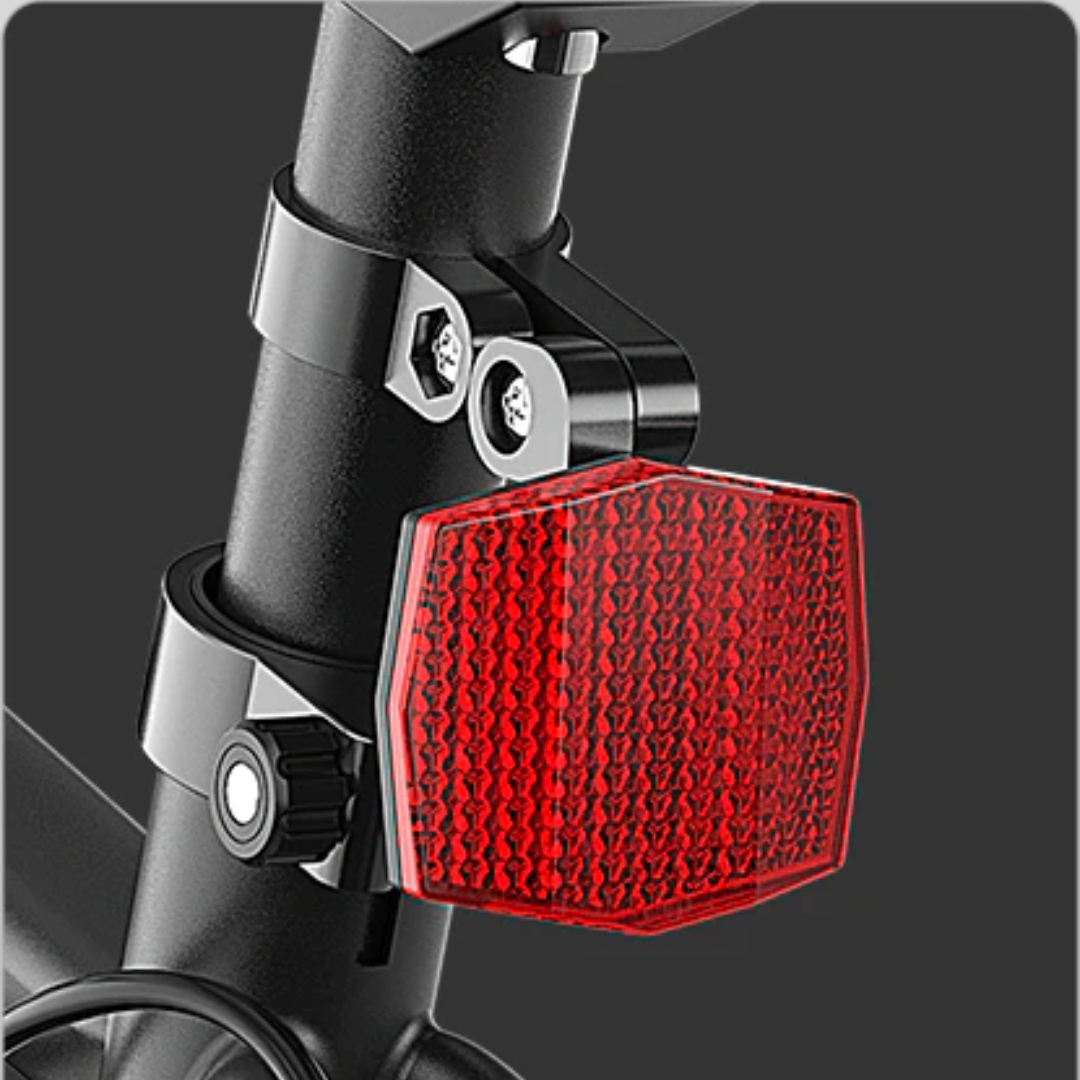

Rear Reflector | 1 |
Spoke Reflectors | 4 |

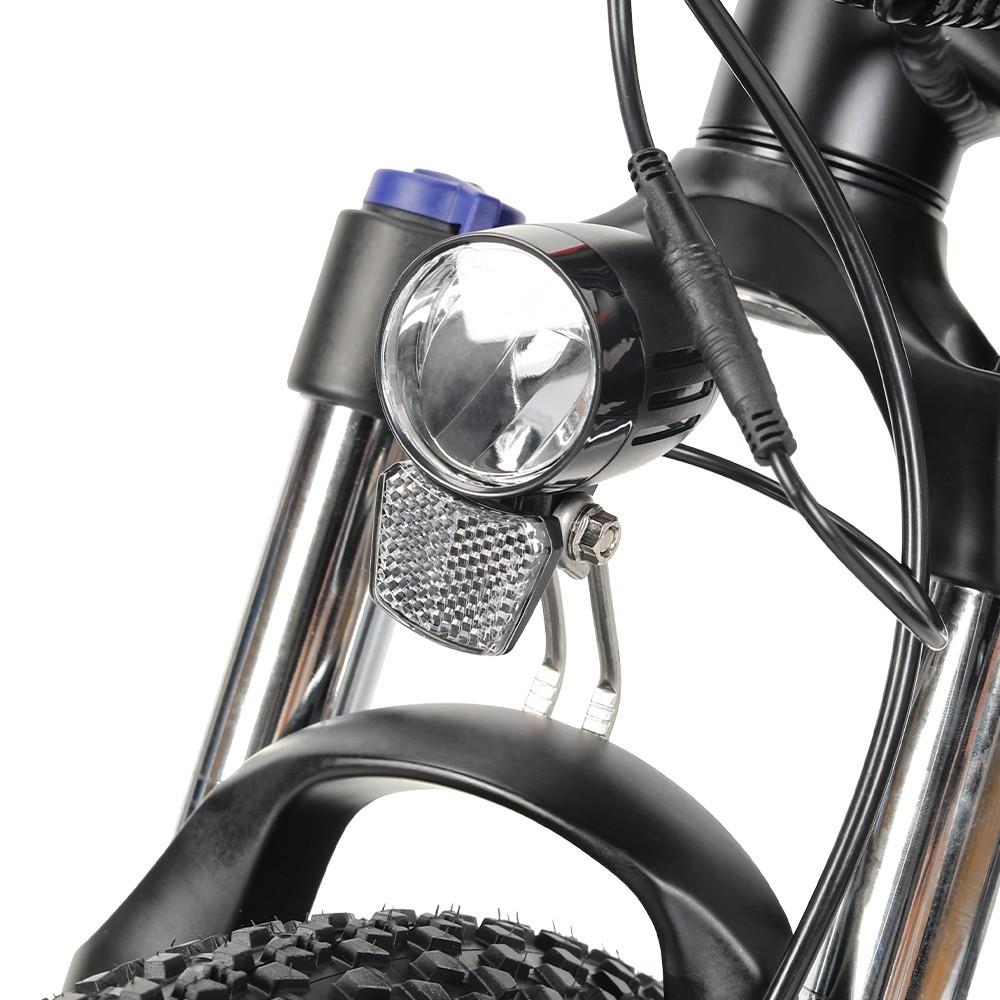

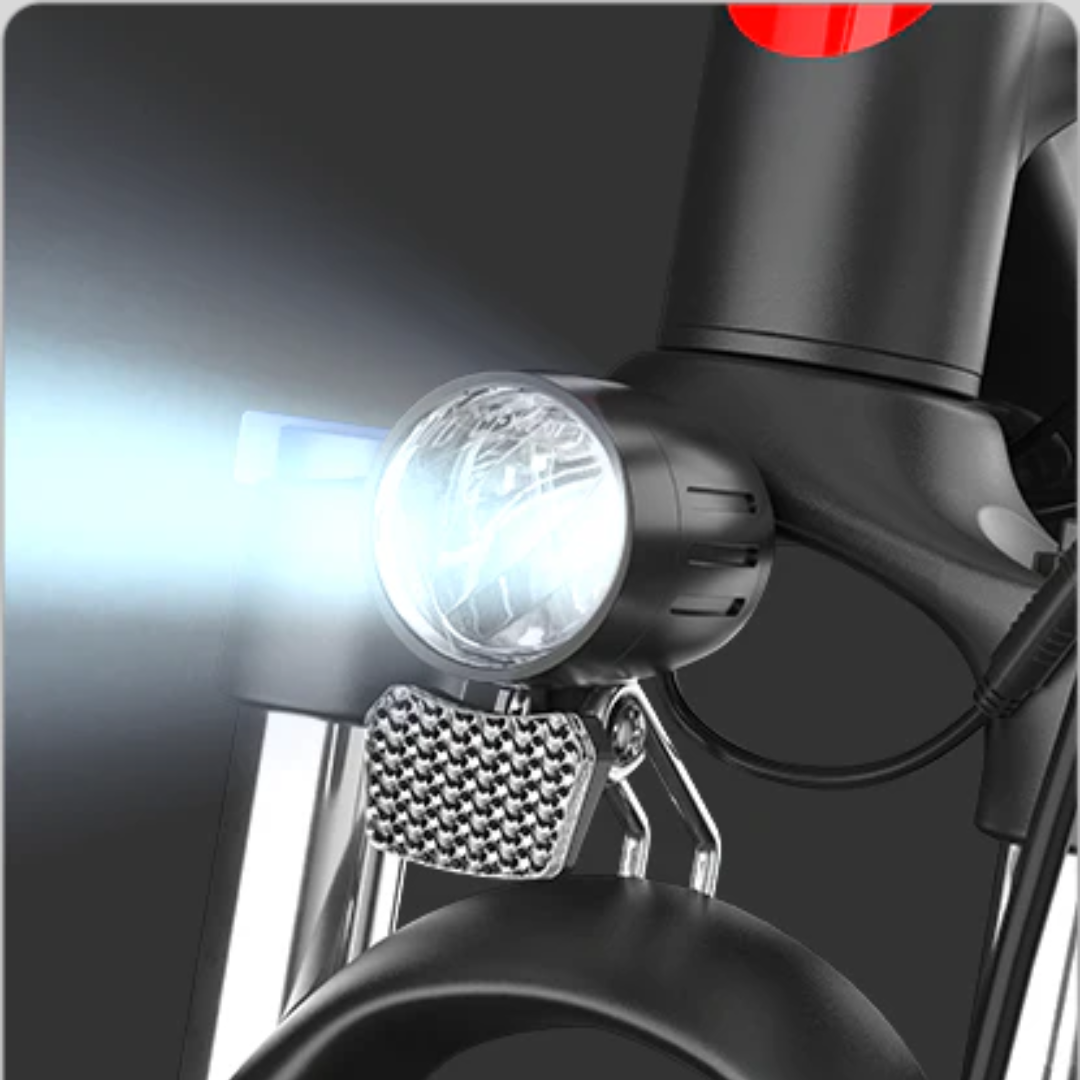

Headlight | 1 |

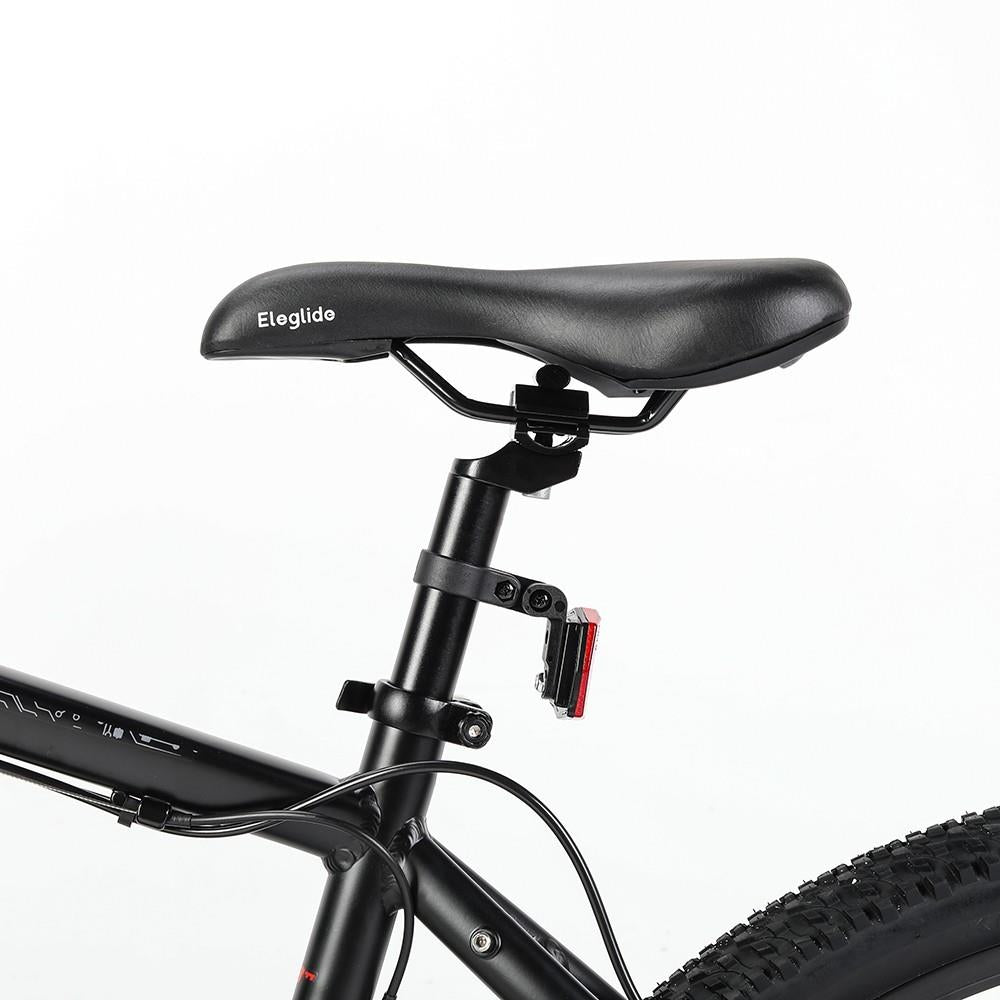

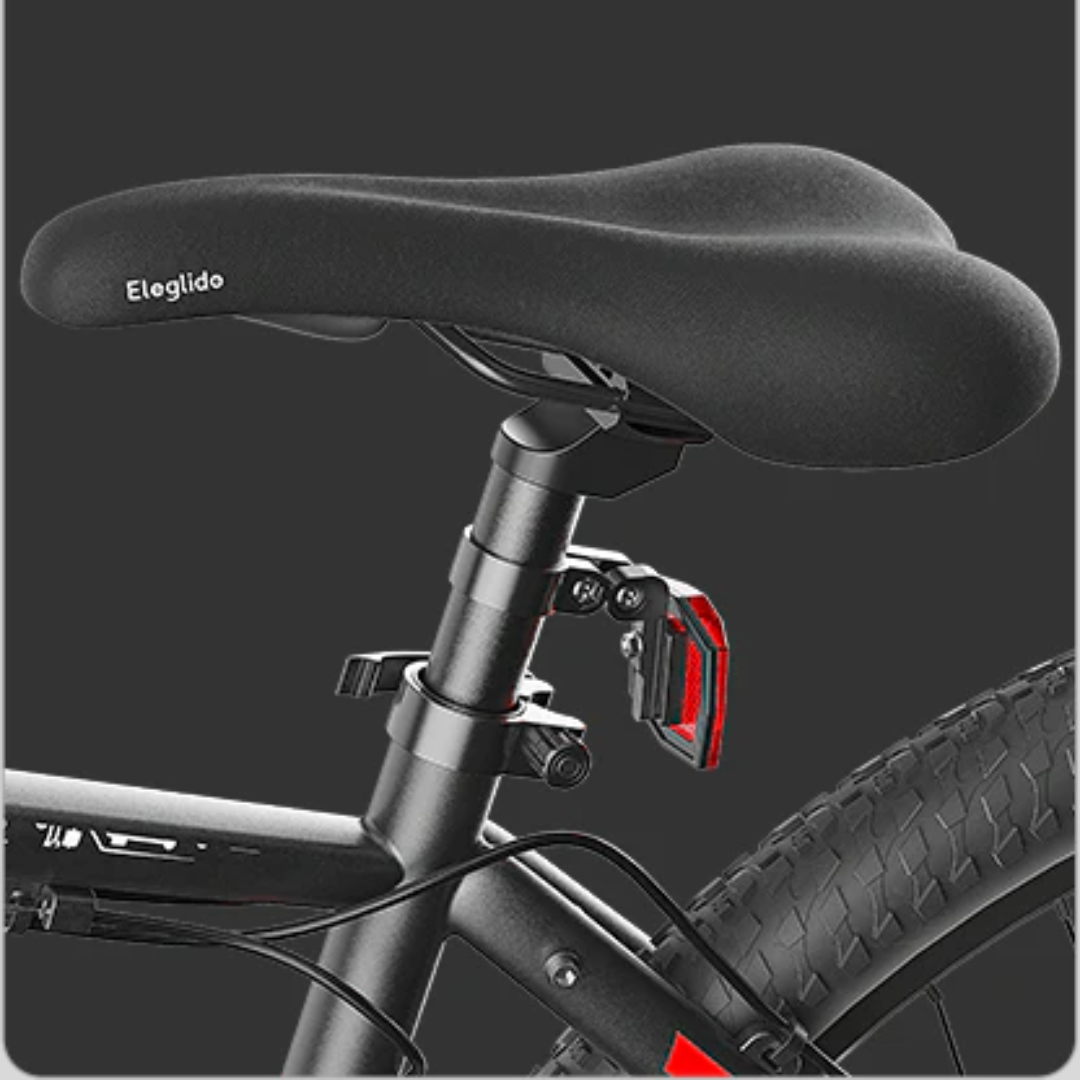

Saddle | 1 |

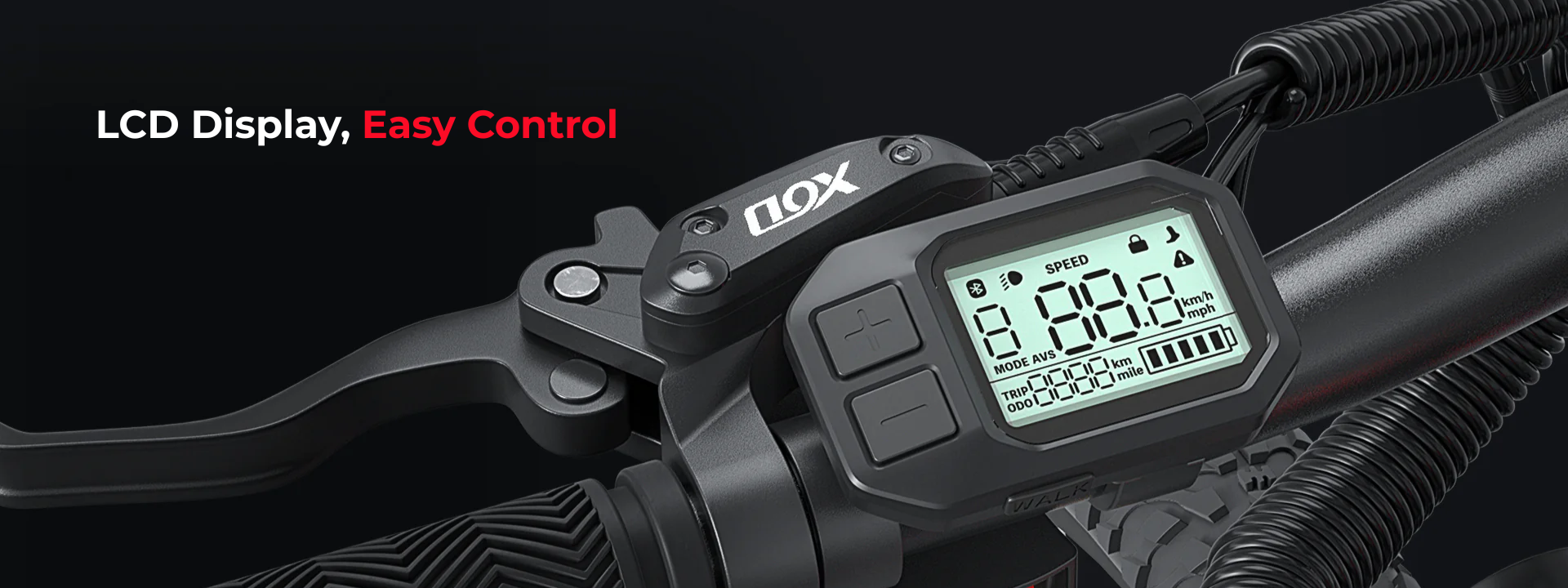

LCD Display | 1 |
Keys | 2 |
Tool Kit | 1 |
Eleglide Mopride 1 Plus 250W Mountain Bike 100 KM Range 36V 13Ah Battery (with APP)(FAQ)
What’s the difference between mid-drive motors and hub motors?
Mid-drive motors are located in the center of the bike frame and provide better balance and weight distribution. They also allow for better control over the gears and cadence. Hub motors are located in the wheel hub. They provide a more direct drive system but can affect the overall balance and handling of the bike.
What are the advantages of a mid-drive bike?
Mid-drive motors offer improved balance and handling as they are located in the center of the bike near the pedals. By using the bike's gears to power the motor, mid-drive motors enable more efficient use of power and longer range. They also provide increased torque for climbing hills and conquering diverse terrains.

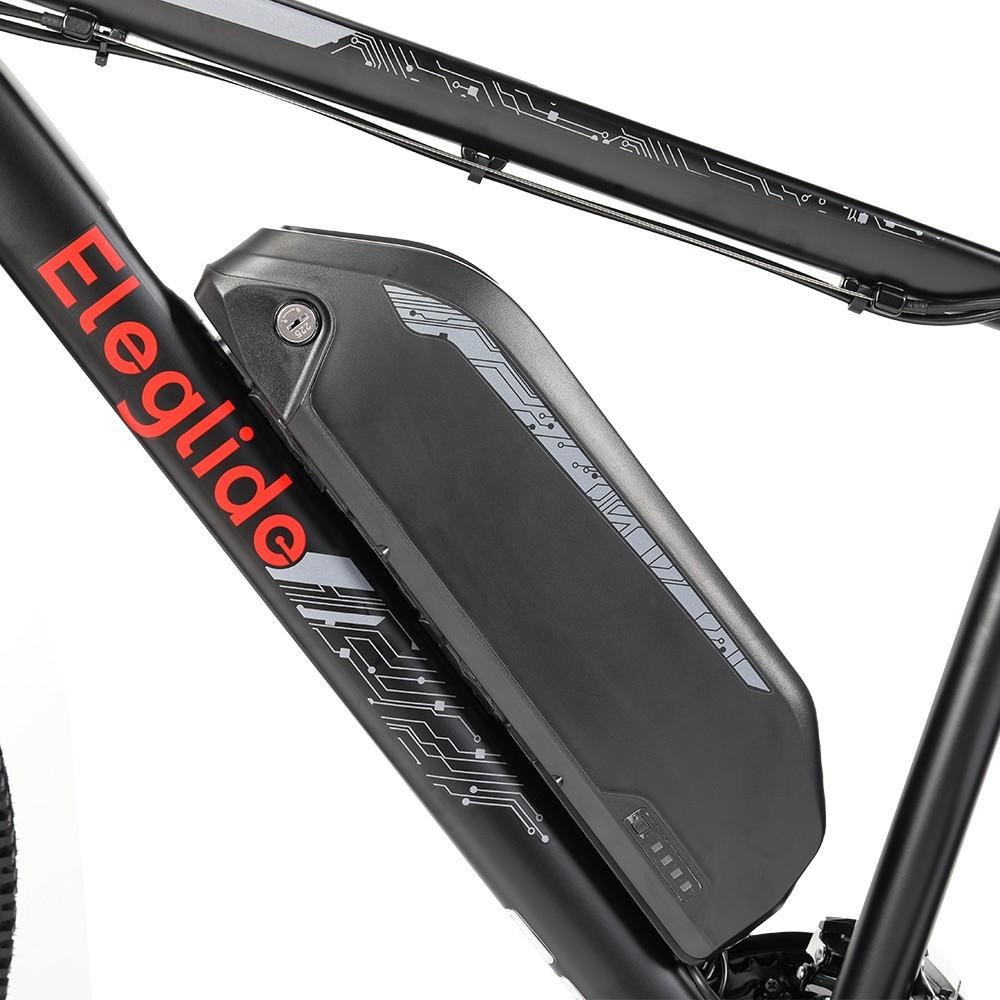

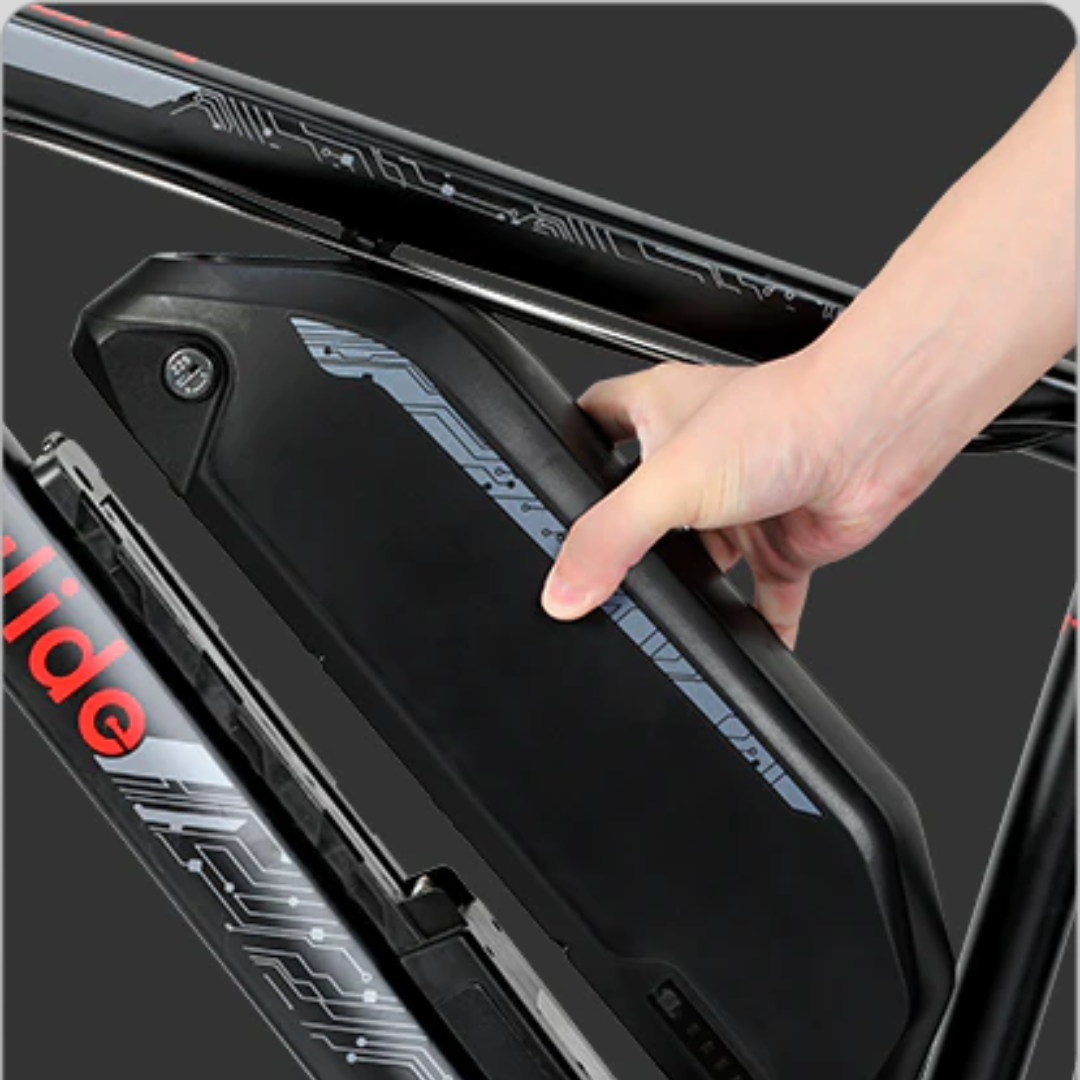

Is the battery removable?
Yes. The battery is removable and can be charged on or off the bike at your convenience. And you can lock it with the key on your bike to make sure it won’t be stolen.
Can I purchase an extra battery?
Yes, you can buy an extra battery from our official website or any of the official distributors.
