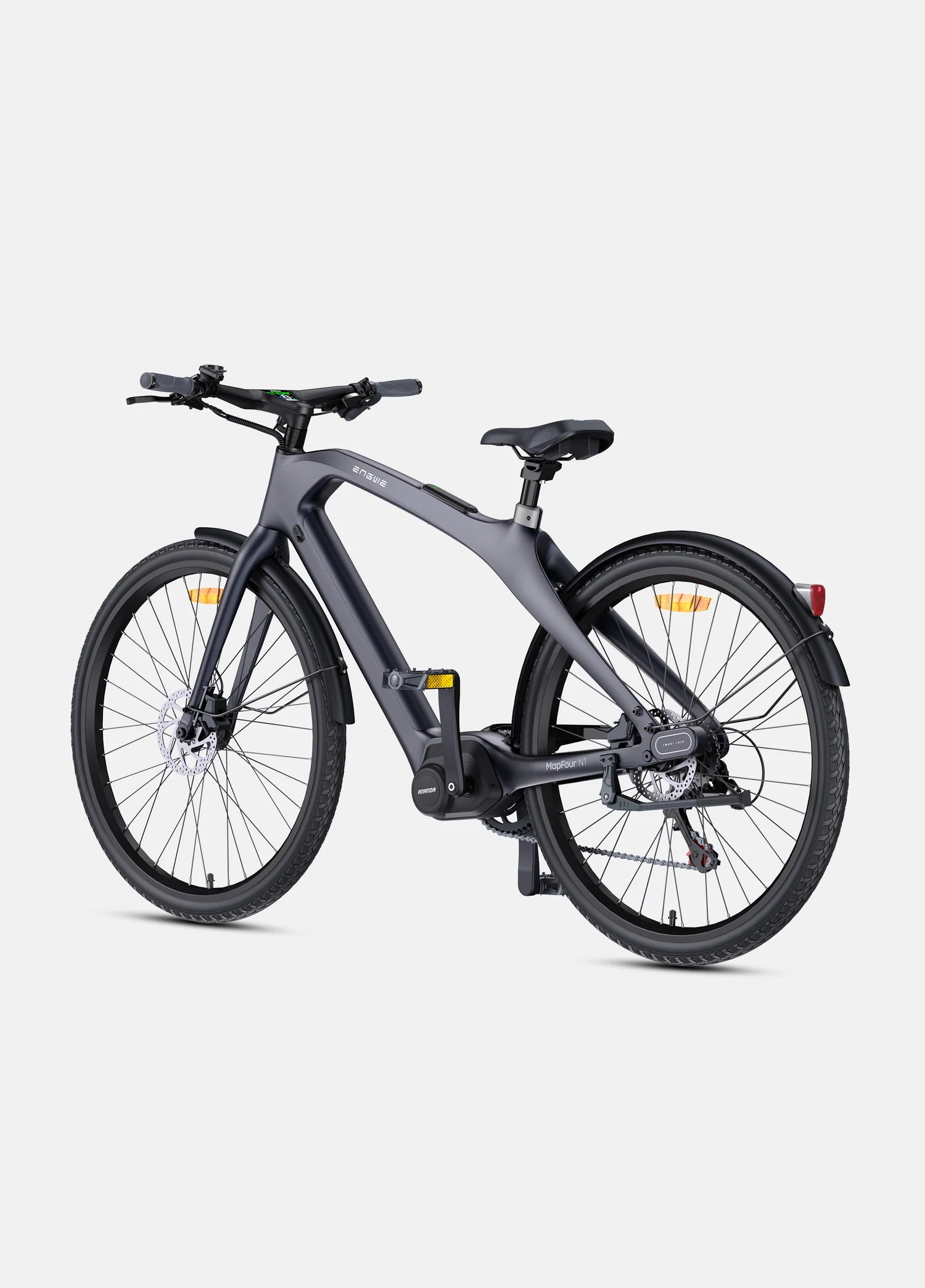

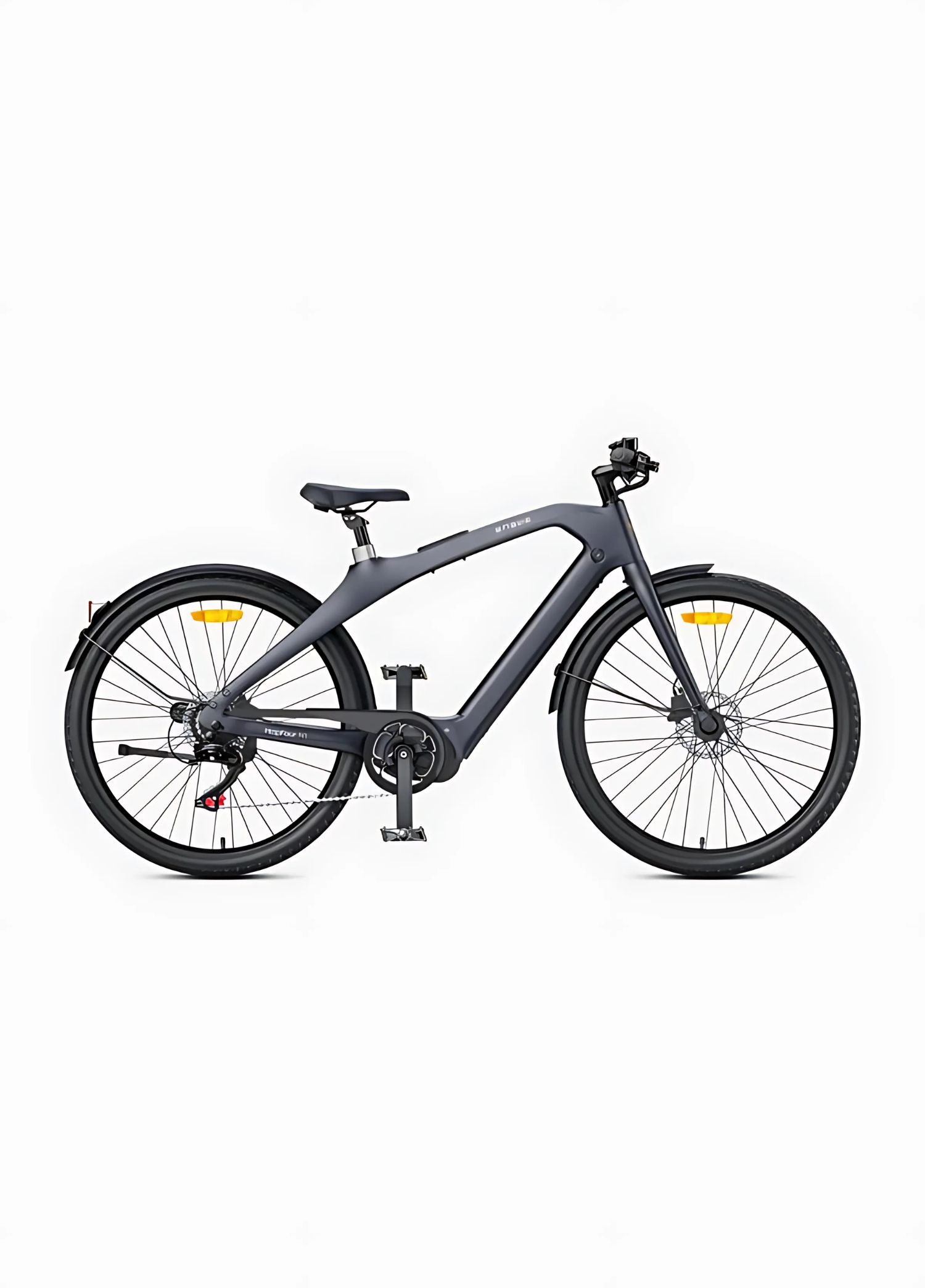

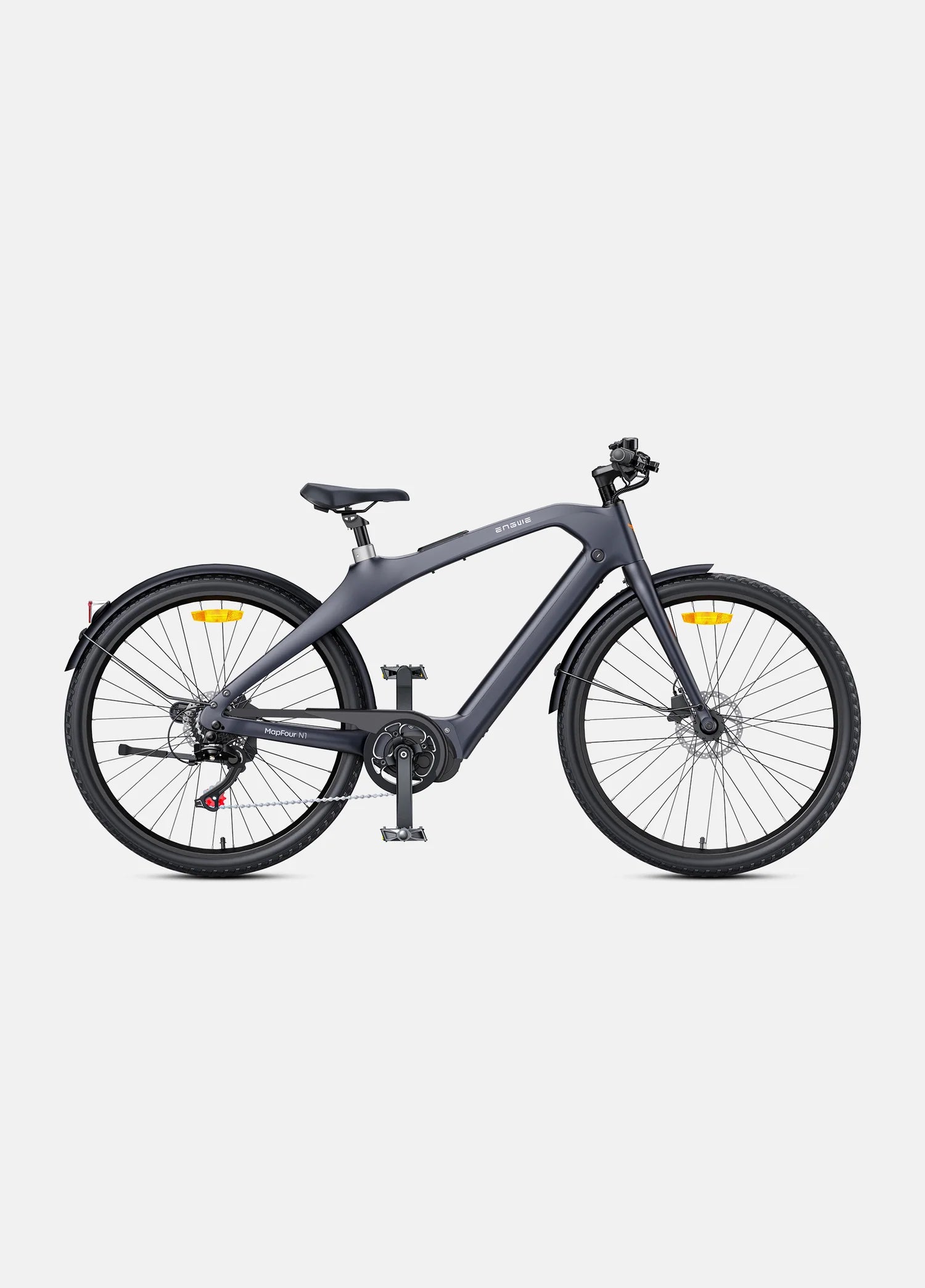

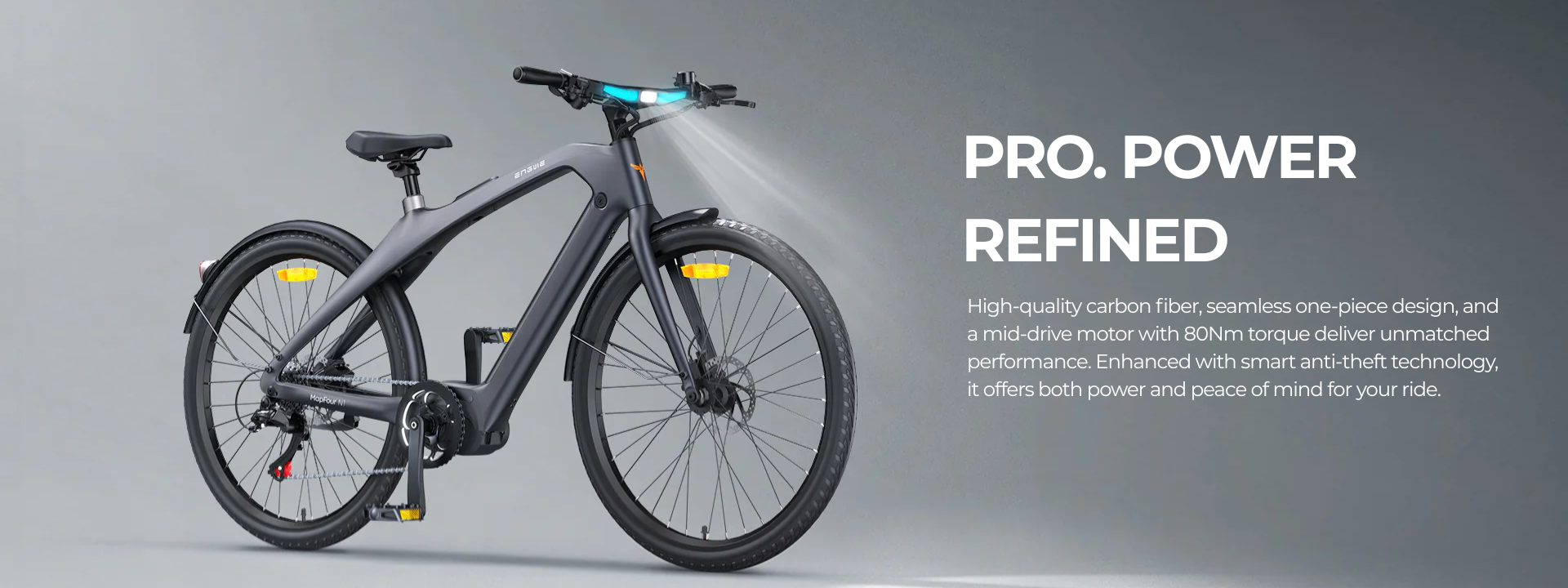

Engwe MAPFOUR N1 PRO 250W 80Nm Carbon Fiber City Electric Bike 100KM Range 36V 10Ah Battery
Engwe MAPFOUR N1 PRO 250W 80Nm Carbon Fiber City Electric Bike 100KM Range 36V 10Ah Battery
- Shipping: Free-in-EU
- Delivery: 3-7 Business days
- Return time: 30days
In stock
Frequently Bought Together
Couldn't load pickup availability
Engwe MAPFOUR N1 PRO 250W 80Nm Carbon Fiber City Electric Bike 100KM Range 36V 10Ah Battery(Specs)
| Feature | Detail |
|---|---|

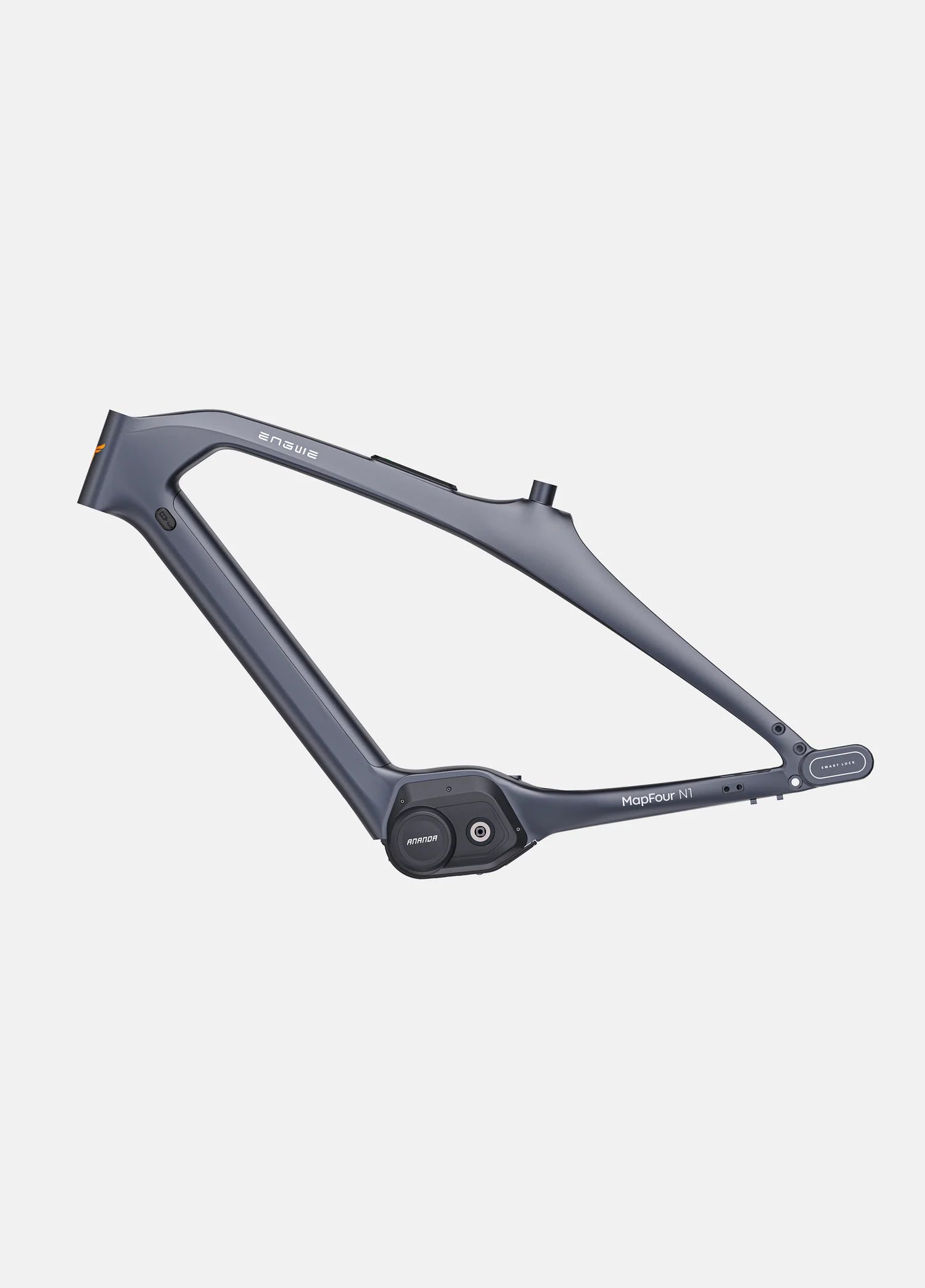

| Frame Material | Carbon Fiber |

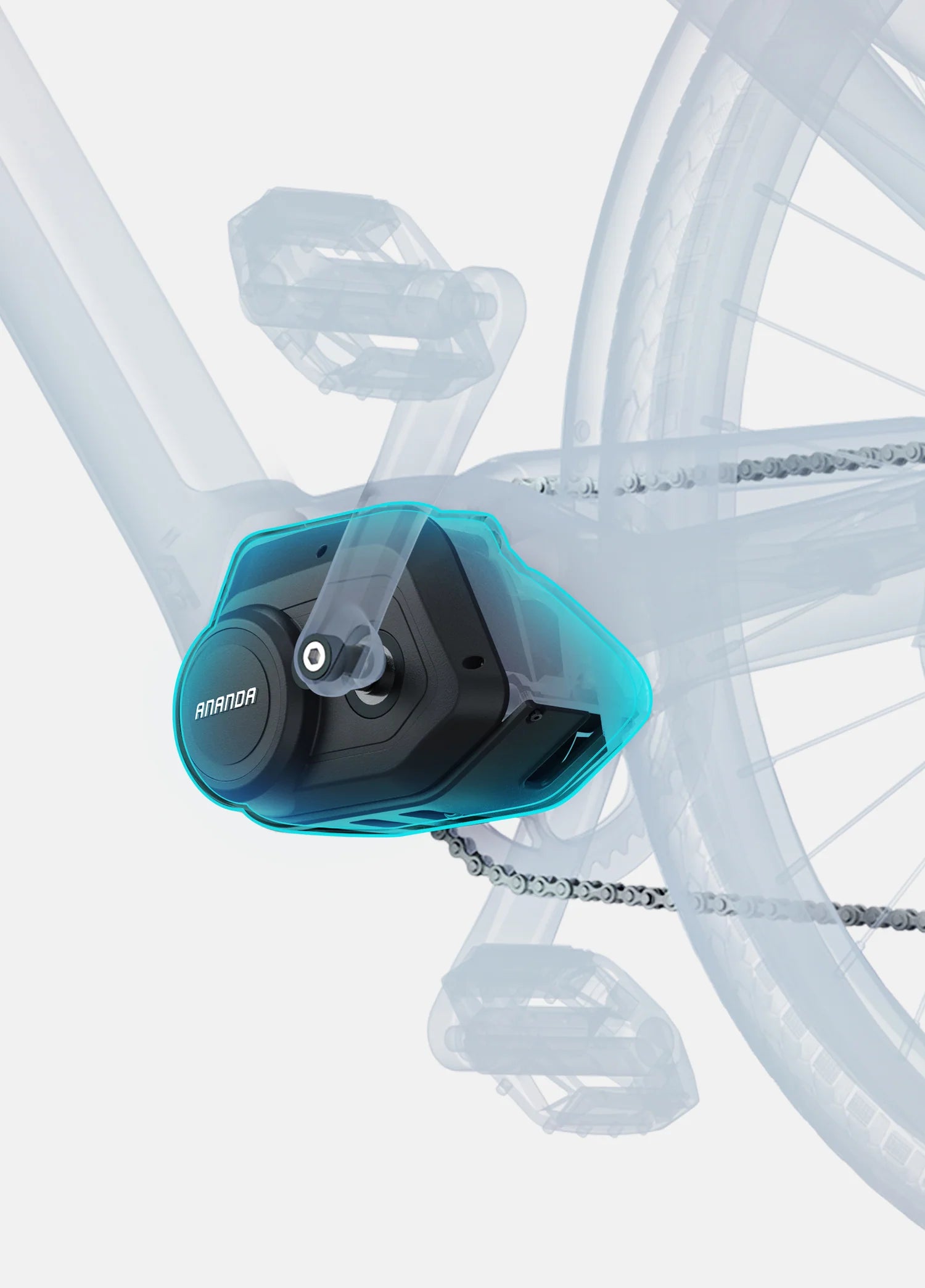

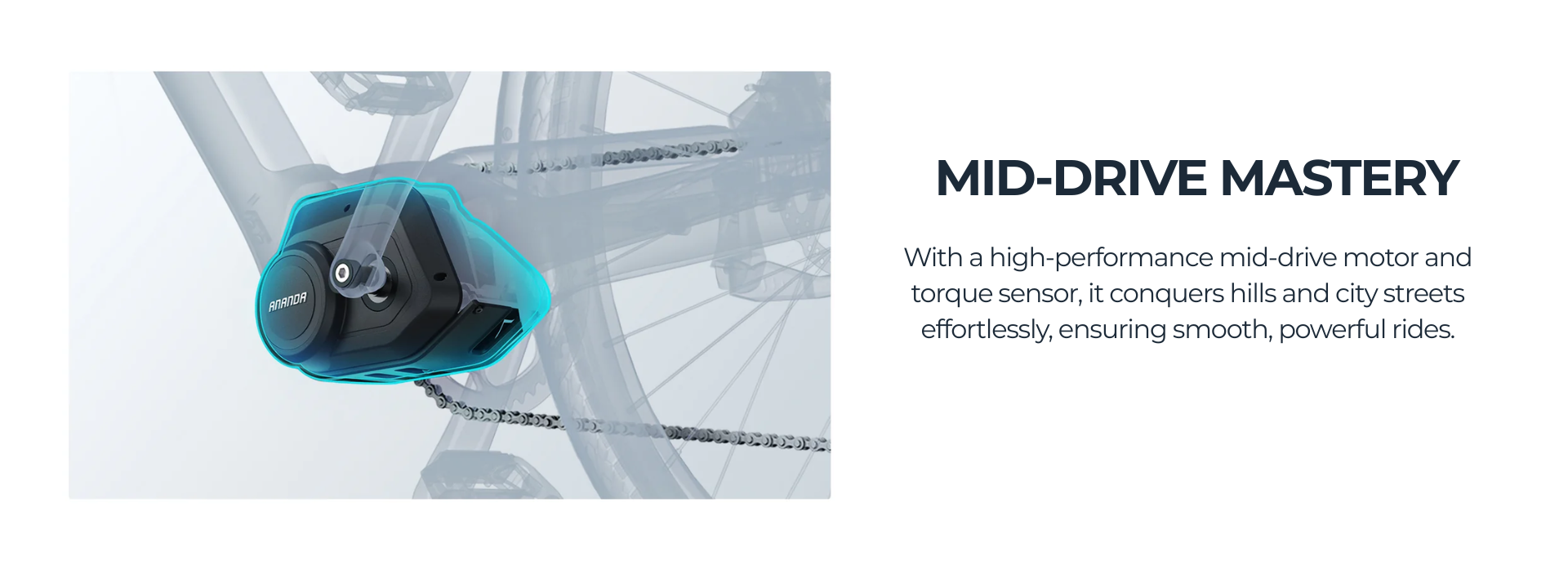

| Motor | 250W Ananda Brushless Mid-drive Motor |
| Torque | 80 N·m |
| Sensor | Torque Sensor |

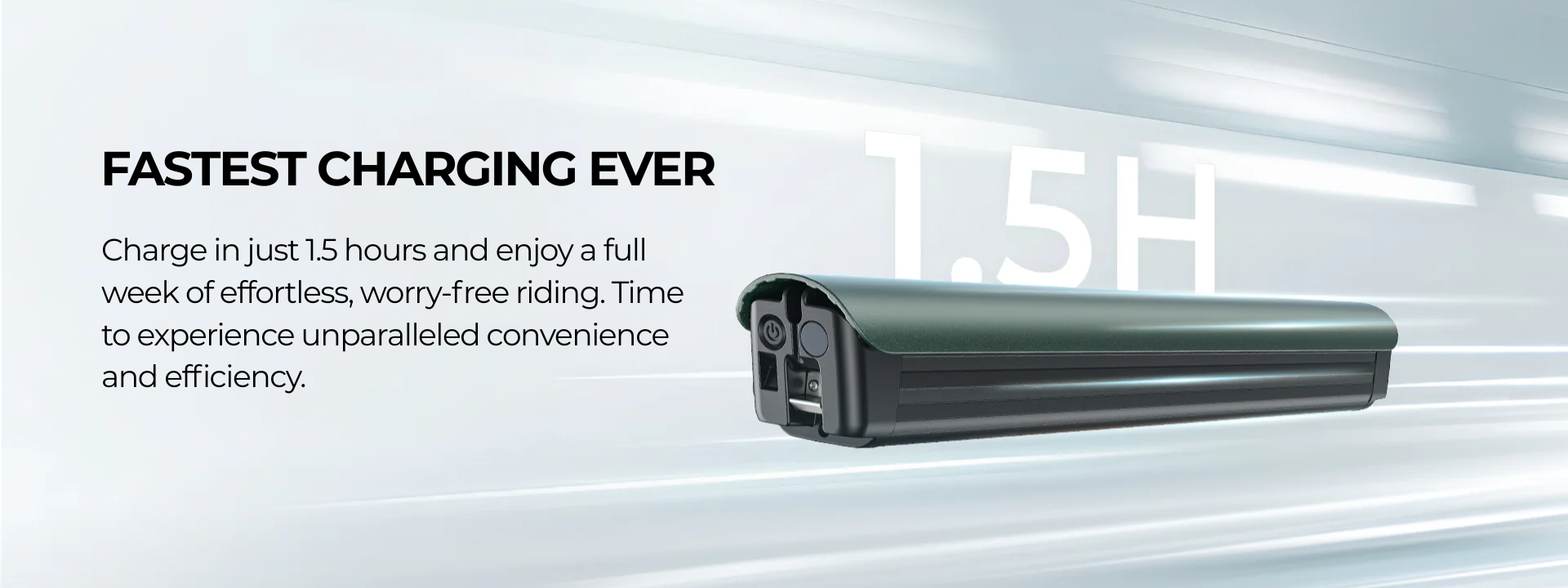

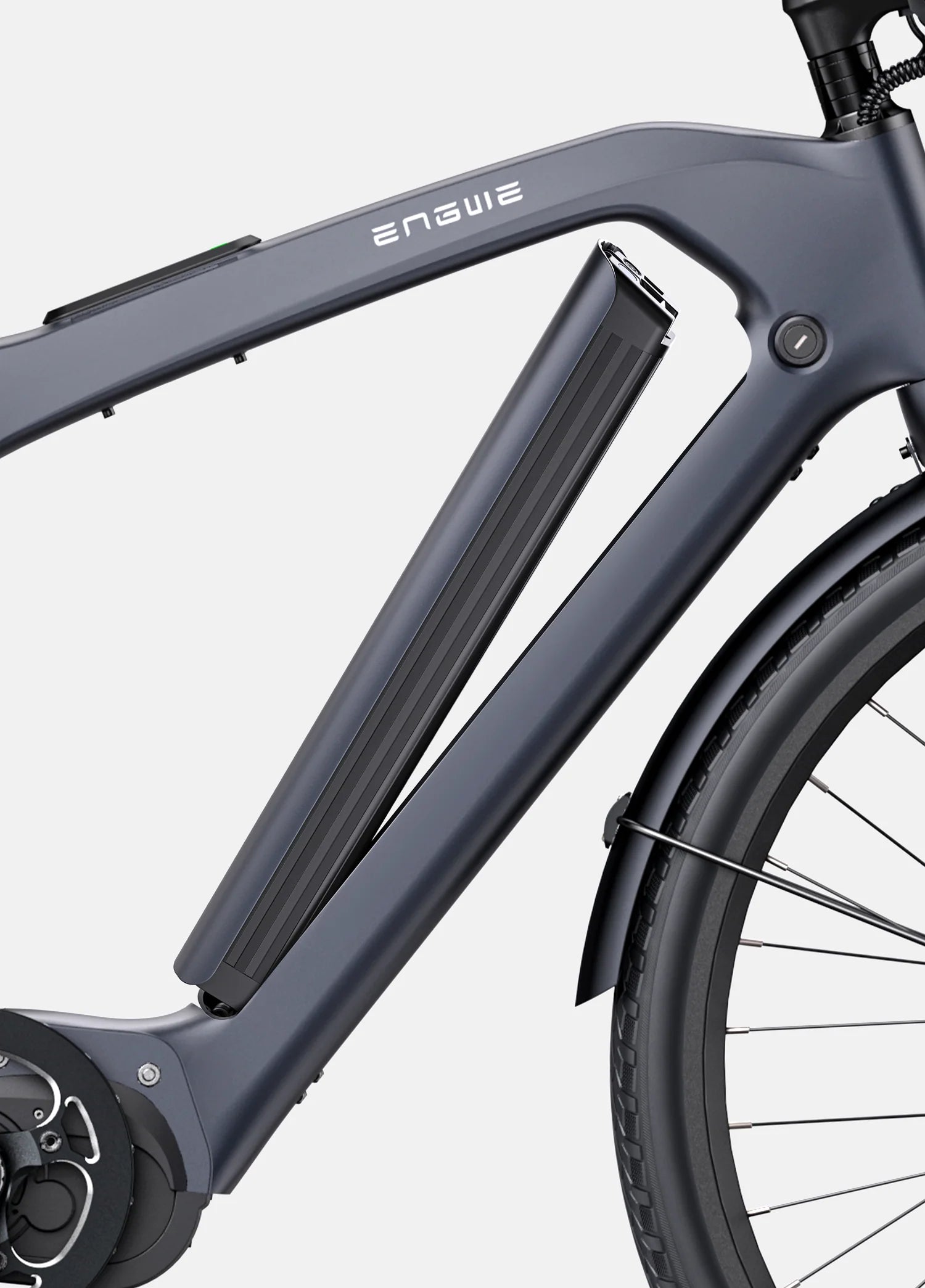

| Battery | 36V 10Ah Removable Lithium-ion Battery |
| Charging Time | About 1.5–2 hours (varies by usage) |
| Speed | 25 km/h |
| Mileage (PAS 1 level) | 100 km |
| Maximum Climbing Angle | 10° |
| Tires | 700 × 42C Spoke Tires |
| Brakes | 160 mm Front & Rear Hydraulic Disc Brakes |
| Transmission System | SHIMANO 7-Speed |
| Lights | Front Light & Solar Tail Light |

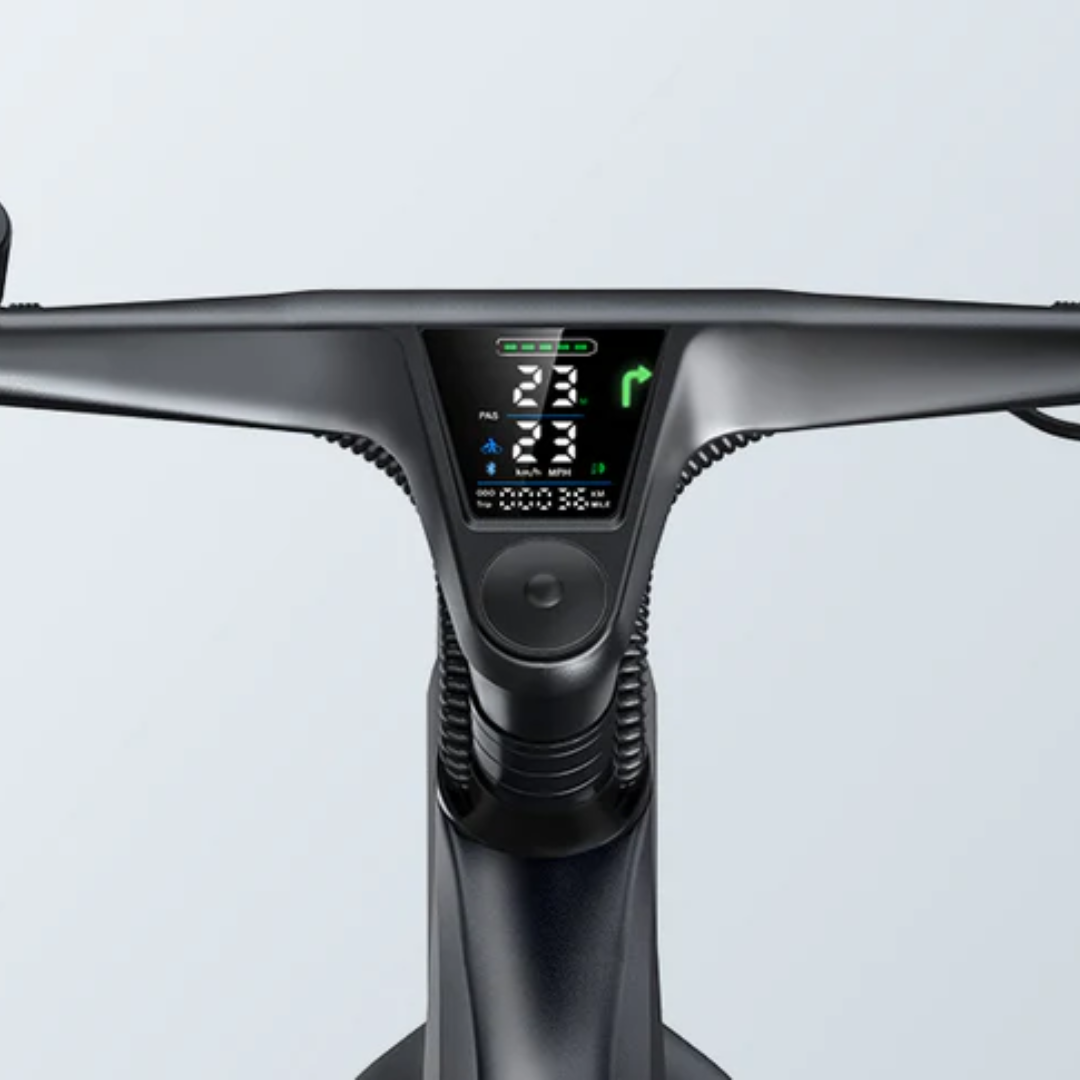

| Display | LED Color Display |
| Bike Weight | 19 kg (41.88 lbs) |
| Gross Weight | 28.6 kg (63.05 lbs) |
| Weight Tolerance Note | ±3–5%, bike weight includes battery, excludes accessories |
Engwe MAPFOUR N1 PRO 250W 80Nm Carbon Fiber City Electric Bike 100KM Range 36V 10Ah Battery(Size)
| Feature | Detail |
|---|---|
| Rider Height Range | 5.41 ft – 6.56 ft |
| Payload Capacity | 120 kg (264.5 lbs) |
| Package Dimensions (L×W×H) | 152.4 × 22.5 × 73 cm |
| Measurement Tolerance | ±0–5 cm difference may occur |
| Label | Measurement Name | Value |
|---|---|---|
| A | Wheelbase | 116.8 cm |
| B | Total Length | 189.5 cm |
| C | Reach | 49.6 cm |
| D | Standover Height | 78.5 cm |
| E | Min Saddle Height | 87.6 cm |
| F | Max Saddle Height | 93.5 cm |
| G | Handlebar Height | 99.5 cm |
Engwe MAPFOUR N1 PRO 250W 80Nm Carbon Fiber City Electric Bike 100KM Range 36V 10Ah Battery(Whats in the box)
| Item | Quantity |
|---|---|
| N1 Pro E-bike | 1 |
| 36V 10Ah Lithium-Ion Battery | 1 |
| 48V 8Ah Battery Charger | 1 |
| Pedals | 2 |
| Front & Rear Fenders | 1 set |
| Bike Kickstand | 1 |
| Assembly Tools | 1 set |
| User Manual | 1 |
Engwe MAPFOUR N1 PRO 250W 80Nm Carbon Fiber City Electric Bike 100KM Range 36V 10Ah Battery(FAQ)
Q1: Shipping information:
In Stock: Once you receive your order confirmation email, shipping preparations will begin within the following 2 business days, and your order will be shipped on the third business day.
Pre Sale: Please refer to the product page for detailed shipping times on pre-order items.
No Stock: Please refer to the product page for detailed shipping times on out-of-stock items.
You can expect to receive your product within 7 to 10 business days when shipped from our warehouse.
*Please note: Remote areas and islands are excluded from delivery. Please reach out to our customer service team regarding special requirements or urgent delivery dates and we will endeavour to meet your needs.
Please check our Shipping Policy for additional information regarding delivery locations and costs.
Q2. ENGWE Mapfour N1 Pro User Manual
Please click here to view Mapfour N1 Pro User Manual.
(You can find the instructions in additional languages by click here.)
Q3. ENGWE Mapfour N1 Pro with TÜV Rheinland CE Certification
Please click here to view N1 Pro CE Certification.
Q4. ENGWE APP Manual
Please click here to view ENGWE APP User Manual.
Please click here to view the ENGWE APP video tutorial.
Q5. How to assemble N1 Pro e-bike:
Please click here to view the instructional bike assembly video for the N1 Pro.
Q6. About iOT Functions
Please note: The iOT function is free for one year. The iOT free period starts from the moment the e-bike is activated and binded. When the free period ends, the app will automatically remind you and you can renew the subscription directly in the app. (Currently the subscription costs €39 per year.)
Enhanced Ride Comfort & Control Features

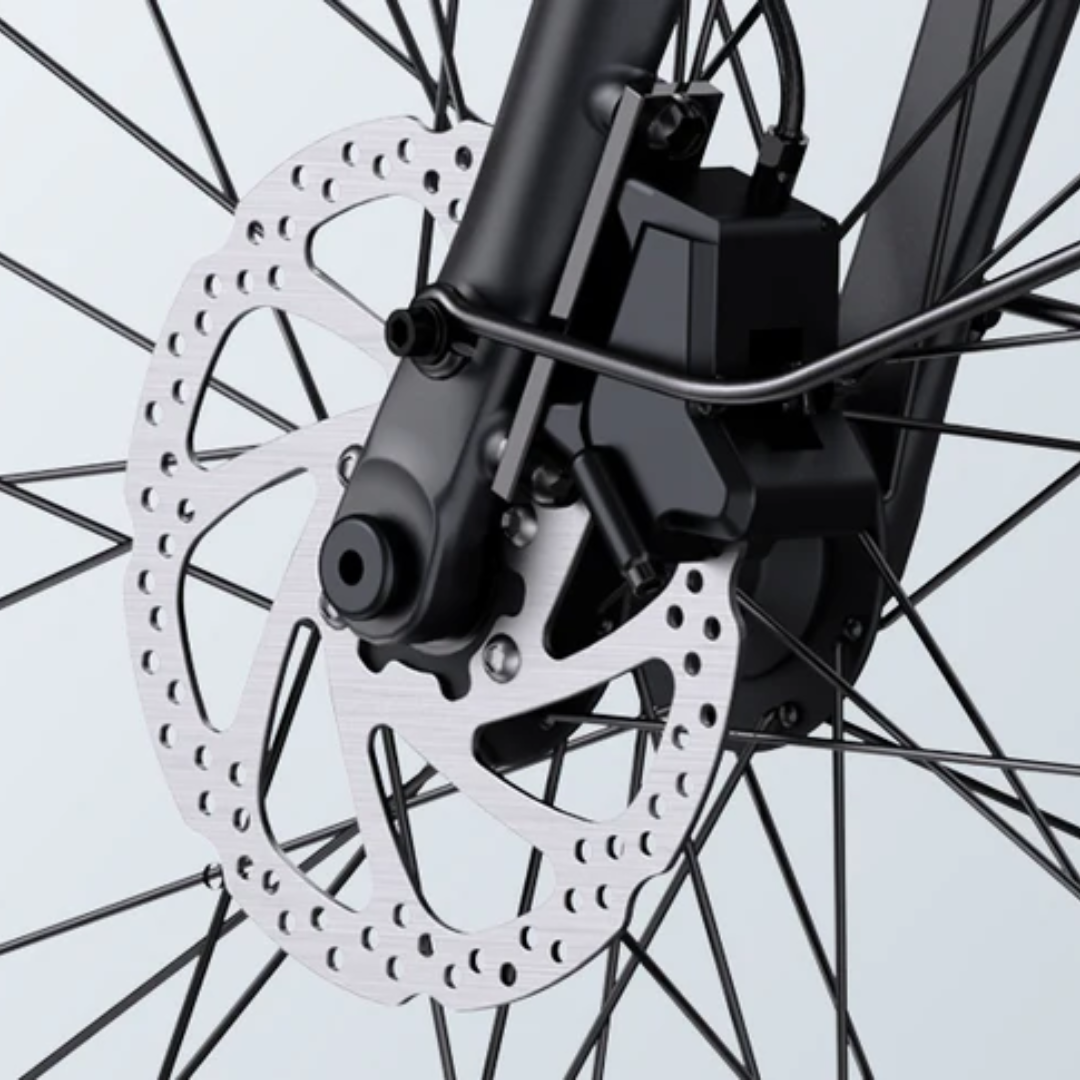

High-Quality Hydraulic Brakes

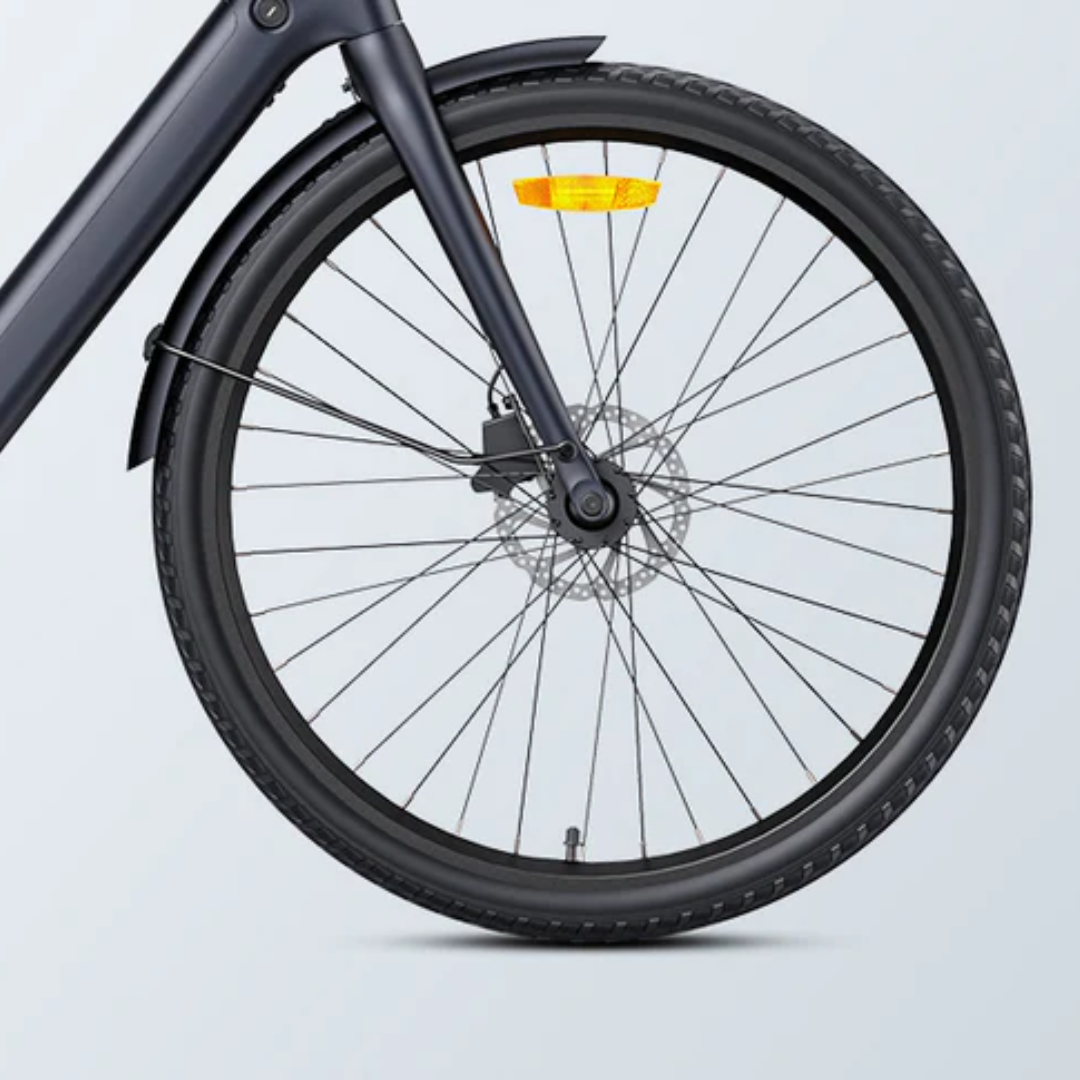

700c Tires

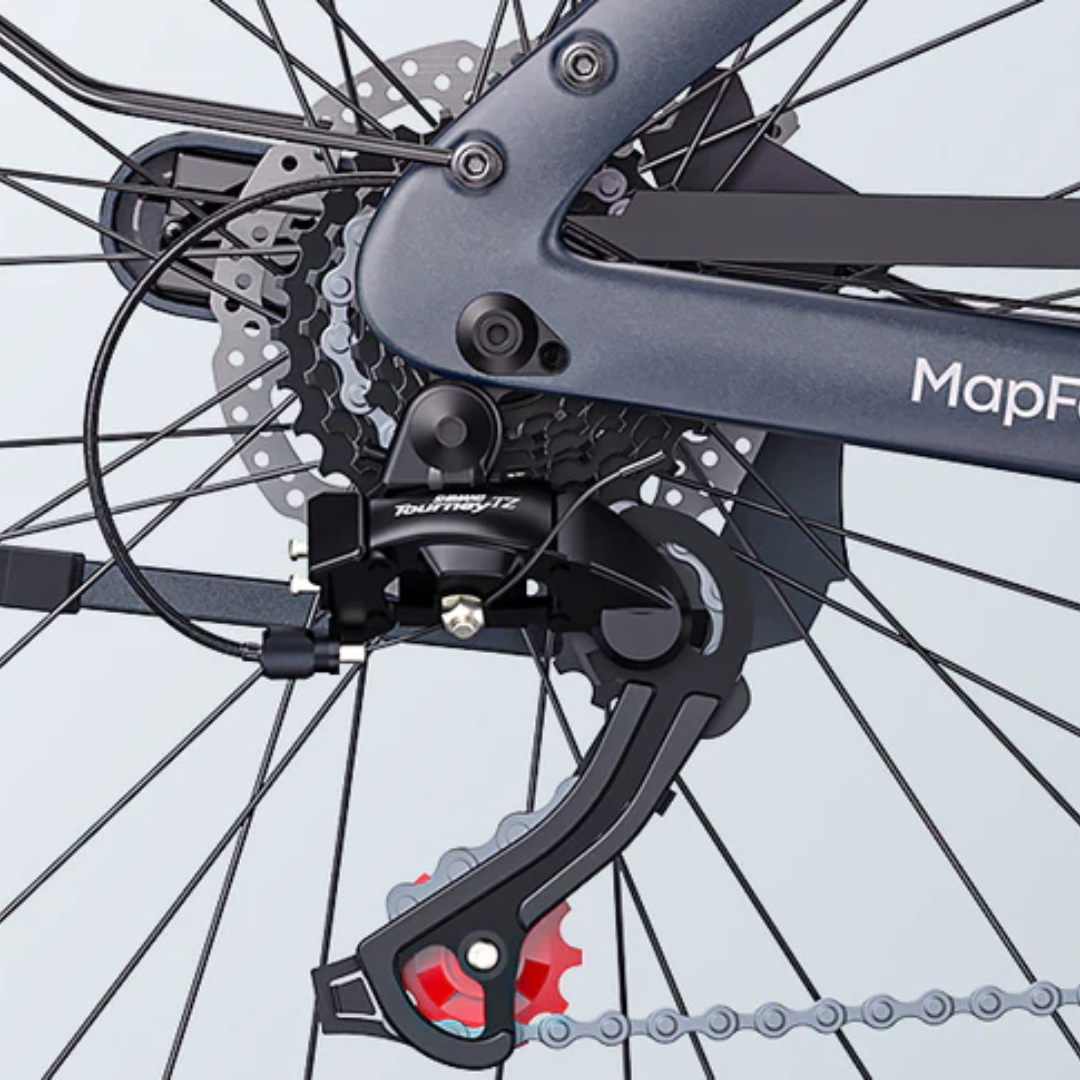

Shimano 7-Speed Gears

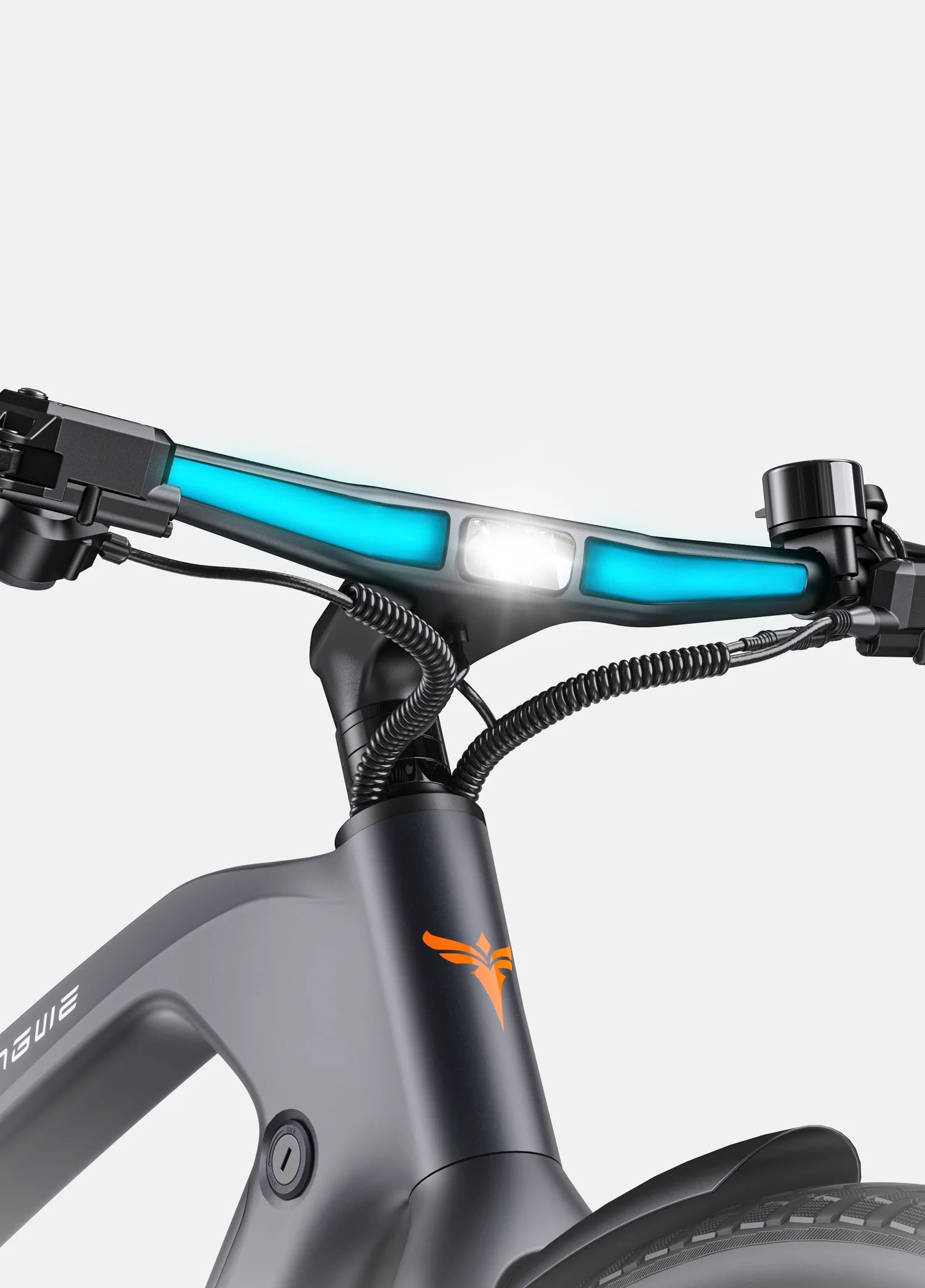

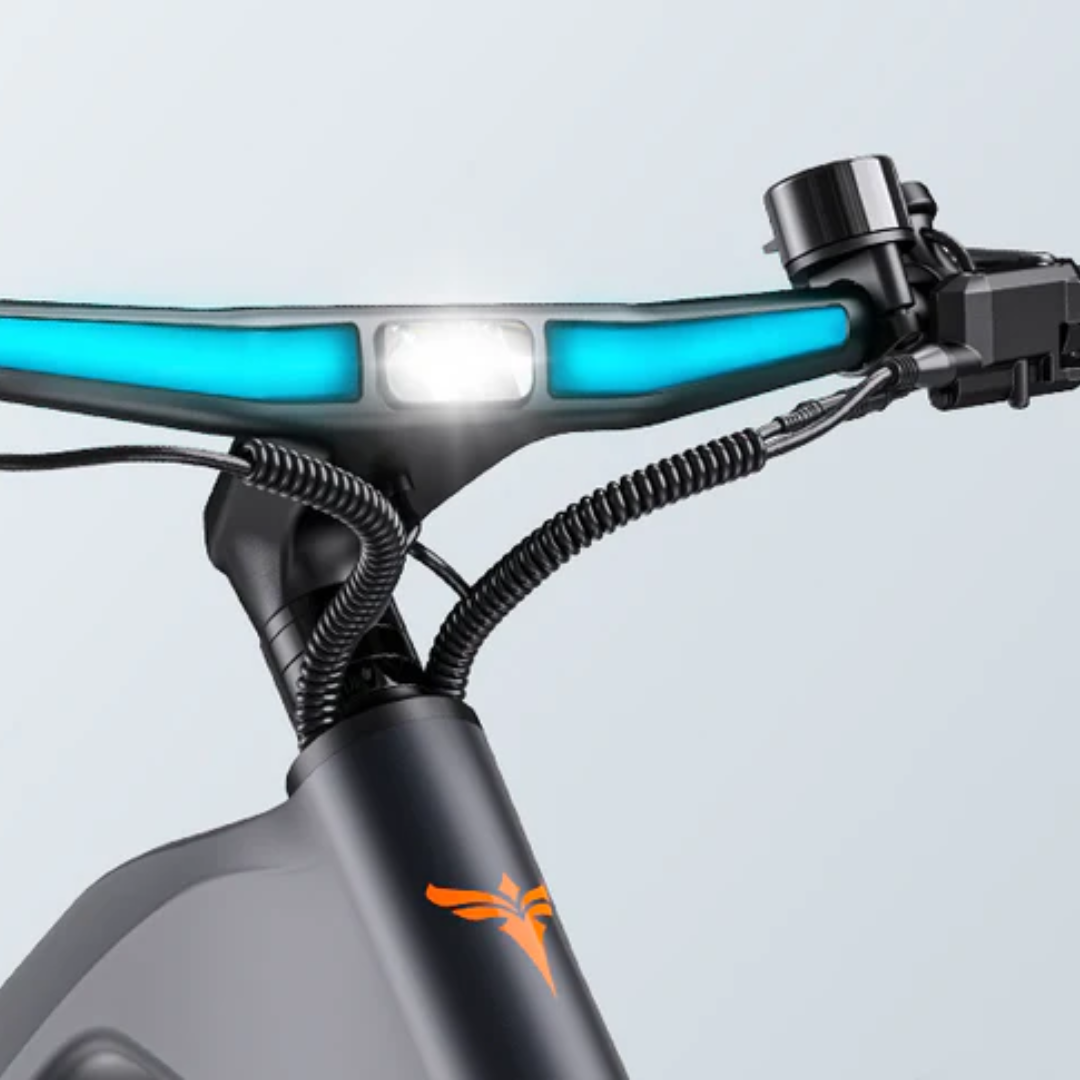

Smartbar
