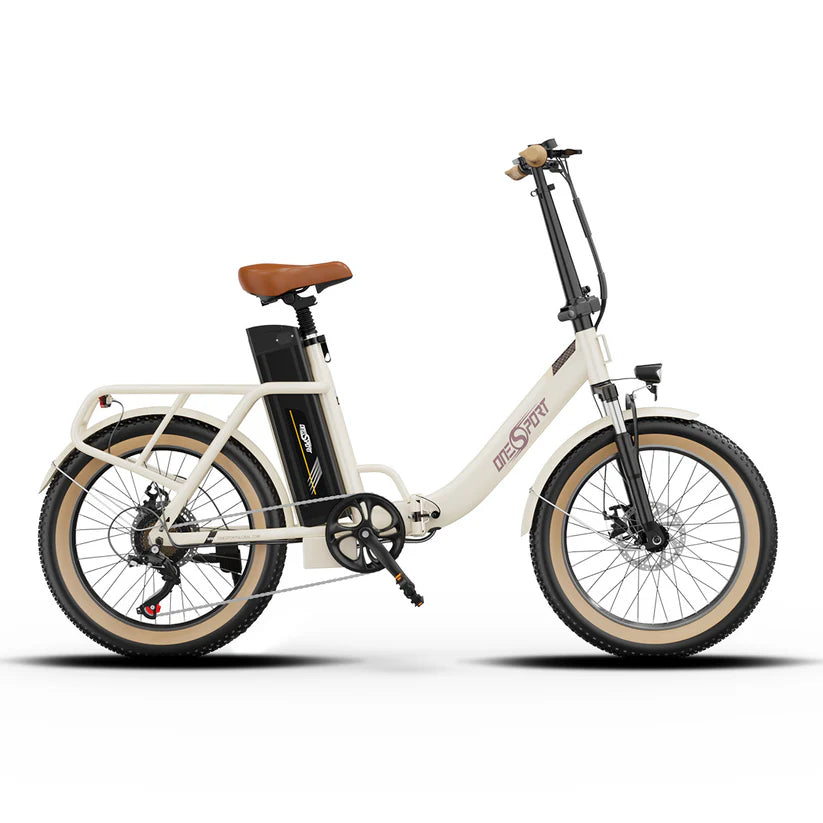

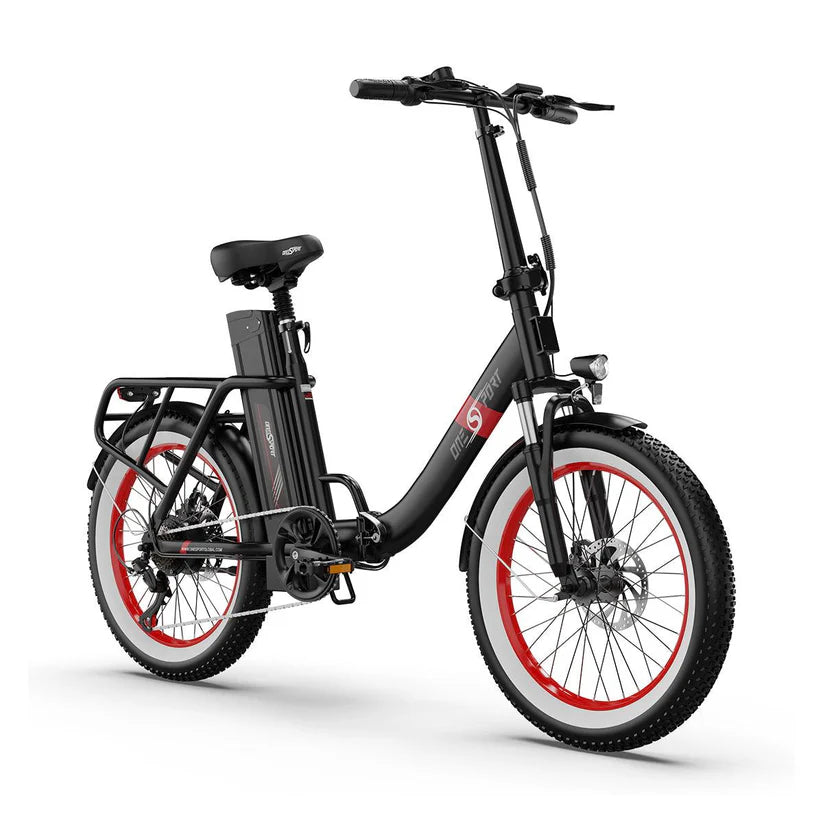

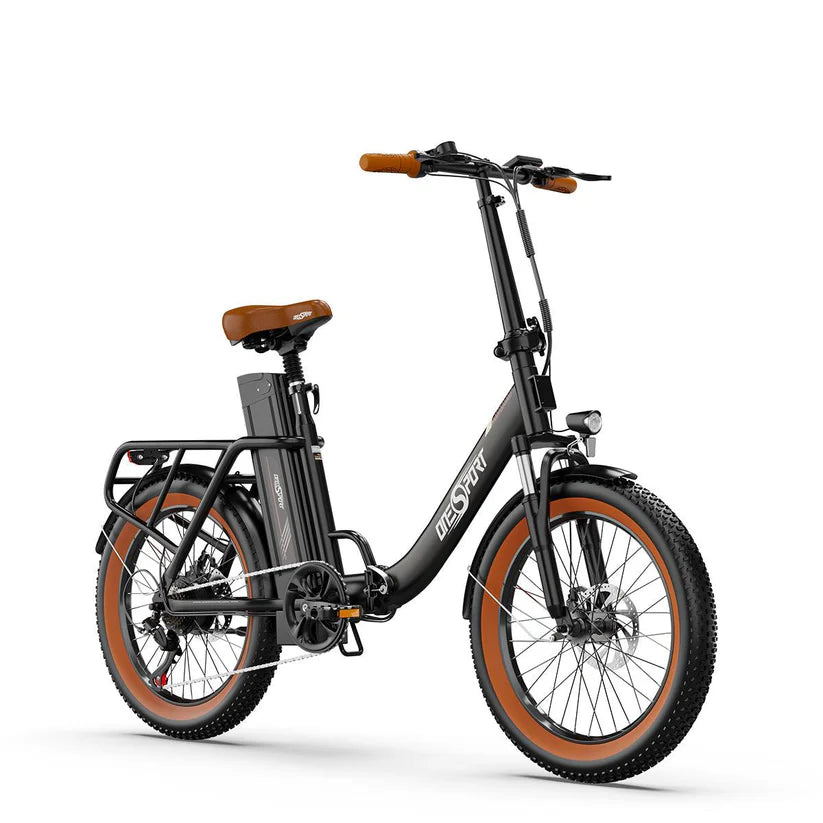

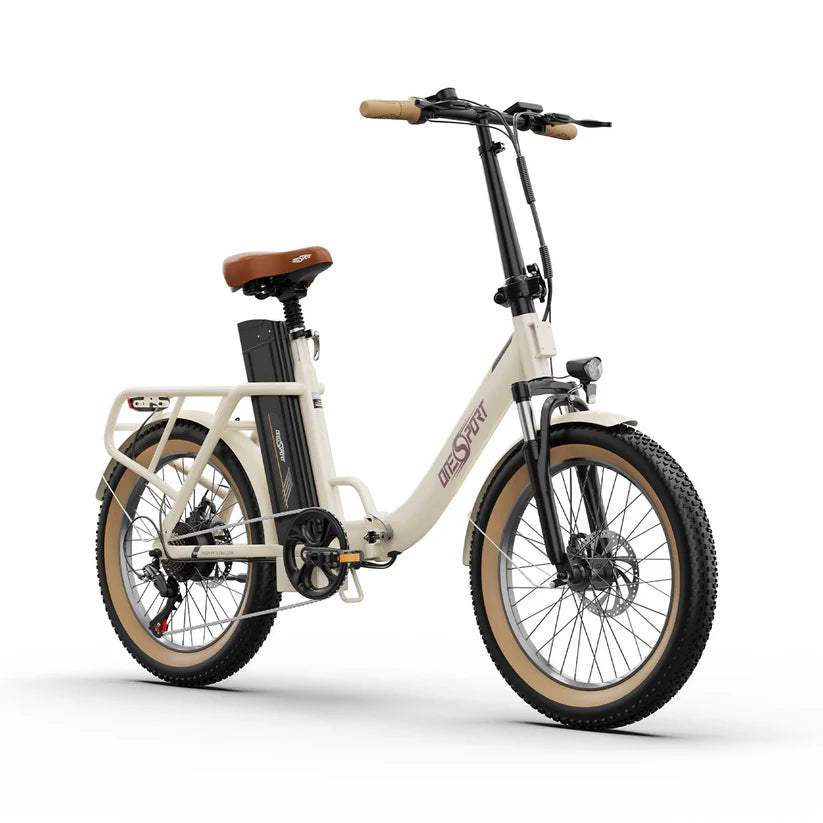

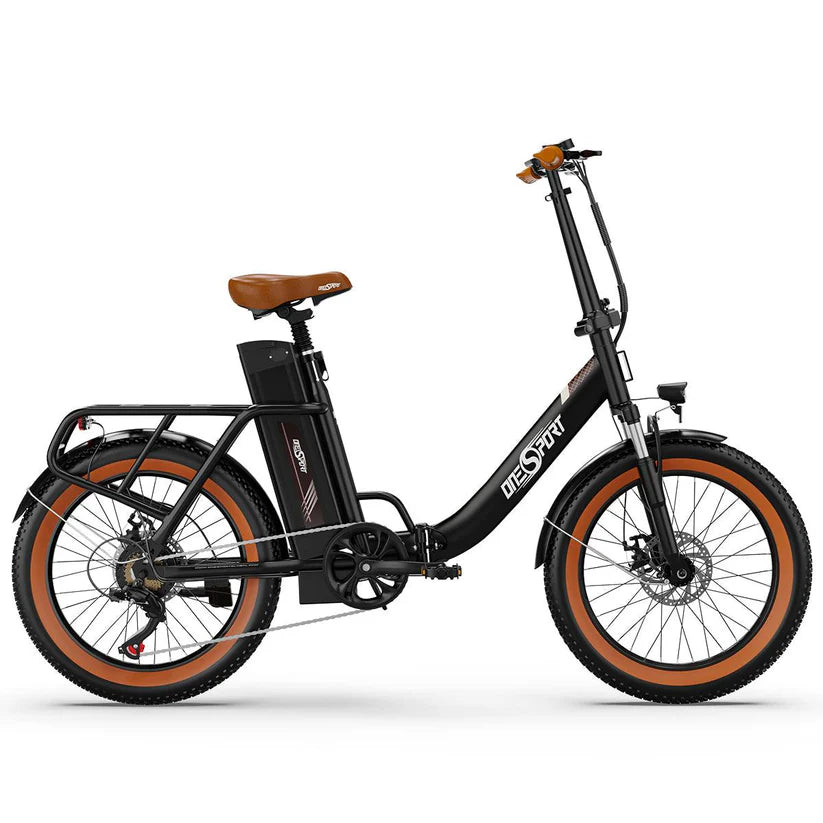

OneSport OT16-2 E-bike(Specs)
| Feature | Specification |
|---|---|
| Frame | 20" Folding Iron Frame |
| Color Options | Black-Red, Off-White, Black-Brown |
| Maximum Load | 100 KG |
| Maximum Speed | 25 KM/H |
| Range | 60 KM in Pure Electric Mode, 120 KM in Pedal Assist Mode |
| Maximum Climbing Angle | 20 Degree |

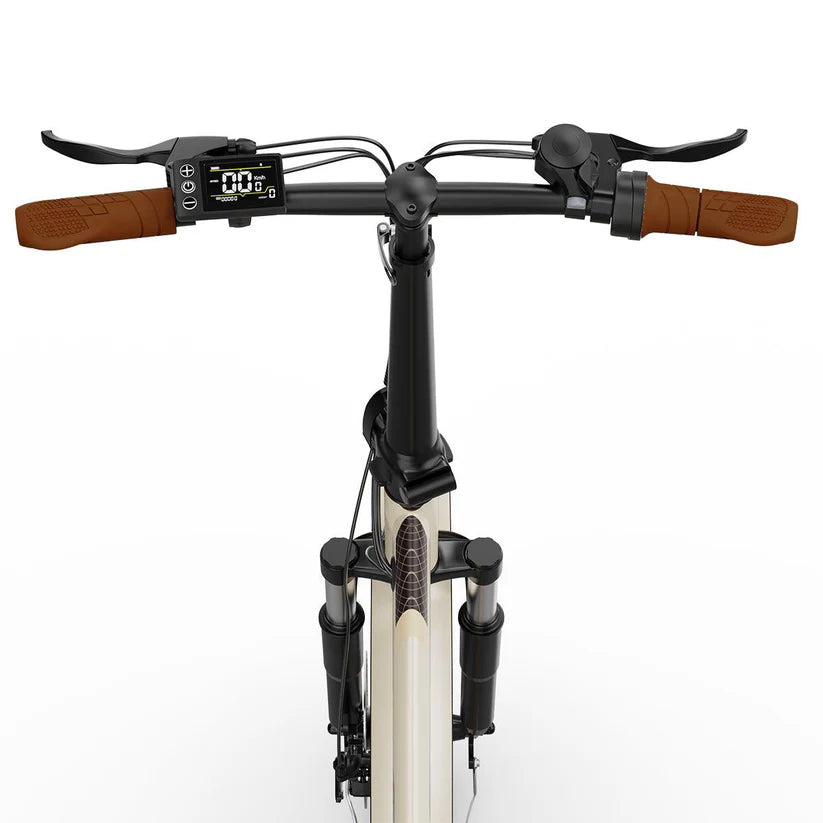

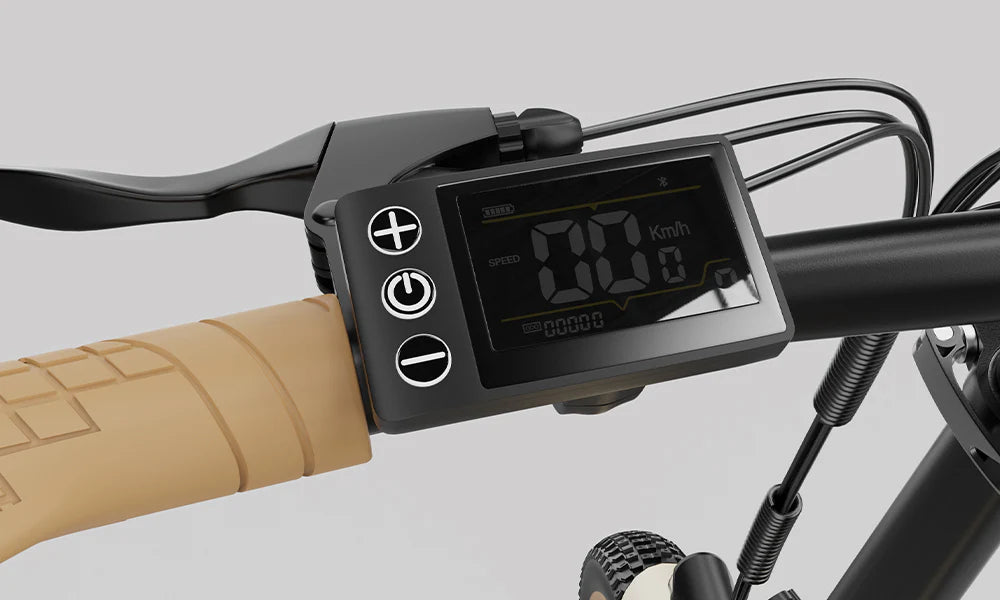

| Instrument Display | 3-speed Multi-function LCD with Bluetooth |

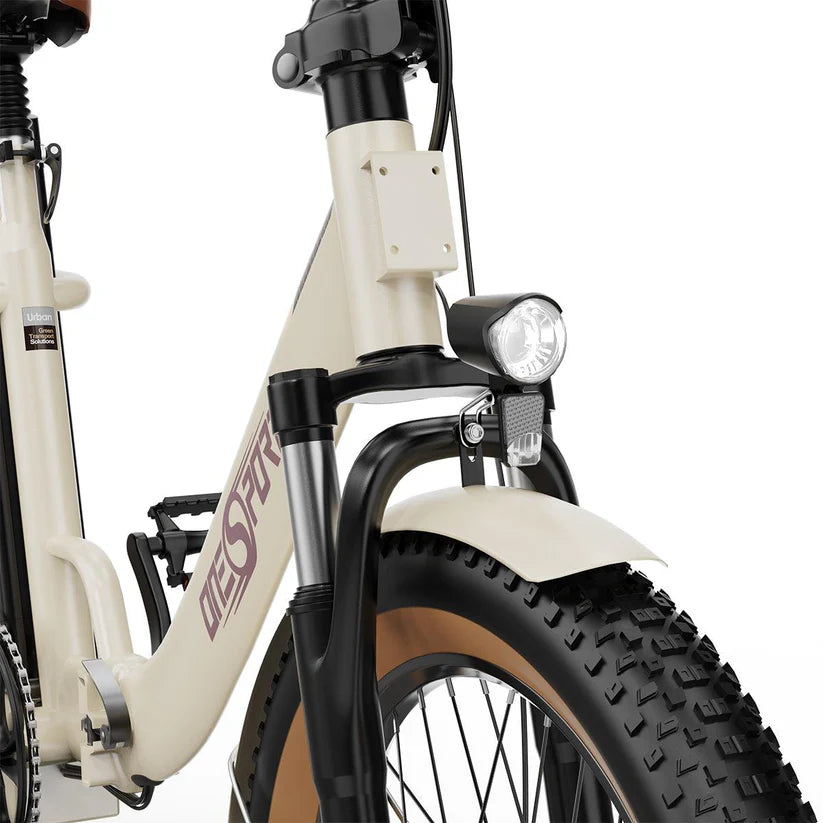

| Front Lighting | Included |
| Braking Method | Front Disc Brake + Rear Disc Brake |
| Hub Form | Integrated Wheel |
| Tire Specifications | Pneumatic Tires, 20" x 3.0 Inches |

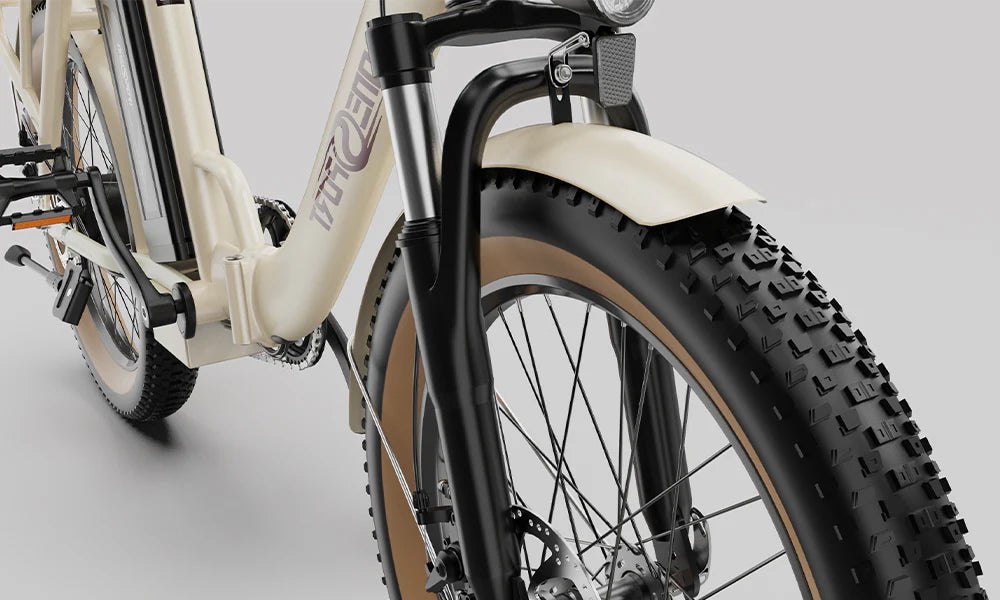

| Front Fork | Iron Shock Absorber Front Fork (Non-adjustable) |

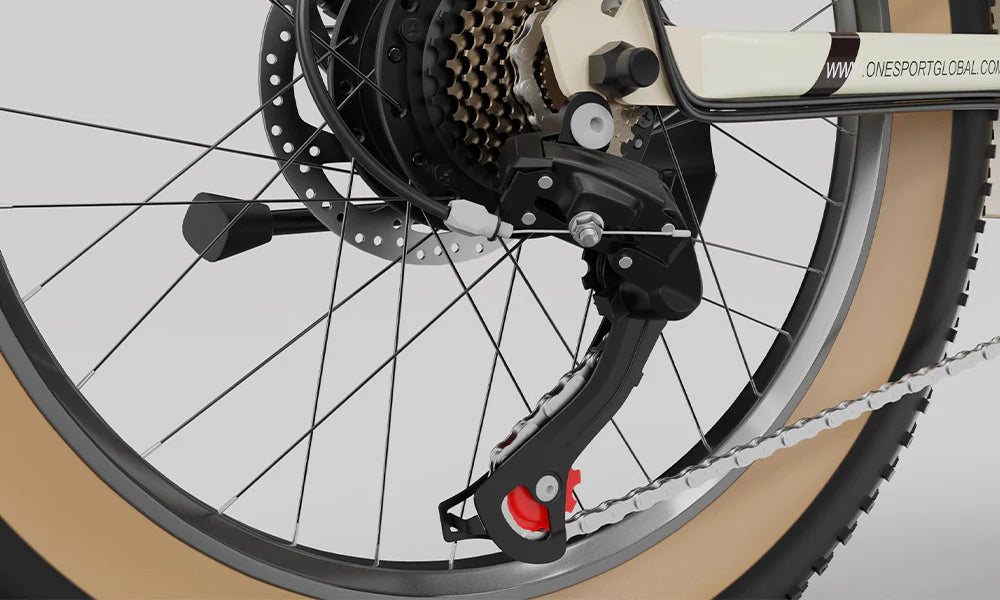

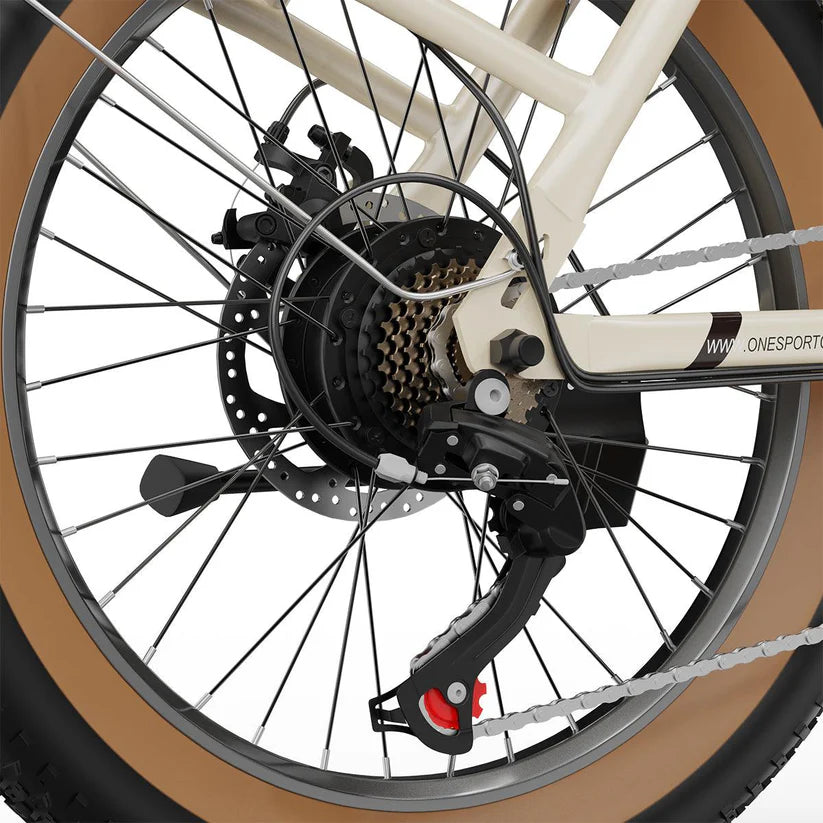

| Gear | Shimano 7 Speed |
| Riding Mode | Pedal Assist Mode, Riding Mode, Pure Electric Mode |
| Fenders | Front and Rear Fenders |
| Seat Tube | Aluminum Alloy |
| Throttle | Half Throttle (Not Installed and Packed) |

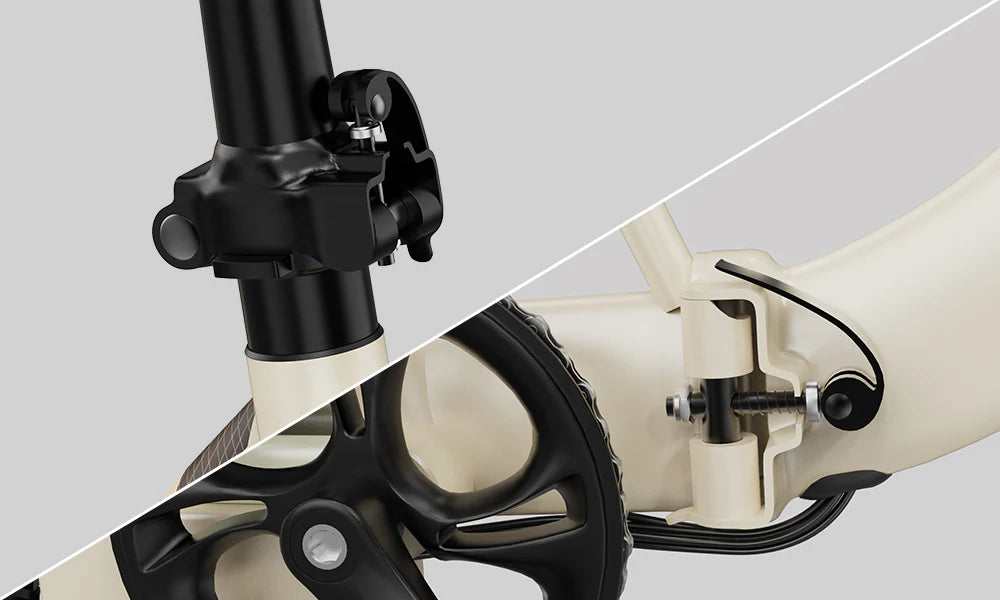

| Foldable | Yes |
| Length | 1640 MM |
| Rear Height | 560 MM |
| Front Height | 1190 MM |
| Handlebar Length | 560 MM |
| Packing Size | 910 MM x 380 MM x 745 MM |
| Net Weight/Gross Weight | 29.7 KG / 36.5 KG |
| Battery Size | 380 MM x 110 MM x 78 MM |
| Battery Net Weight | 4 KG |
| Saddle Height | 890 MM - 1000 MM from the Ground |
| Disc Diameter | 160 MM |
| Front Fork Travel | 40 MM |
| Applicable Height | 1600 MM - 2000 MM |

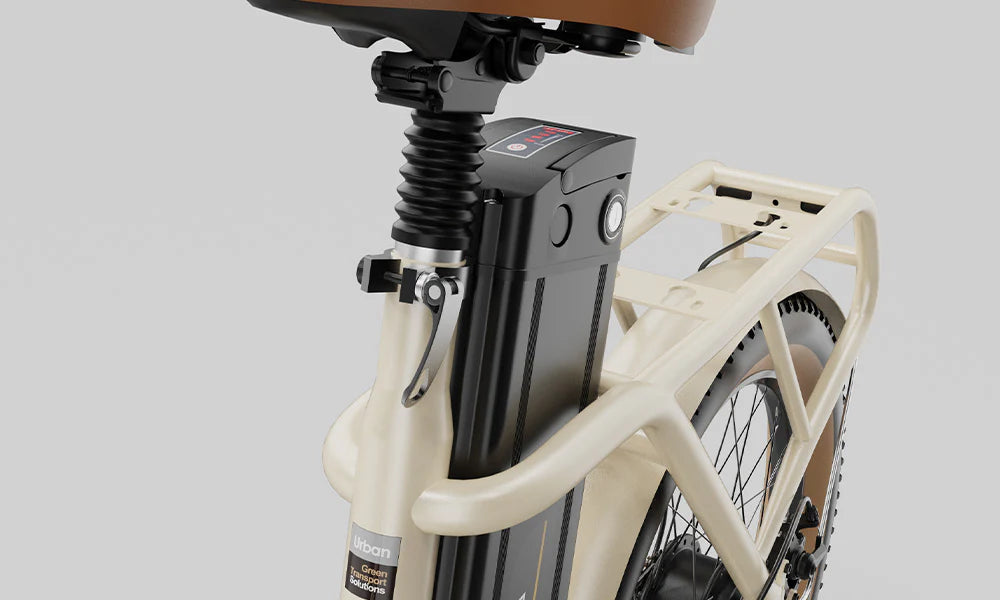

| Battery | 48V 17AH 18650 Battery Cell |
| Motor | 48V 250W |
| Motor Brand | ANANDA |
| Motor Torque | 40 Nm |
| Charger | 54.6V 2A (Input: 110V-240V) |
| Charging Time | 8-10 Hours |
| Controller | Sine Wave Controller (48V 15A Jing Hui Controller) |

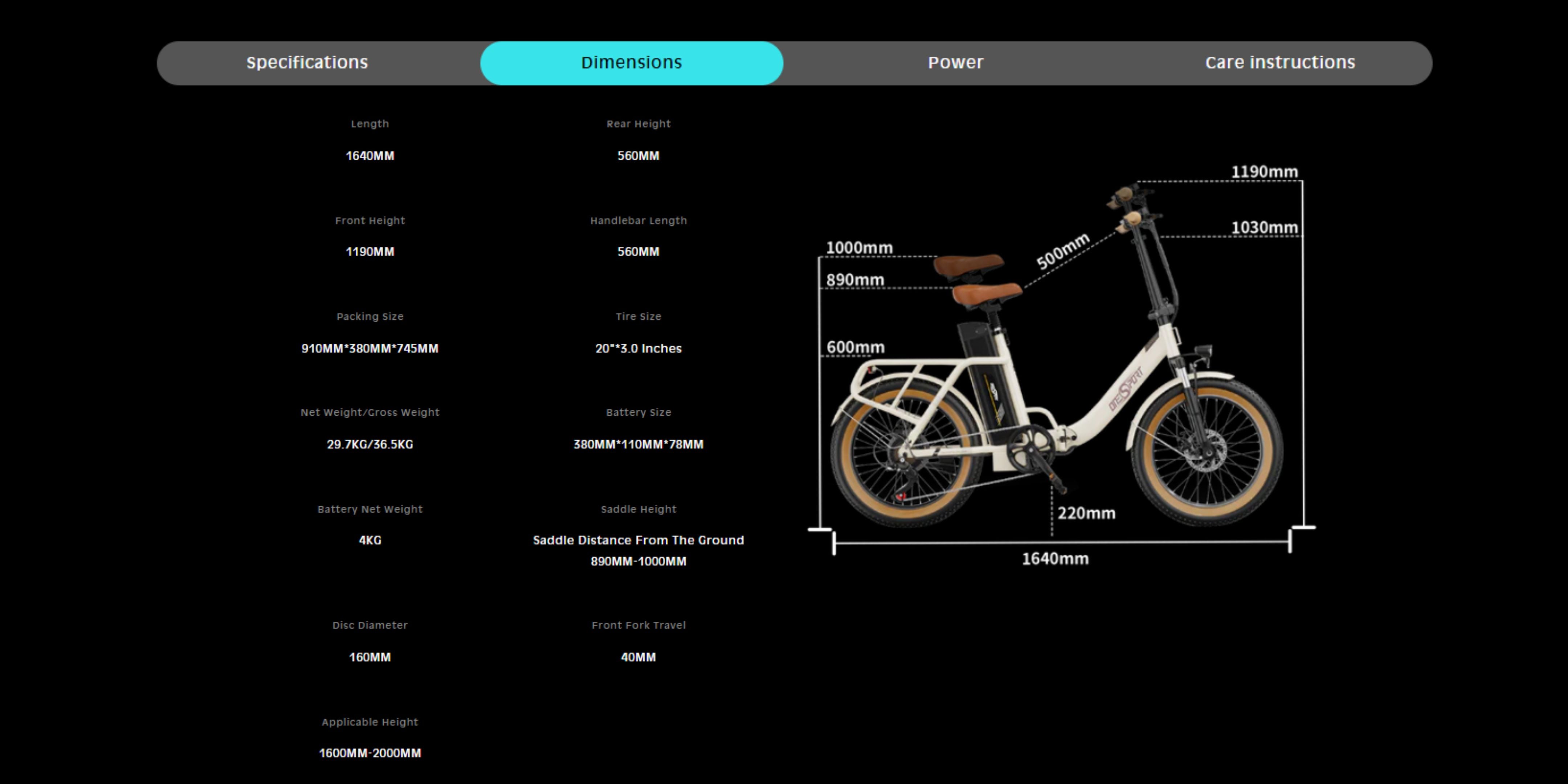

OneSport OT16-2 E-bike(Size)
| Feature | Specification |
|---|---|
| Frame | 20" Folding Iron Frame |
| Color Options | Black-Red, Off-White, Black-Brown |
| Maximum Load | 100 KG |
| Maximum Speed | 25 KM/H |
| Range | 60 KM in Pure Electric Mode, 120 KM in Pedal Assist Mode |
| Maximum Climbing Angle | 20 Degree |
| Instrument Display | 3-speed Multi-function LCD with Bluetooth |
| Front Lighting | Included |
| Braking Method | Front Disc Brake + Rear Disc Brake |
| Hub Form | Integrated Wheel |
| Tire Specifications | Pneumatic Tires, 20" x 3.0 Inches |
| Front Fork | Iron Shock Absorber Front Fork (Non-adjustable) |
| Gear | Shimano 7 Speed |
| Riding Mode | Pedal Assist Mode, Riding Mode, Pure Electric Mode |
| Fenders | Front and Rear Fenders |
| Seat Tube | Aluminum Alloy |
| Throttle | Half Throttle (Not Installed and Packed) |
| Foldable | Yes |
| Length | 1640 MM |
| Rear Height | 560 MM |
| Front Height | 1190 MM |
| Handlebar Length | 560 MM |
| Packing Size | 910 MM x 380 MM x 745 MM |
| Net Weight/Gross Weight | 29.7 KG / 36.5 KG |
| Battery Size | 380 MM x 110 MM x 78 MM |
| Battery Net Weight | 4 KG |
| Saddle Height | 890 MM - 1000 MM from the Ground |
| Disc Diameter | 160 MM |
| Front Fork Travel | 40 MM |
| Applicable Height | 1600 MM - 2000 MM |

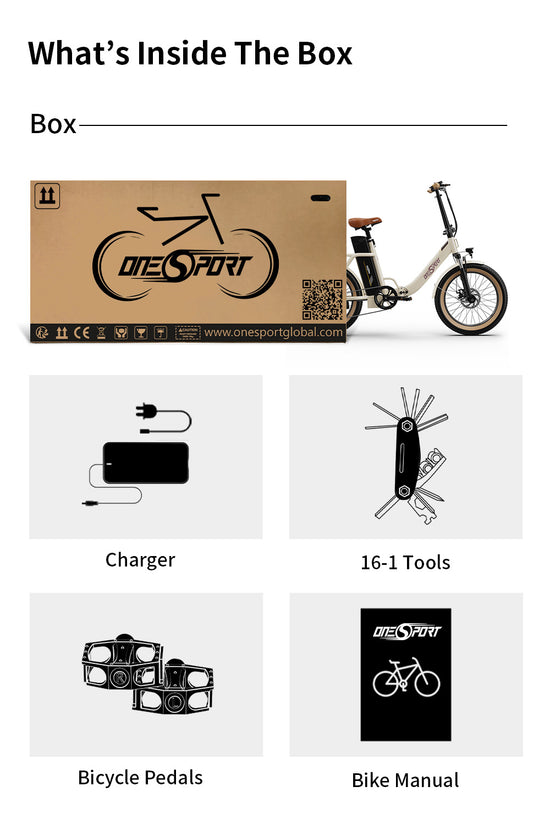

OneSport OT16-2 E-bike(Whats in the box)
