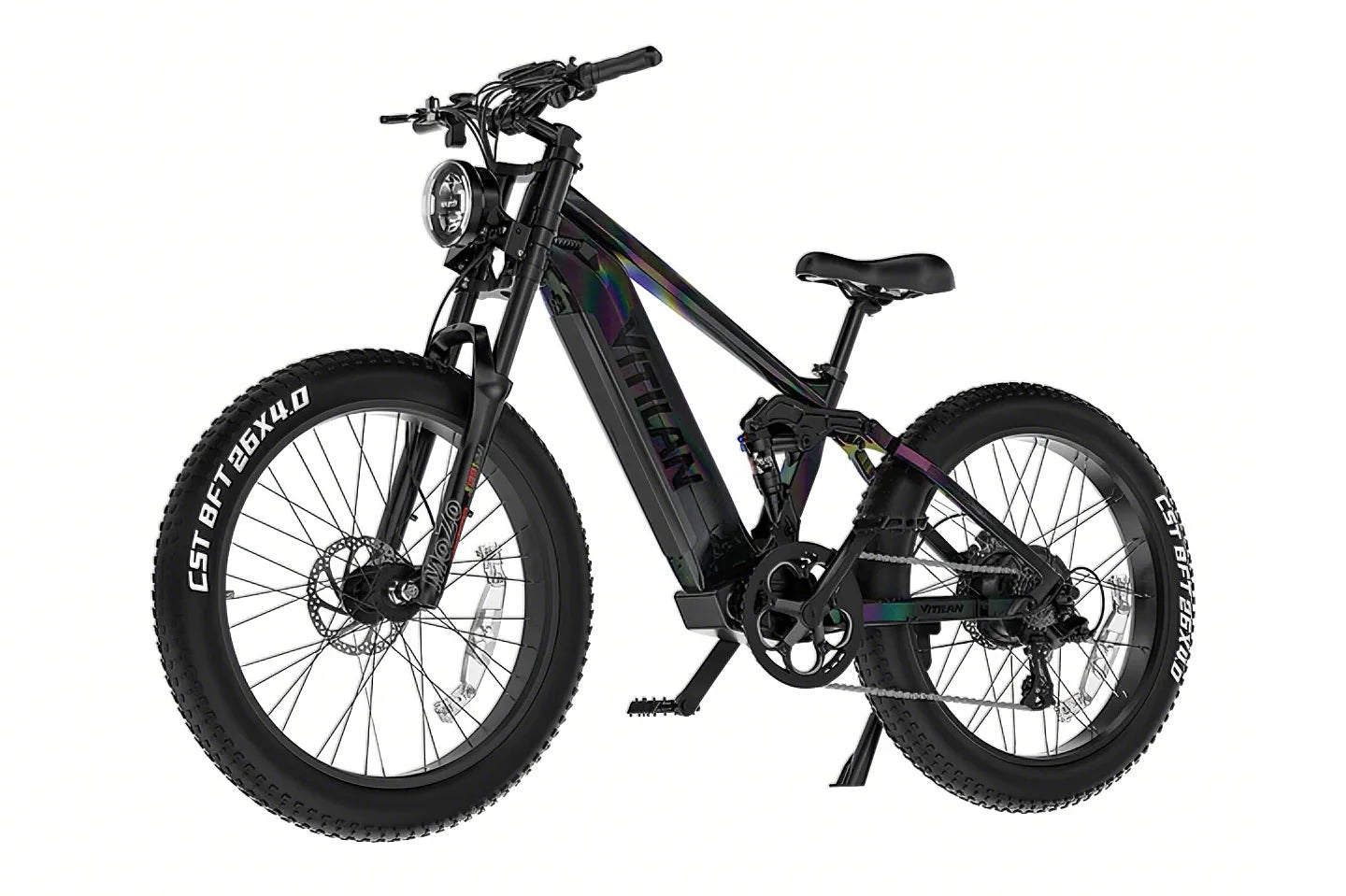

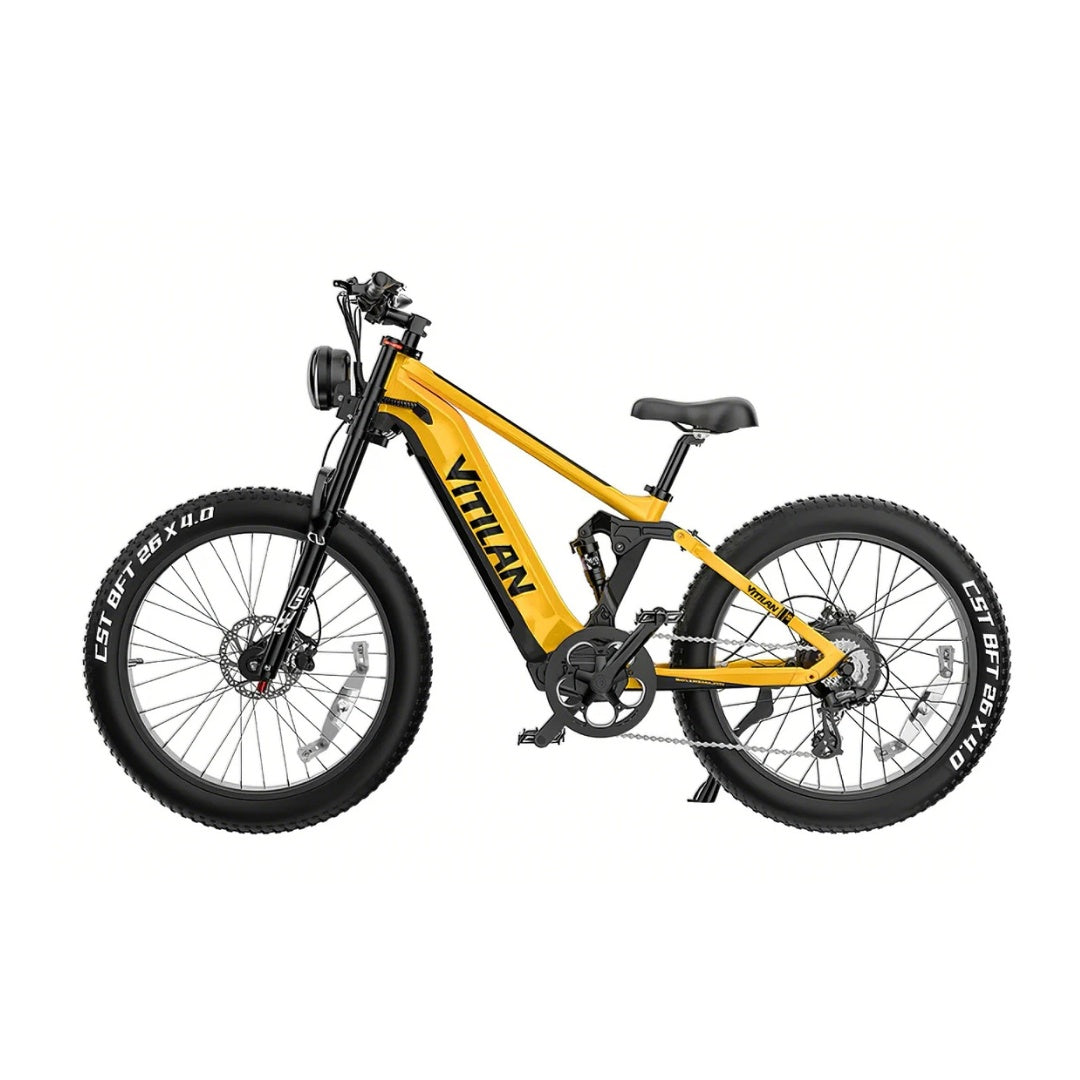

T7 Full Suspension Mountain E-bike(Specs)

Technical Specifications

Feature	T7 Model	T7 PRO Model
Motor Hub	48V, 750W (Peak 1200W) Bafang Motor, Max Torque 80Nm	52V, 1000W (Peak 1600W), Max Torque 80Nm
Battery	48V, 20Ah, 960Wh SAM-SUNG Li-ion Battery	52V, 20Ah, 1040Wh SAM-SUNG Li-ion Battery
UL Certification	UL 2271	UL 2271
Charger	54.6V, 3.0A, Operates on 110V-240V AC, 50-60Hz	58.8V, 3.0A, Operates on 110V-240V AC, 50-60Hz
Display	Fahrenheit Temp Display, Lishui Controller, Adjustable Steering Gear Shift, Adjustable Cruise Control	Same as T7
Throttle Assist	Half-Twist Throttle	Half-Twist Throttle

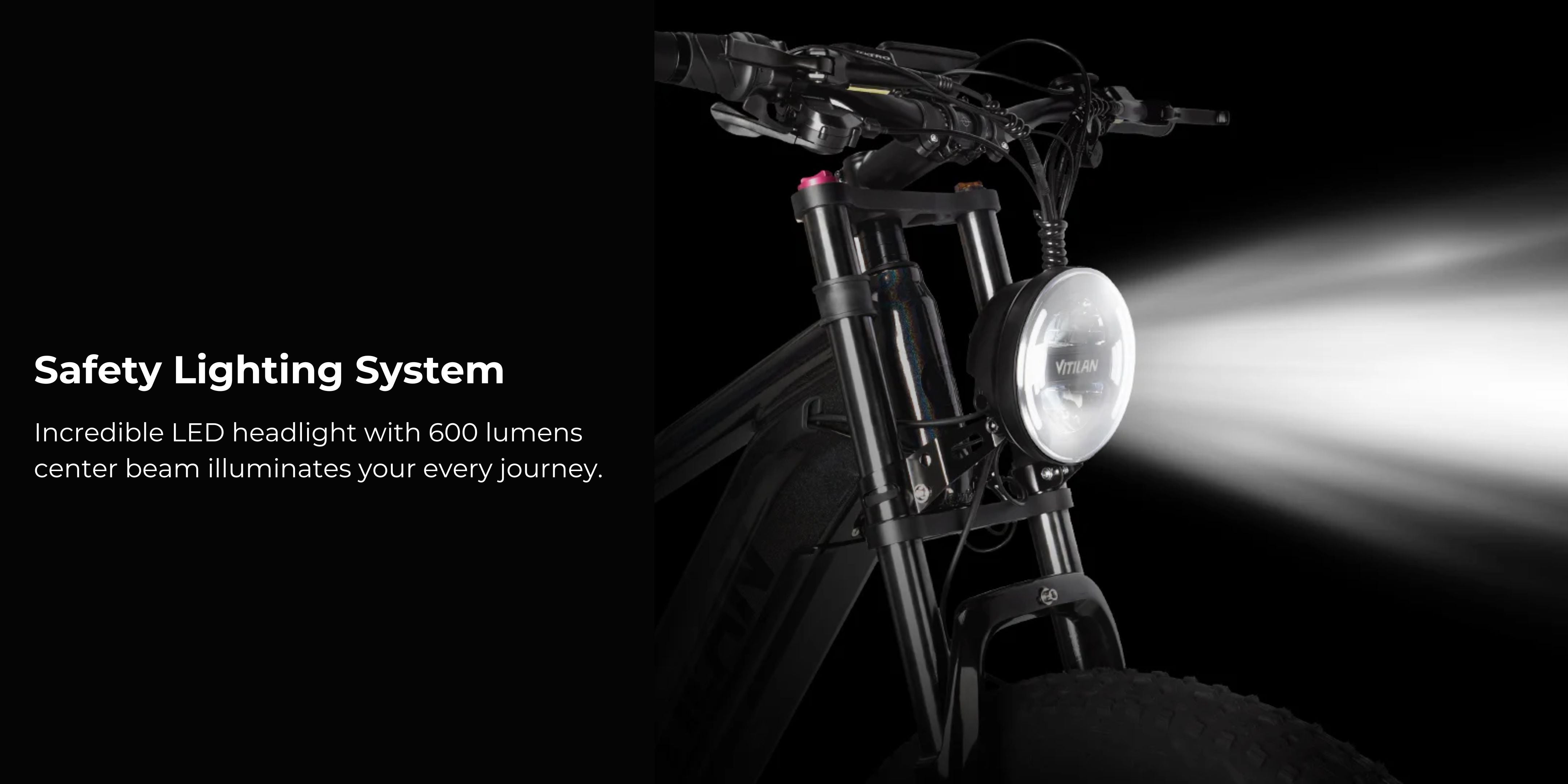

Headlight	High Output Integrated LED, IPX6	High Output Integrated LED, IPX6
Pedal Assist Range	80 Miles	80 Miles
Throttle Range	60 Miles	60 Miles
Pedal Assist Levels	1-5 Level, Cadence Sensor	1-5 Level, Cadence Sensor
Charging Time	0-80% in 4 Hours, 0-100% in 6 Hours	0-80% in 4 Hours, 0-100% in 6 Hours

Frames & Components

Feature	T7 Model	T7 PRO Model

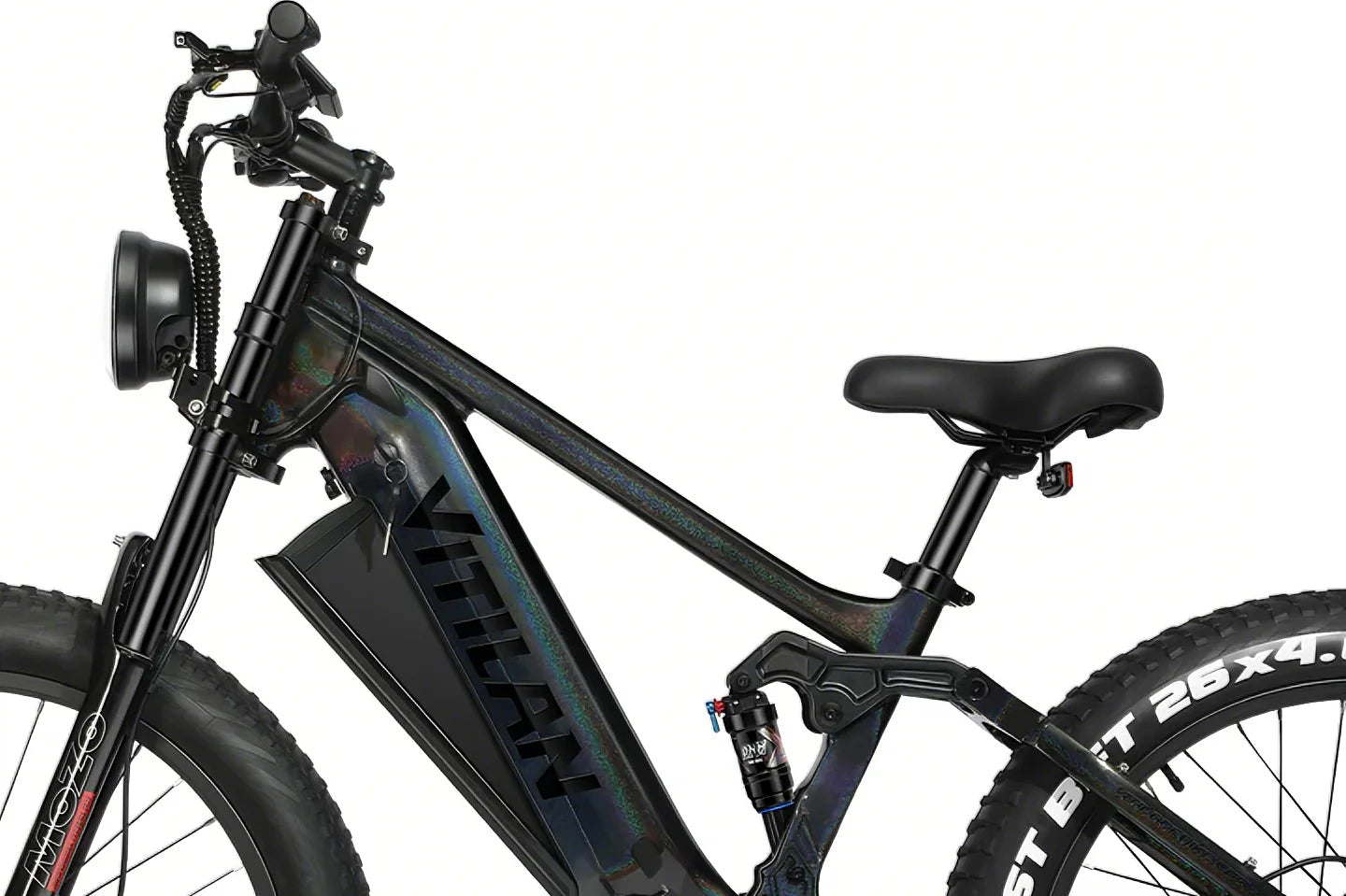

Frame	Aluminum Alloy, Fully Integrated & Lockable Down Tube Battery	Same as T7
Brakes	TEKTRO 180mm Front & Rear Hydraulic Disc Brakes	TEKTRO 180mm Front & Rear Hydraulic Disc Brakes
Rims	Aluminum Alloy, 36H	Aluminum Alloy, 36H
IP Level	IPX6	IPX6
Fork	MOZO Hydraulic Suspension with 26'' Dual Shock Forks, Lockout, 60mm Travel	UDING Air Dual Suspension Forks, 105mm Travel
Tires	CST 26x4.0”, Puncture-Resistant Liner	CST 26x4.0”, Puncture-Resistant Liner
Shift Lever	Shimano SL-M315, 8-Speed, Thumb Shifter	Shimano SL-M315, 8-Speed, Thumb Shifter
Chainrings	53T	53T
Chain	KMC X8 Anti-Rust Chain	KMC X8 Anti-Rust Chain
Crankset	Aluminum Alloy, 26"x4.0 170mm	Aluminum Alloy, 26"x4.0 170mm
Seat Post	Aluminum Alloy, 250mm x 33.9mm, Quick Release Clamp	Aluminum Alloy, 250mm x 33.9mm, Quick Release Clamp
Pedals	Full Aluminum Mountain Bike Pedals (with Pegs)	Full Aluminum Mountain Bike Pedals (with Pegs)

Weight & Speed

Feature	T7 Model	T7 PRO Model
Package Dimensions	61.8'' x 14.1'' x 33.8''	61.8'' x 14.1'' x 33.8''
Max Load Capacity	330 lbs	330 lbs
Package Weight	110 lbs	110 lbs
Net Weight	84.5 lbs	Not specified (likely similar)
Gross Weight	96.5 lbs	Not specified (likely similar)
Max Speed	28 MPH	35 MPH

T7 Full Suspension Mountain E-bike(Size)

E-Bike Specifications

Specification	Details
Total Length	76.83''
Handlebar Height	45.7''
Minimum Seat Height	32.7''
Maximum Seat Height	36.84''
Top Tube Length	23.62''
Frame to Ground Height	9.84''
Handlebar Length	26.77''
Head Tube Length	3.74''
Wheelbase	47.24''
Recommended Rider Height	5'4'' - 6'8''

97.5 LBS

Weight

1200 Watt

Motor Capacity

80 Nm

Torque

52V 20Ah

Battery Capacity

25 km/h

Max Speed

60-80 Miles

Range

Enhanced Ride Comfort & Control Features

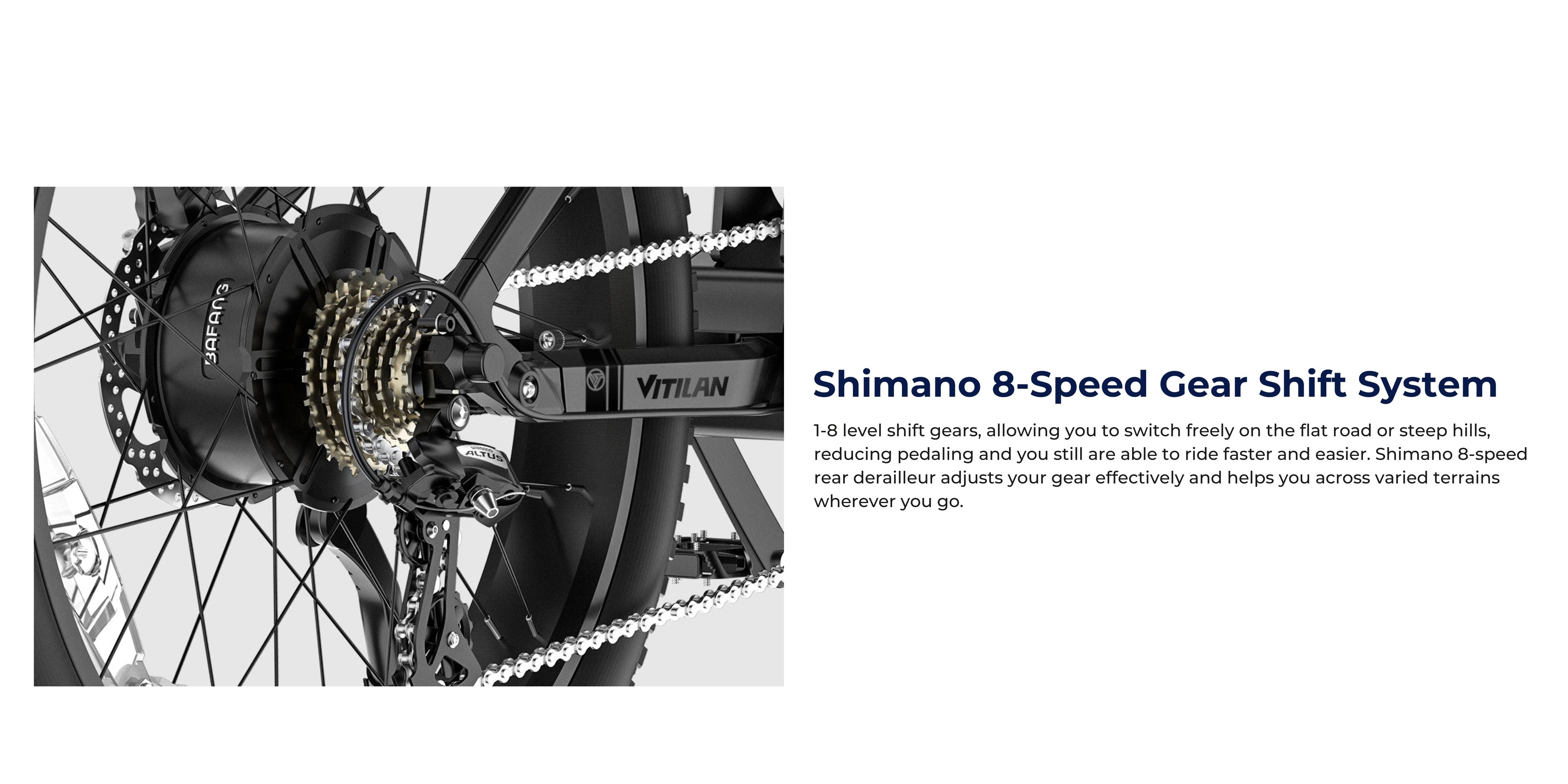

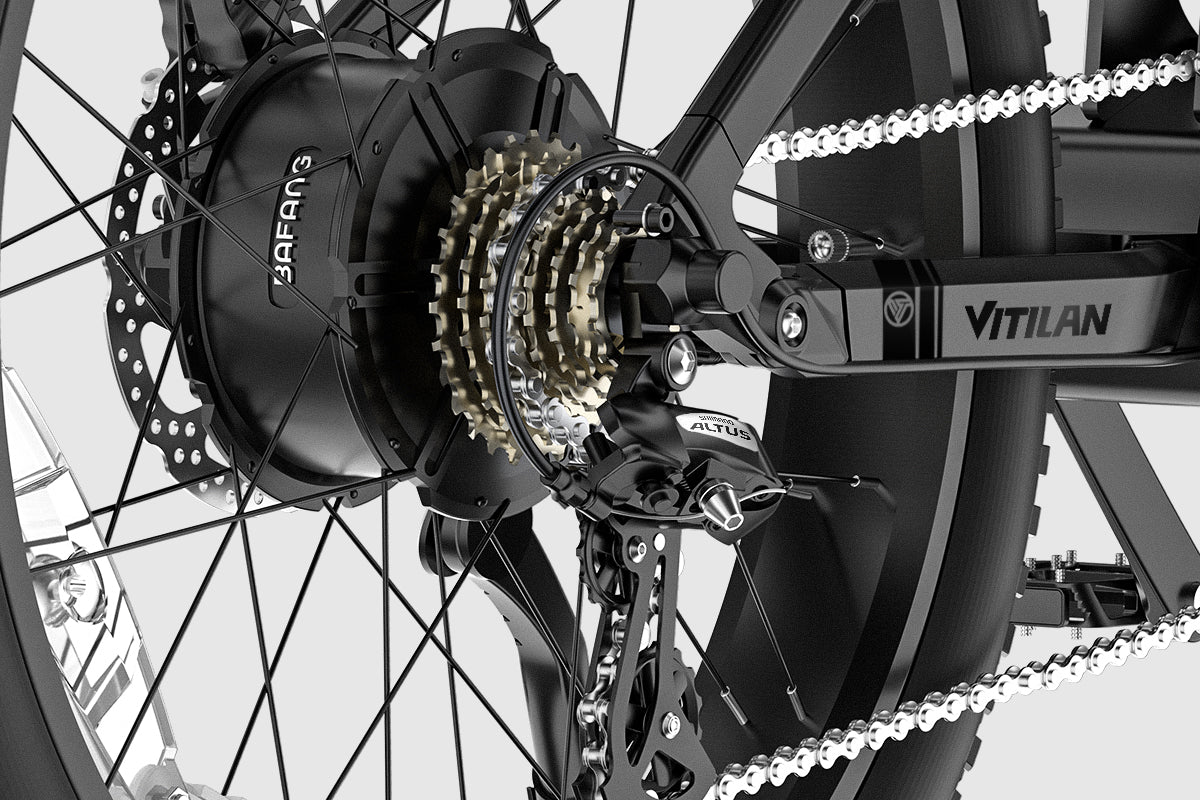

Shimano 8-Speed Gear Shift System

1-8 level shift gears, allowing you to switch freely on the flat road or steep hills, reducing pedaling and you still are able to ride faster and easier. Shimano 8-speed rear derailleur adjusts your gear effectively and helps you across varied terrains wherever you go.

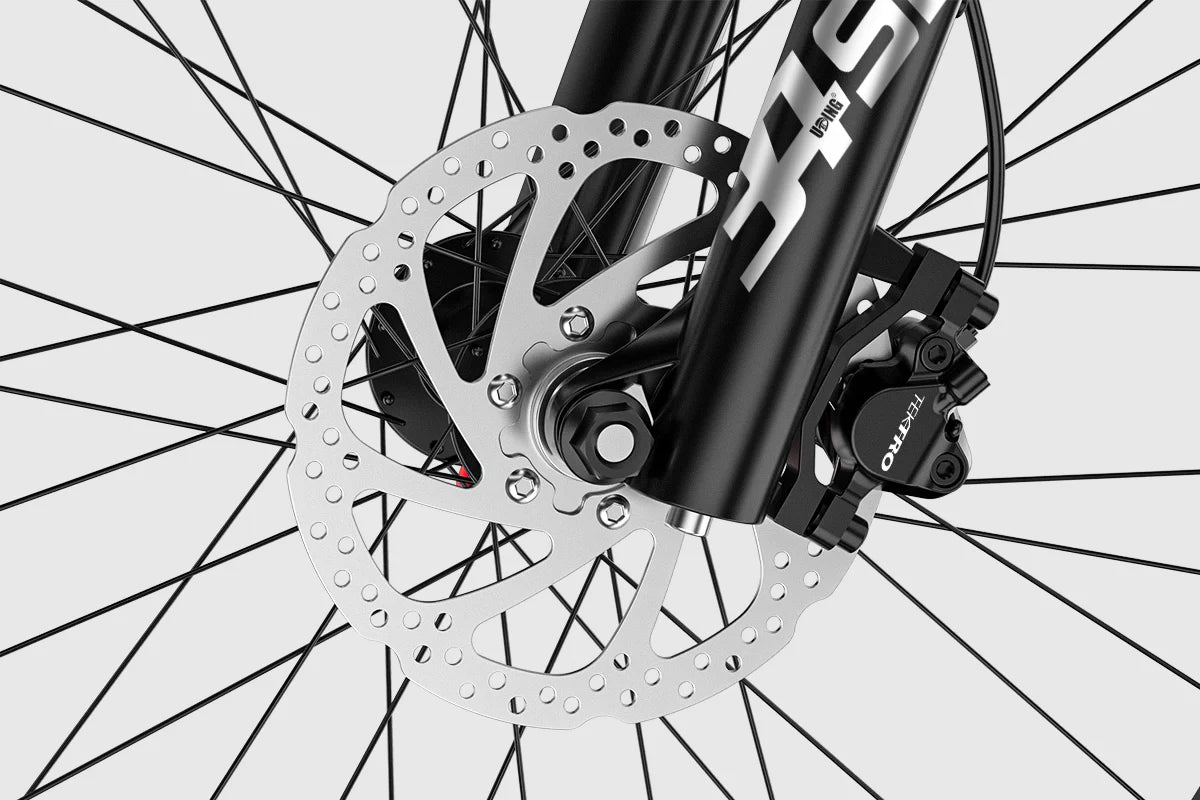

TEKTRO Dual Piston Hydraulic Brake

Need to hit the brakes? Our hydraulic disc brakes (180mm) are your trusty sidekick when it comes to smooth & reliable stopping power. Say goodbye to skidding and hello to controlled stops every time.

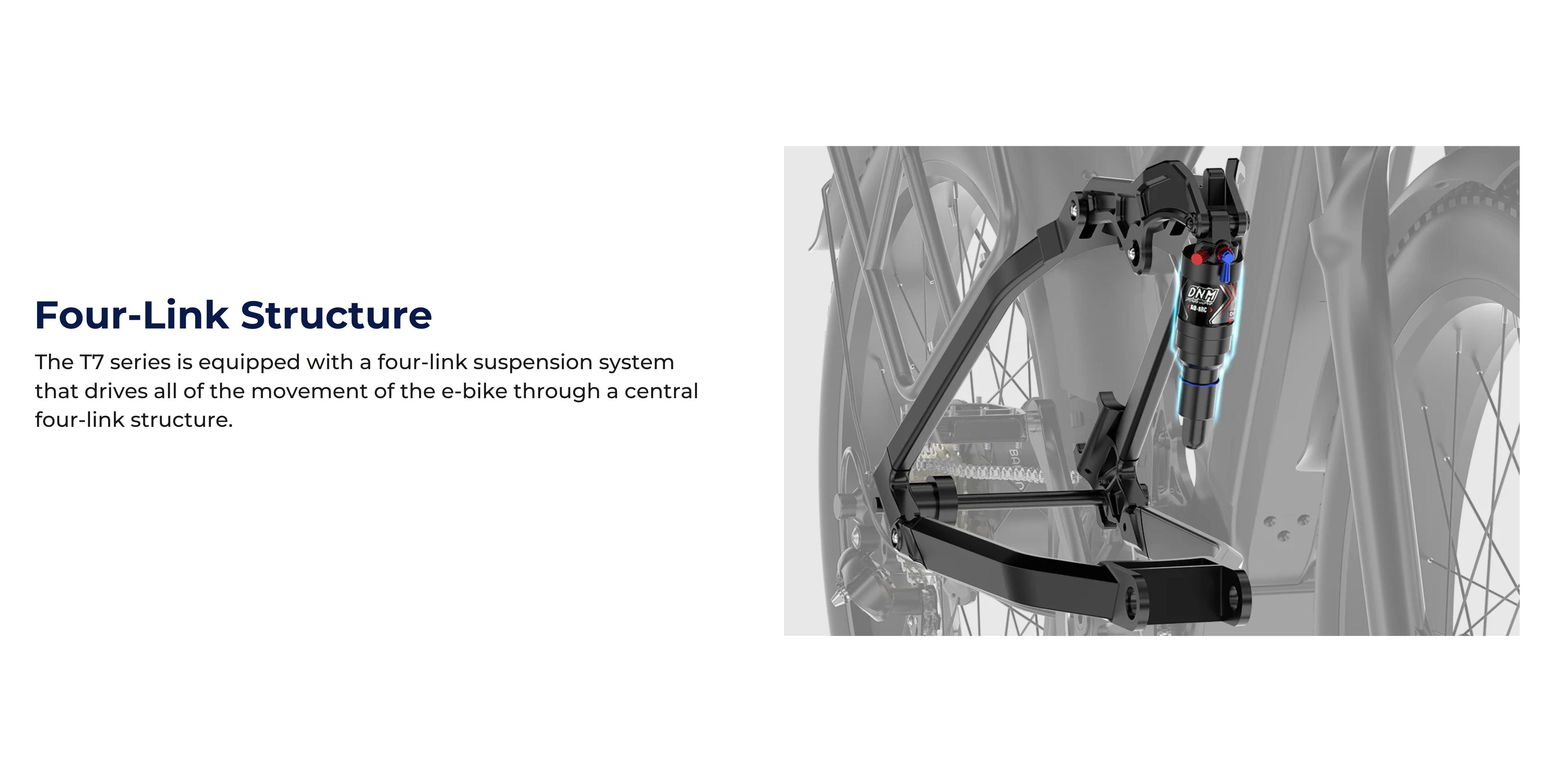

Four-Link Structure

The T7 series is equipped with a four-link suspension system that drives all of the movement of the e-bike through a central four-link structure.

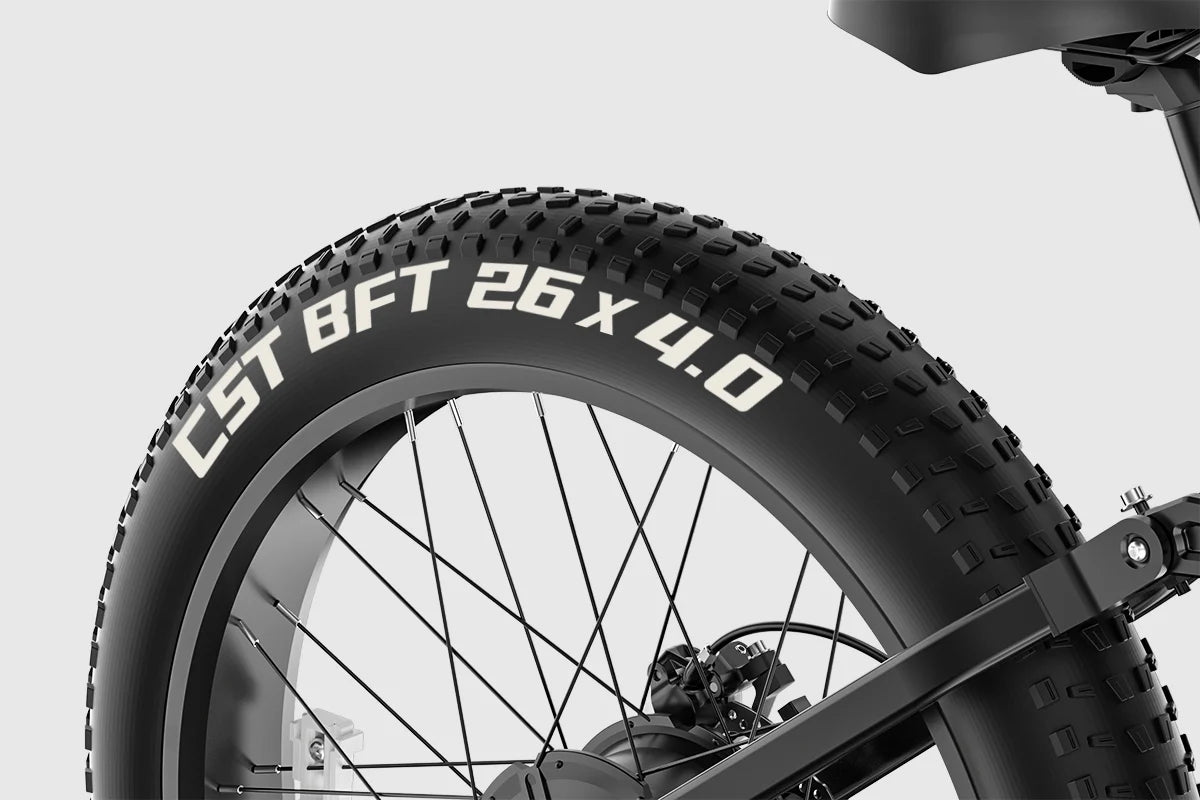

Puncture-Proof Tires

The T7 series is equipped with a four-link suspension system that drives all of the movement of the e-bike through a central four-link structure.

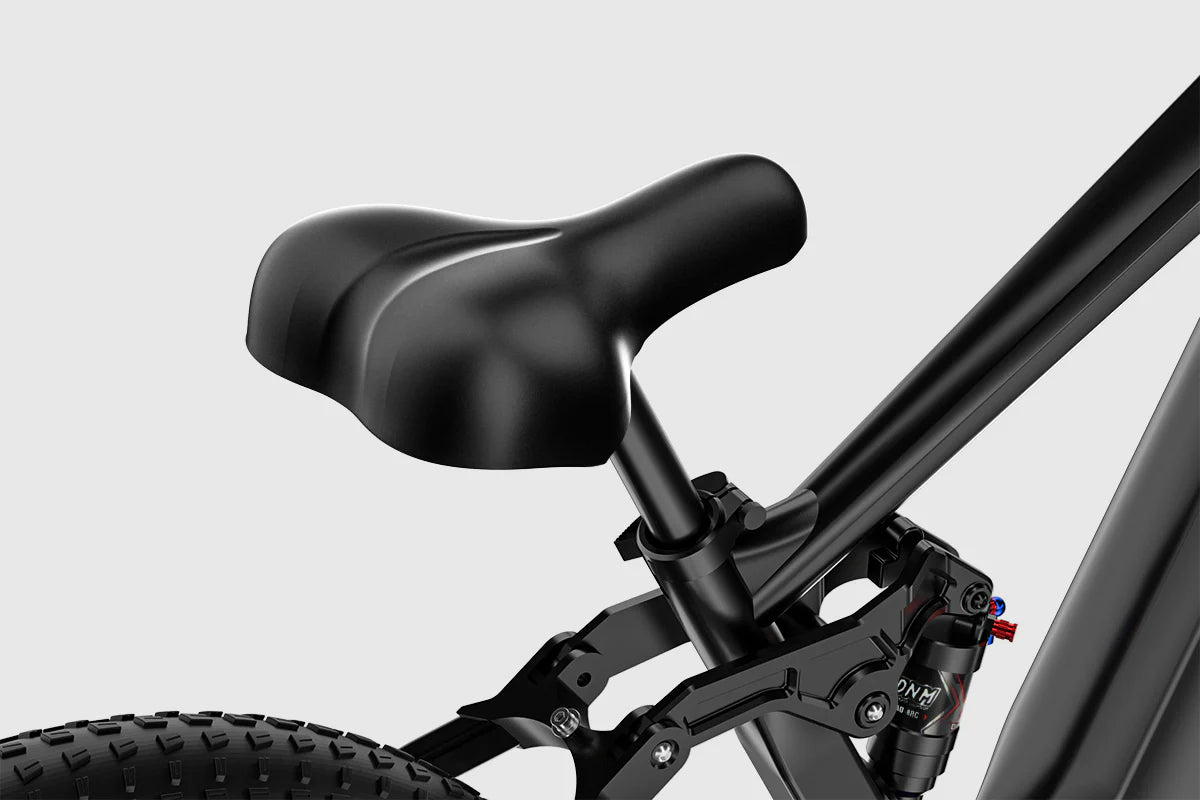

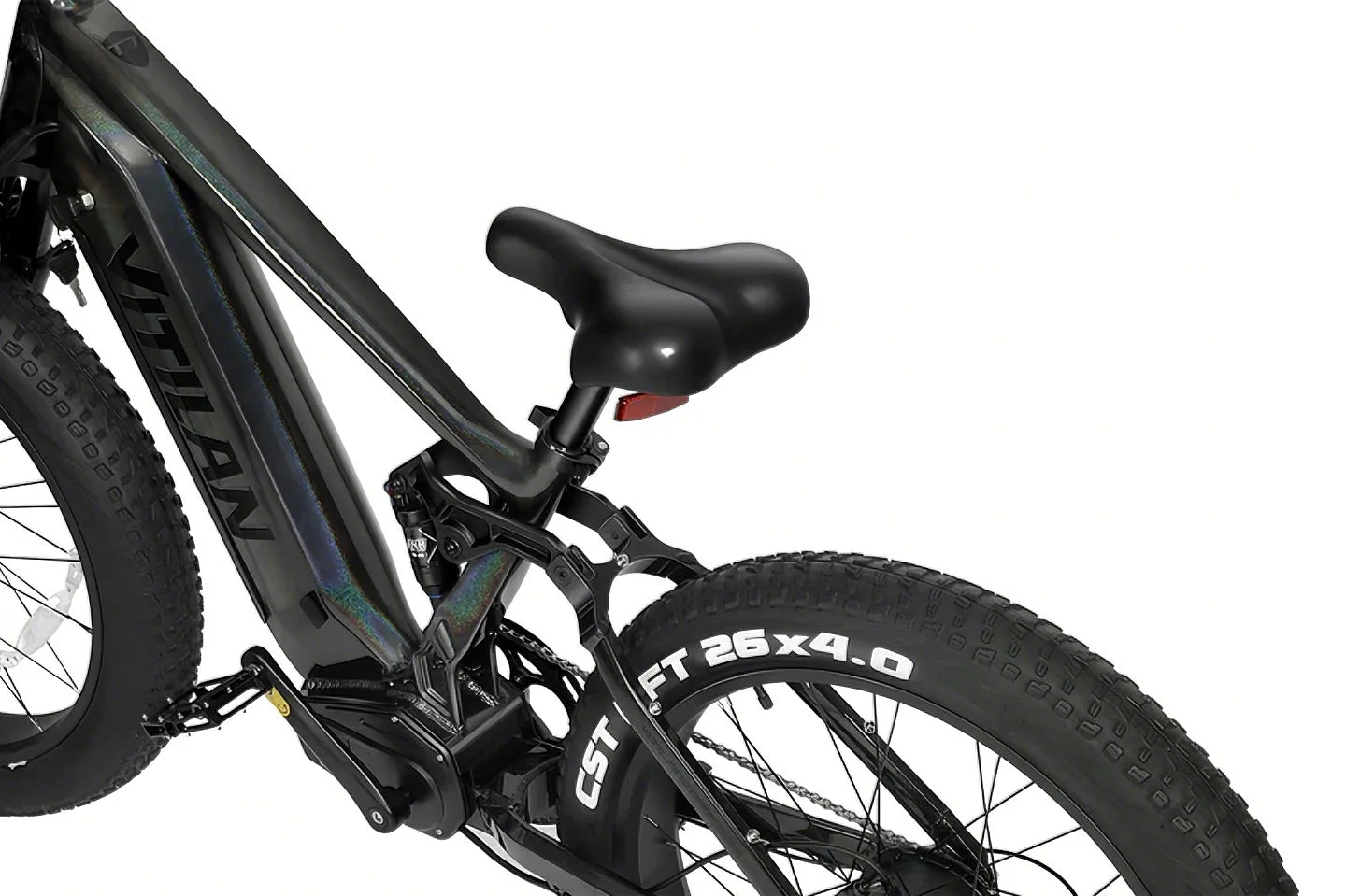

Soft Bike Seat

Vitilan bike seats are ergonomically designed to fit your body. They are shaped to match your riding position and will free you from strain and fatigue caused by long rides.

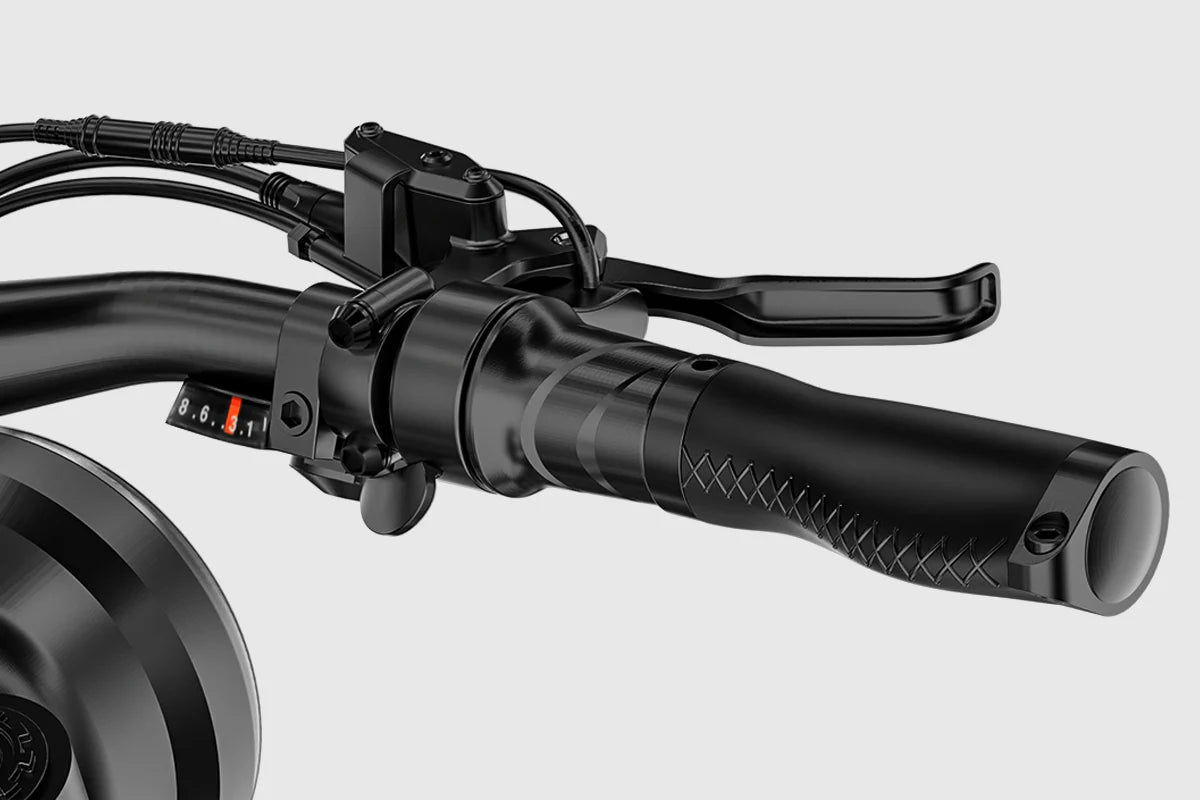

Pedal Assist & Throttle

Twist throttle releases your thumbs, making it easier to control your speed and ride more safely. You can choose the level of assistance you need, whether you want a gentle nudge or a more powerful boost.
