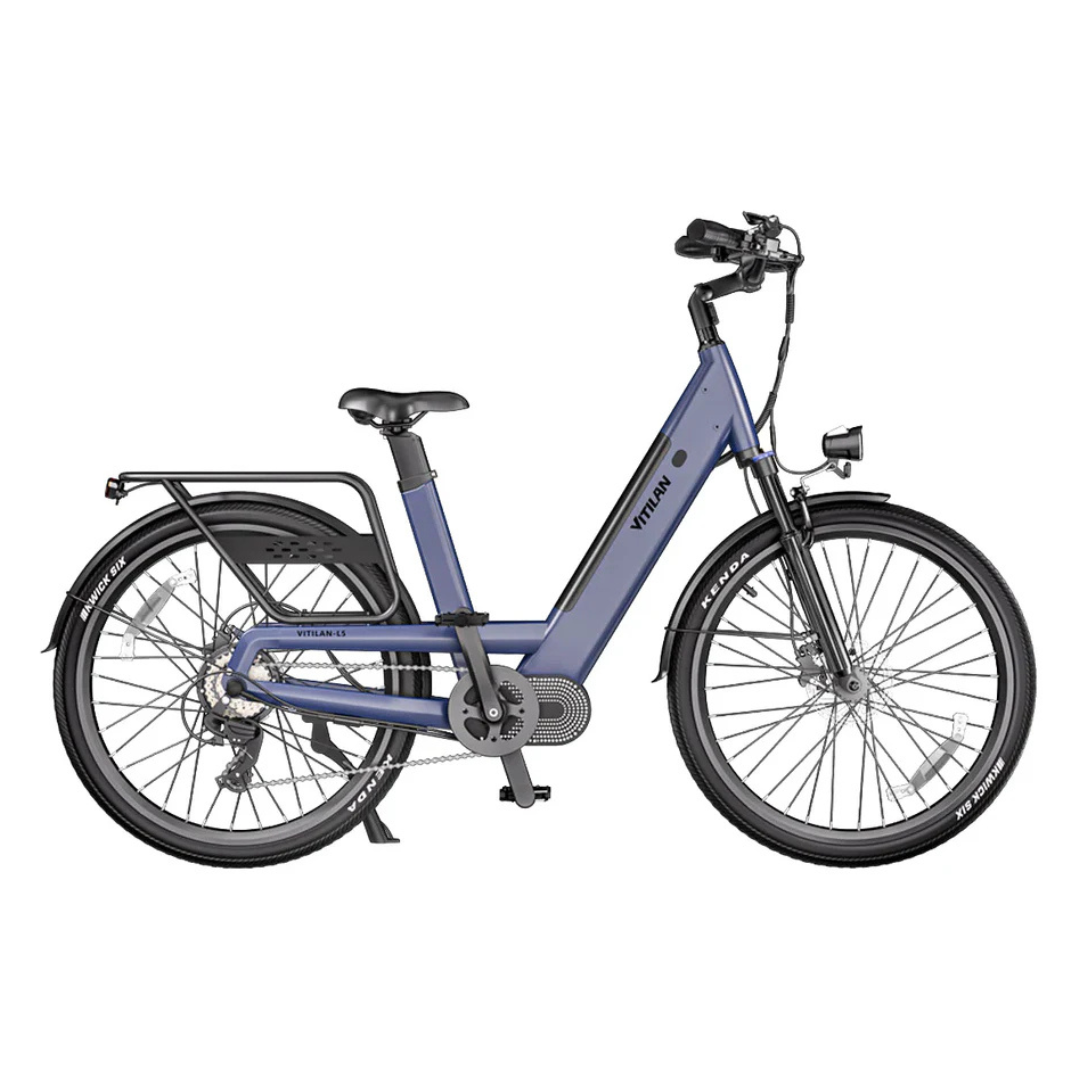

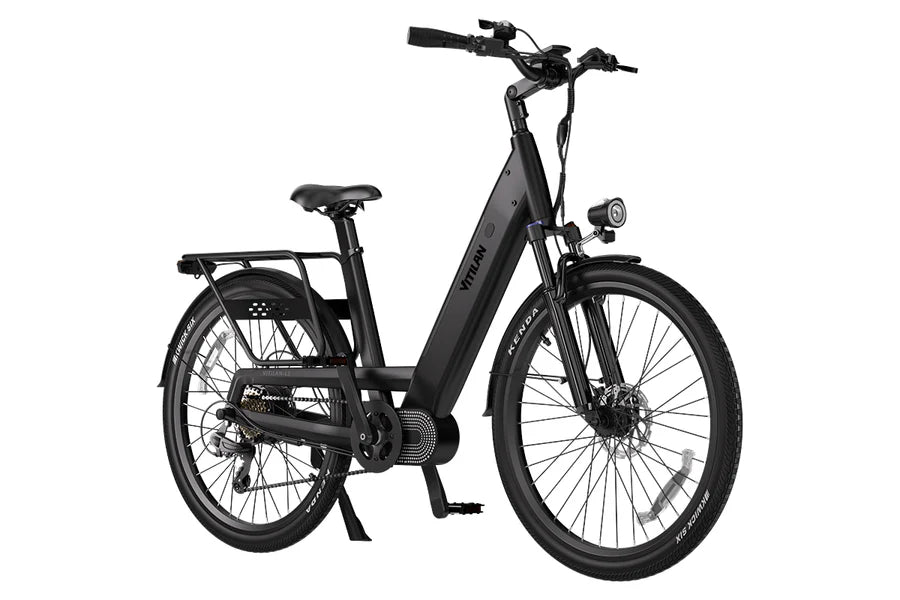

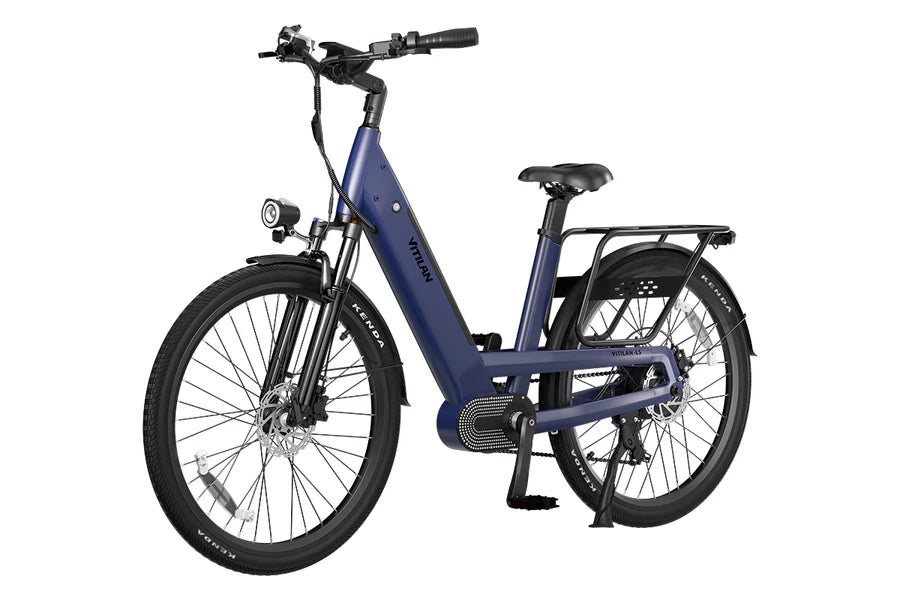

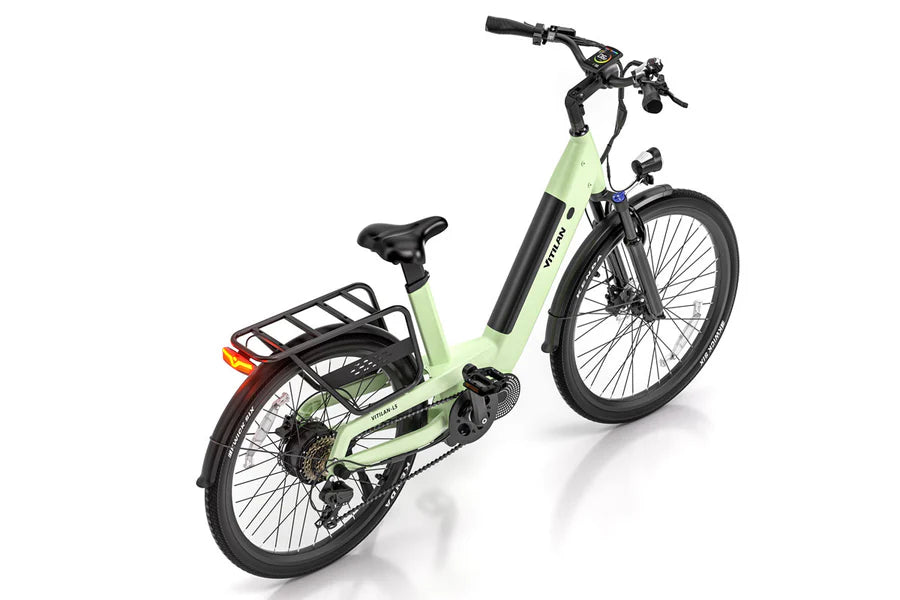

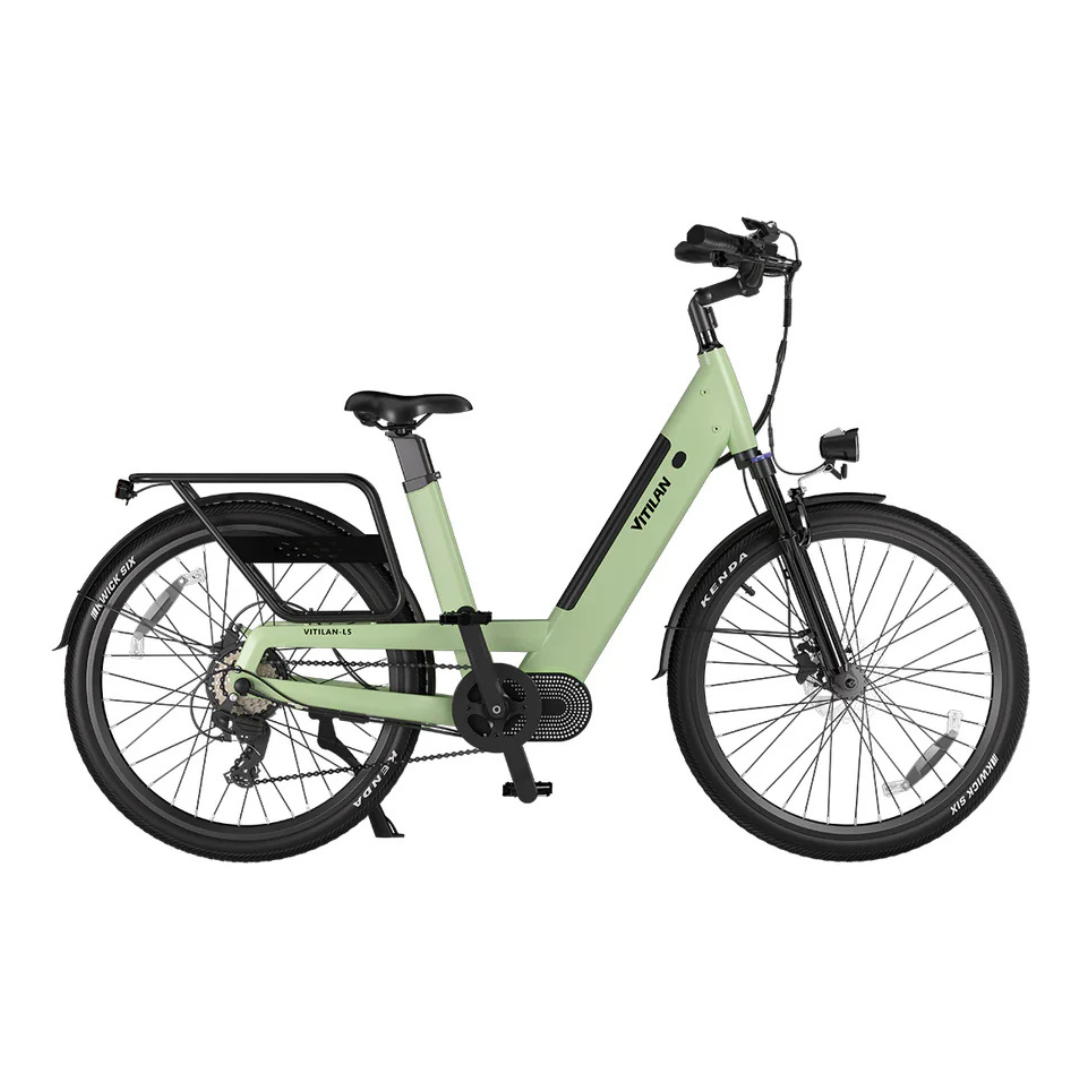

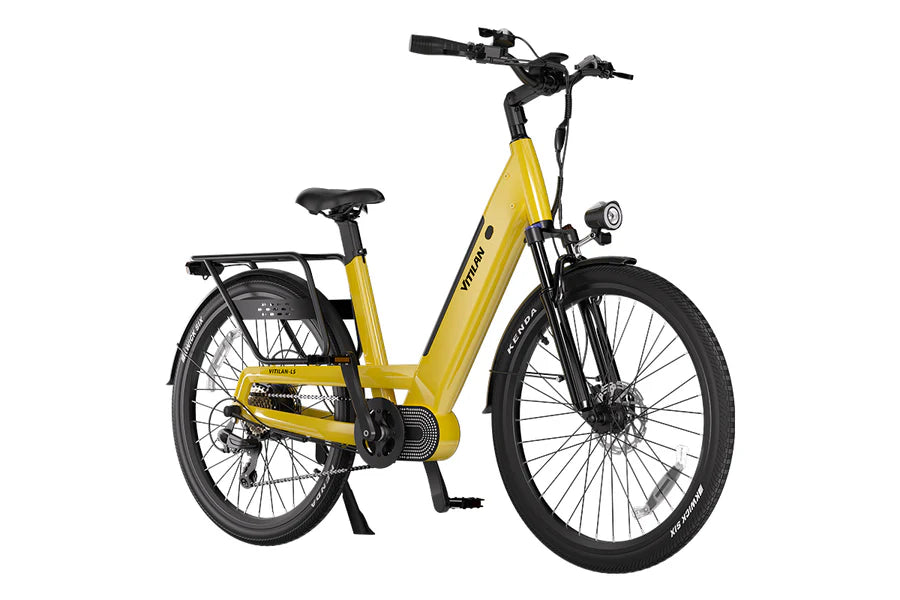

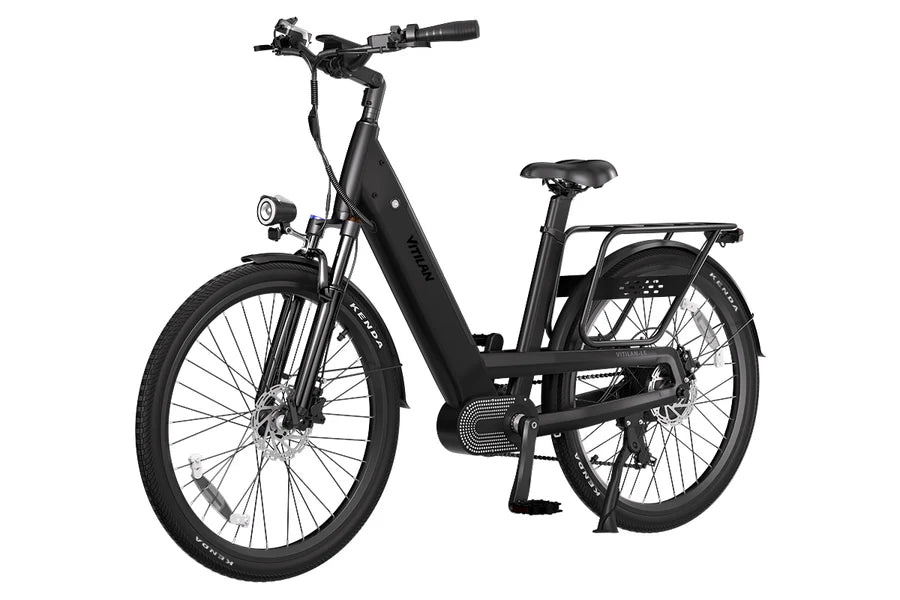

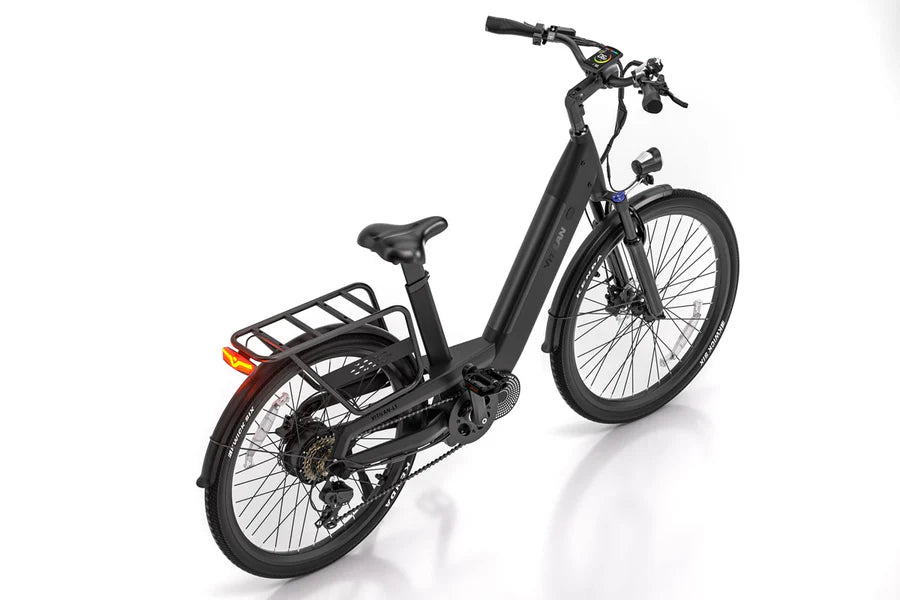

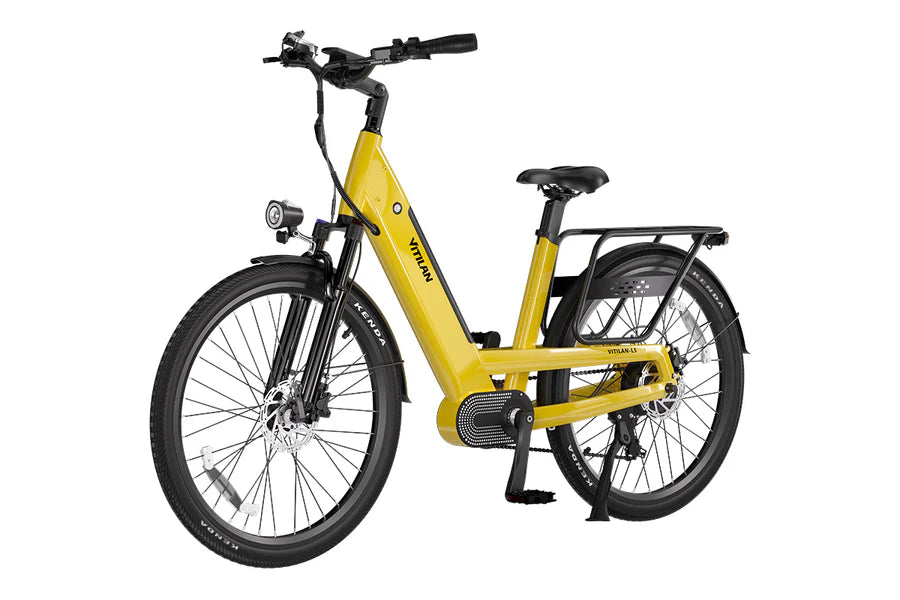

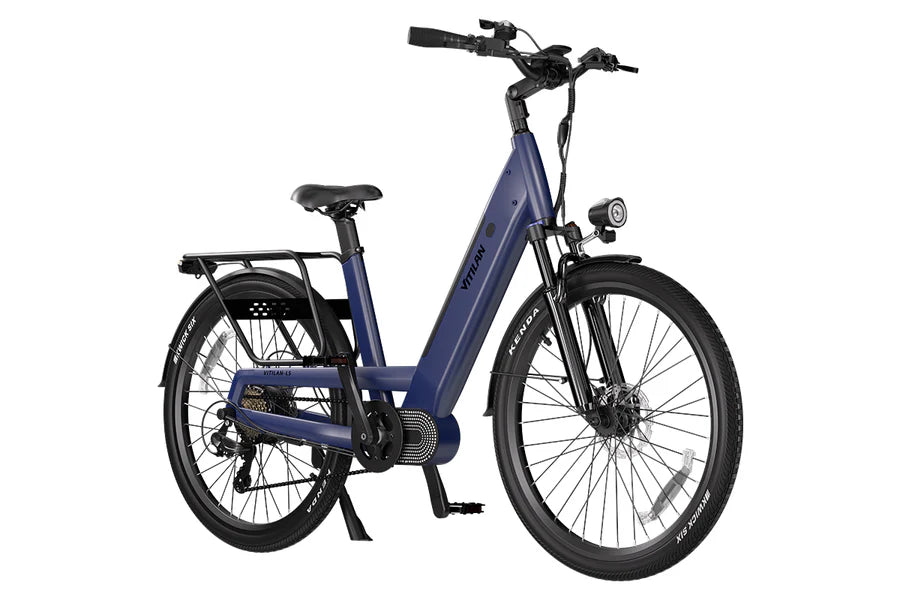

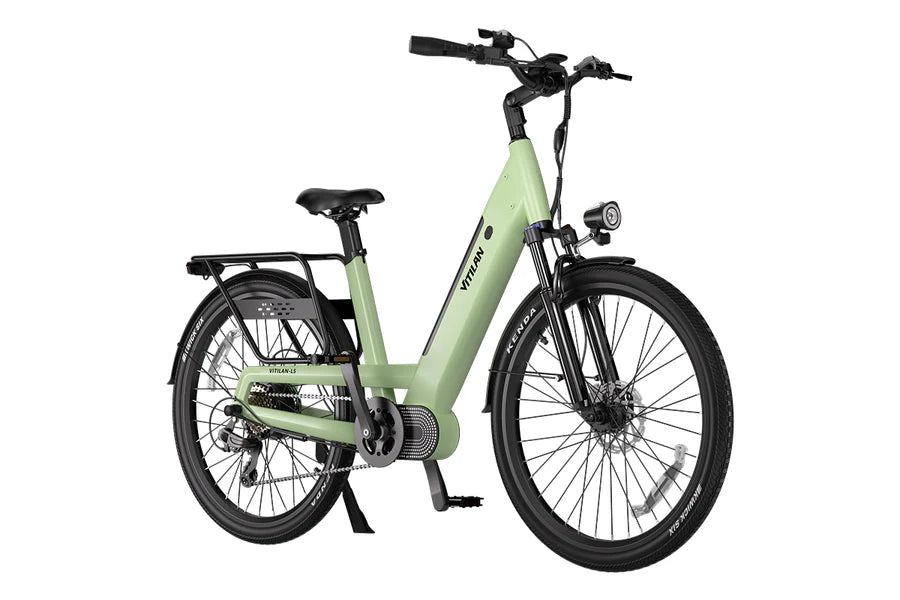

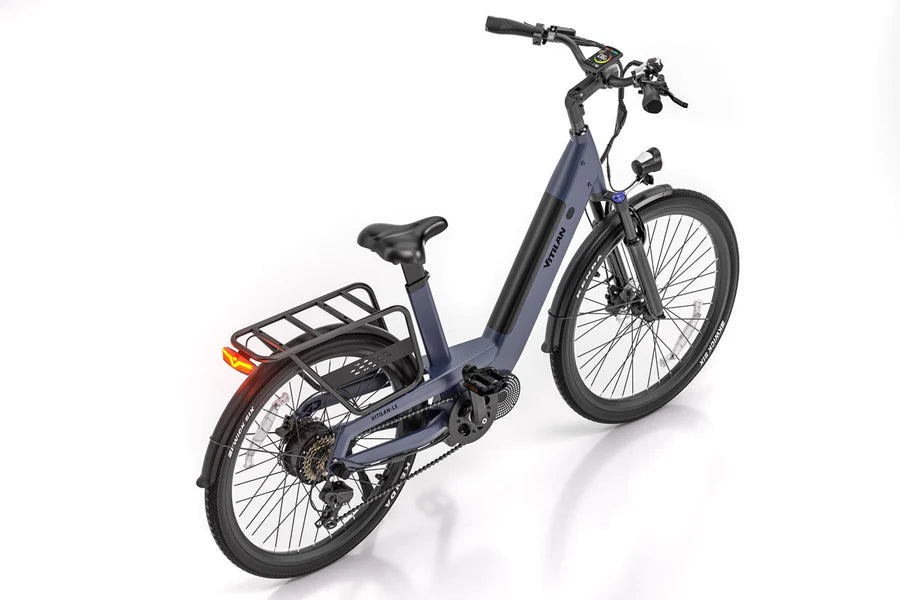

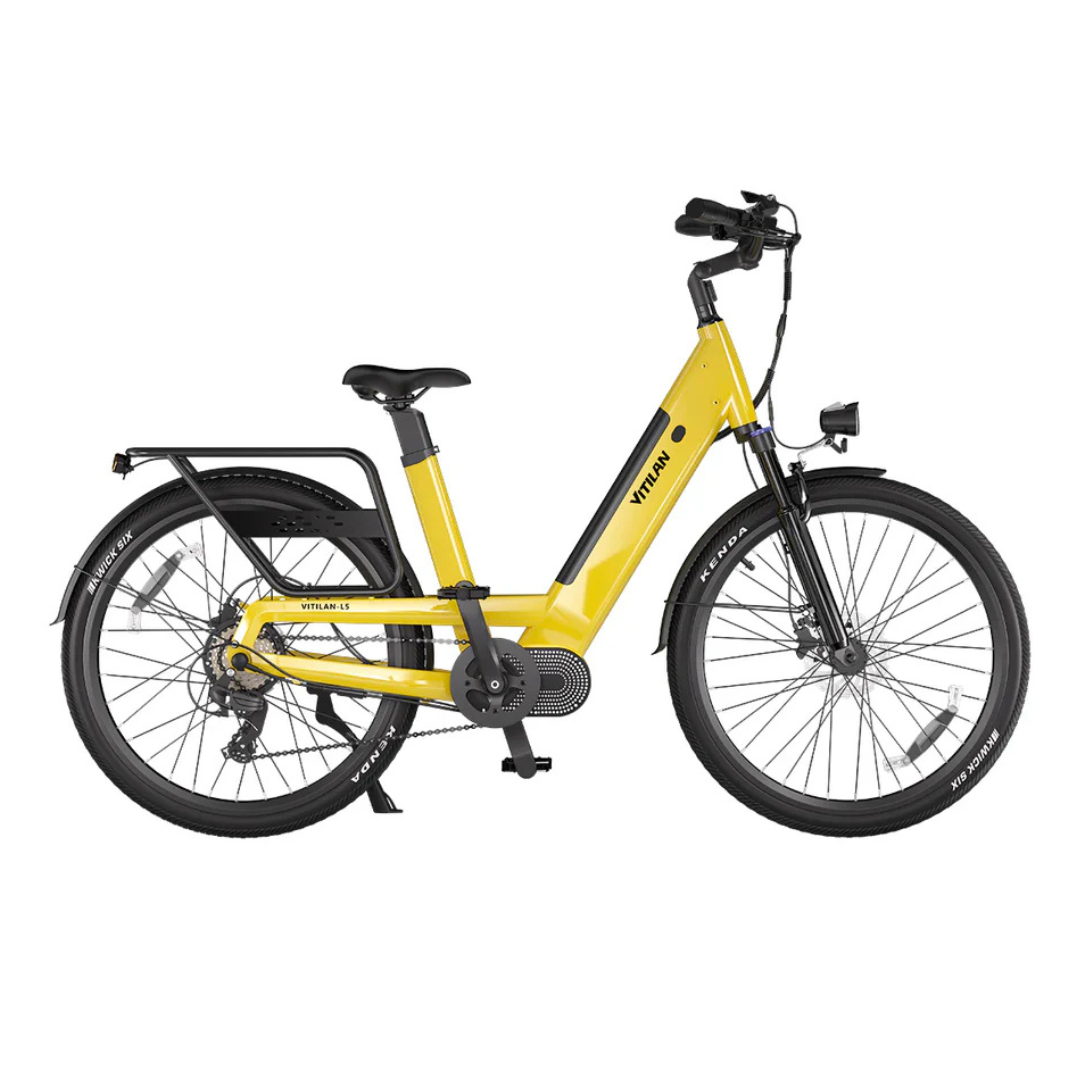

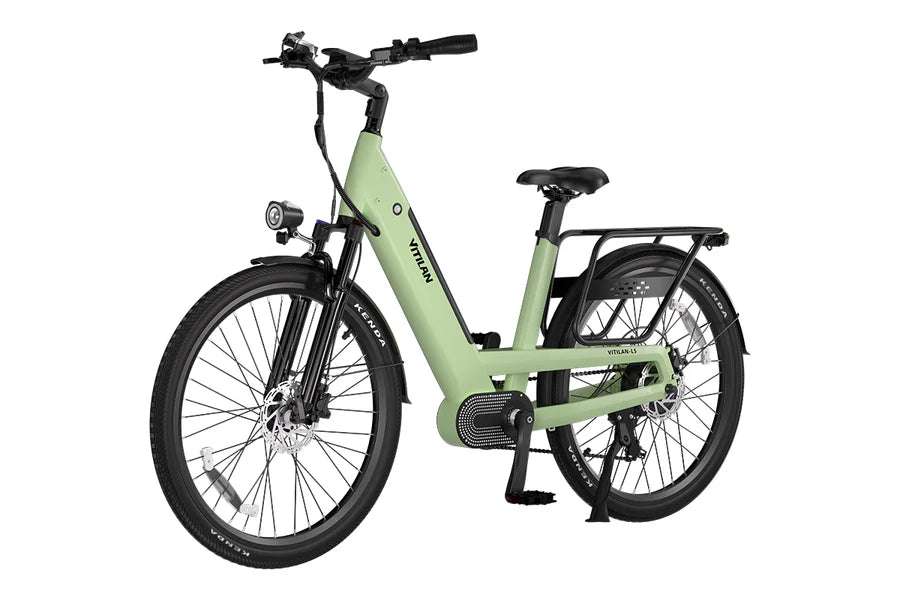

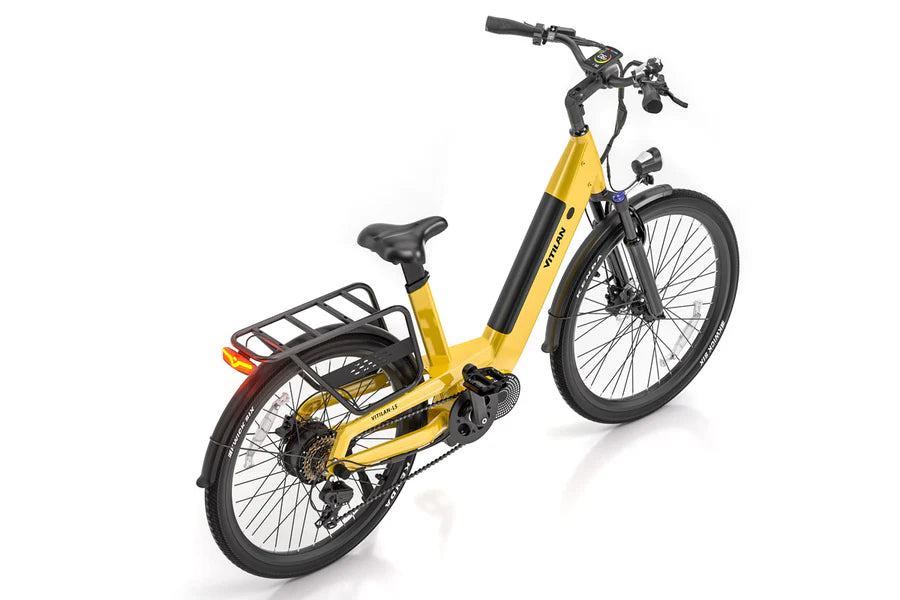

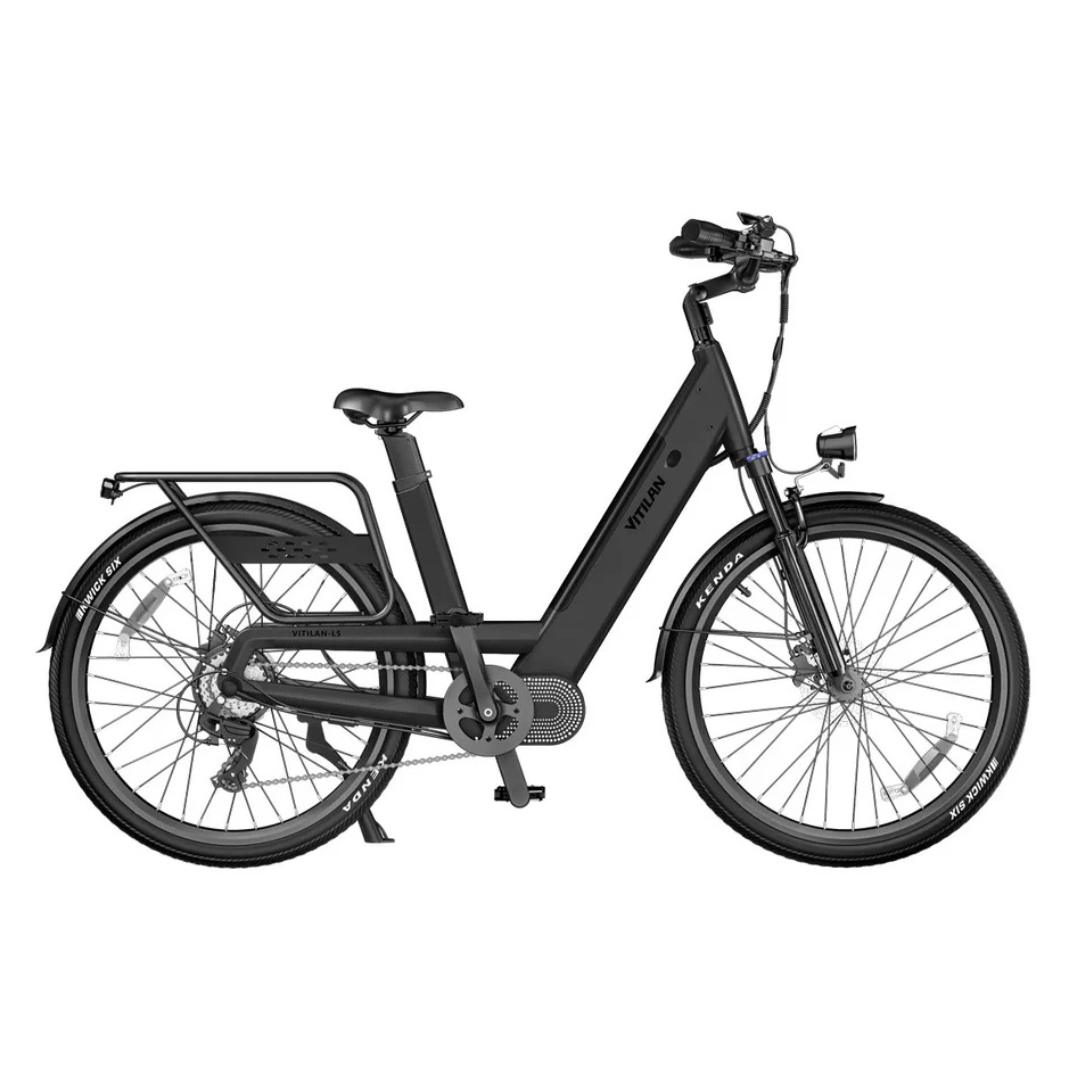

Vitilan L5 500W Urban Electric Bike 48V 15Ah Battery, 65 Mile Range, 25MPH Speed, Shimano 7-Speed, Torque Sensor, Step-Through Frame
Vitilan L5 500W Urban Electric Bike 48V 15Ah Battery, 65 Mile Range, 25MPH Speed, Shimano 7-Speed, Torque Sensor, Step-Through Frame
- Shipping: Free-in-EU
- Delivery: 3-7 Business days
- Return time: 30days
In stock
Frequently Bought Together
Couldn't load pickup availability
Vitilan L5 Urban Commuter Electric Bike(Specs)
E-Bike Technical Specifications
| Specification | Details |
|---|---|
| Motor Hub | 48V, 500W (Peak 960W), Max Torque 65Nm |

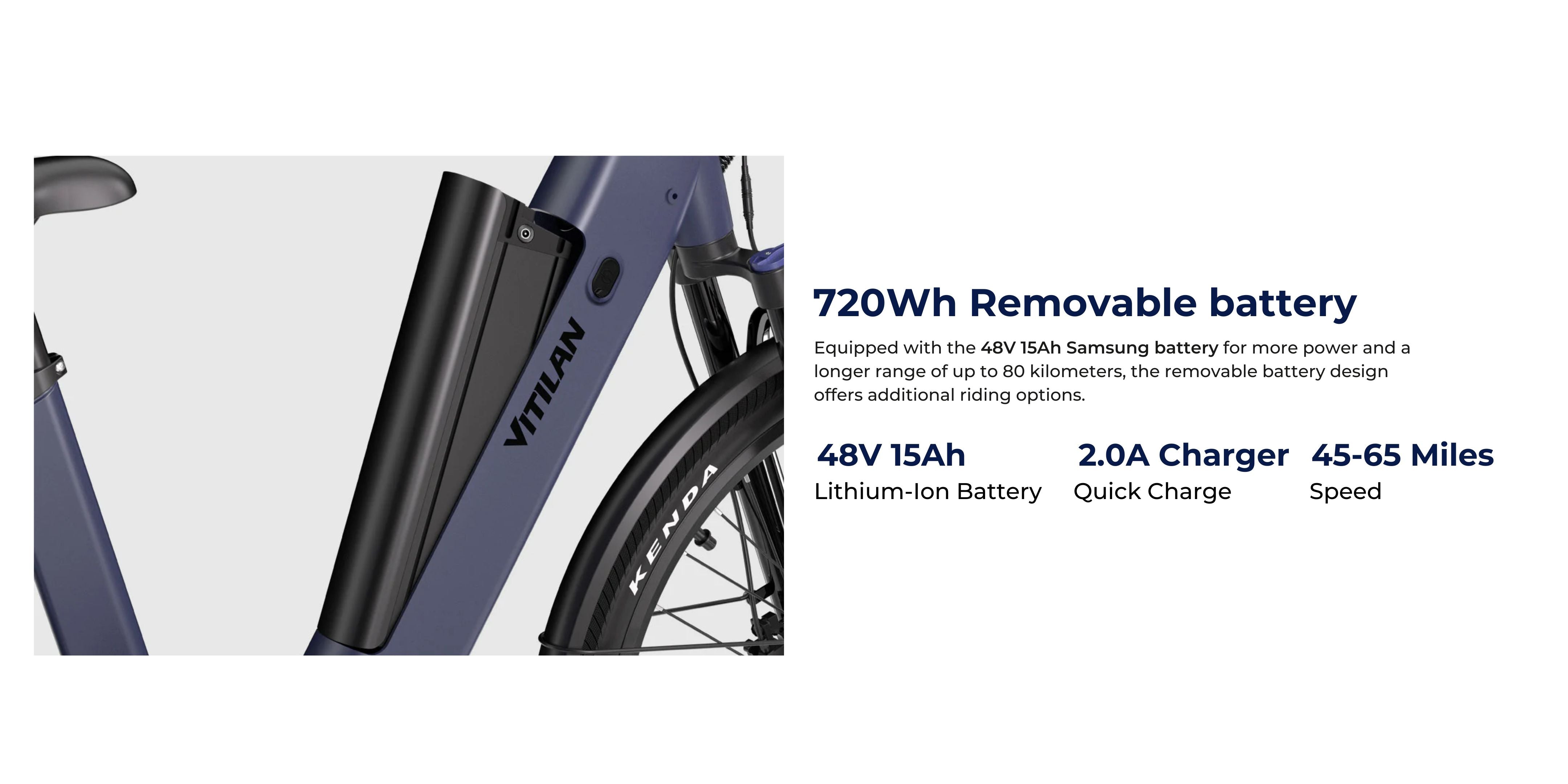

| Battery | 48V, 15Ah, 720Wh SAM-SUNG Li-ion Battery |
| Charger | 54.6V 2.0A, Operates on 110V-240V AC, 50-60Hz |
| Sensor | Torque Sensor |

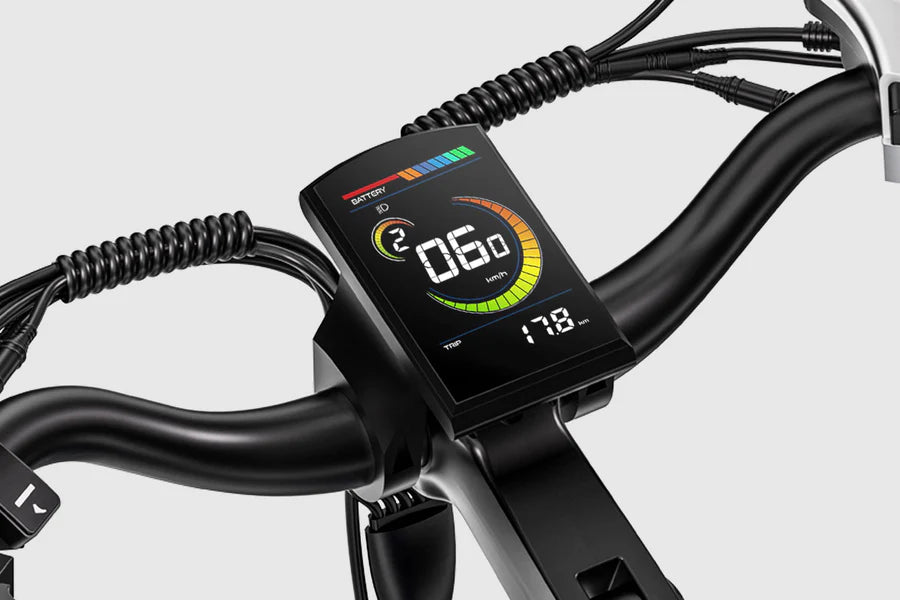

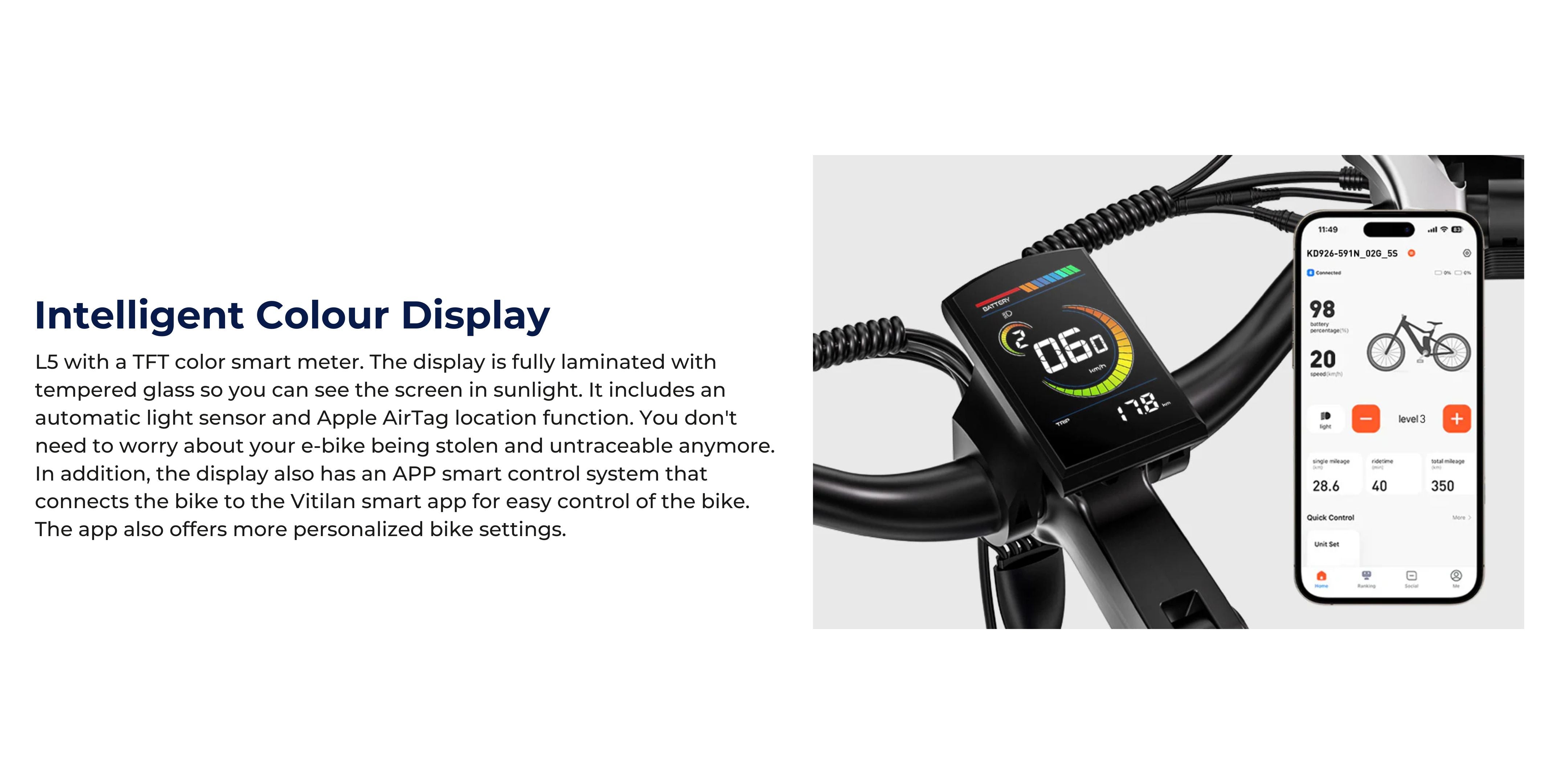

| Display | 48V Multi-function Intelligent Display |
| Throttle | Thumb Throttle |
| Headlight | High Output Integrated LED, IPX6 |
| Rear Light | Signal Turn Light/48V LED Light |
| Pedal Assist Range | 60 Miles |
| Throttle Range | 45 Miles |
| Controller | 48V / 20A |
| Pedals | All Aluminum Pedal Forging |
| Frame | Aluminum Alloy, Fully Integrated |
| Crankset | 38T*170MM, Sand-Black Aluminum Alloy Crank |
| Cassette | 7 Speeds, 14-28T |
| Rear Derailleur | SHIMANO RD-TY300 |
| Shift Lever | SHIMANO SL-TX50-7R |
| Chain | KMC C8 |
| Brake | 180mm Front and Rear Hydraulic Disc Brakes |
| Fork | Adjustable Spring Suspension Fork |
| IP Level | IPX6 |
Vitilan L5 Urban Commuter Electric Bike(Size)
E-Bike Dimensions
| Label | Measurement |
|---|---|
| A - Total Length | 72.44" |
| B - Handlebar Height | 45.67" |
| C - Wheelbase | 47.28" |
| D - Minimum Seat Height | 32.28" |
| E - Maximum Seat Height | 37.4" |
| F - Chain Stay Length | 29.69" |
| G - Stand Height | 17.72" |
| H - Top Tube Length | 21.65" |
| I - Wheel Diameter | 26" |
| J - Handlebar Length | 25.98" |
| K - Head Tube Length | 5.9" |
Vitilan L5 Urban Commuter Electric Bike(FAQ)
1. What warranty does Vitilan offer on their e-bikes?
Vitilan provides an 18-month manufacturer's all-inclusive warranty against manufacturing defects for models T7, U7, and I7 Pro. The V3 model comes with a 12-month warranty. This warranty covers components such as the frame, front fork, motor, and more. Note that free accessories are not covered, and the warranty is non-transferable.
2. How long does shipping take, and which areas are covered?
Vitilan offers free shipping to various European countries, including Poland, France, Germany, and others. Orders are processed within 1-2 business days, with an estimated delivery time of 5-7 business days. Tracking information is provided via email once the order is shipped.
3. What is Vitilan's return policy?
Customers can initiate a return within 30 days of delivery. To be eligible, the e-bike must be unused, free from dirt or damage, and in its original packaging. Returns require prior approval from Vitilan's customer service. For non-quality-related returns, customers are responsible for a return shipping fee of AUD$1000.
4. Are there different models of Vitilan e-bikes available?
Yes, Vitilan offers a range of e-bike models to suit various needs, including fat tire folding e-bikes, step-thru designs, and commuter e-bikes. These models cater to activities from off-road adventures to daily commuting.
5. Can I modify my Vitilan e-bike?
Vitilan does not recommend major modifications to their e-bikes, as each bike is thoroughly tested before leaving the factory. Unauthorized modifications may void the warranty.
6. How can I contact Vitilan customer service?
For any inquiries or support, you can reach Vitilan's customer service team at support@picarlyride.com.
Enhanced Ride Comfort & Control Features

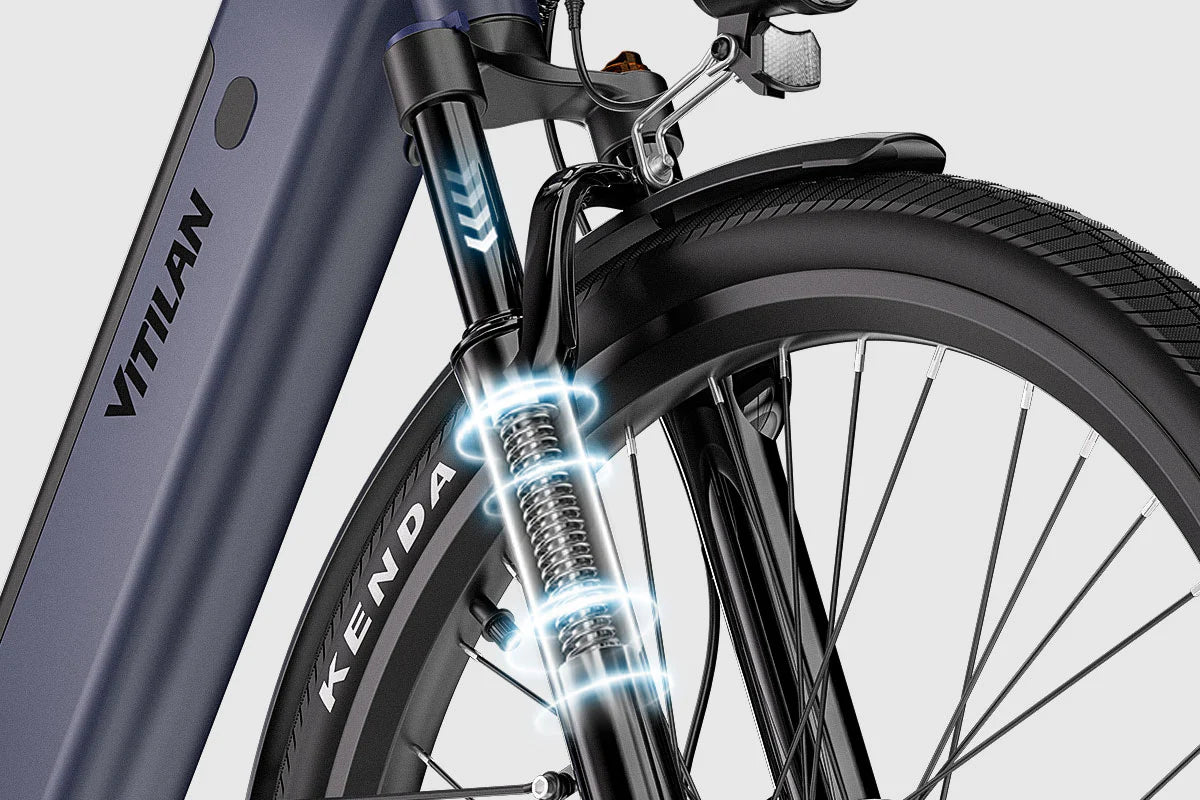

Adjustable Spring Suspension Fork

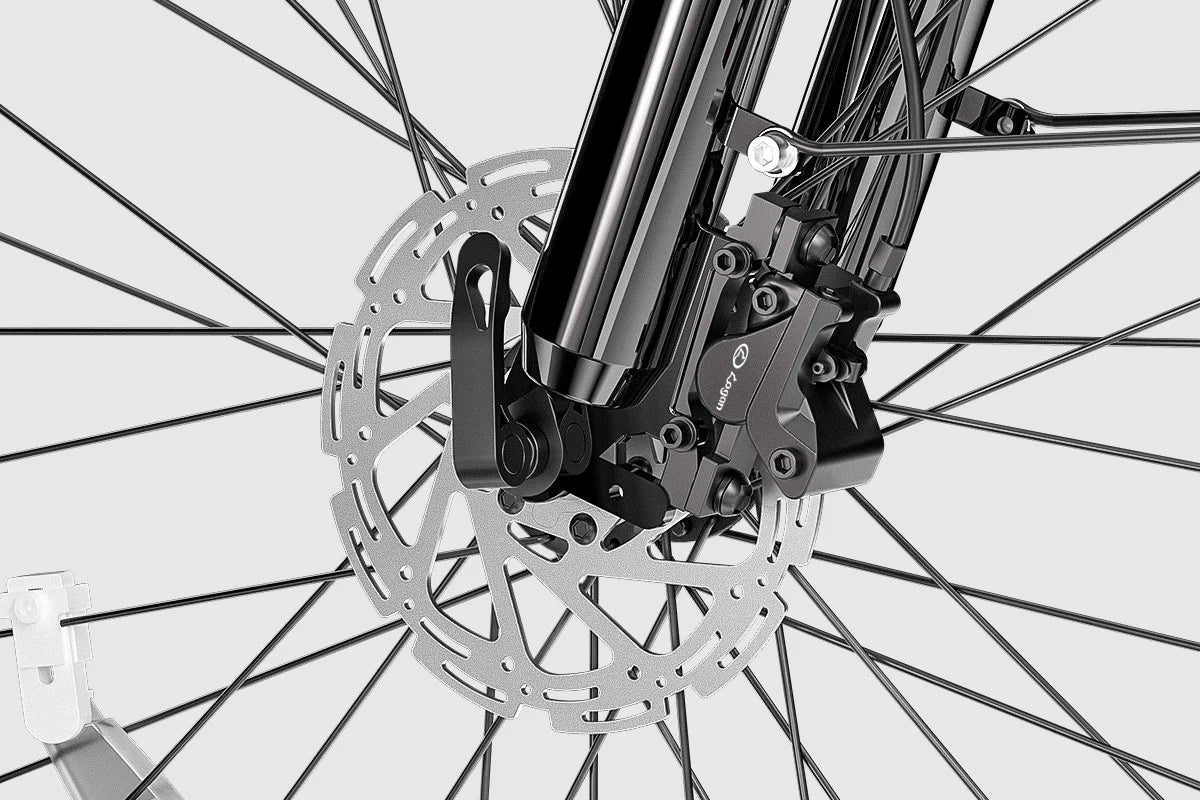

Hydraulic Brake

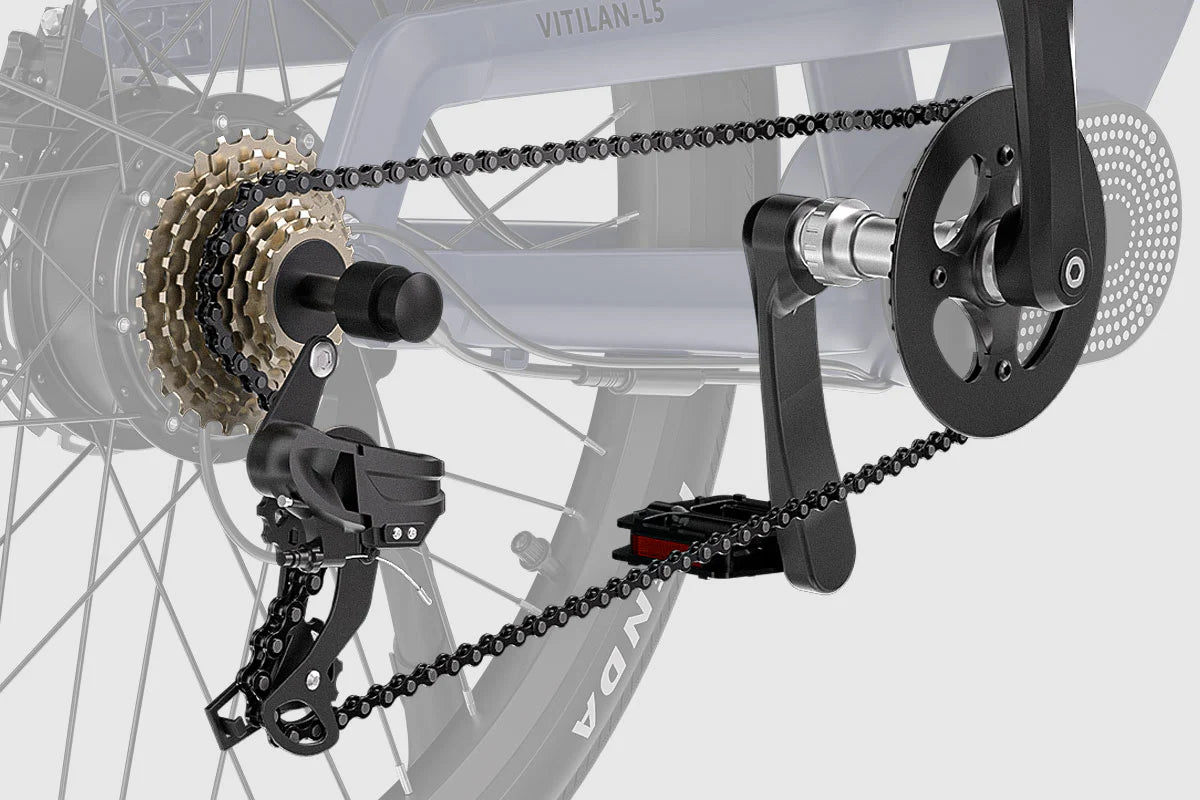

Shimano 7-speed Gear Shift System

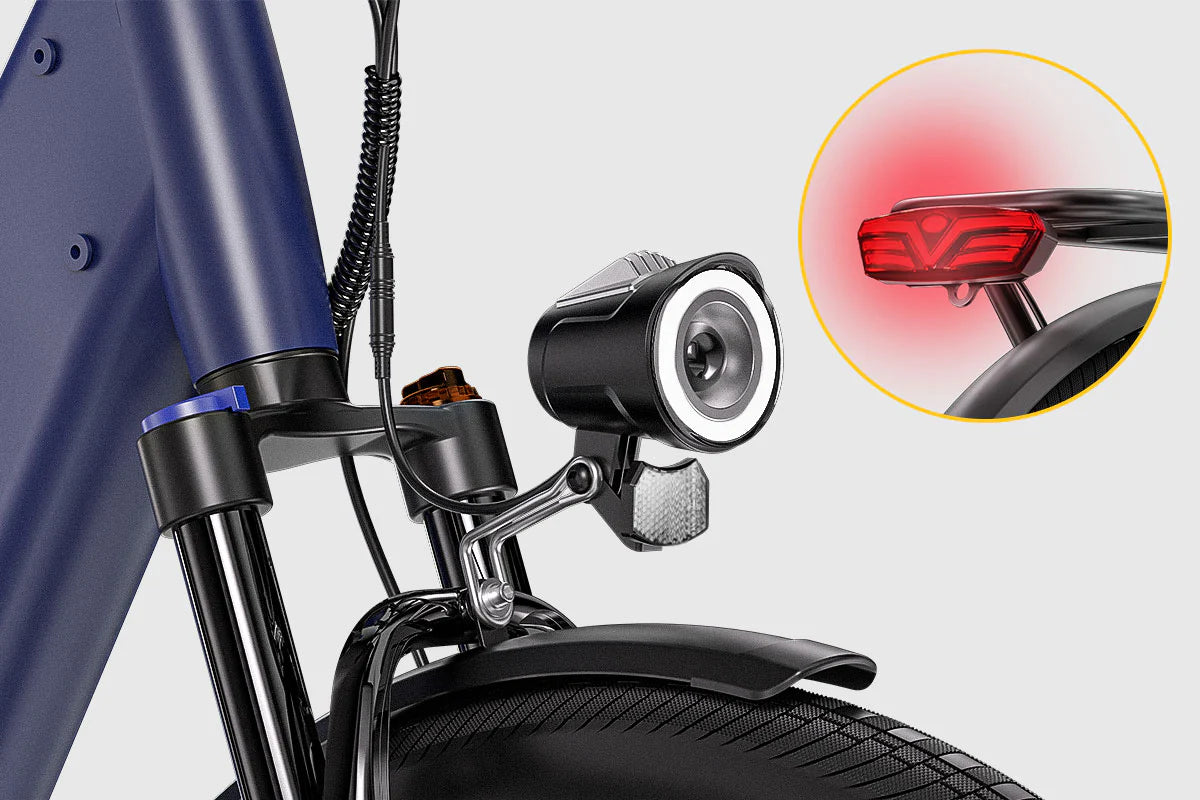

Integrated Headlight and taillights

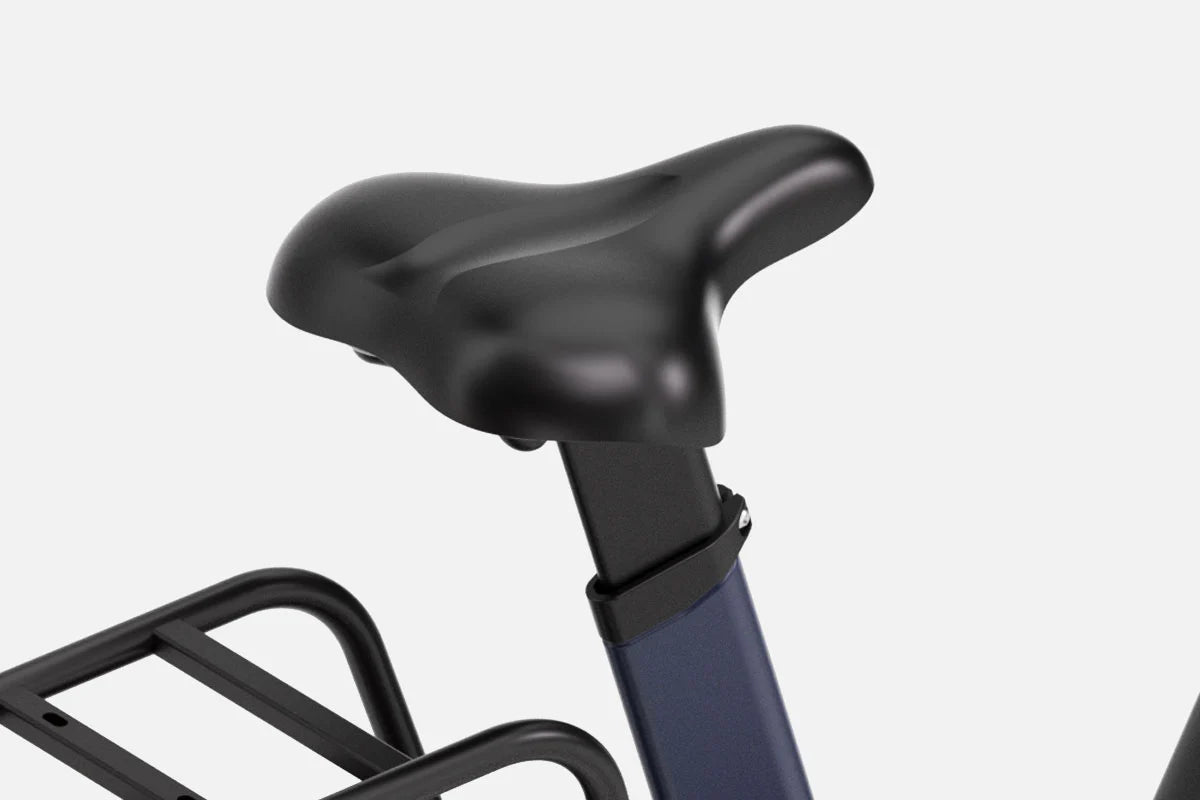

Soft and Comfortable seat
