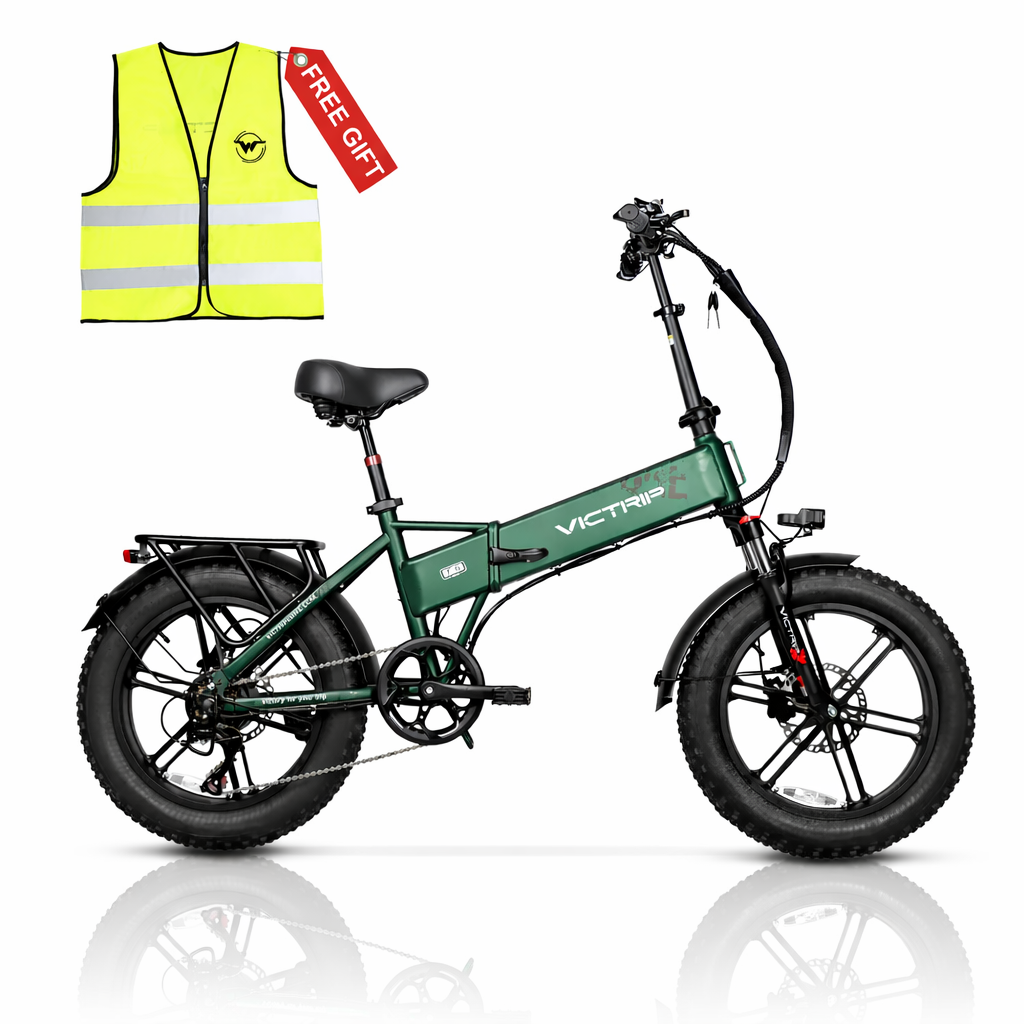

Victrip Specification

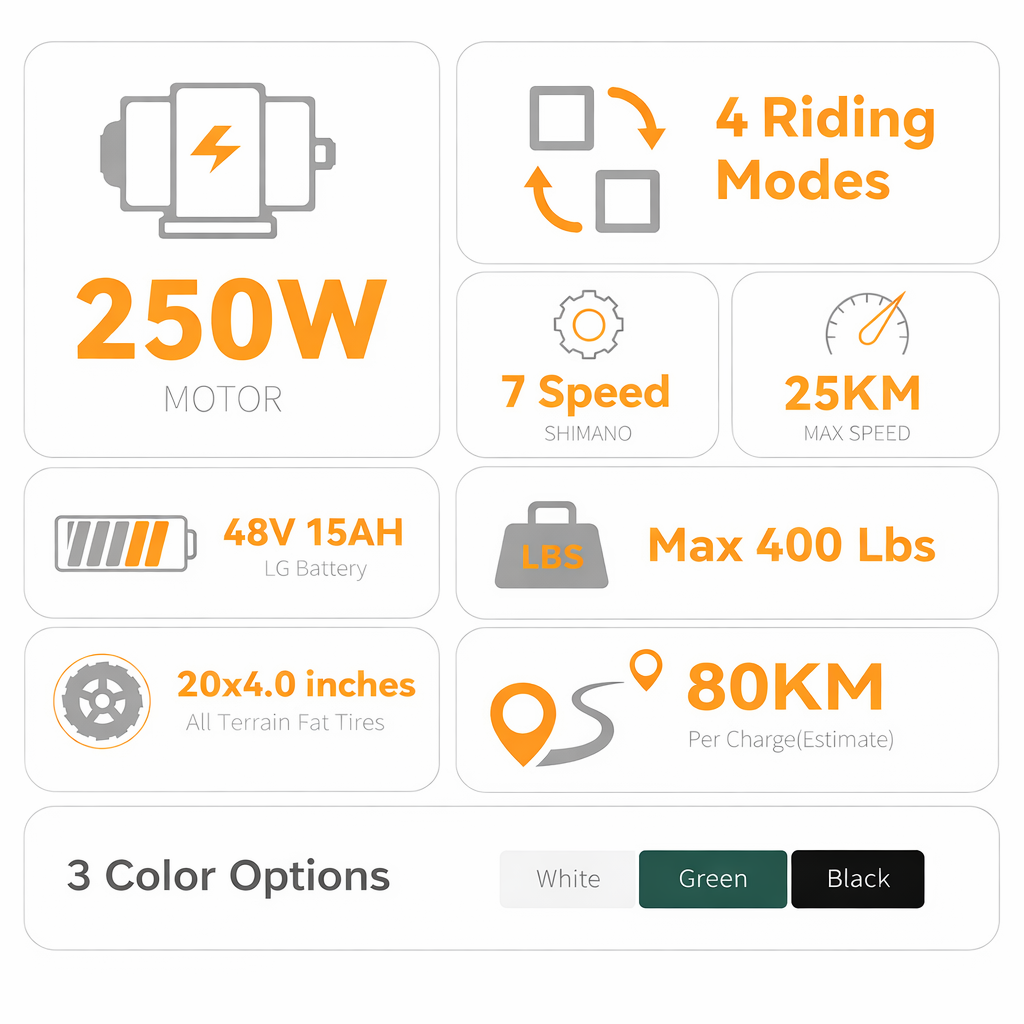

Product Specifications

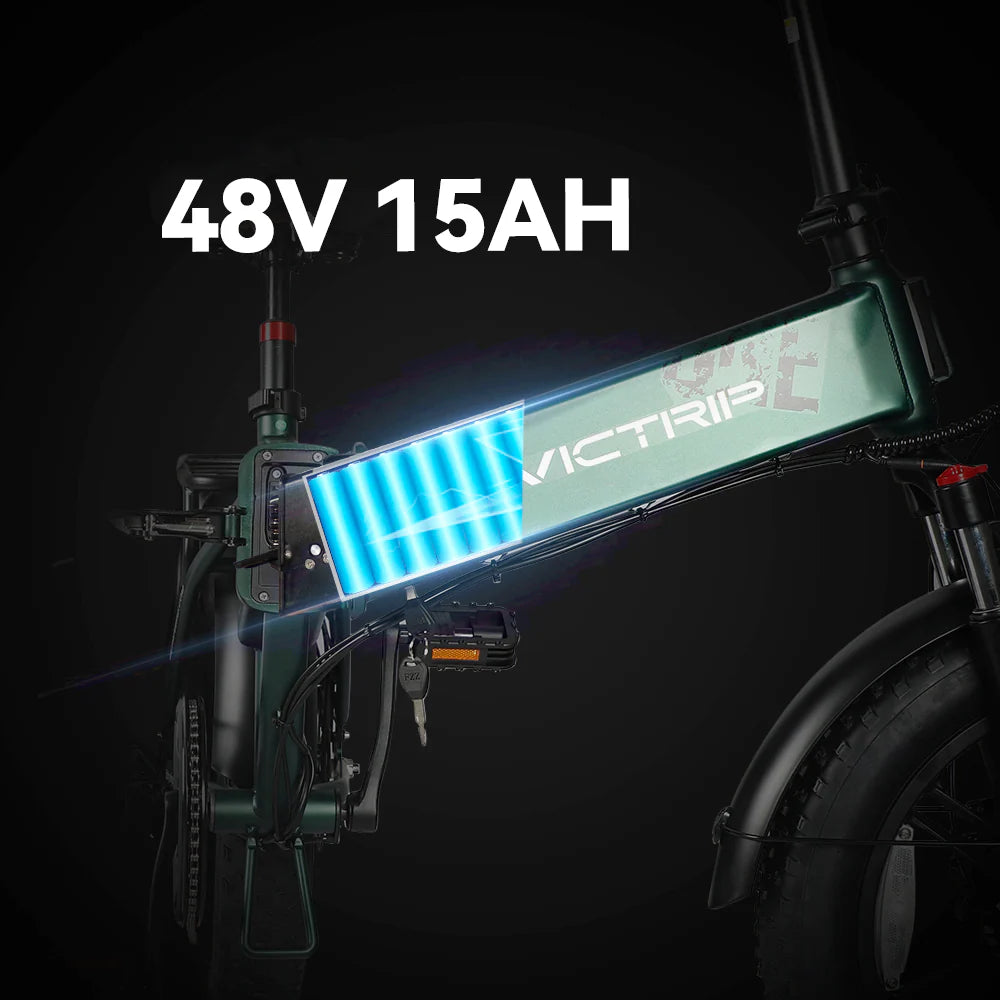

| Battery | 48V 15Ah |
| Range | Up to 90+ KM |

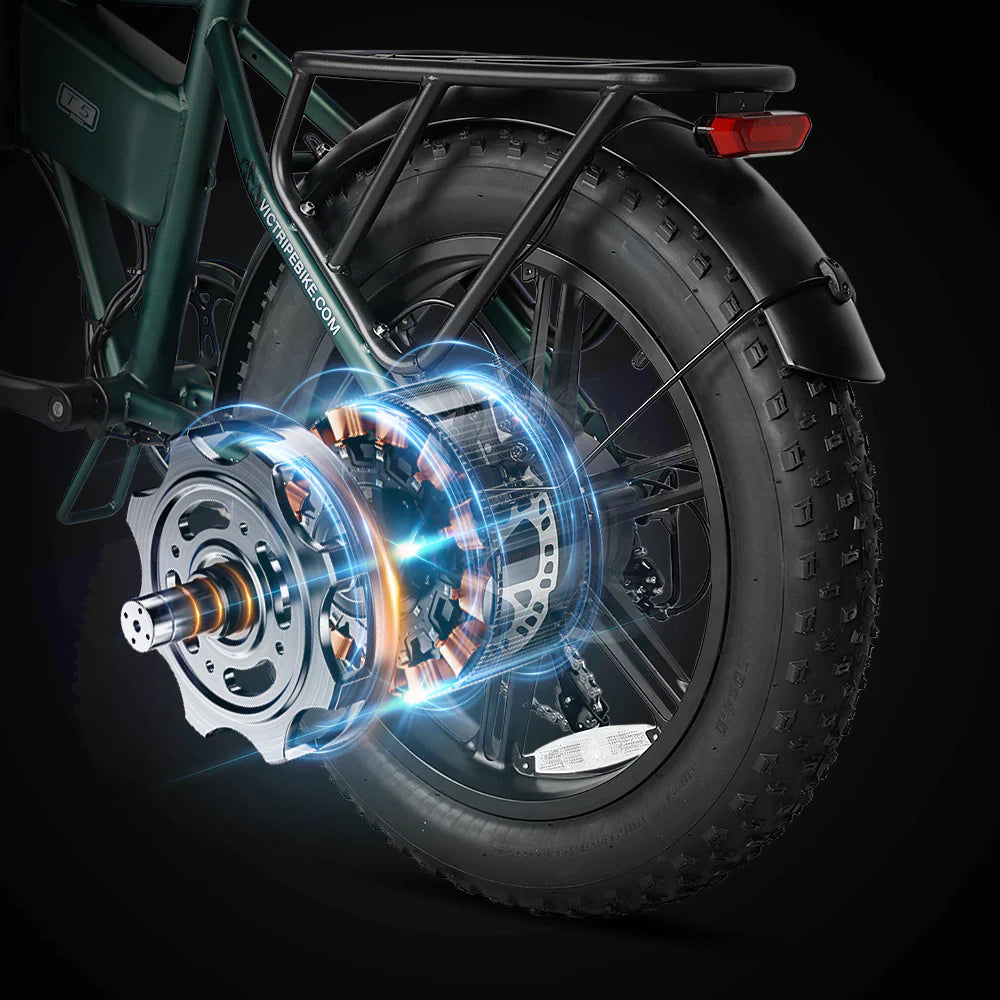

| Motor | 250W |

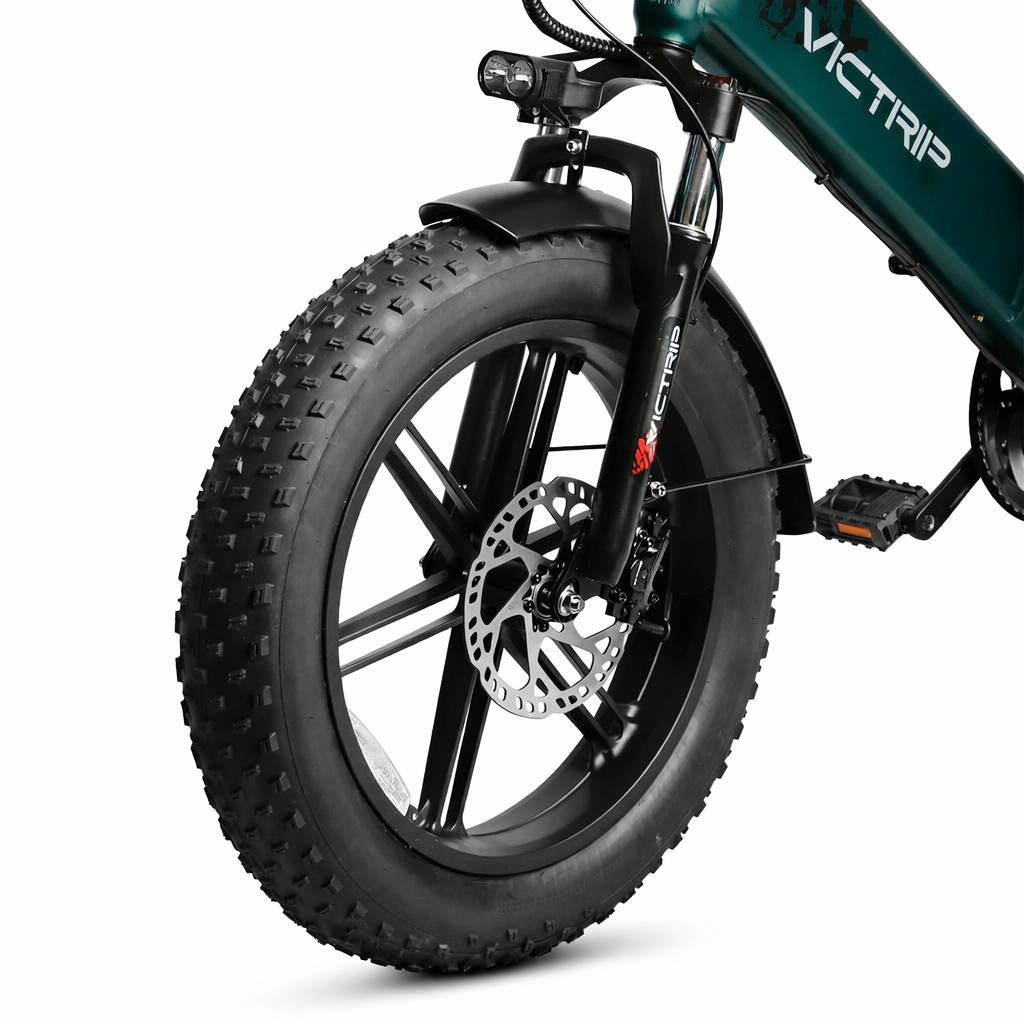

| Tires | 20" x 4" puncture-resistant tires |

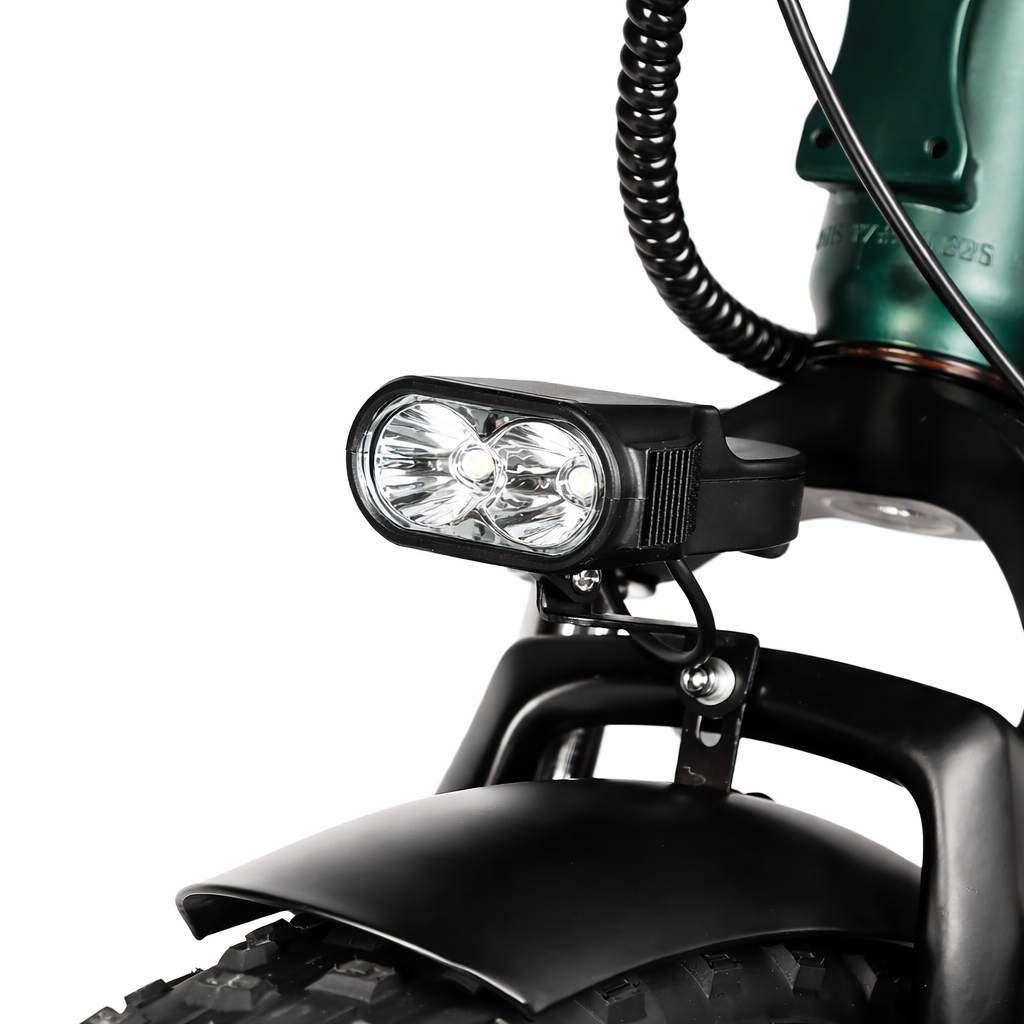

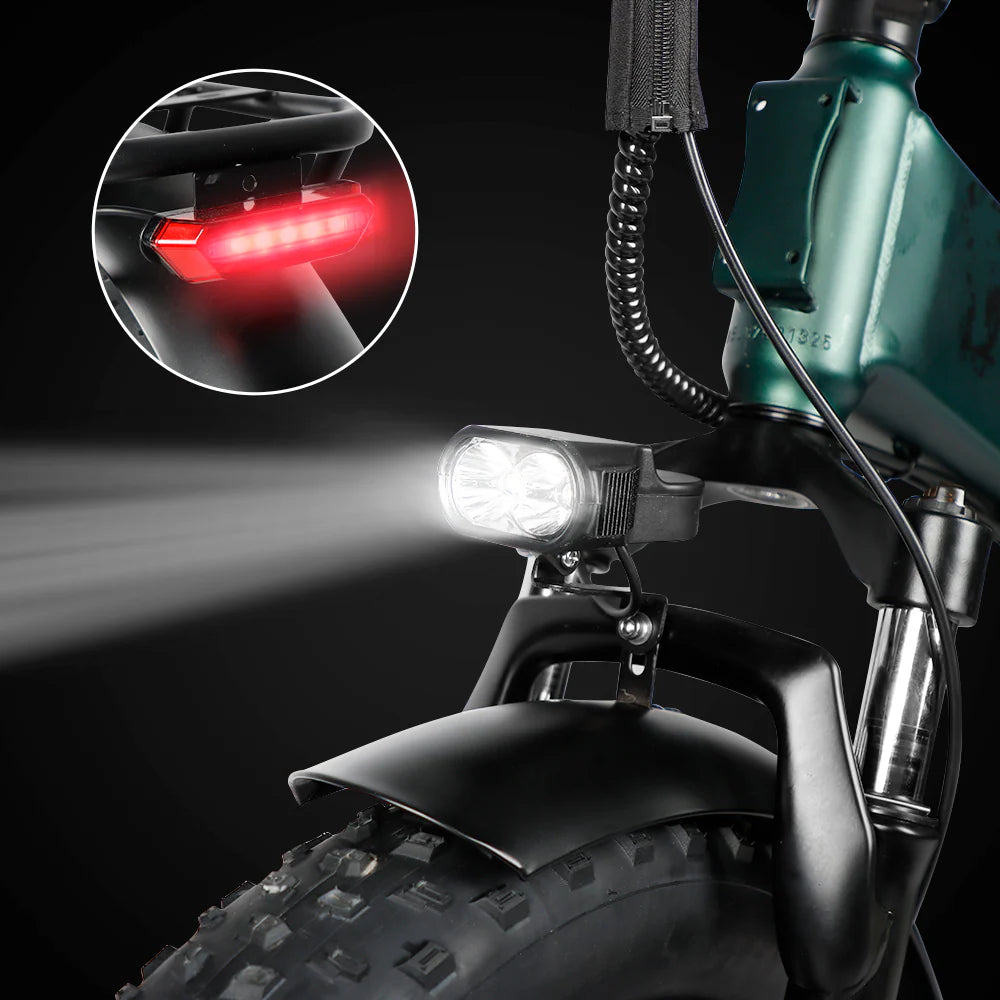

| Lighting | Headlights, taillights, and brake lights |
| Charger | Lithium battery charger 48V 3A, DC 2.5*5.5 charging port |

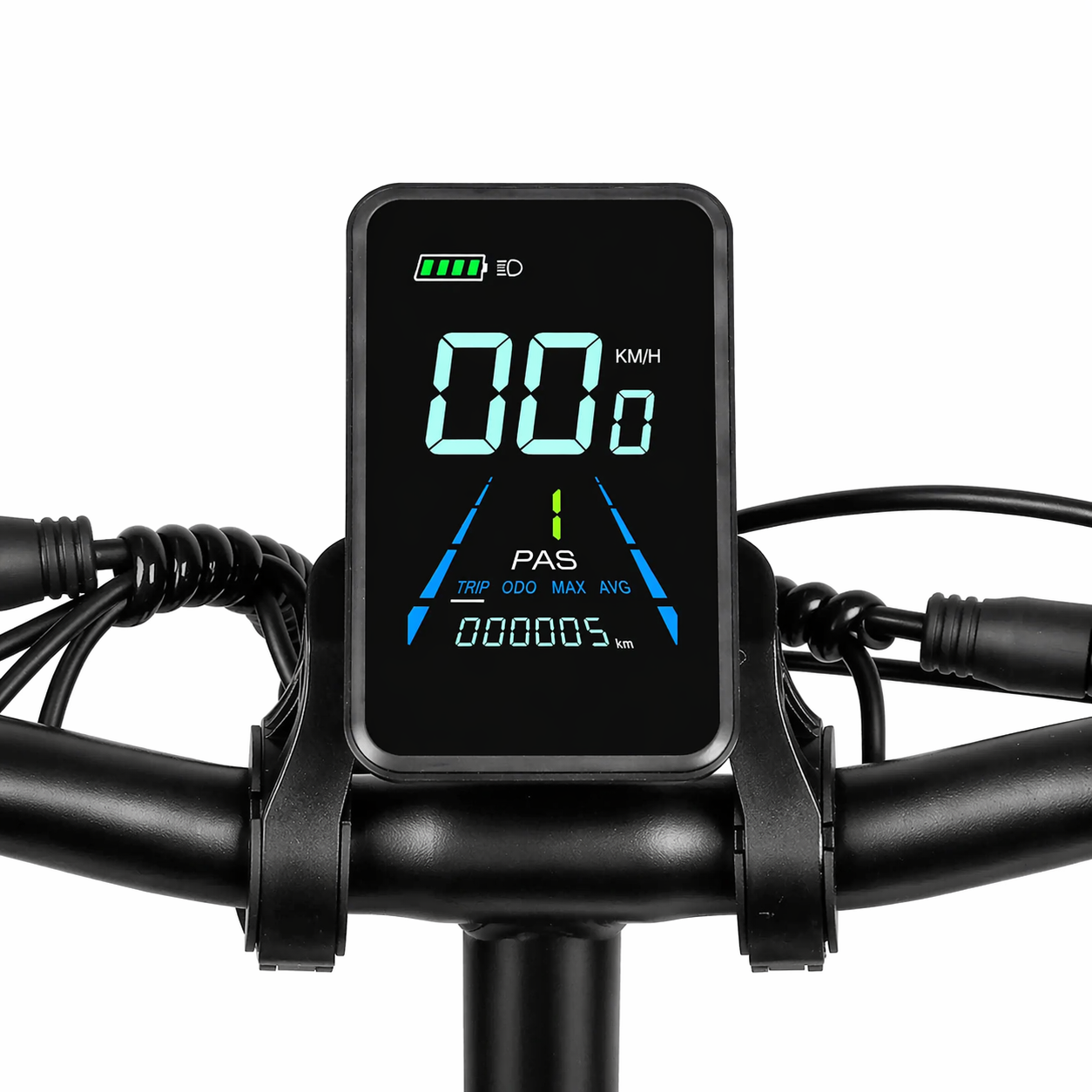

| Display | LCD Display |
| Bike Weight | 67 lbs (No batteries included) |
| Payload Capacity | 400 lbs |
| Recommended Rider Height | 5'3" to 6'5" |
| Pedal Assist | Intelligent 0~5 Level Pedal Assist |

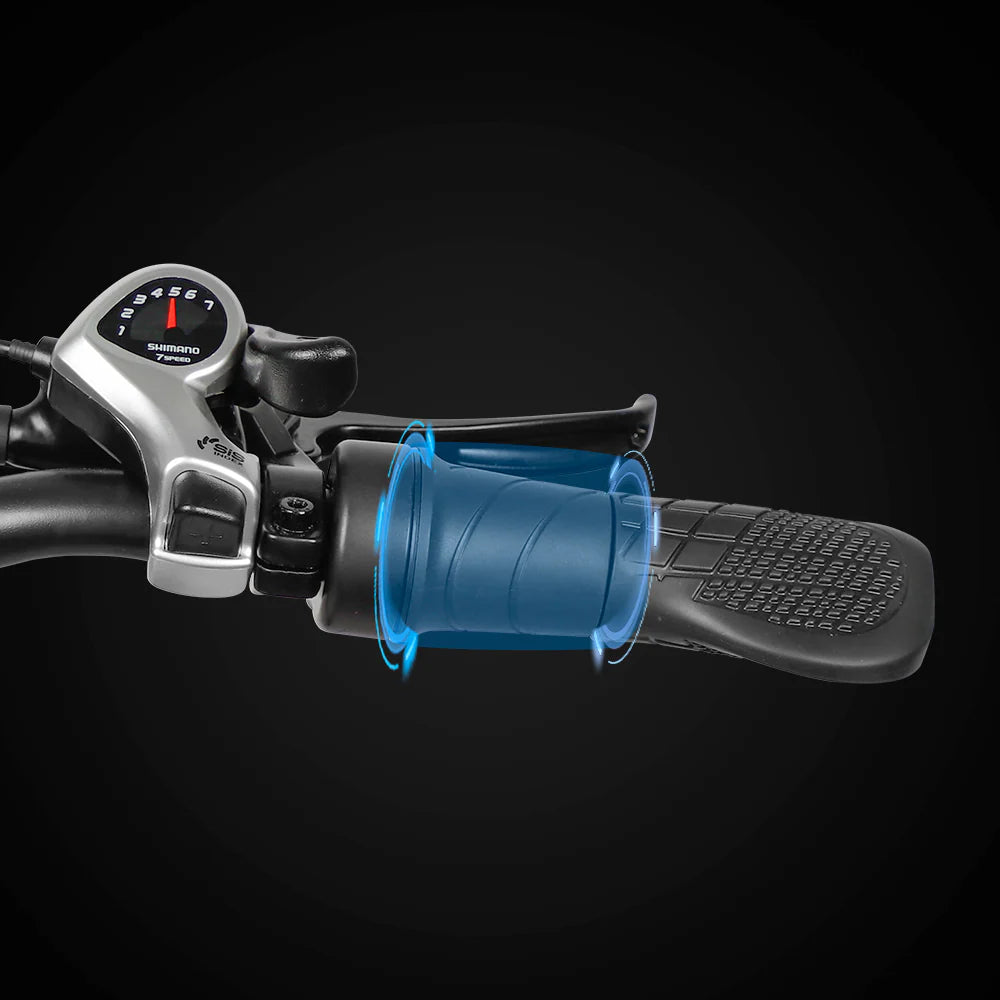

| Throttle | Half-Twist Throttle |

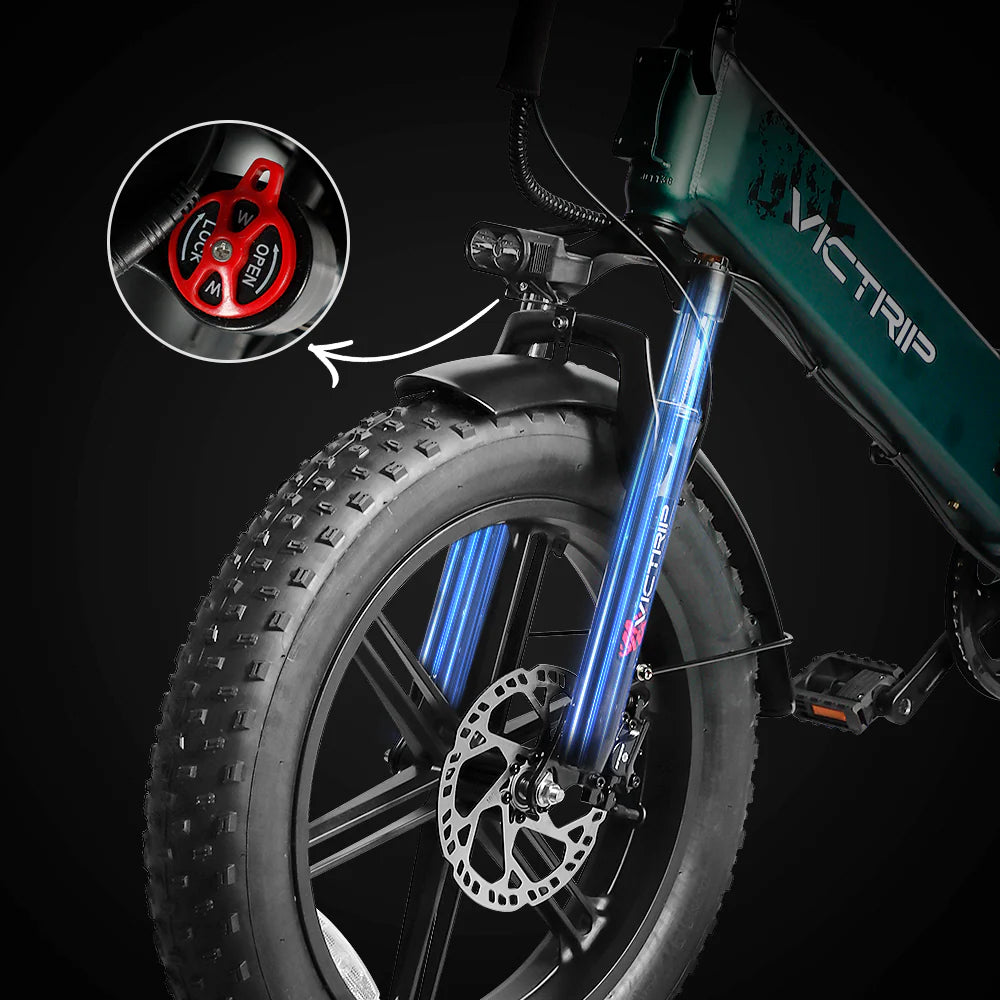

| Handlebar | Front handlebar with lock and adjustment function |
Victrip T5 Size
Size & Dimensions
Switch between grid and table view
Total Length
69.3 in
Handlebar Height
49.6 in
Seat Height
28.3 in
Seat Length
15 in
Handlebar Length
24.4 in
Wheelbase
51.2 in
Stand Height
26.4 in
Wheel Diameter
23.2 in
| Specification | Measurement |
|---|---|
| Total Length | 69.3 in |
| Handlebar to Ground Height | 49.6 in |
| Seat to Ground Height | 28.3 in |
| Seat Length | 15 in |
| Handlebar Length | 24.4 in |
| Wheelbase | 51.2 in |
| Stand Height | 26.4 in |
| Wheel Diameter | 23.2 in |
Victrip T5 What in the box

Victrip T5 Faq
Victrip T5 – Frequently Asked Questions
Is the Victrip T5 a fully electric bike?
Yes, the Victrip T5 is a fully electric bike that offers both pedal assist mode and full throttle mode.
You can ride it like a traditional bicycle or switch to electric power for a more effortless experience.
What is the maximum range on a full charge?
The Victrip T5 can travel approximately 40 to 60 kilometers on a single charge.
The actual range depends on factors such as rider weight, terrain, speed, and usage mode.
How long does it take to fully charge the battery?
It typically takes around 4 to 6 hours to fully charge the battery using the included charger.
For best performance, it is recommended to use the original charger provided in the box.
What items are included in the box?
The package includes the Victrip T5 electric bike, battery charger, toolkit for basic maintenance,
reflective safety vest, user manual, and front and rear fenders.
Does the bike require assembly after delivery?
The bike comes approximately 90% pre-assembled. You will only need to install a few components such as
the handlebar, pedals, and front wheel. Detailed instructions are provided in the manual.
Is there a warranty for the Victrip T5?
Yes, the Victrip T5 typically includes a limited warranty that covers the motor and battery.
Warranty duration and terms may vary depending on the seller or region.
What is the top speed of the Victrip T5?
The top speed is usually around 25–32 km/h depending on local regulations and riding mode.
67lbs(No batteries included)
Weight
250W
Motor Capacity
48V15Ah
Battery Capacity
25KM/H
Max Speed
Up to 90+KM
Range
